Power and Grounding Component Views
WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

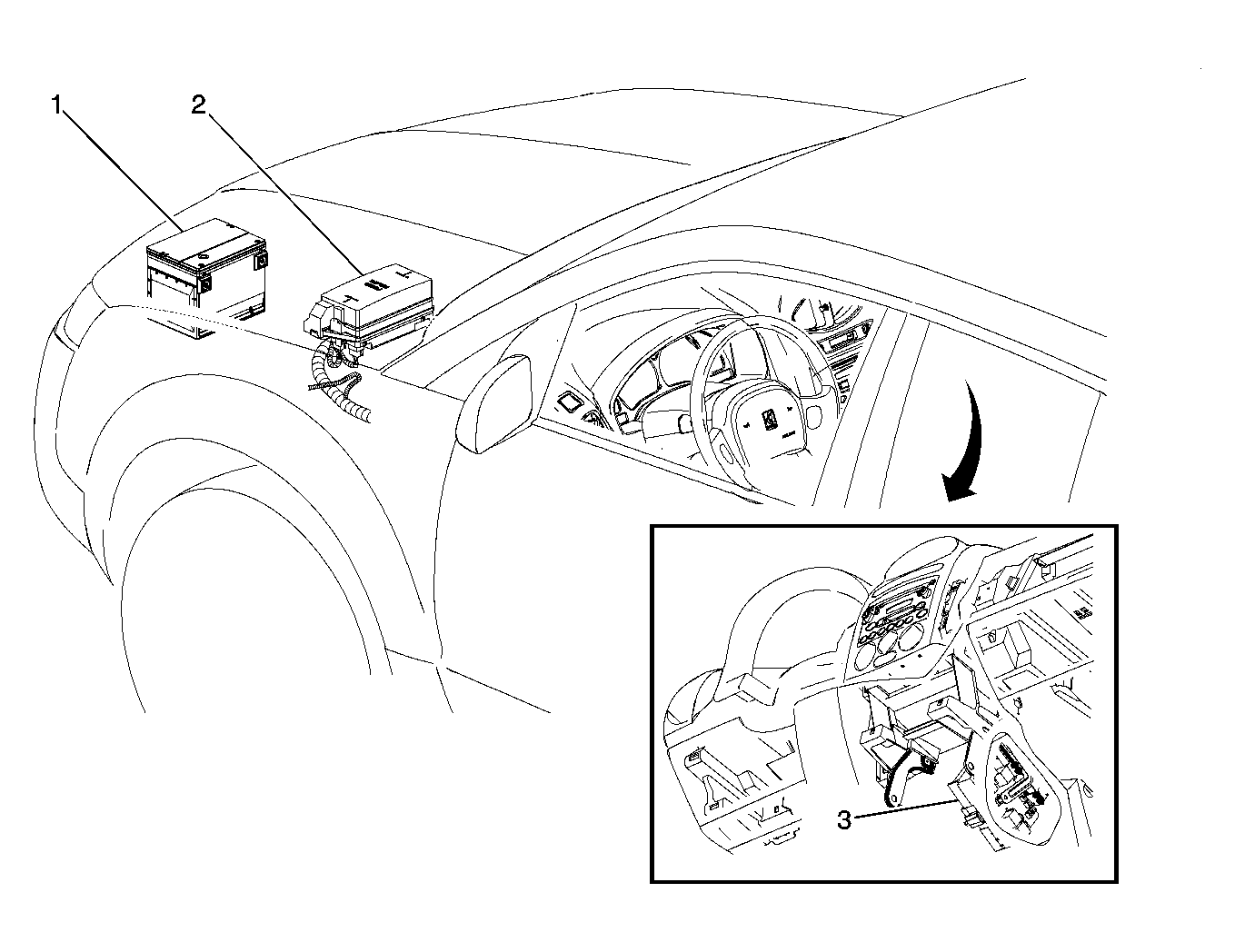

| Callout |
Component Name |
| 1 |
Battery |
| 2 |
Fuse Block-Underhood |
| 3 |
Fuse Block-I/P |
Courtesy of GENERAL MOTORS CORP.

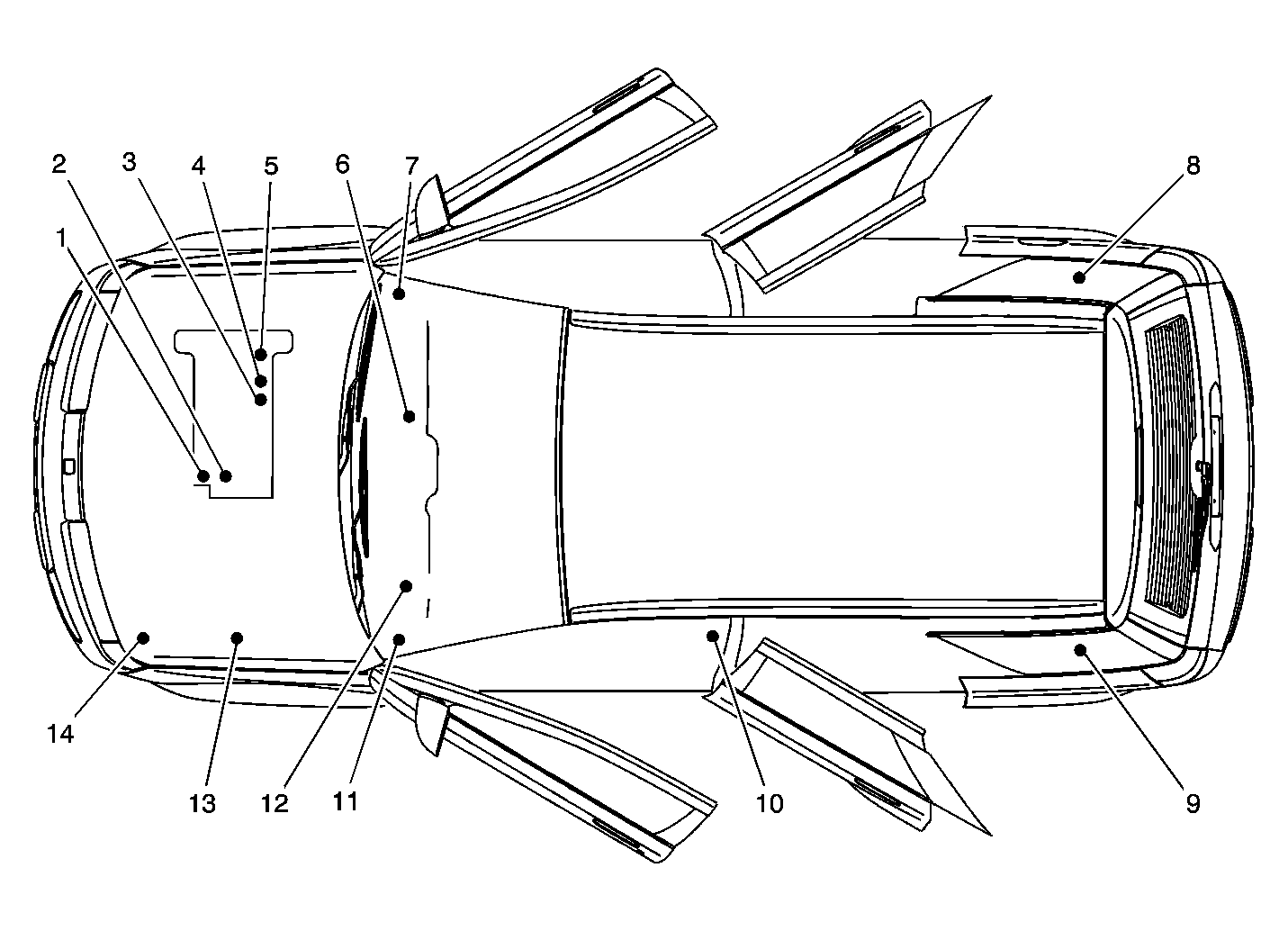

| Callout |
Component Name |
| 1 |
G105 |
| 2 |
G107 |
| 3 |
Splice Pack SP114 (w/ L66 Only) |
| 4 |
Splice Pack SP113 (w/ L66 Only) |
| 5 |
G109 (w/ L66 Only) |
| 6 |
G203 (Secured on I/P Fuse Block) |
| 7 |
G201, Splice Pack SP201 |
| 8 |
G403, Splice Pack SP403 |
| 9 |
G401, Splice Pack SP401 |
| 10 |
G301, Splice Pack SP301 |
| 11 |
G205, Splice Pack SP205, Splice Pack SP203 |
| 12 |
G207 |
| 13 |
G103 |
| 14 |
G101, Splice Pack SP101 |
