Master Cylinder Fluid Level Sensor Replacement
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

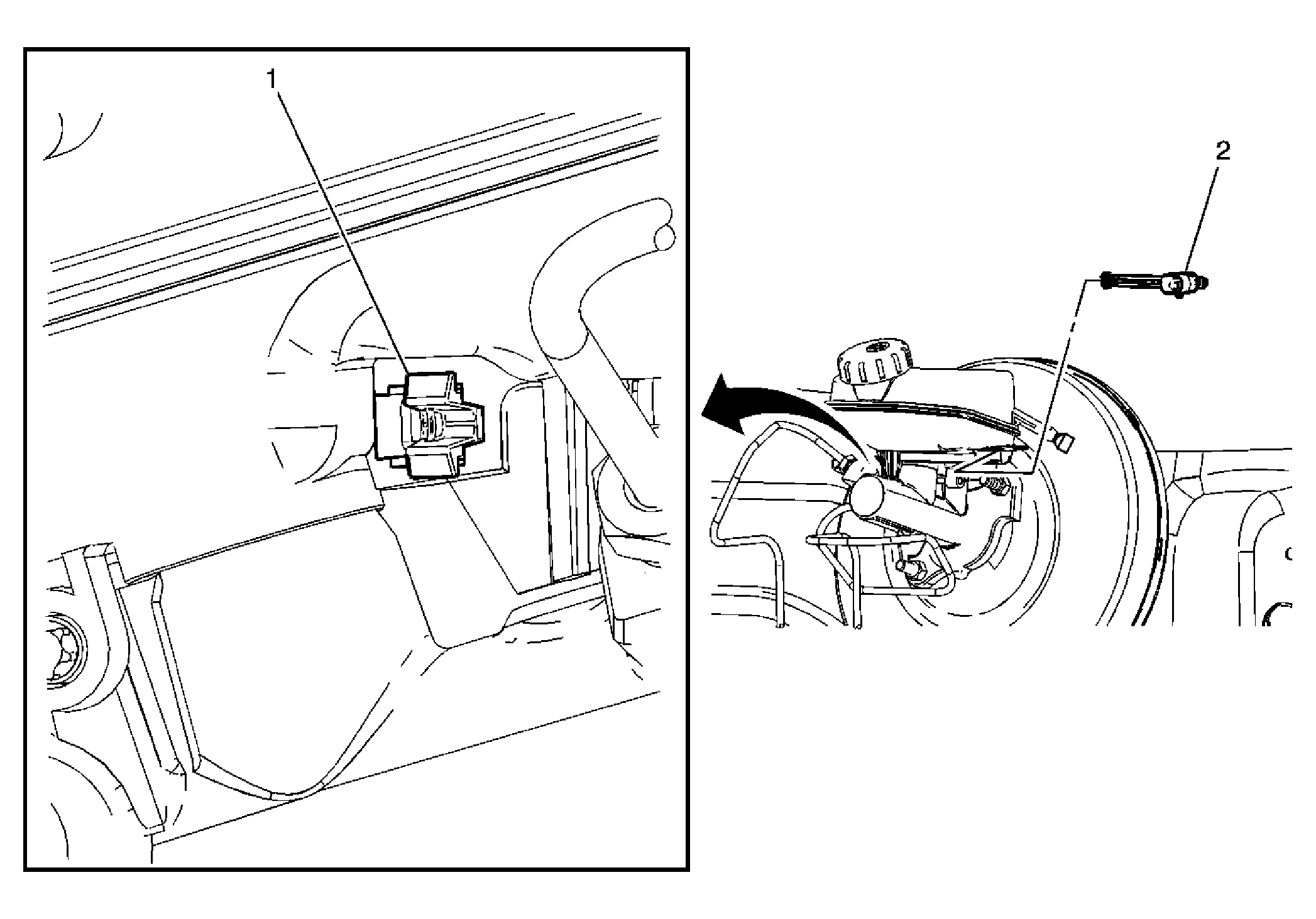

Courtesy of GENERAL MOTORS CORP. Master Cylinder Fluid Level Sensor Replacement
| Callout |
Component Name |
| 1 |
Retainer, Master Cylinder Fluid Level Sensor
Tip:
Using a suitable tool, compress the retaining tabs. |
| 2 |
Sensor, Master Cylinder Fluid Level
Tip:
Disconnect the brake fluid level sensor electrical connector. |
