Power Distribution Schematics

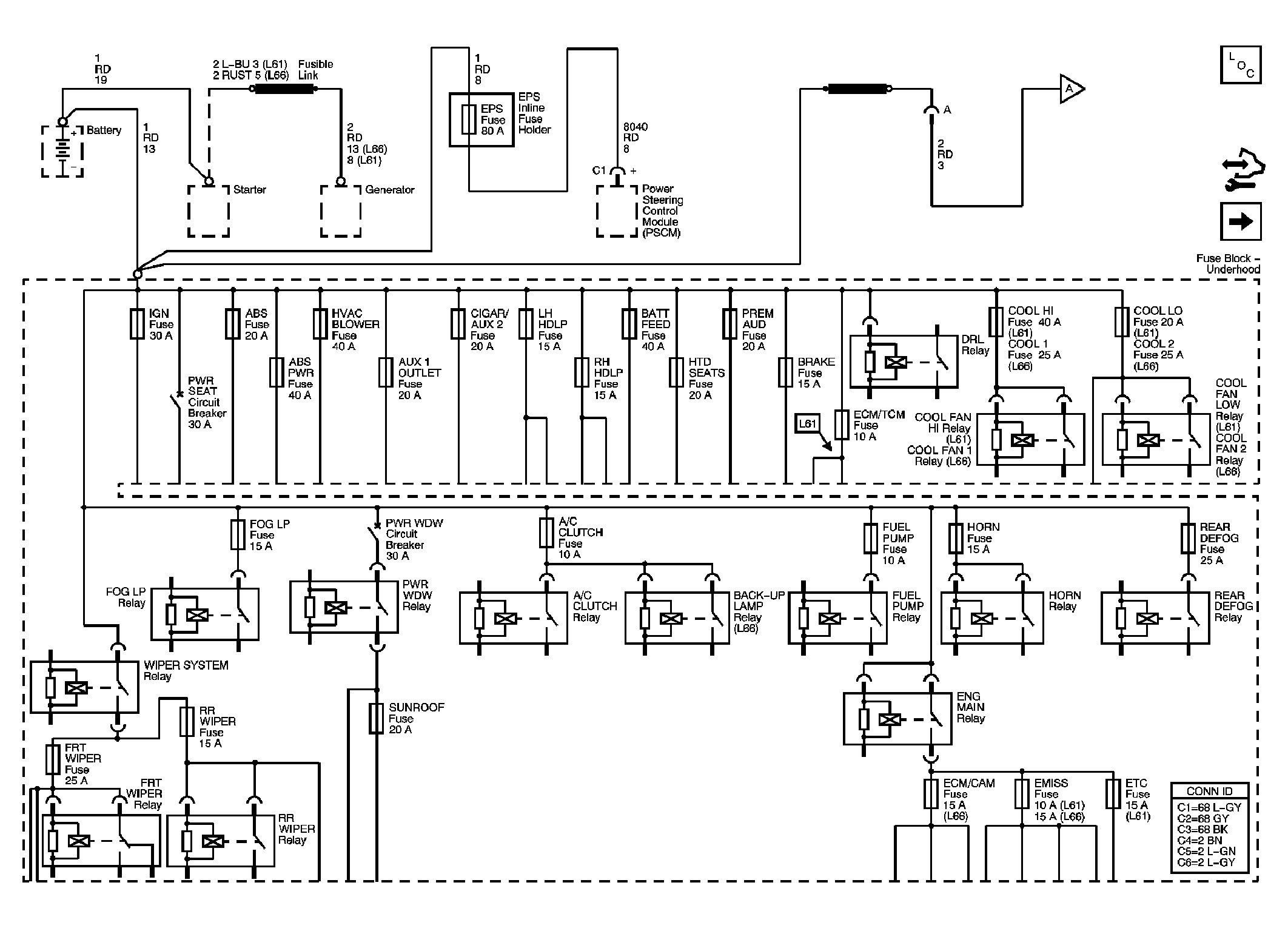

Fig 1: B+ Bus and EPS Fuse

Courtesy of GENERAL MOTORS CORP.

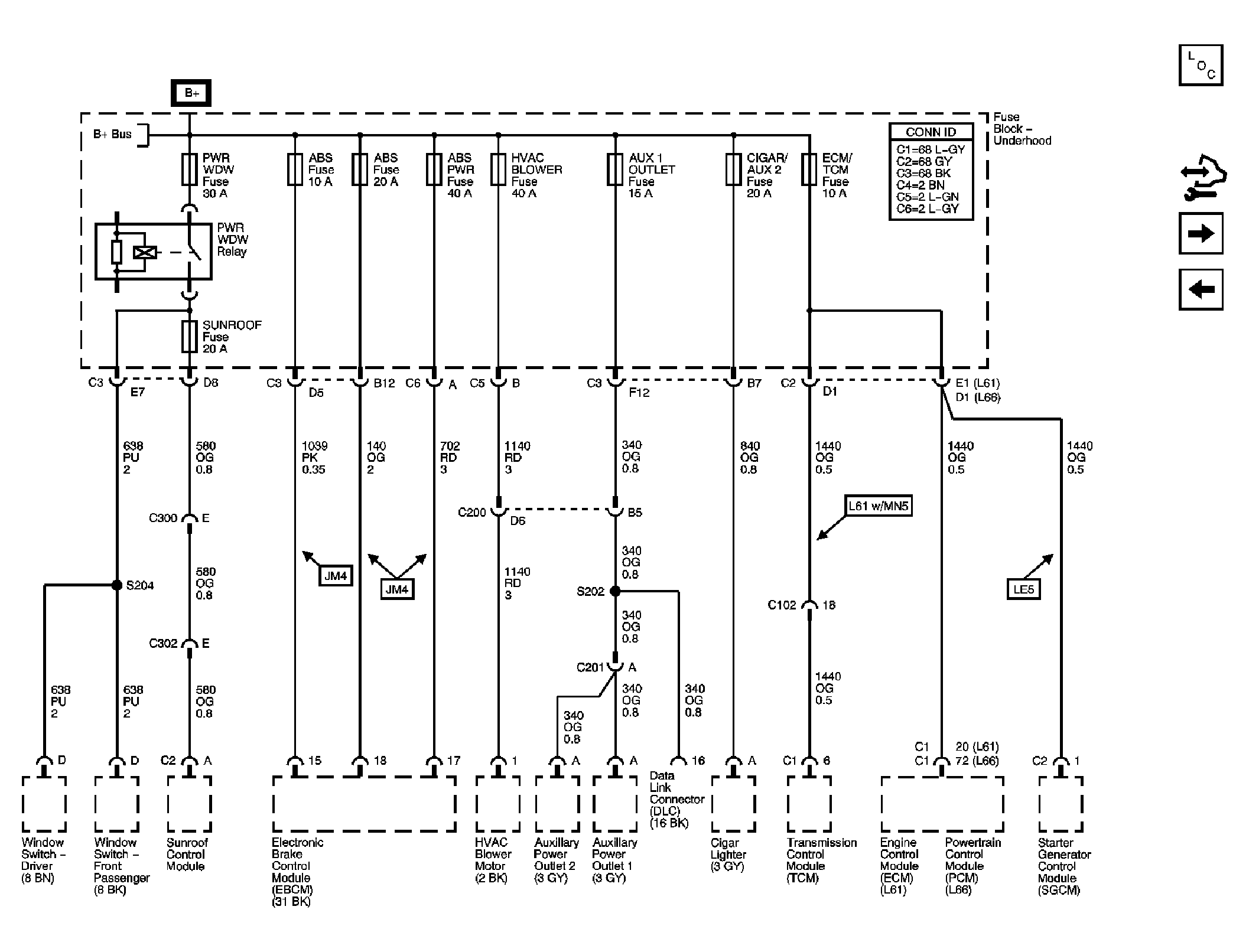

Fig 2: SUNROOF, PWR WDW, ABS 10A, ABS 20A, ABS PWR, HVAC BLOWER, AUX1 OUTLET, CIGAR/AUX2, and ECM/TCM Fuses

Courtesy of GENERAL MOTORS CORP.

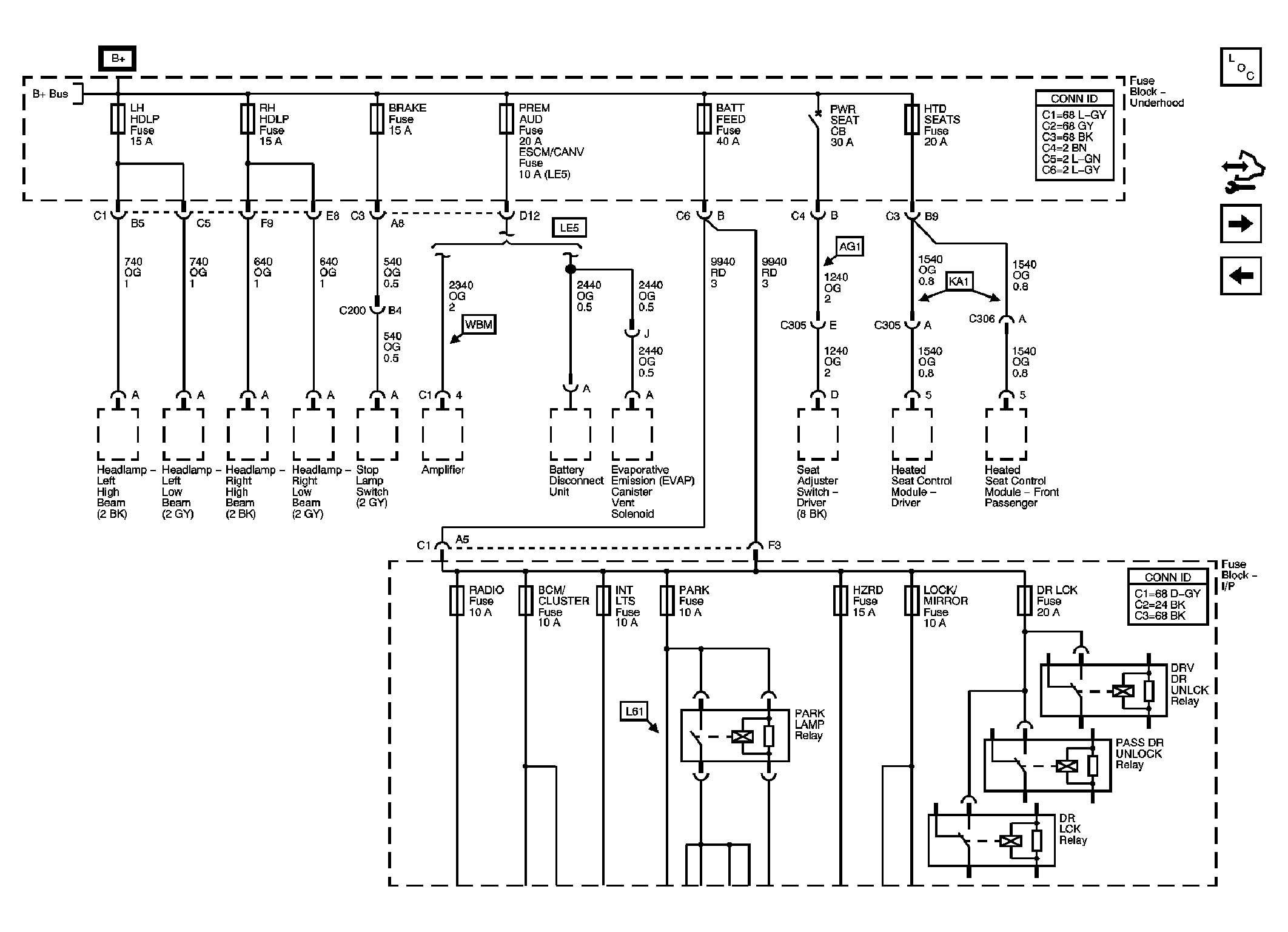

Fig 3: PWR SEAT Circuit Breaker, LH HDLP, RH HDLP, BRKE, PREM AUD, BATT FEED, and HTD SEATS Fuses

Courtesy of GENERAL MOTORS CORP.

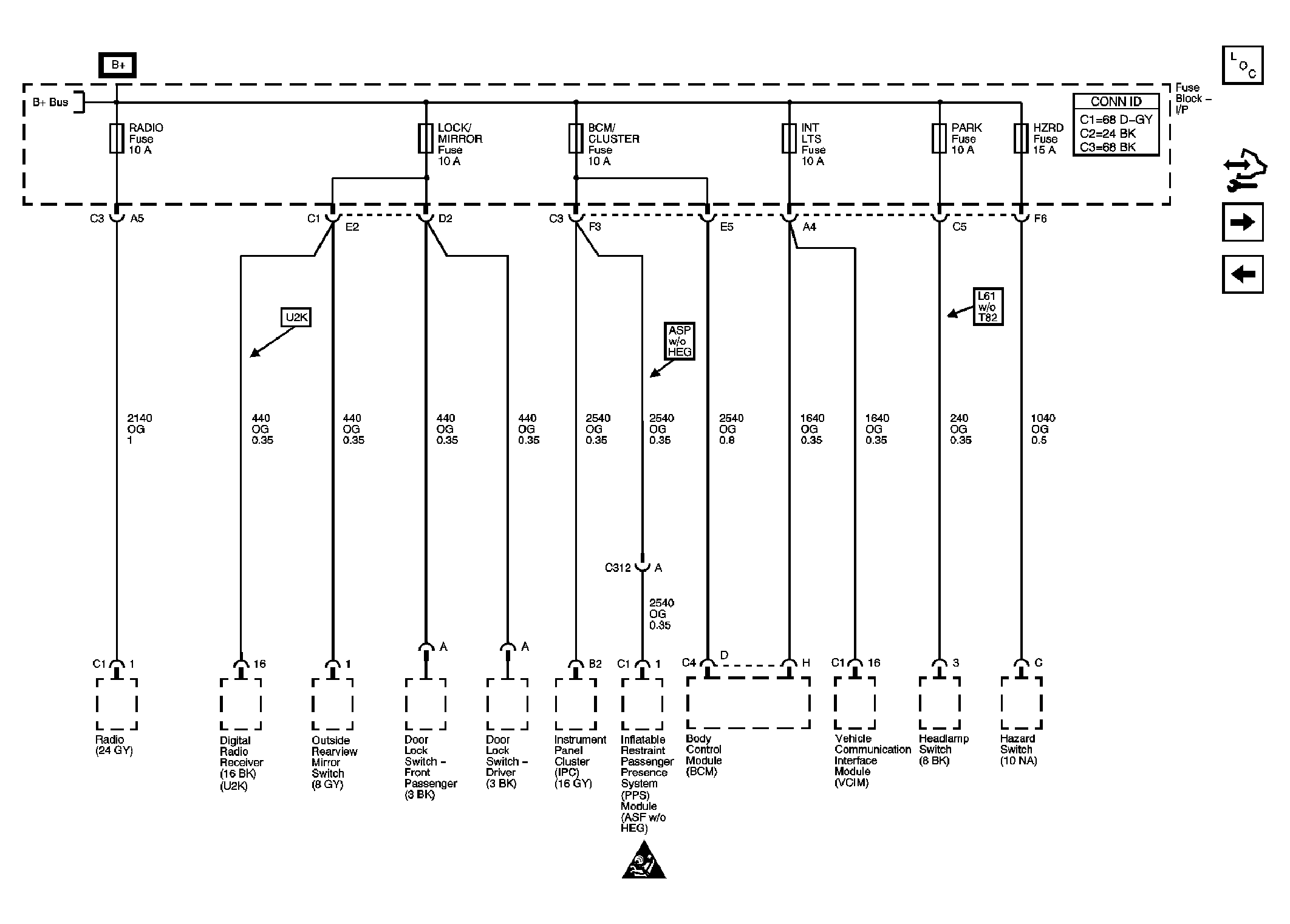

Fig 4: RADIO, LOCK/MIRROR, BCM/CLUSTER, INT LTS, PARK, and HZRD Fuses

Courtesy of GENERAL MOTORS CORP.

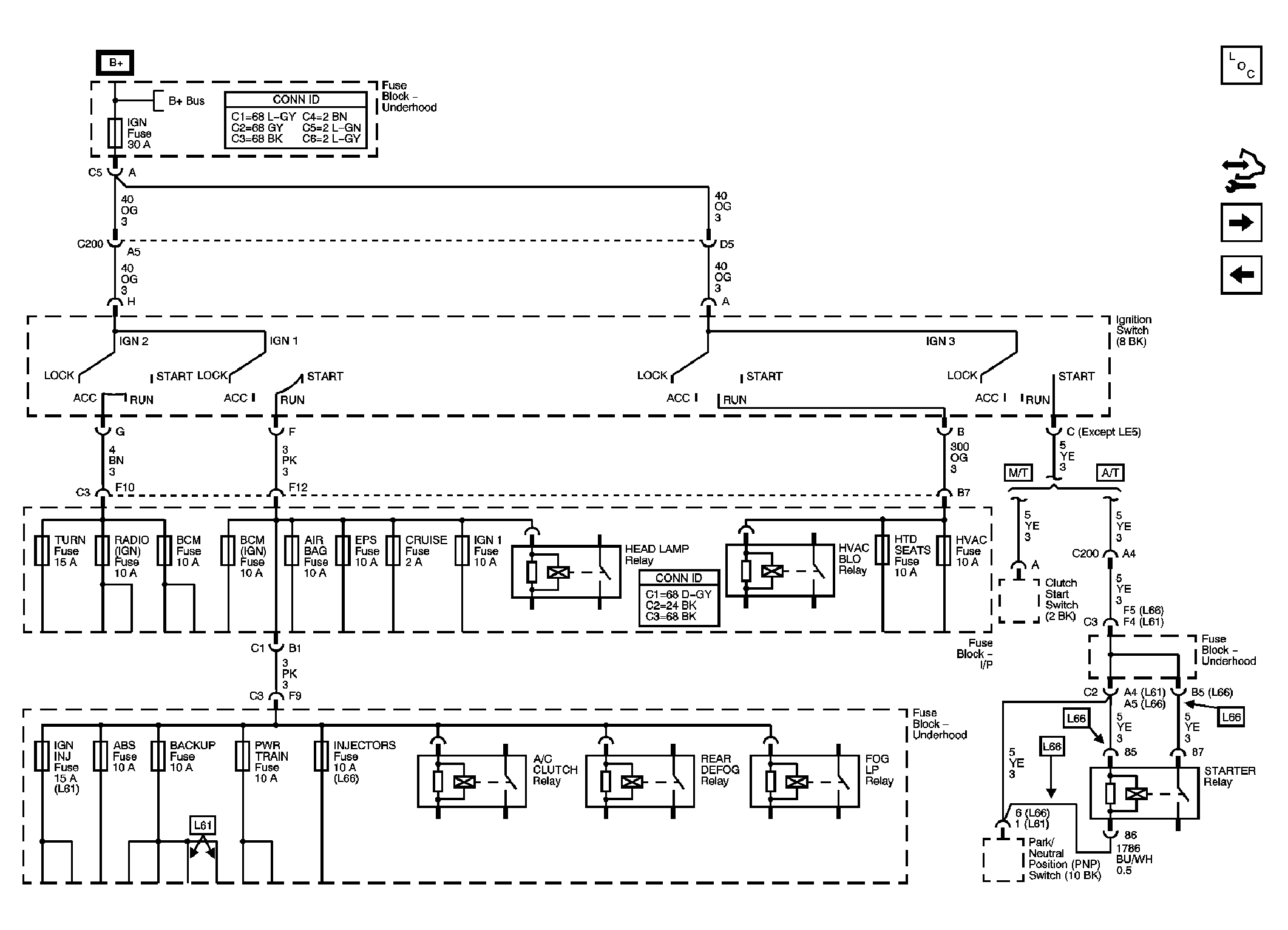

Fig 5: IGN Fuse and Ignition Switch Circuits

Courtesy of GENERAL MOTORS CORP.

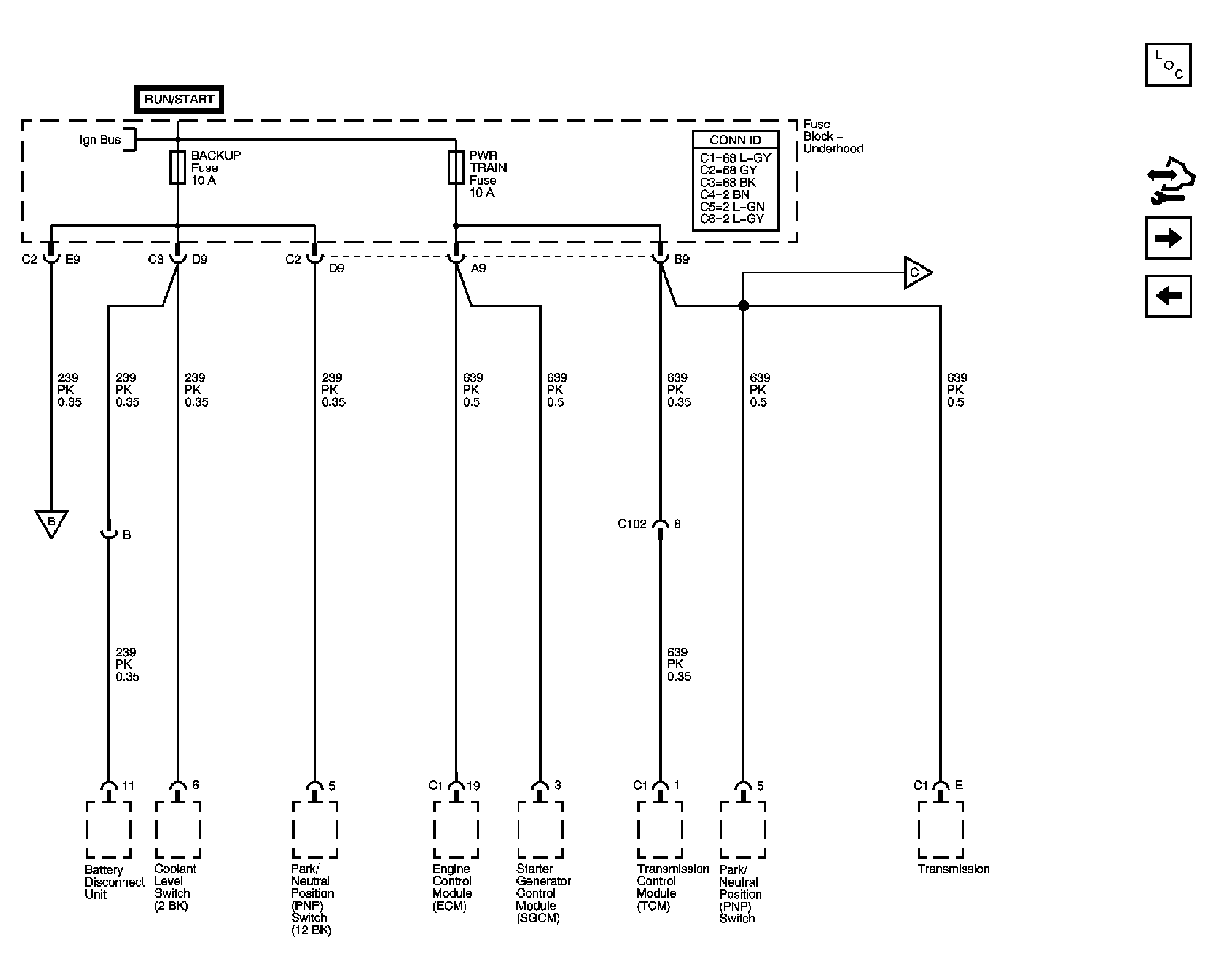

Fig 6: BACKUP, PWR TRAIN, 10A ABS, and INJECTOR Fuses (Except LAT)

Courtesy of GENERAL MOTORS CORP.

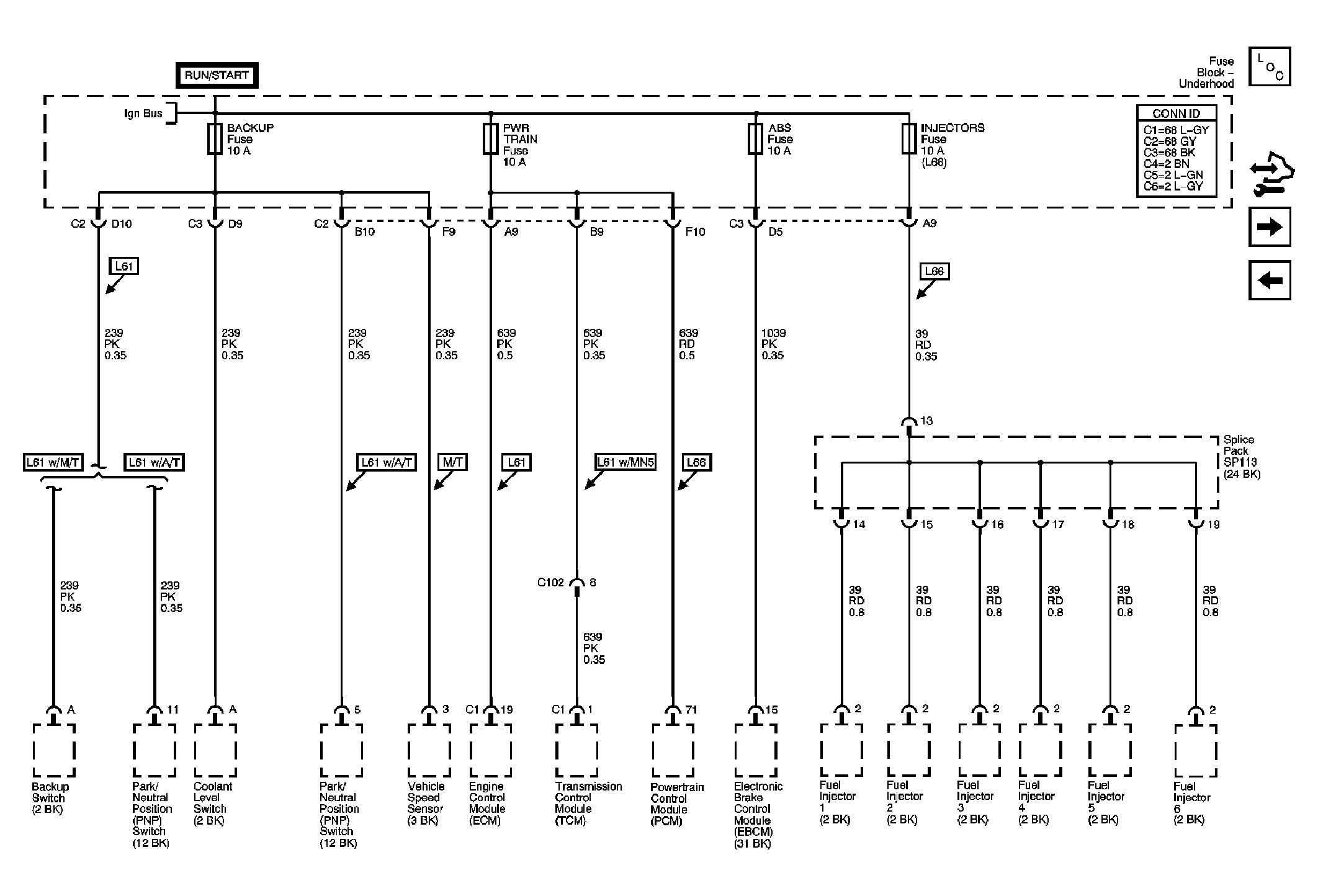

Fig 7: INJECTORS (L66), BACKUP, PWR TRAIN, and 10A ABS Fuses

Courtesy of GENERAL MOTORS CORP.

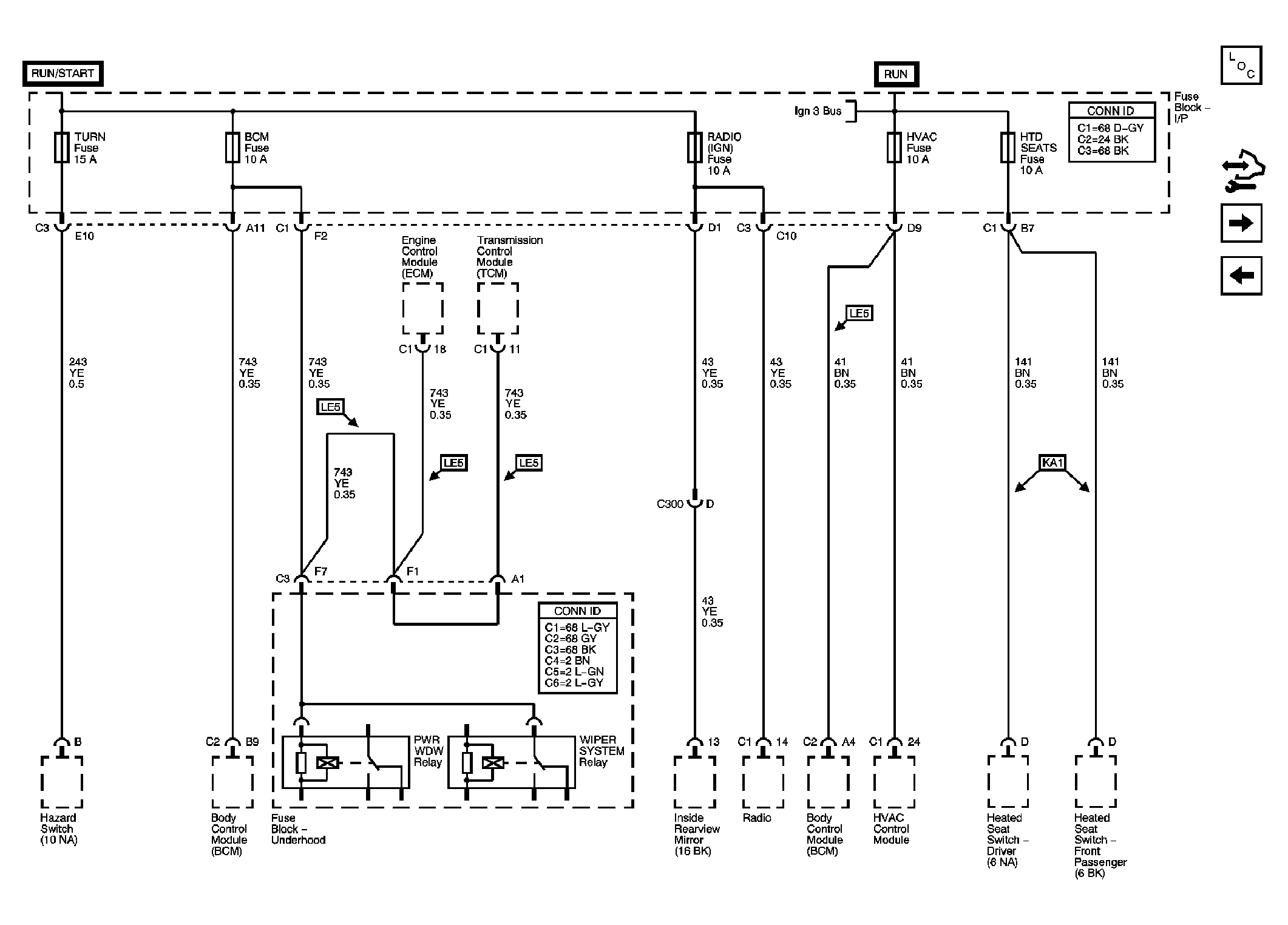

Fig 8: TURN, BCM, RADIO (IGN), HVAC, and HTD SEATS Fuses

Courtesy of GENERAL MOTORS CORP.

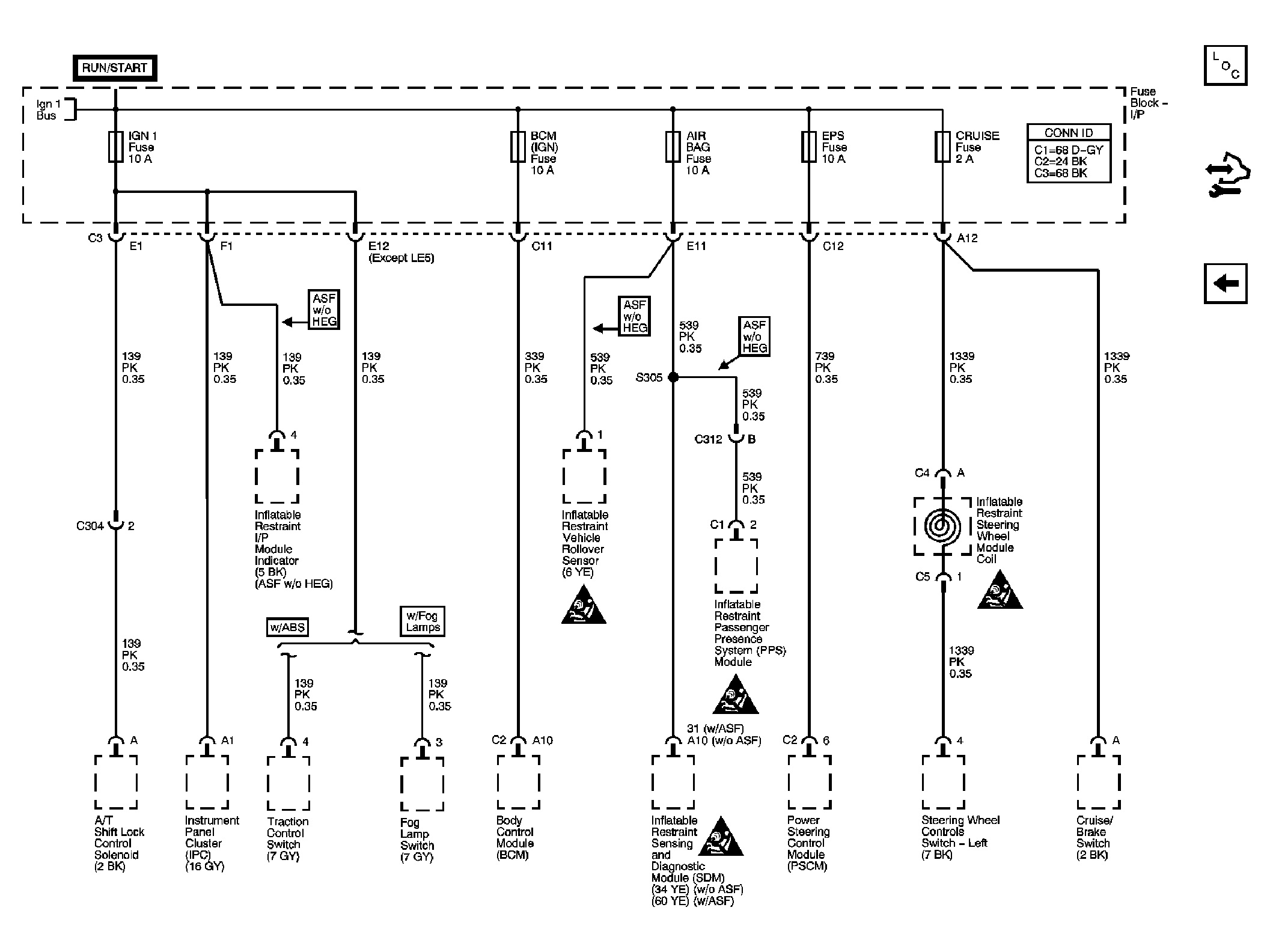

Fig 9: IGN 1, BCM (IGN), AIR BAG, EPS, and CRUISE Fuses

Courtesy of GENERAL MOTORS CORP.

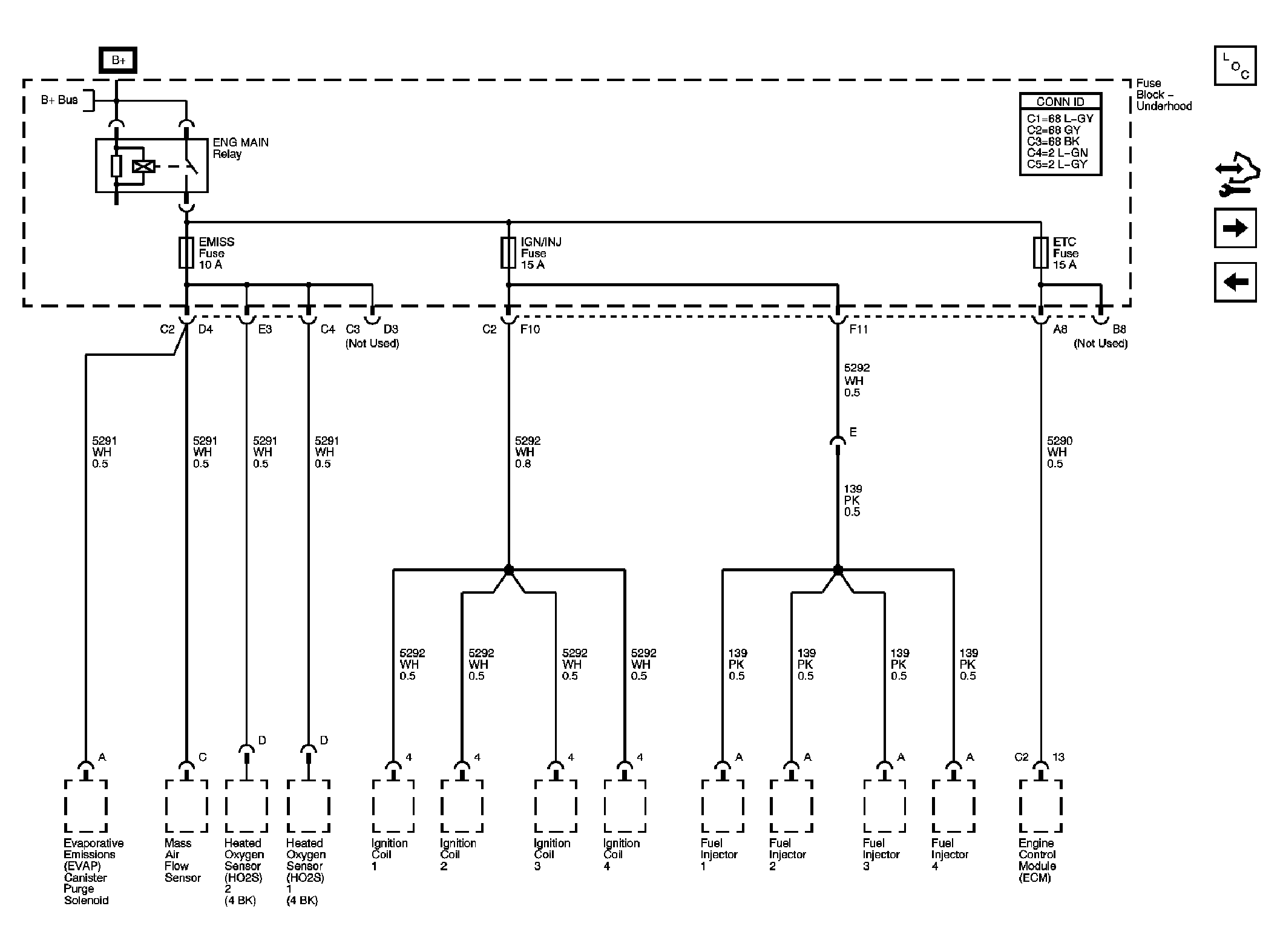

Fig 10: IGN/INJ, EMISS and ETC Fuses L61

Courtesy of GENERAL MOTORS CORP.

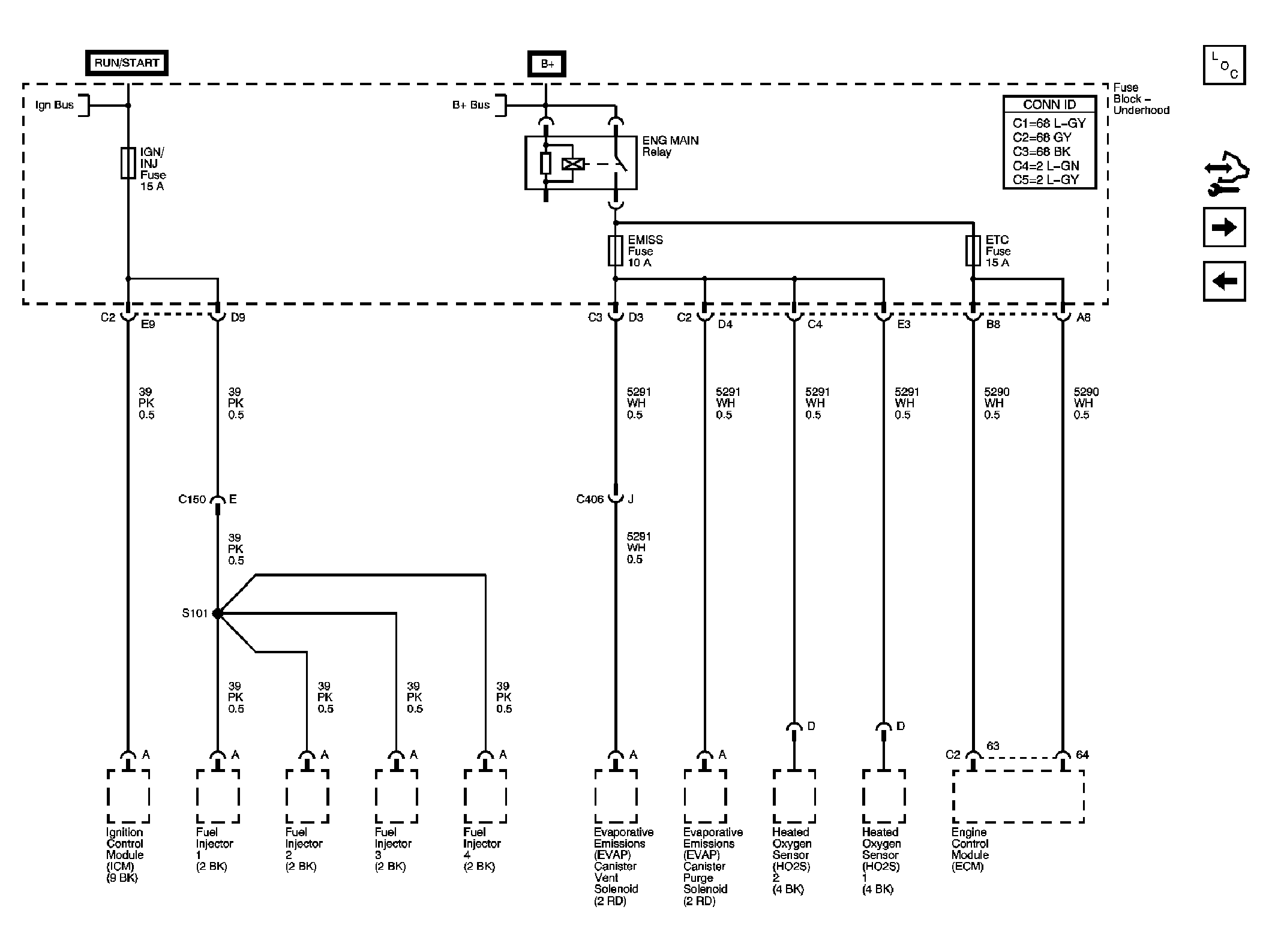

Fig 11: EMISS, IGN/INJ, and ETC Fuses (LAT)

Courtesy of GENERAL MOTORS CORP.

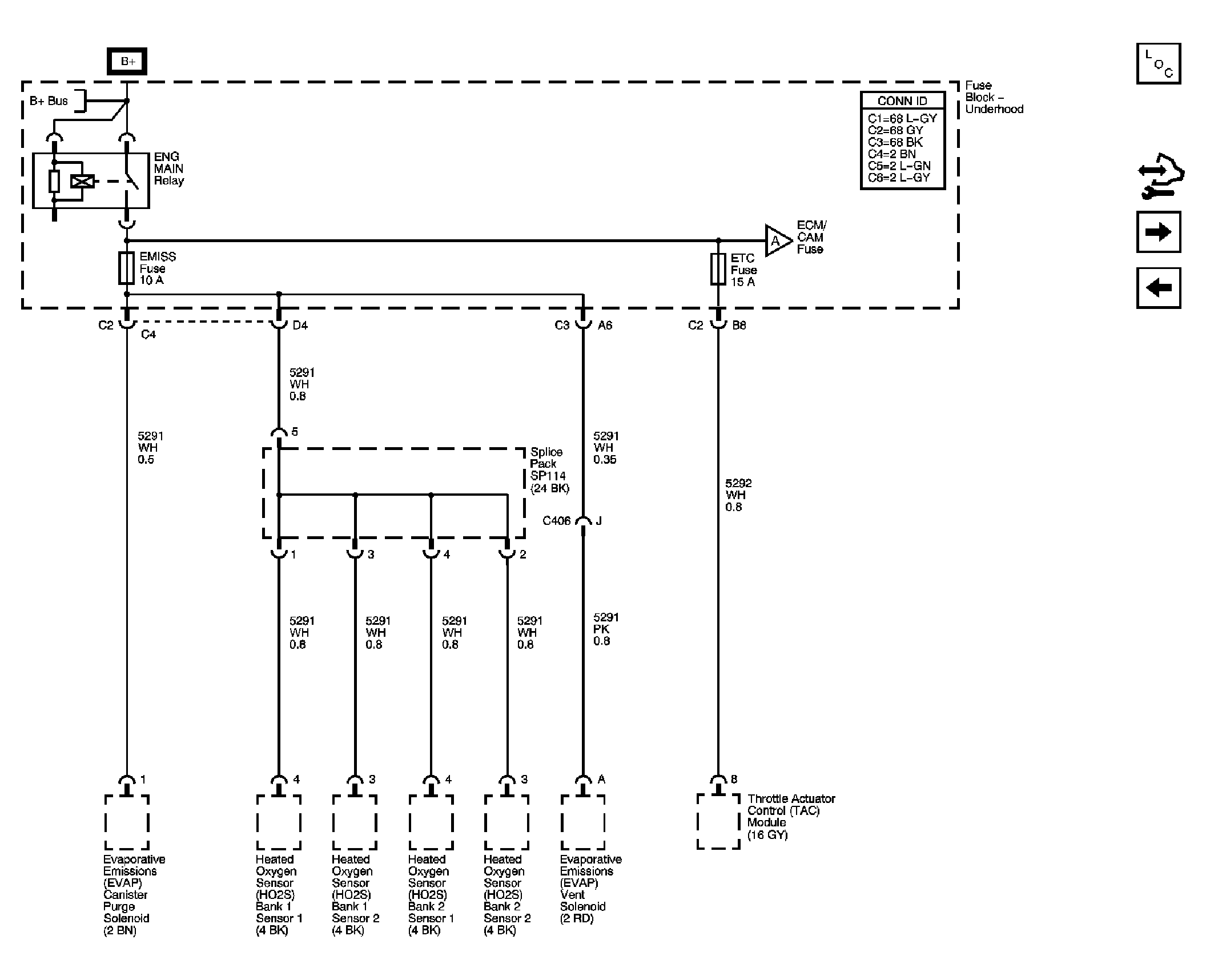

Fig 12: EMISS and ETC Fuses L66

Courtesy of GENERAL MOTORS CORP.

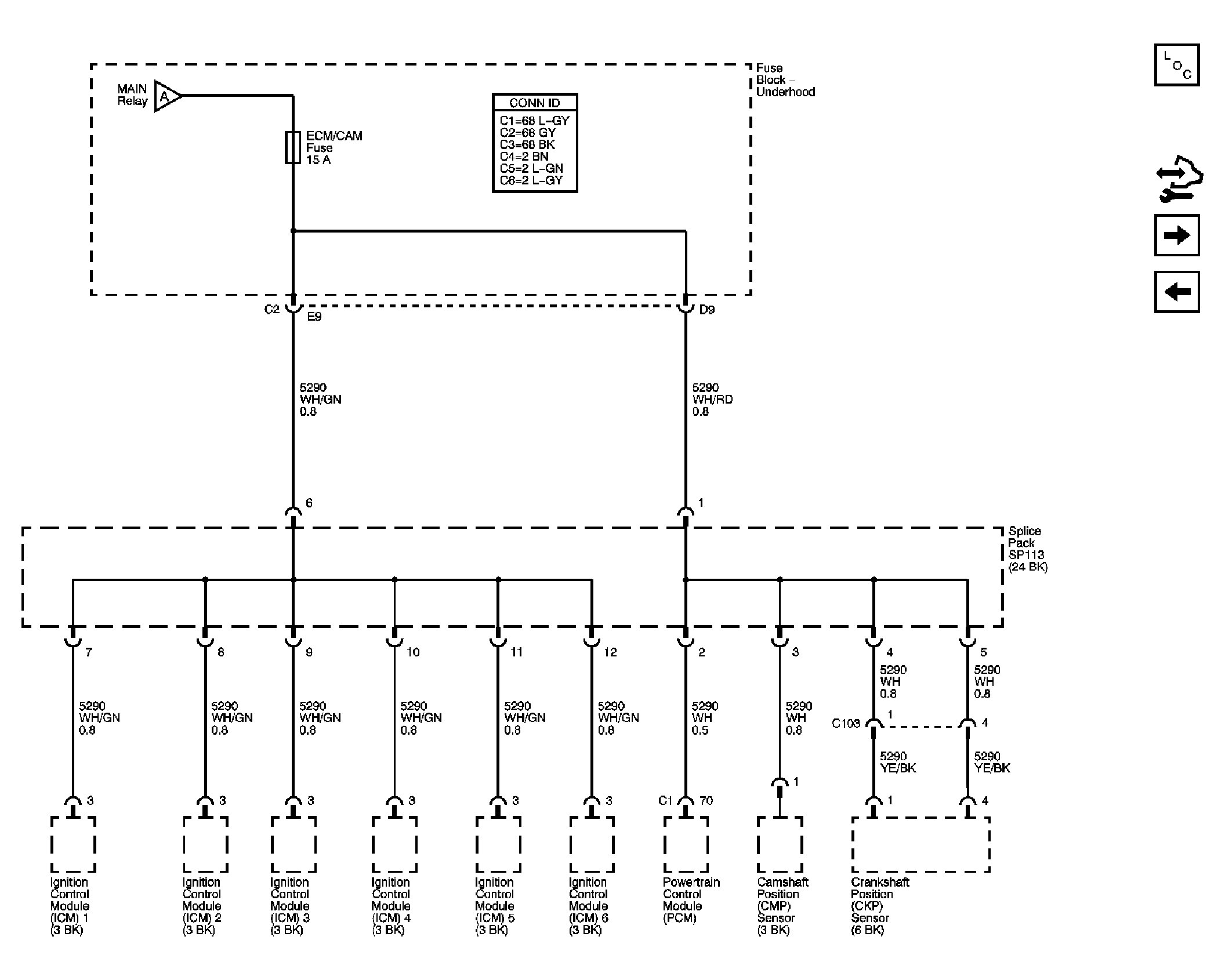

Fig 13: ECM/CAM and Fuse L66

Courtesy of GENERAL MOTORS CORP.

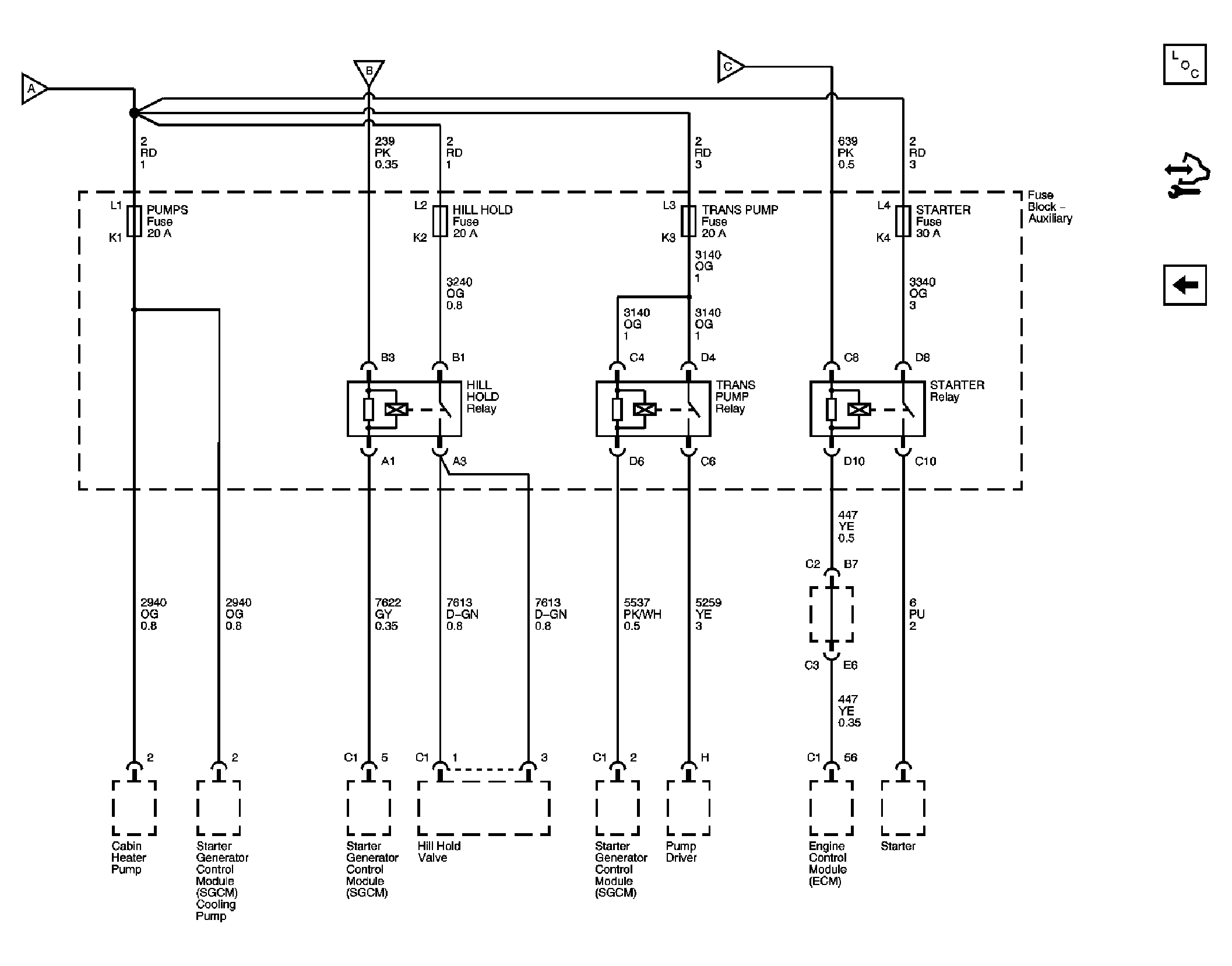

Fig 14: Auxiliary Fuse BLock (LAT)

Courtesy of GENERAL MOTORS CORP.
