Installation Procedure

    Fig 1: Removing/Installing Wheel Speed Sensor
    GM929664Courtesy of GENERAL MOTORS CORP.
  1. Install the wheel speed sensor through the drum brake backing plate to the wheel bearing/hub assembly.
  2. Seat the wheel speed sensor harness grommet into the backing plate.
    3. NOTE: Refer to Fastener Notice .
  3. Install the wheel speed sensor mounting bolt.

    Tighten:  Tighten the bolt to 8 N.m (71 lb in).

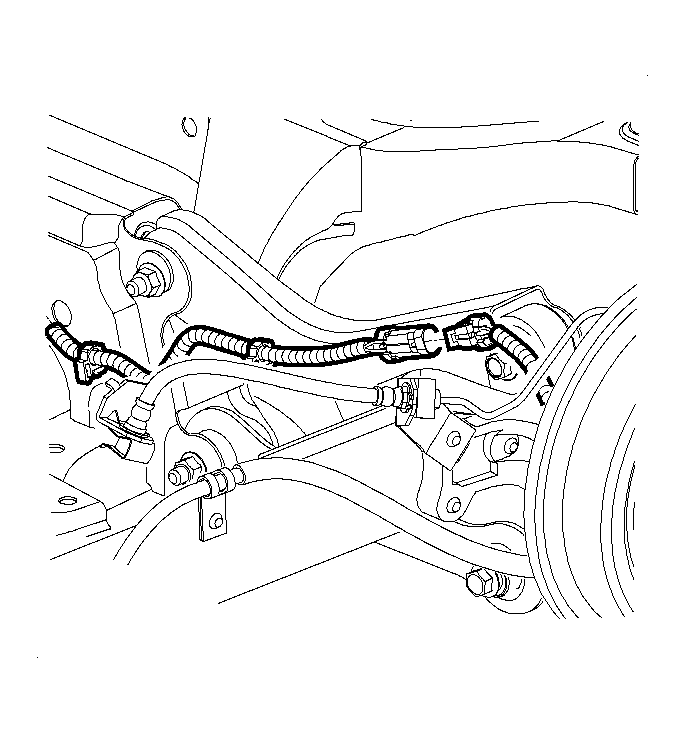

    4. Fig 2: Disconnecting/Connecting Wheel Speed Sensor Electrical Connector
    GM933149Courtesy of GENERAL MOTORS CORP.
  4. Connect the wheel speed sensor electrical connector.
  5. Install the brake shoes. Refer to Brake Shoe Replacement .
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
