Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

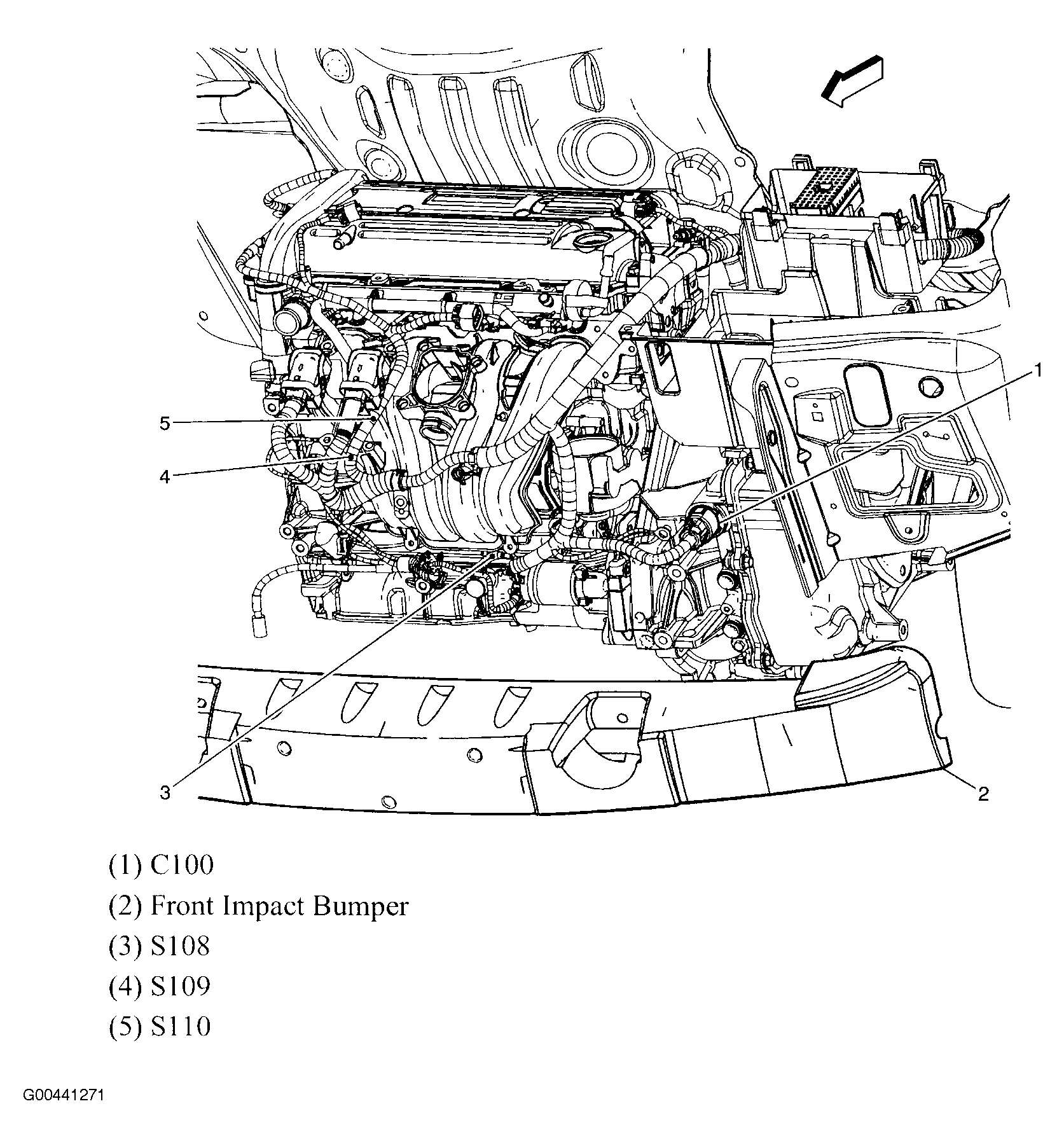

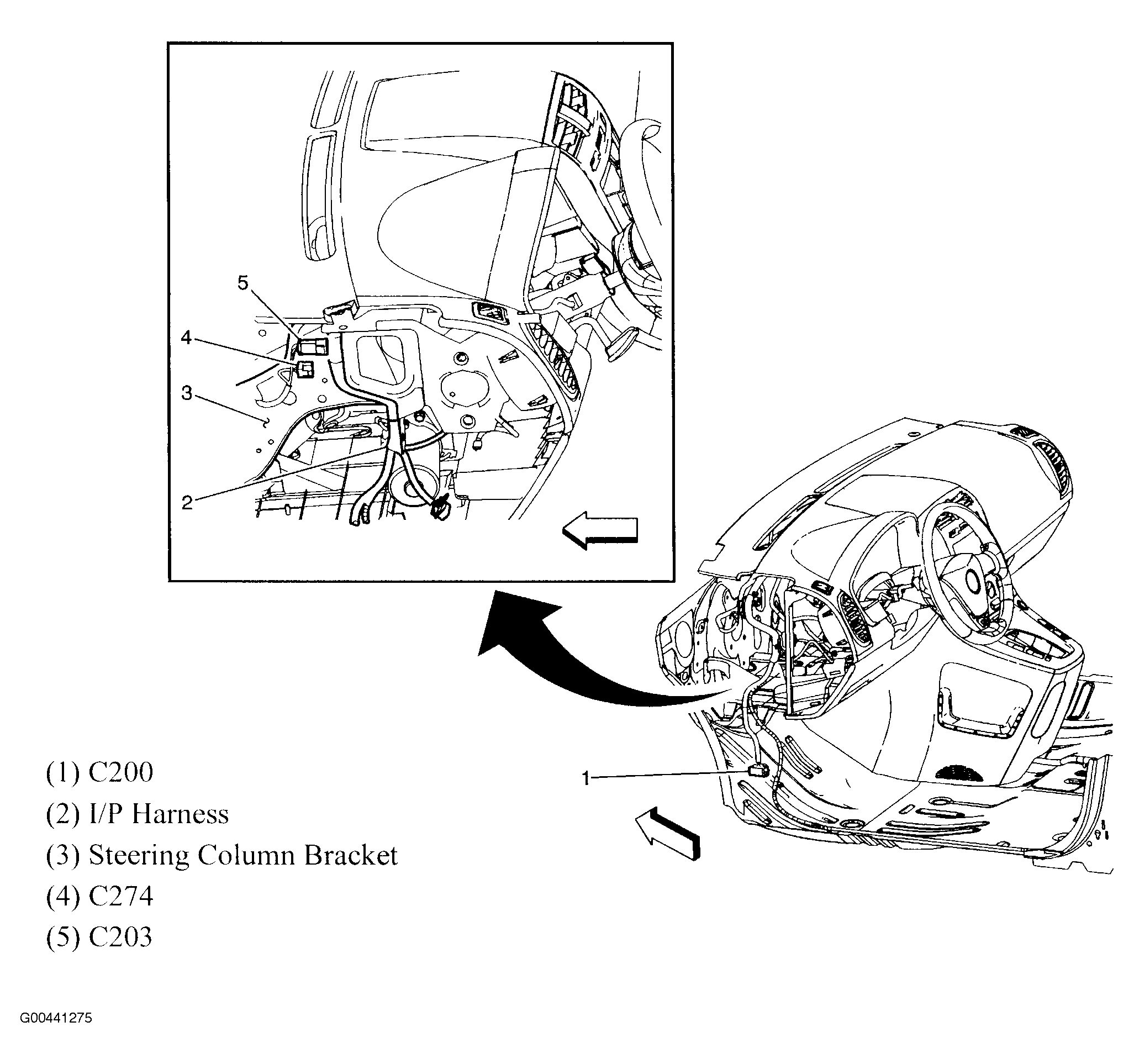

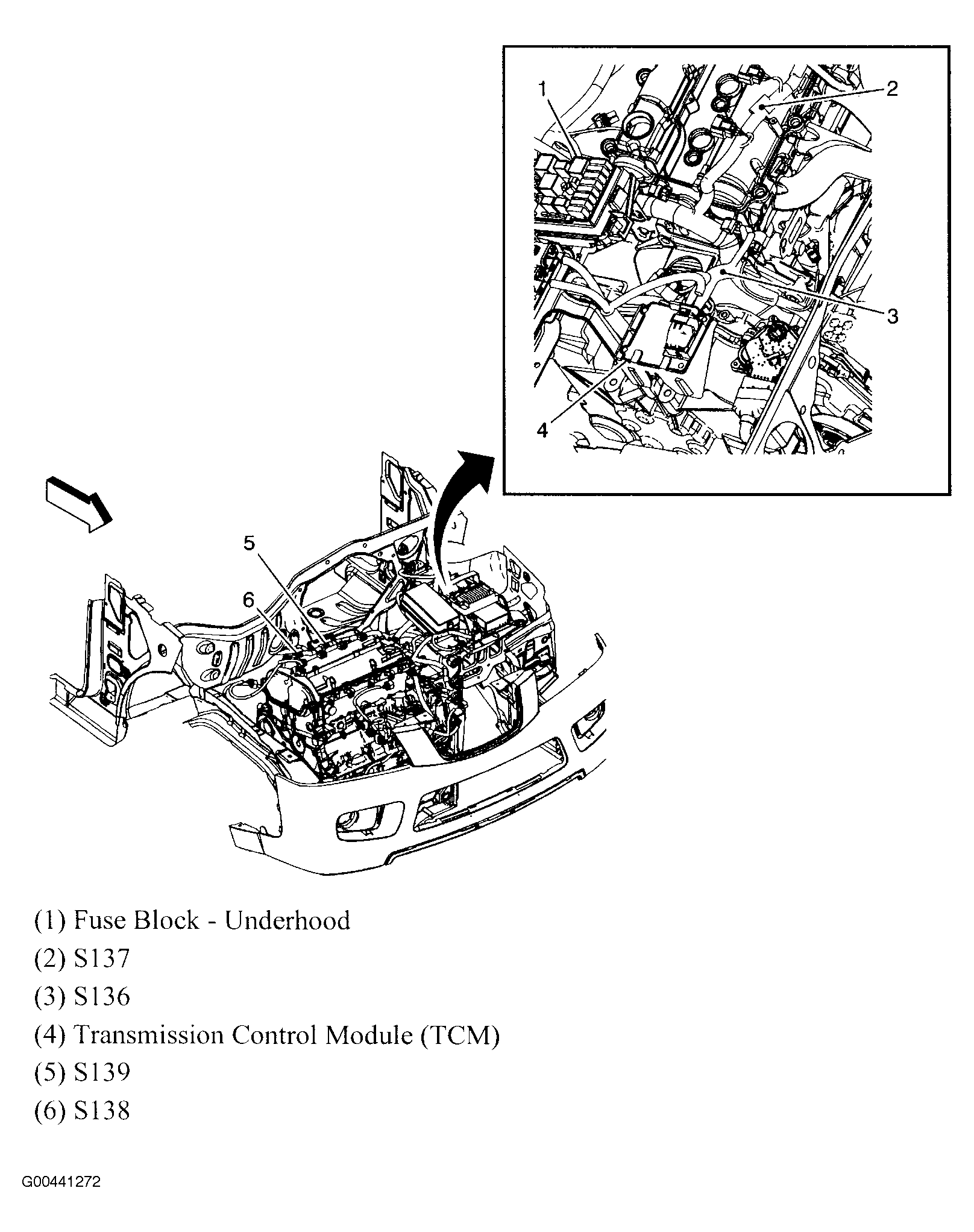

Fig 1: Engine Compartment & Center Of Dash
Courtesy of GENERAL MOTORS CORP.

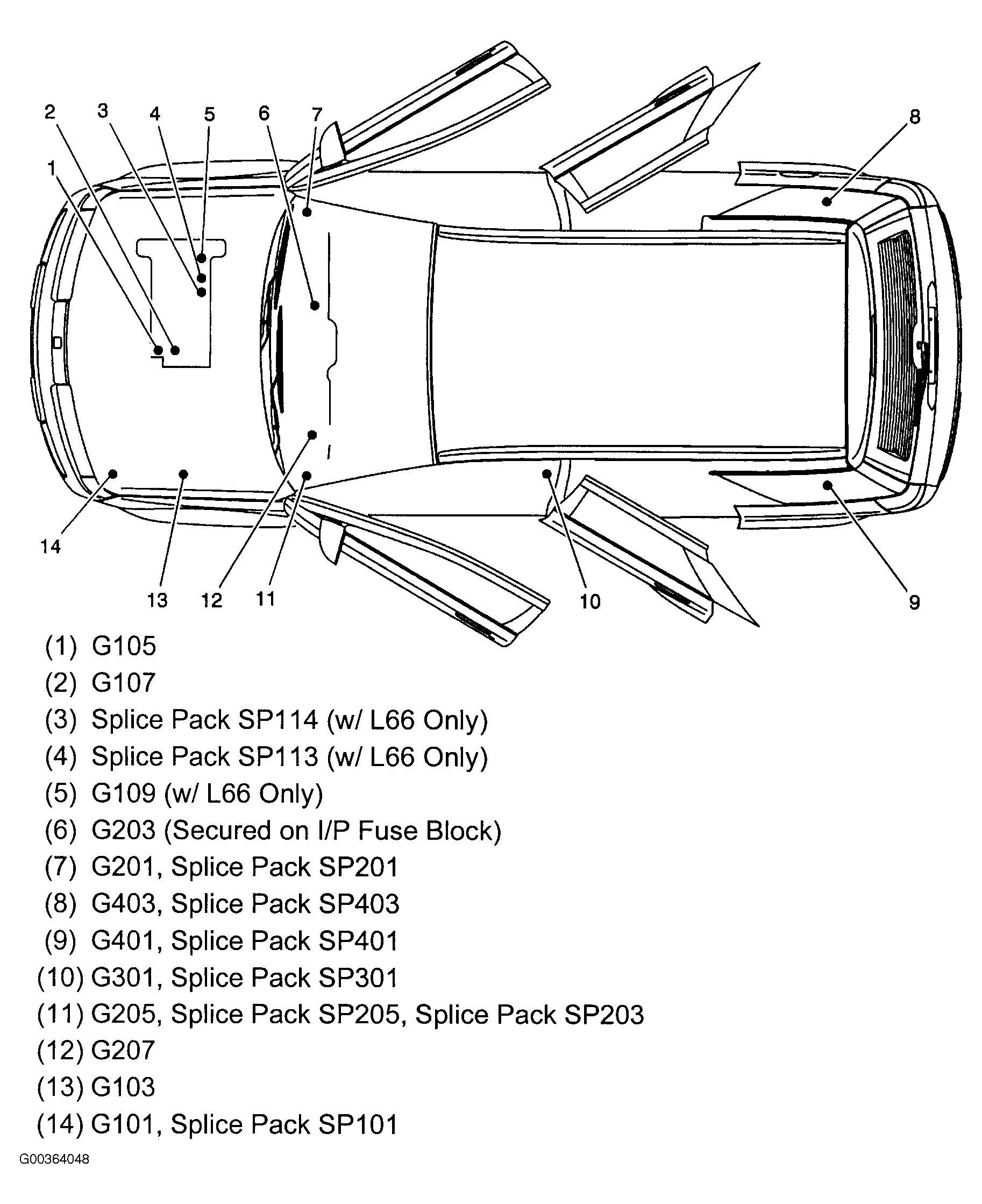

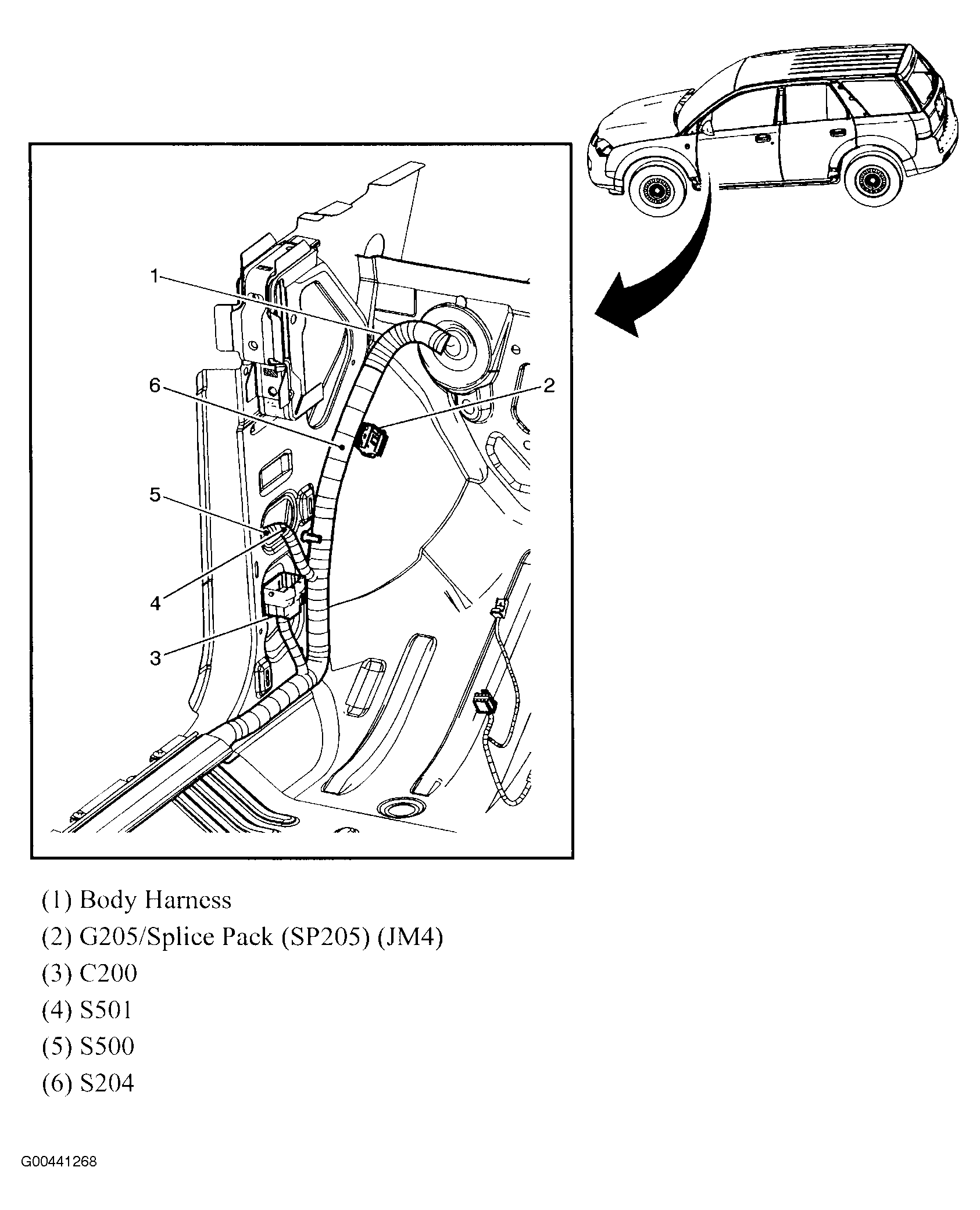

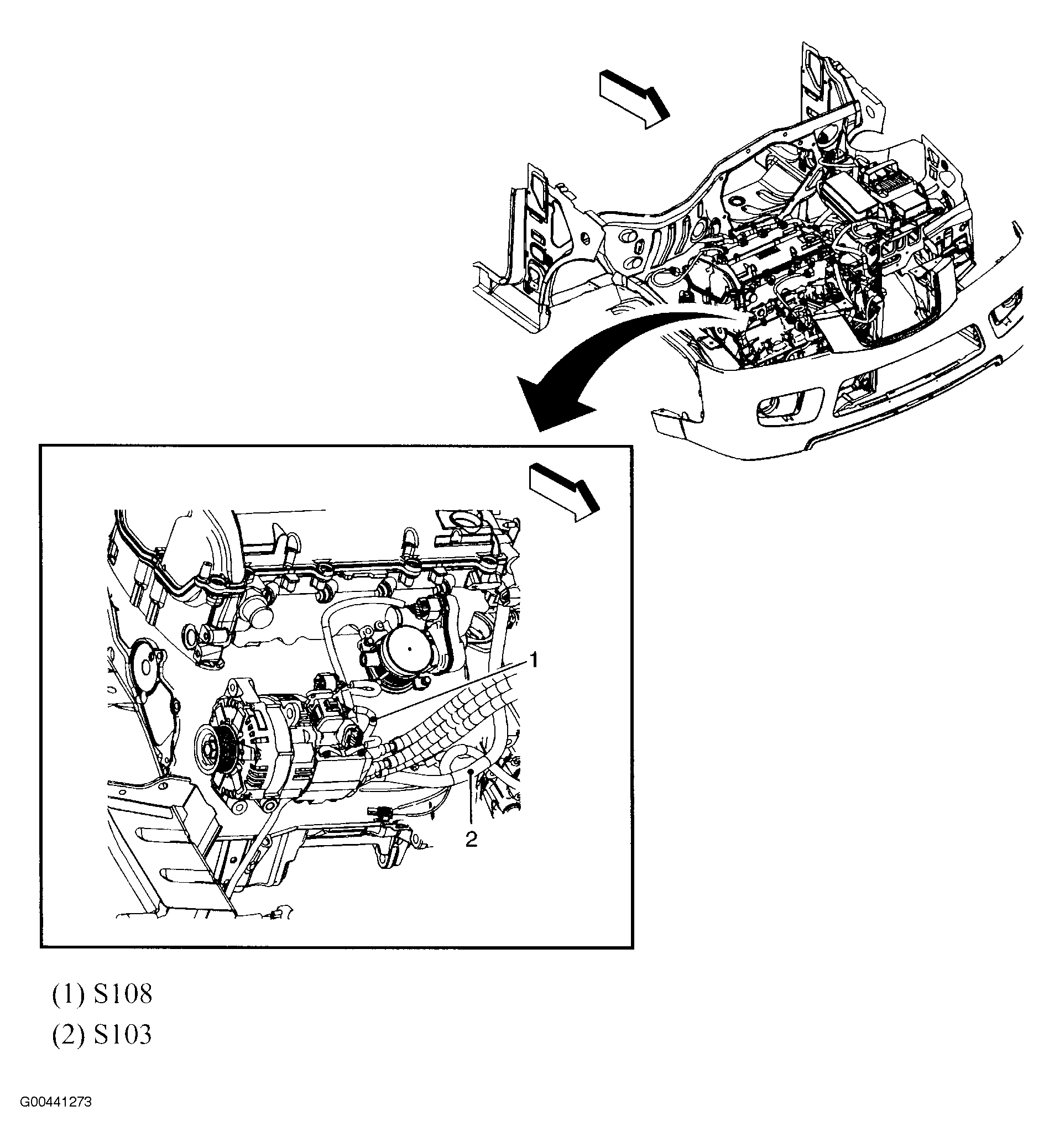

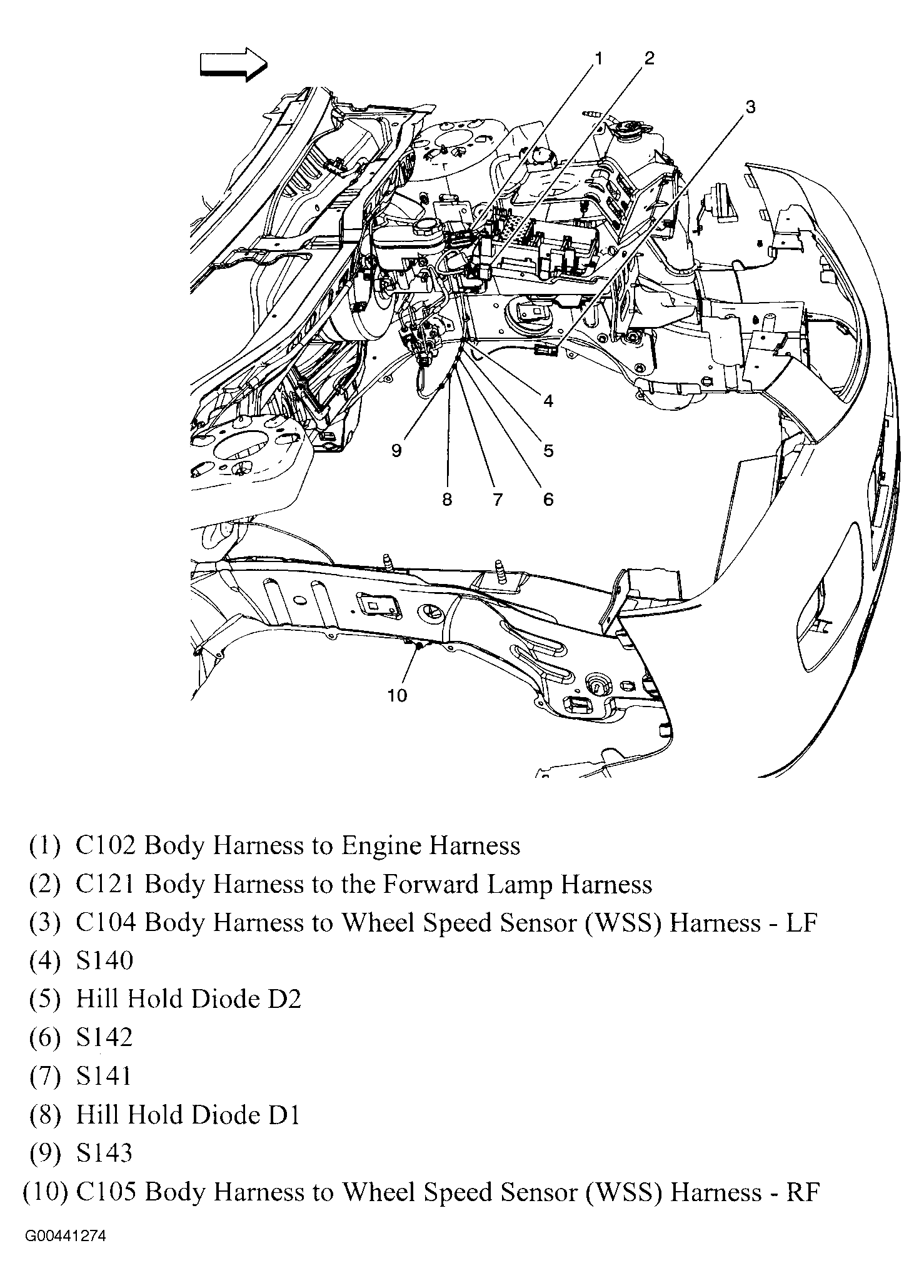

Fig 2: Ground & Splice Locations
Courtesy of GENERAL MOTORS CORP.
Fig 3: Fuse Block - Underhood
Courtesy of GENERAL MOTORS CORP.
Fig 4: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

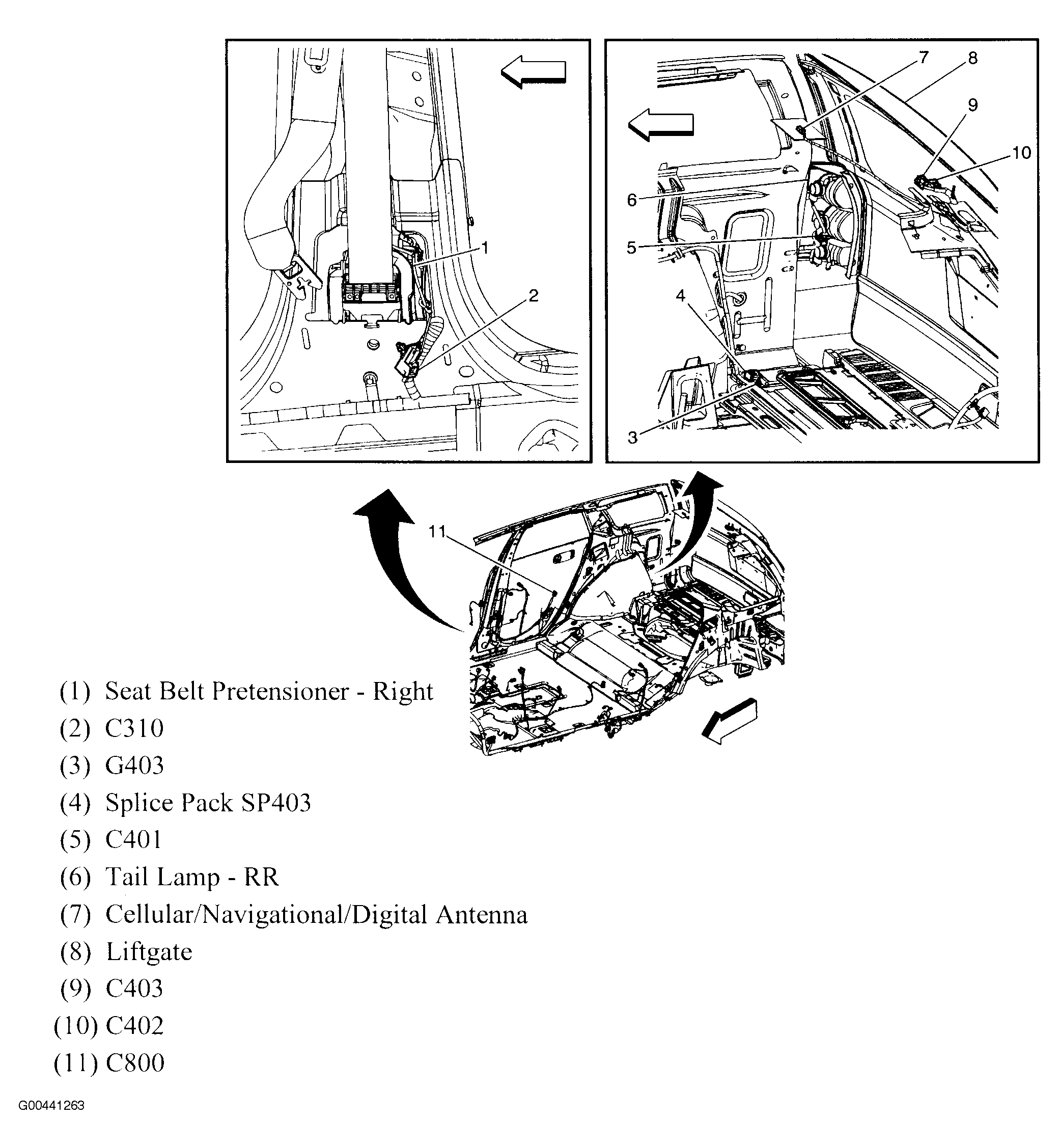

Fig 5: SIR Component Views (Wagon)
Courtesy of GENERAL MOTORS CORP.
Fig 6: SIR Component Views (Sedan)
Courtesy of GENERAL MOTORS CORP.

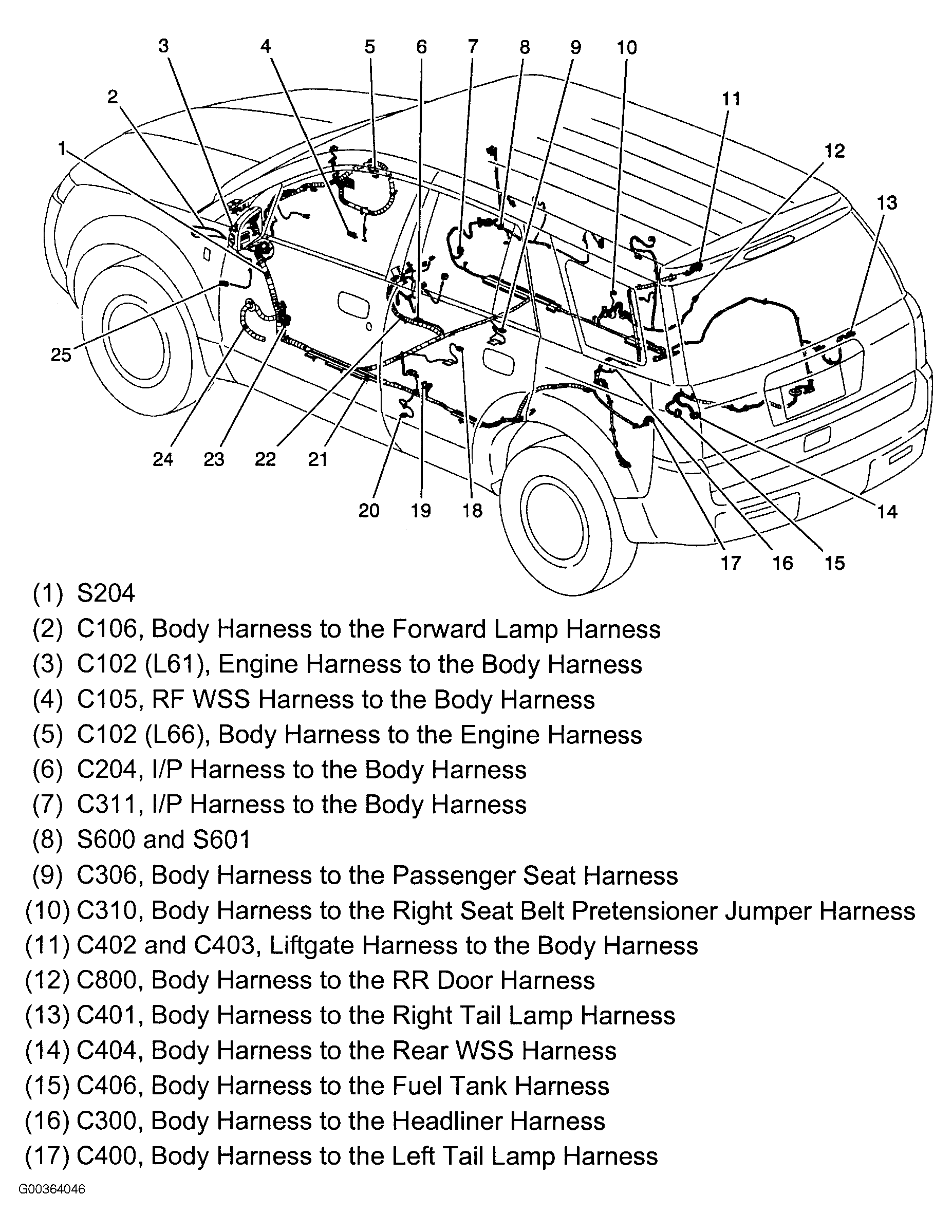

Fig 7: Cellular Communication Components
Courtesy of GENERAL MOTORS CORP.
Fig 8: Center Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 9: Center Console

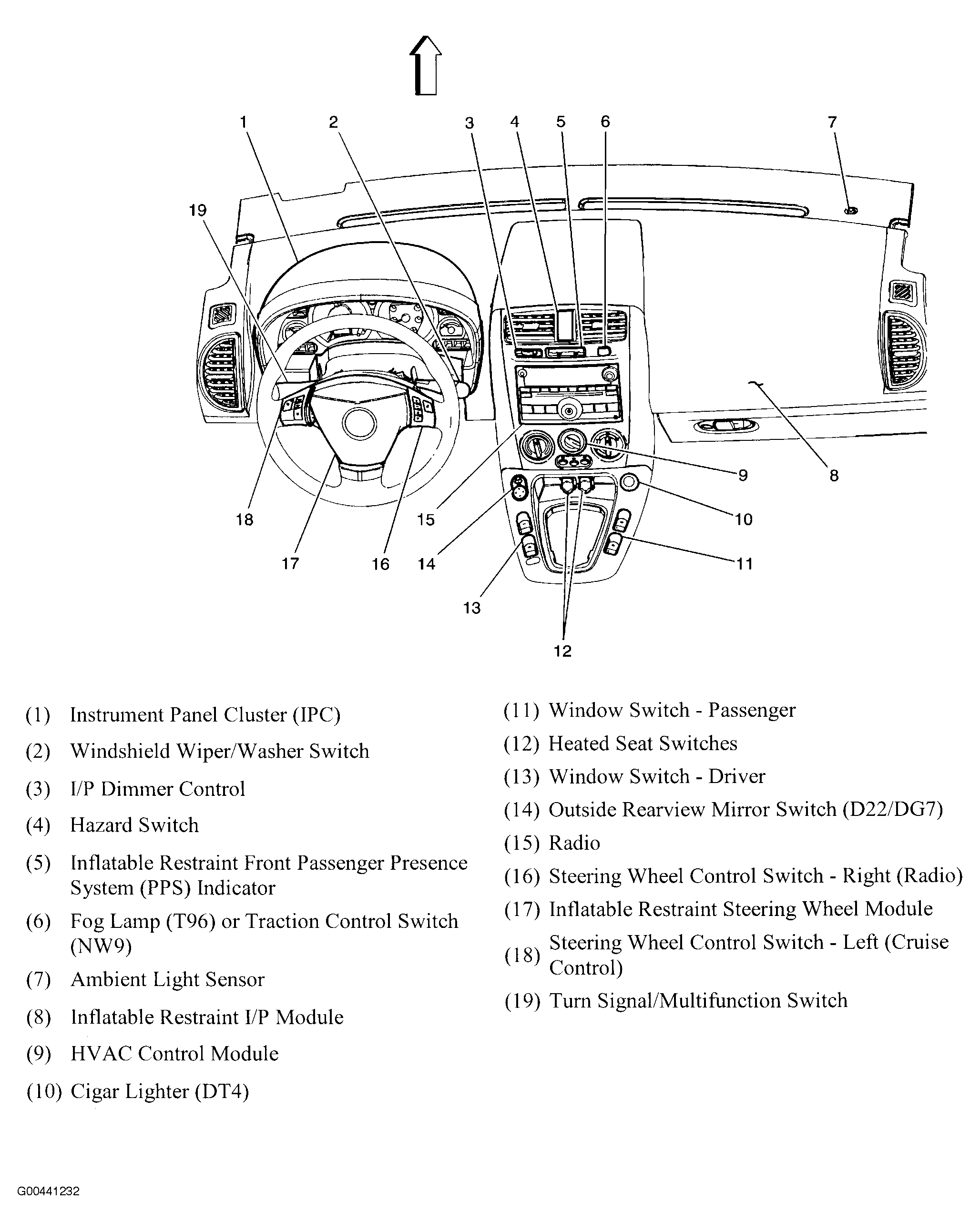

Courtesy of GENERAL MOTORS CORP.

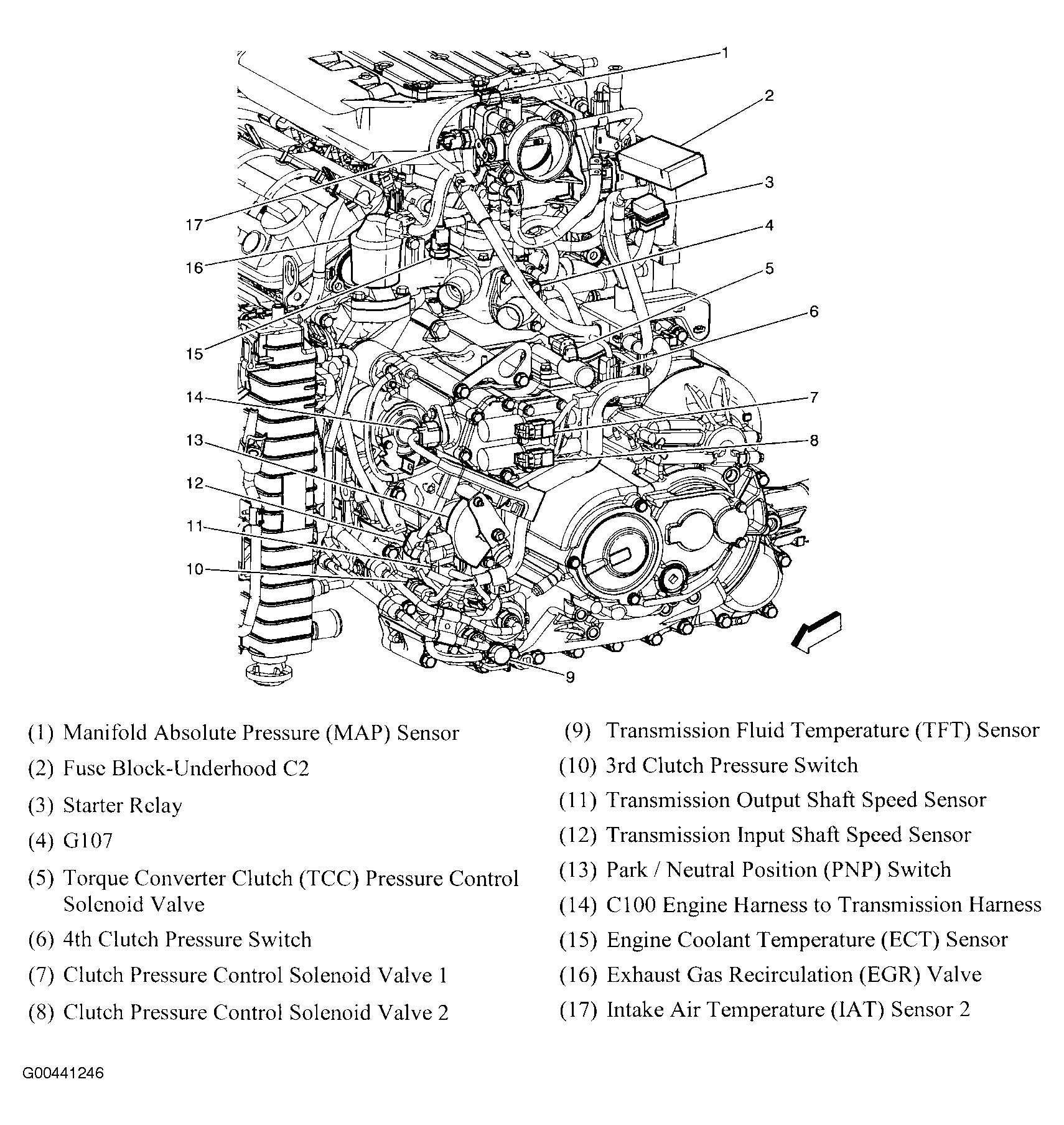

Fig 10: Left Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

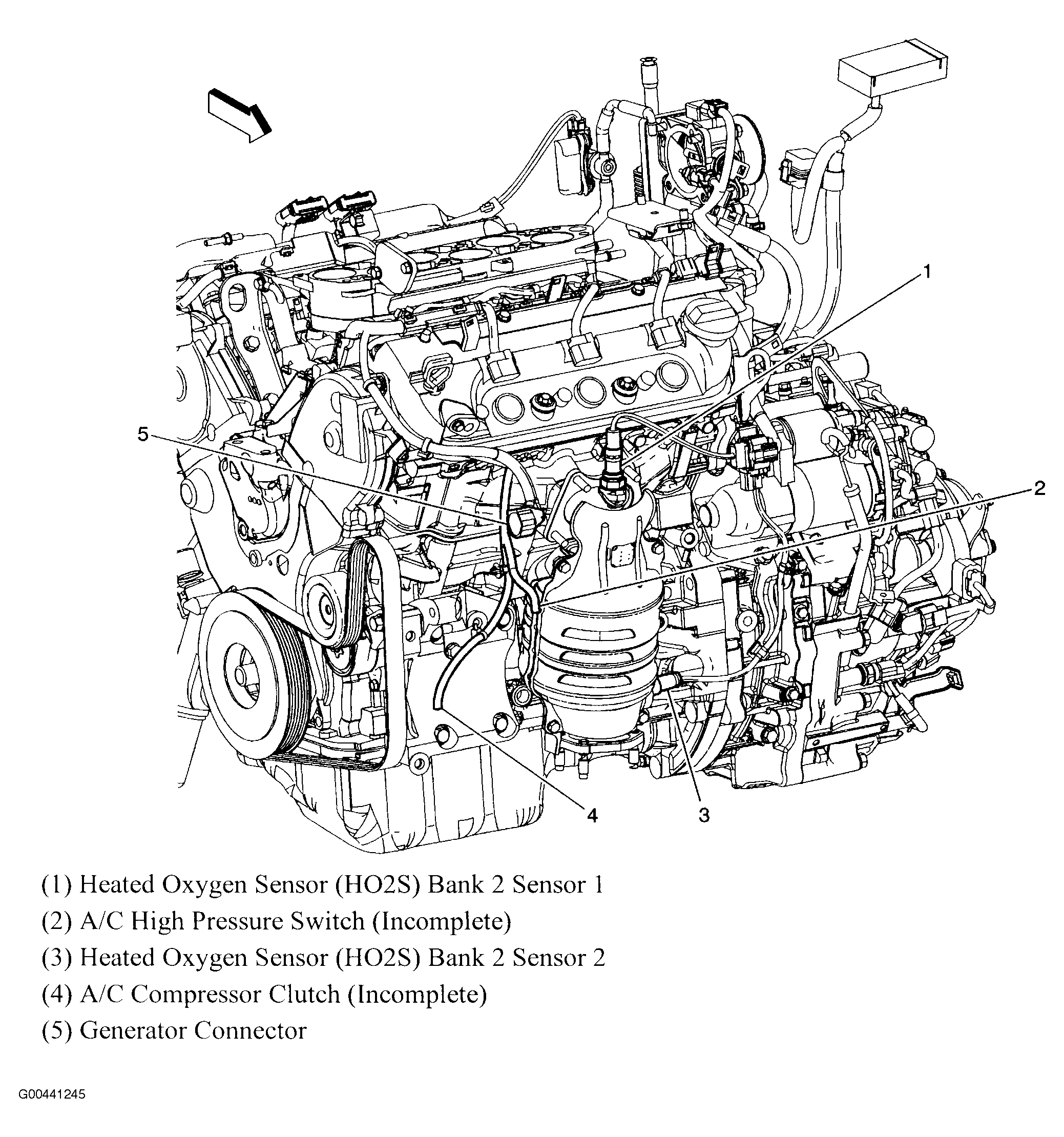

Fig 11: Right Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Side Of Manual Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 13: Front Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 14: Automatic Transmission (5AT)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Automatic Transmission (VT25-E)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left & Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 18: Front Of Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.

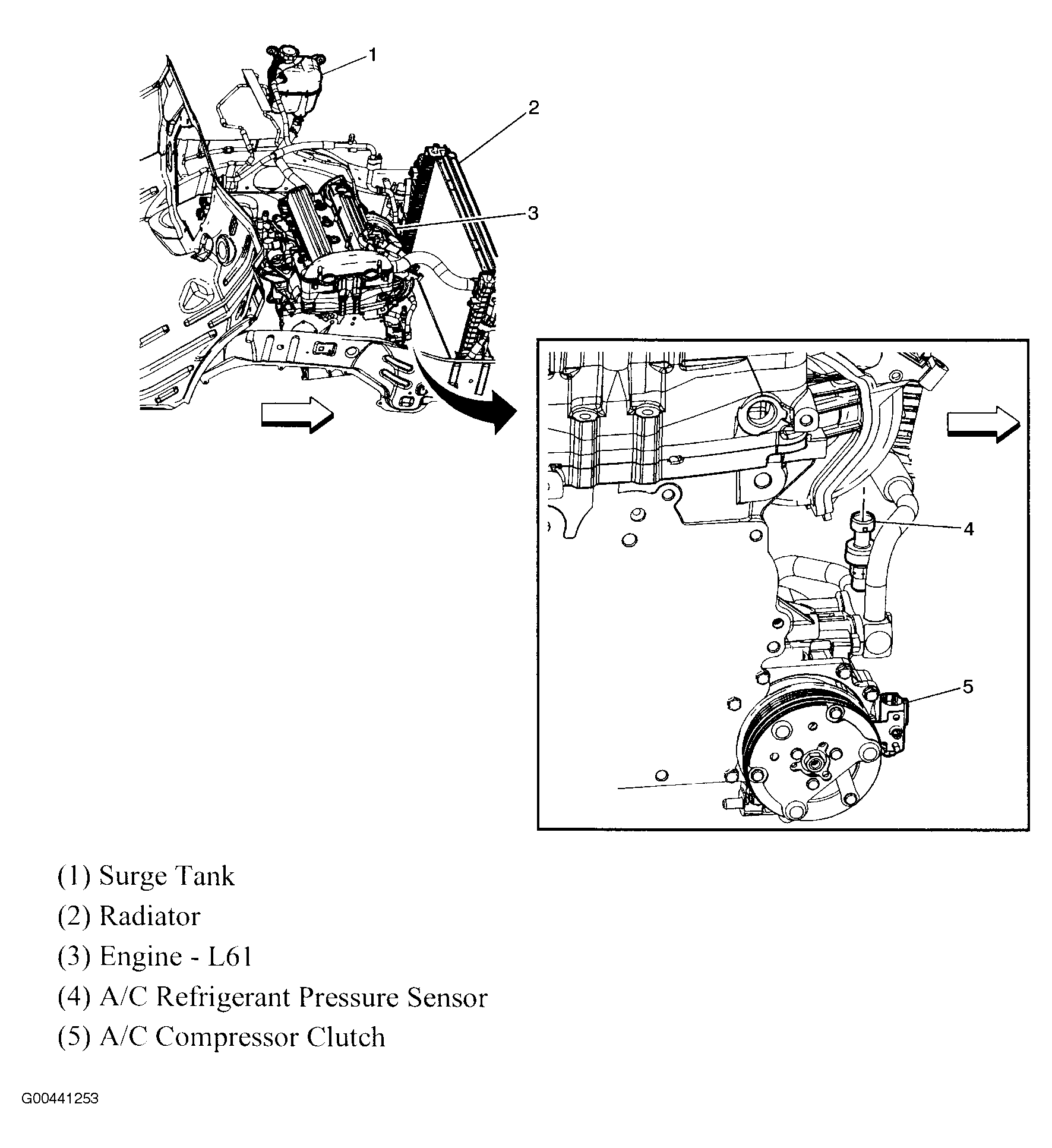

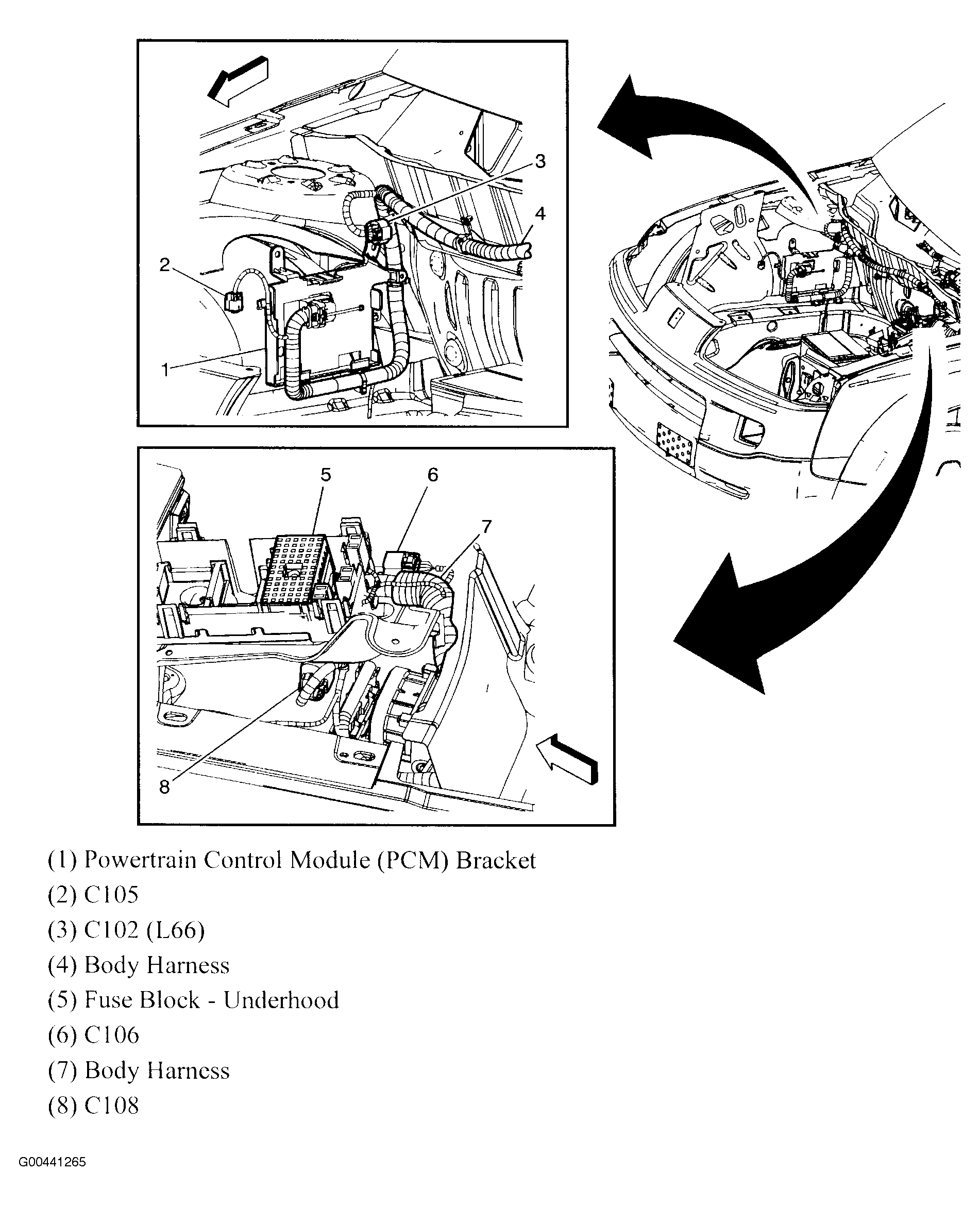

Fig 19: Front Of Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: ABS Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Rear Of Engine Compartment & Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Side Of HVAC
Courtesy of GENERAL MOTORS CORP.

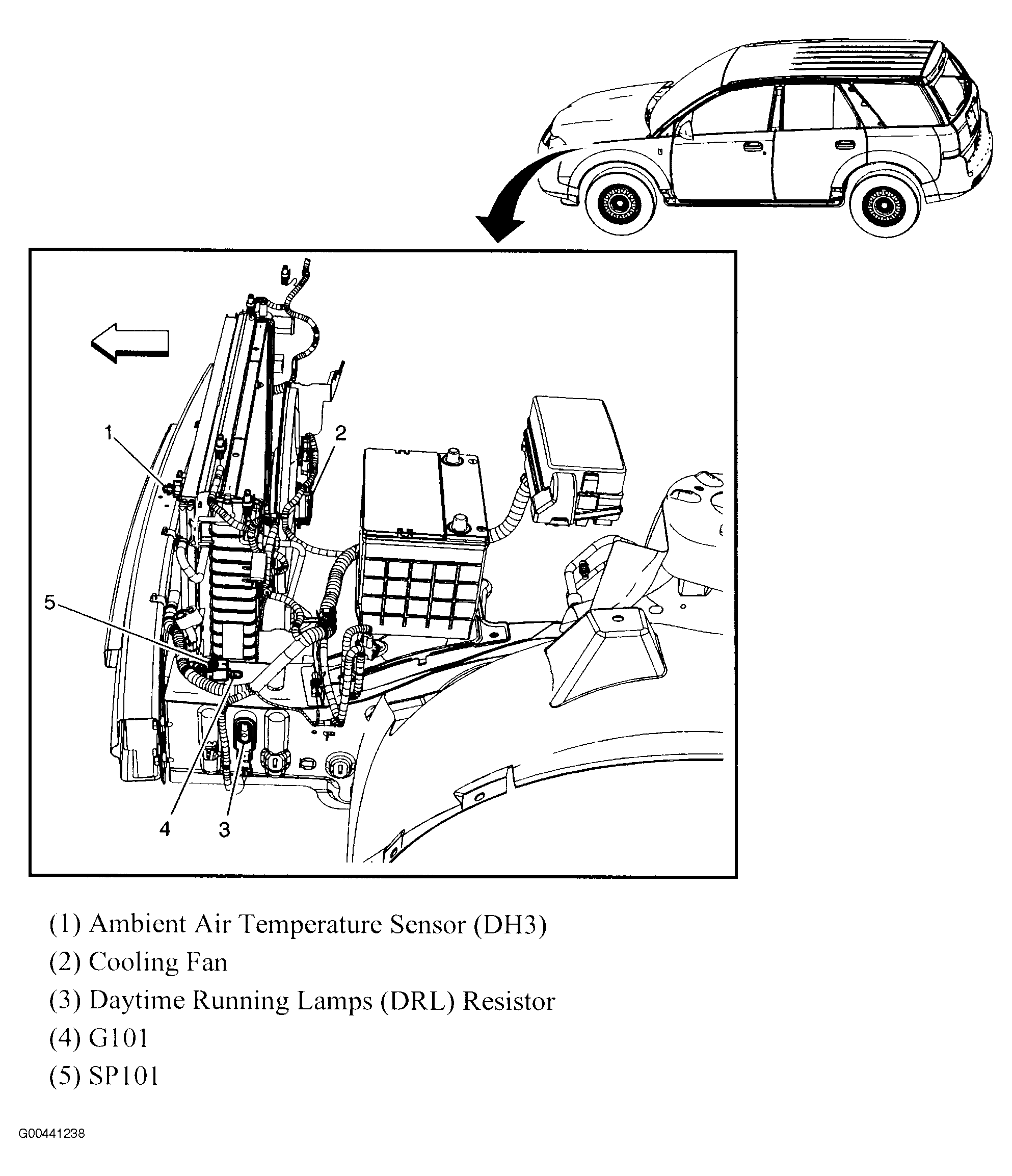

Fig 23: Front Of Vehicle (2.2L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Front Of Vehicle (2.2L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

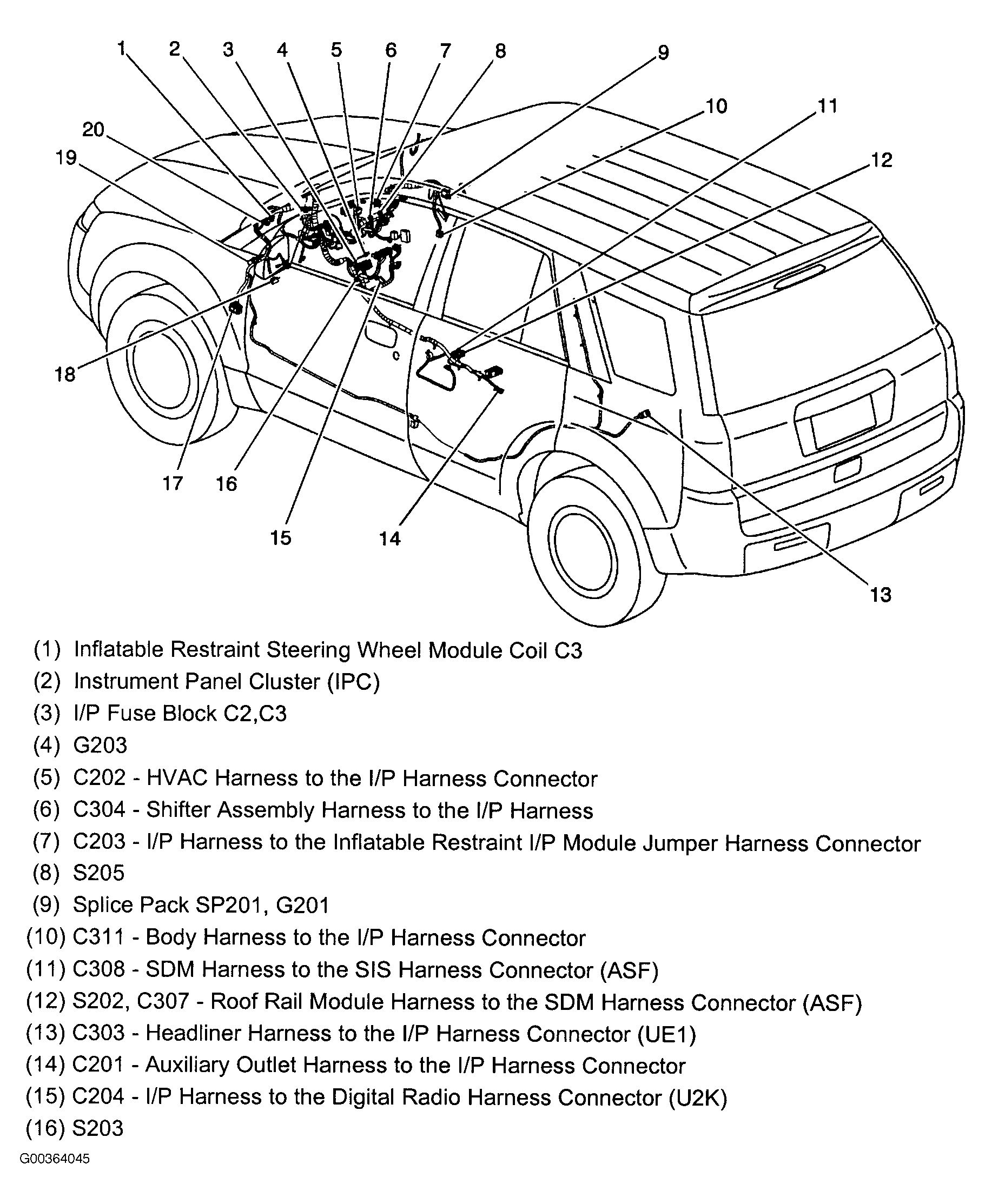

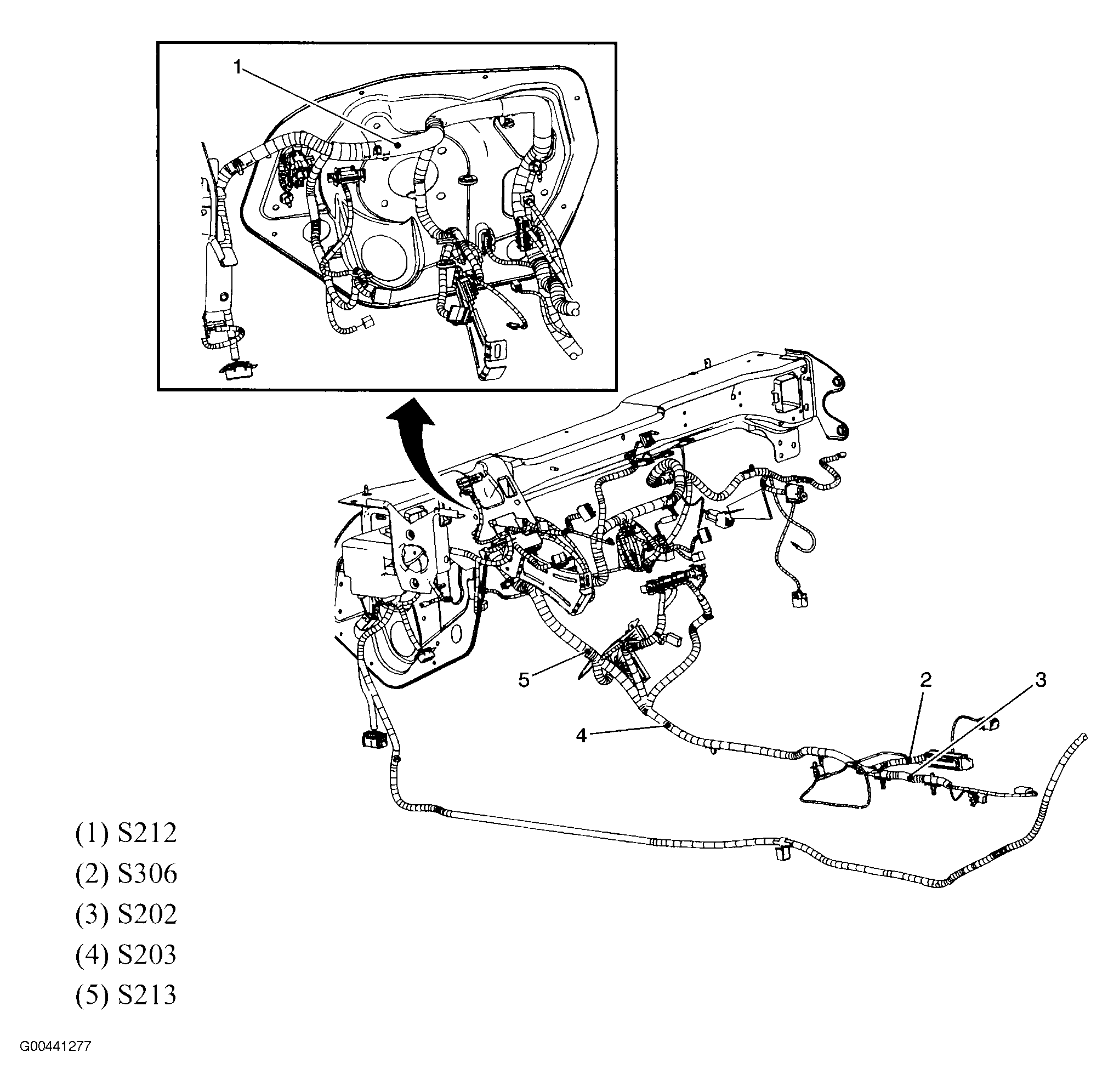

Fig 25: Instrument Panel Harness Routing (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Instrument Panel Harness Routing (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 28: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 29: Data Link Communications Component View
Courtesy of GENERAL MOTORS CORP.

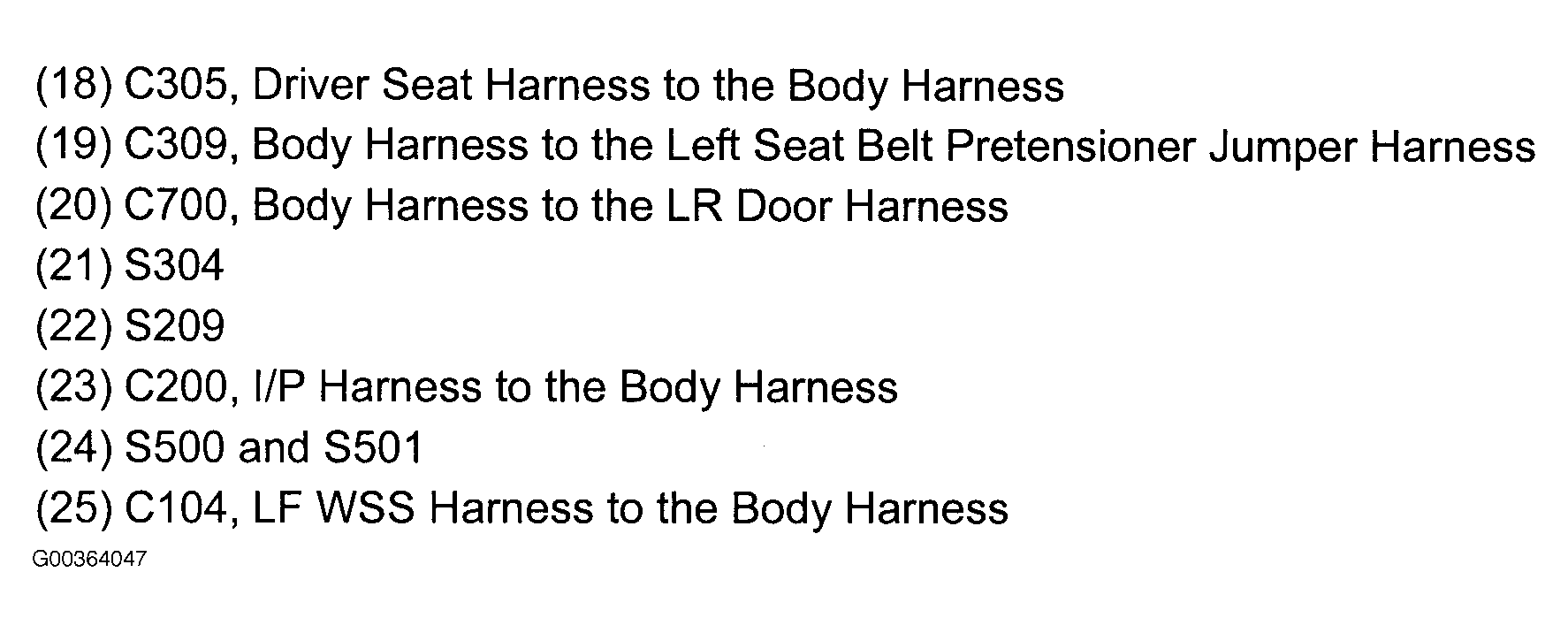

Fig 30: Vehicle Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Vehicle Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

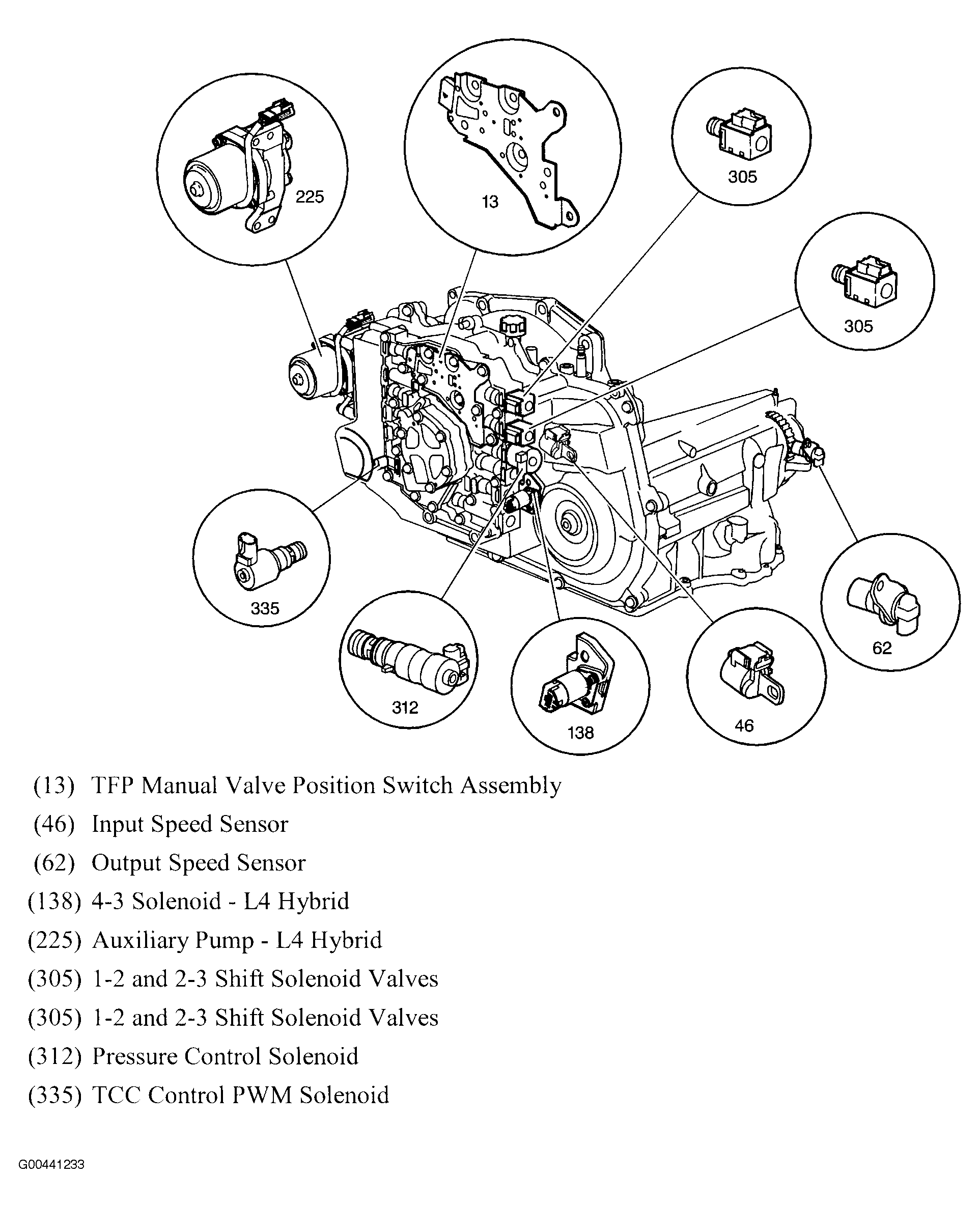

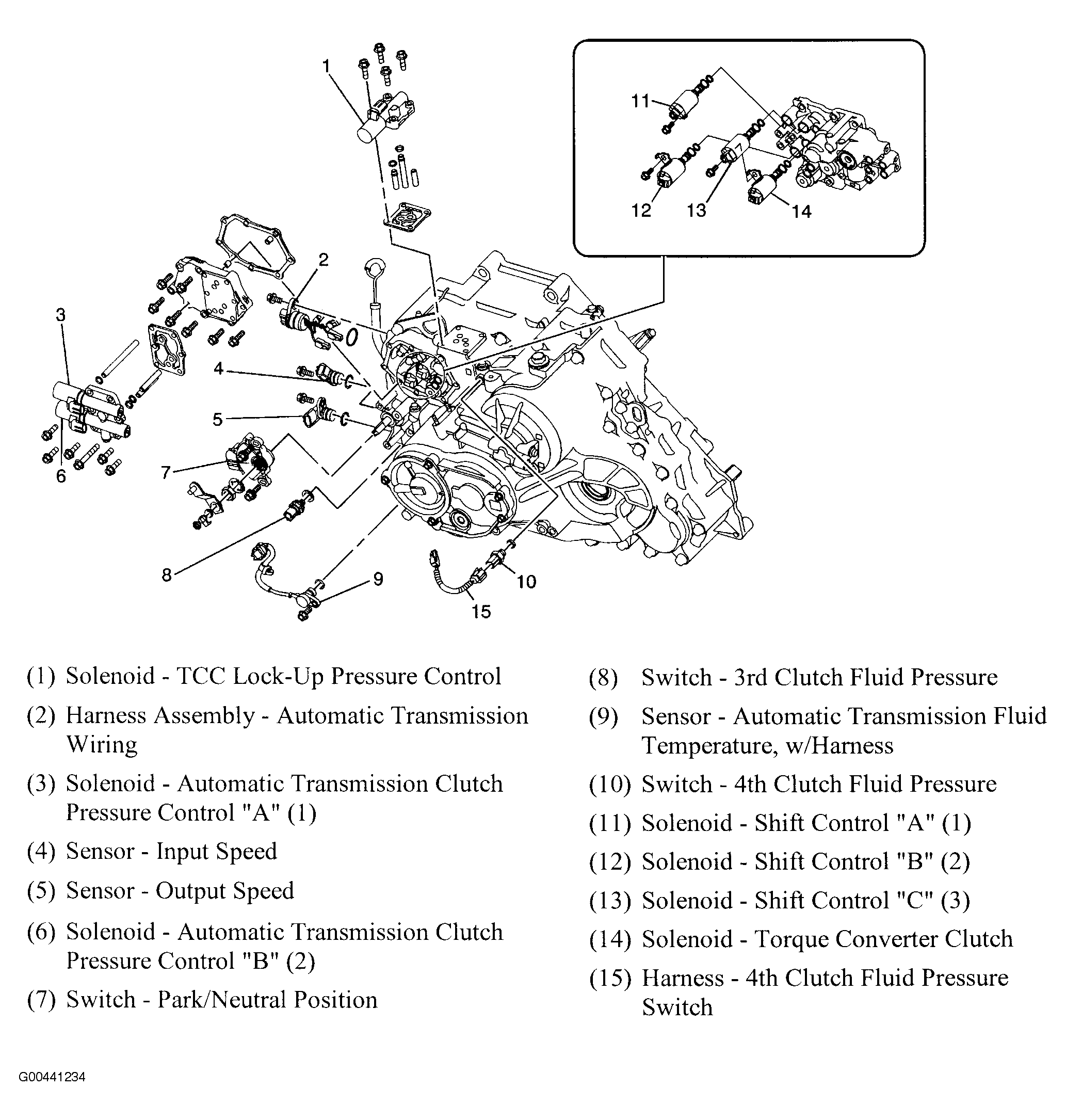

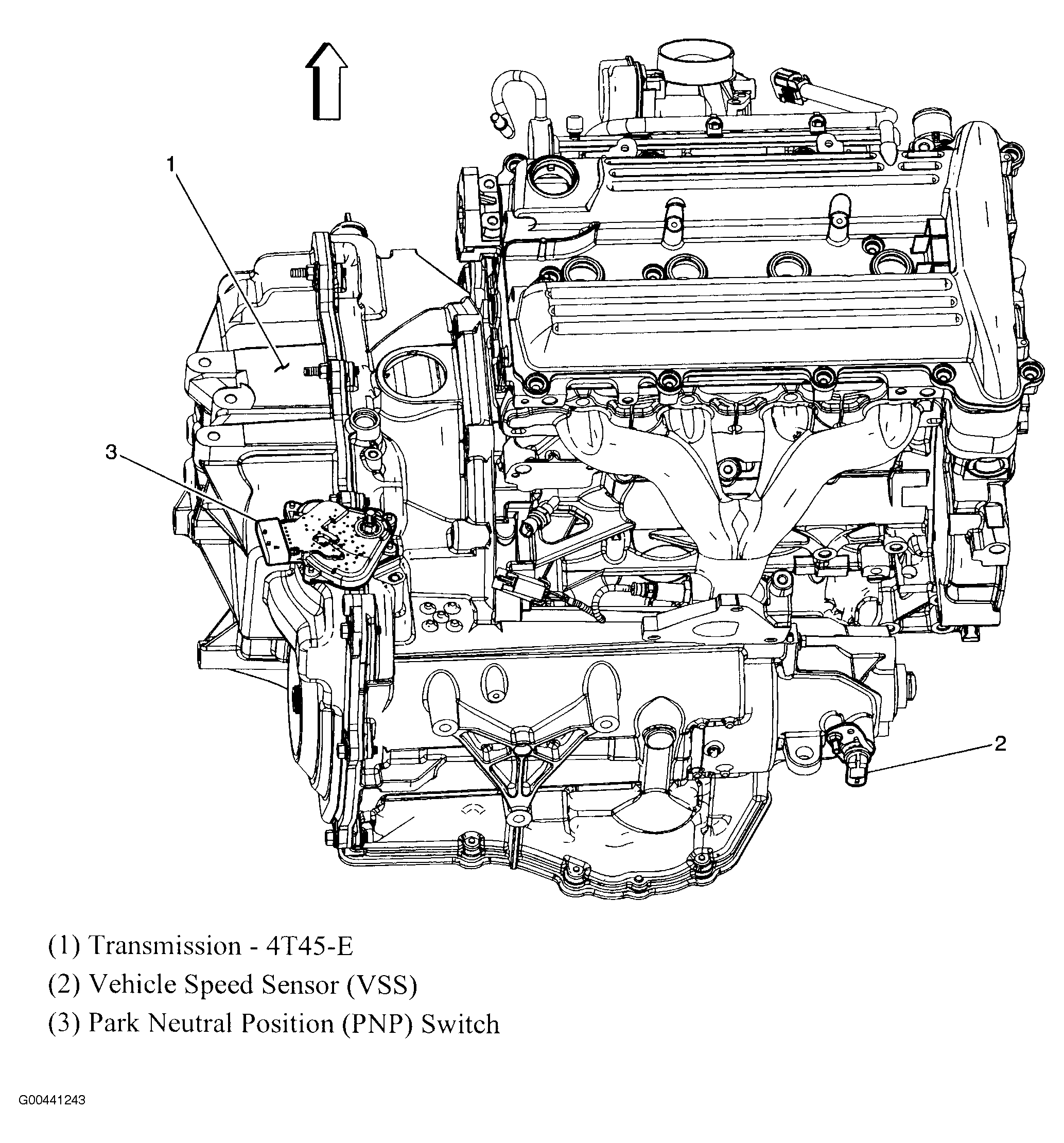

Fig 32: Automatic Transmission (4T45-E)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 36: Vehicle Overview (Notchback)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

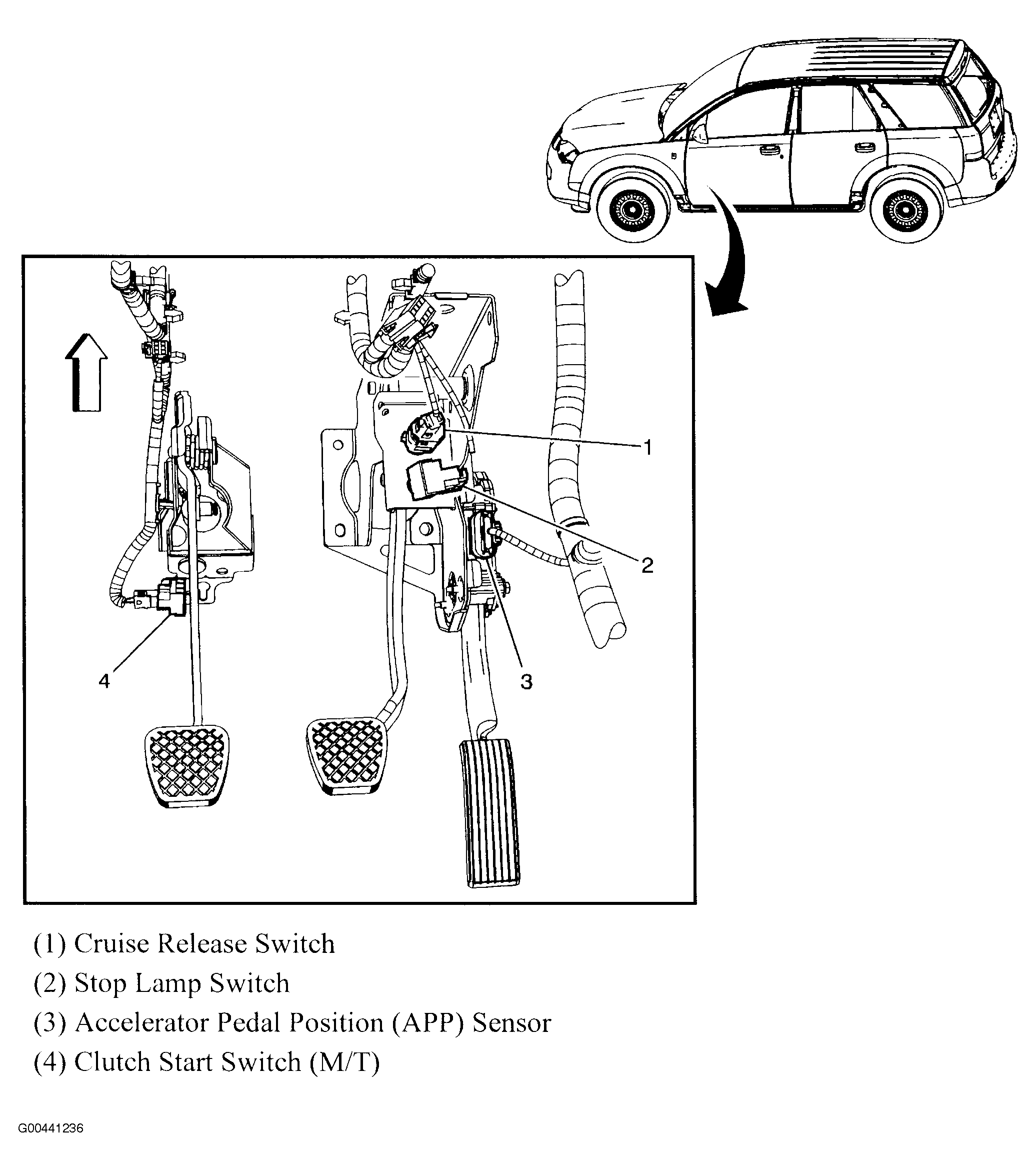

Fig 38: Below Dash
Courtesy of GENERAL MOTORS CORP.
Fig 39: Left Front Of Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

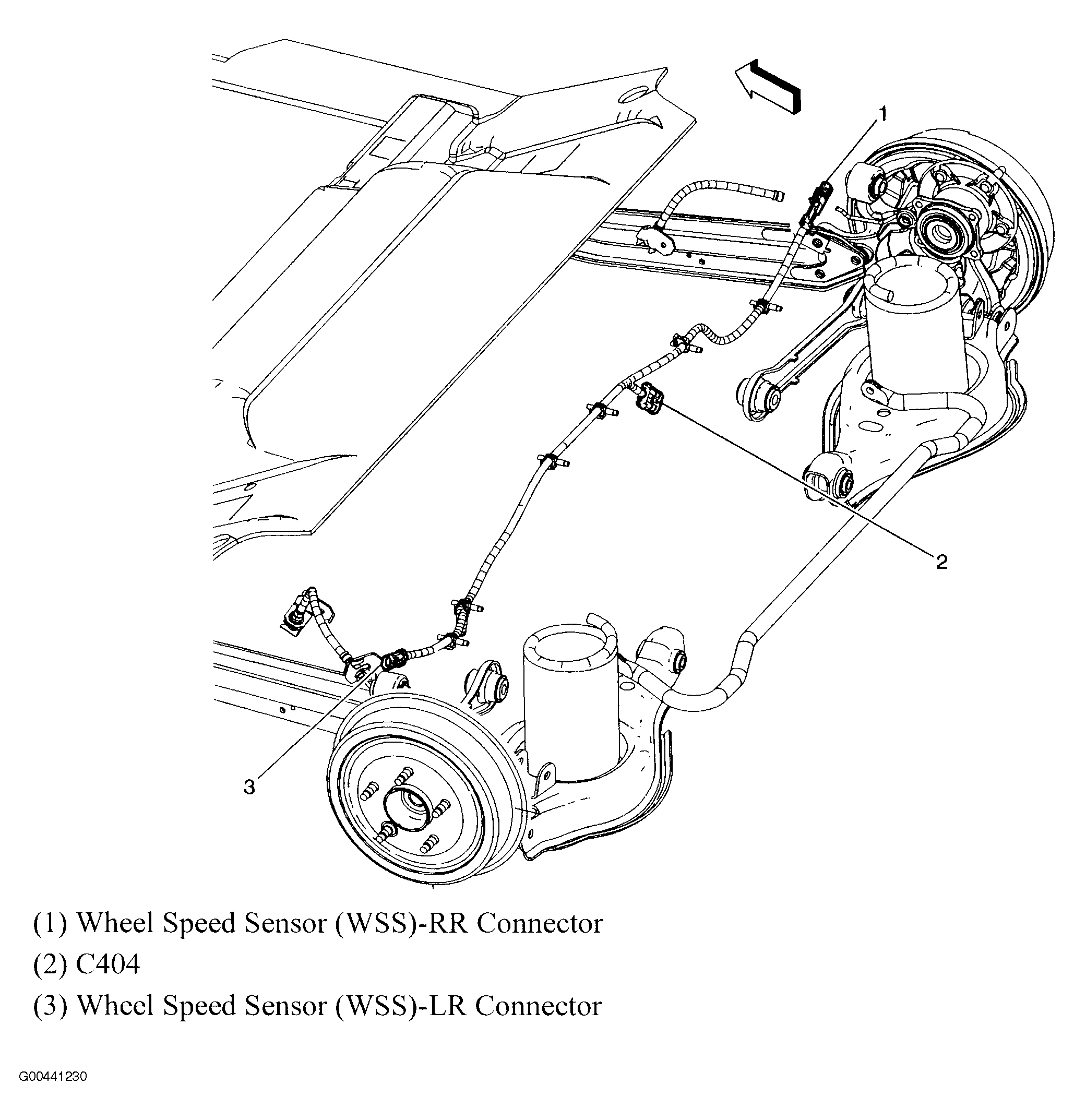

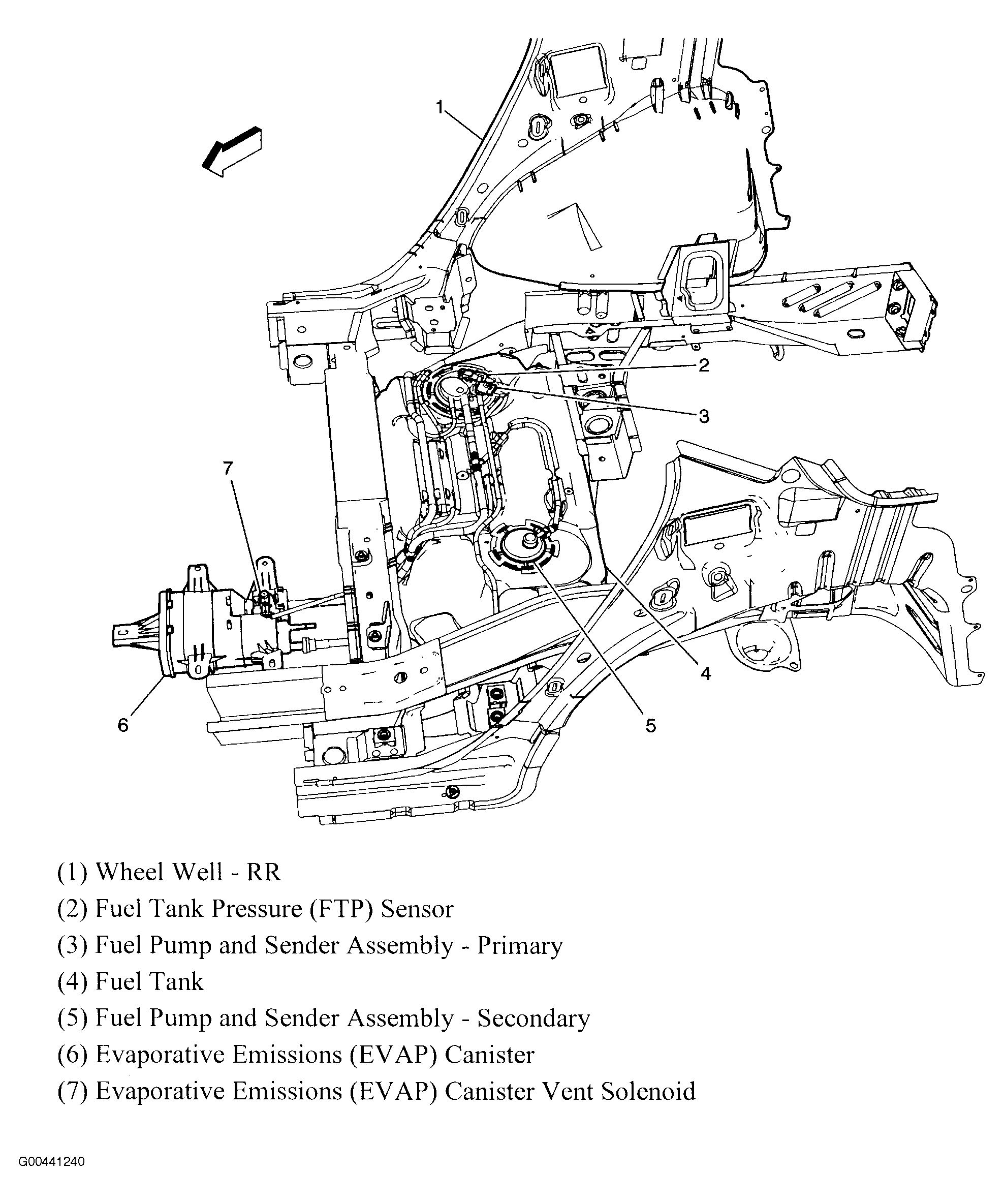

Fig 41: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 42: Top Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

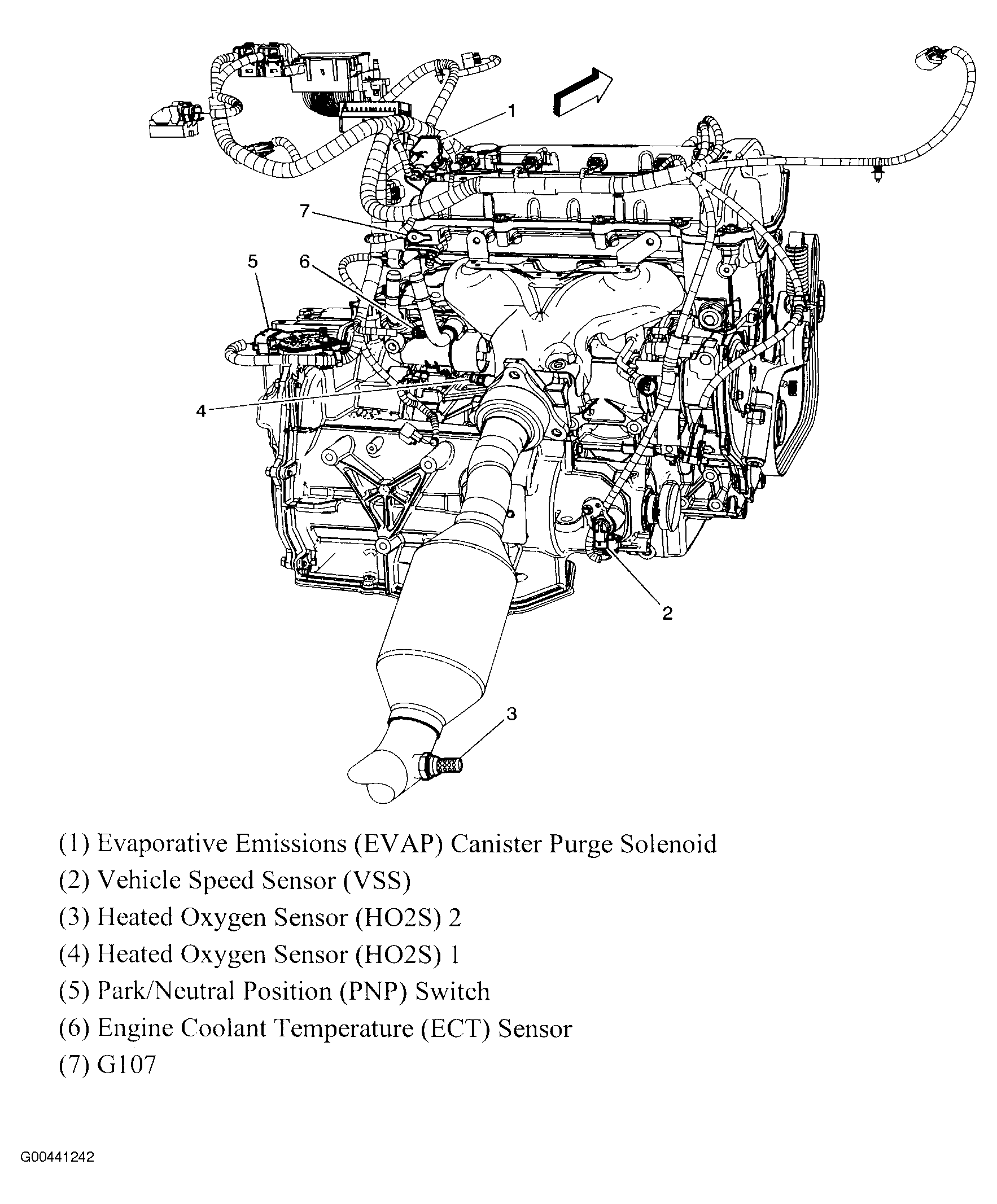

Fig 43: Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Automatic Transmission (4T45-E)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Rear Of Engine Compartment (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

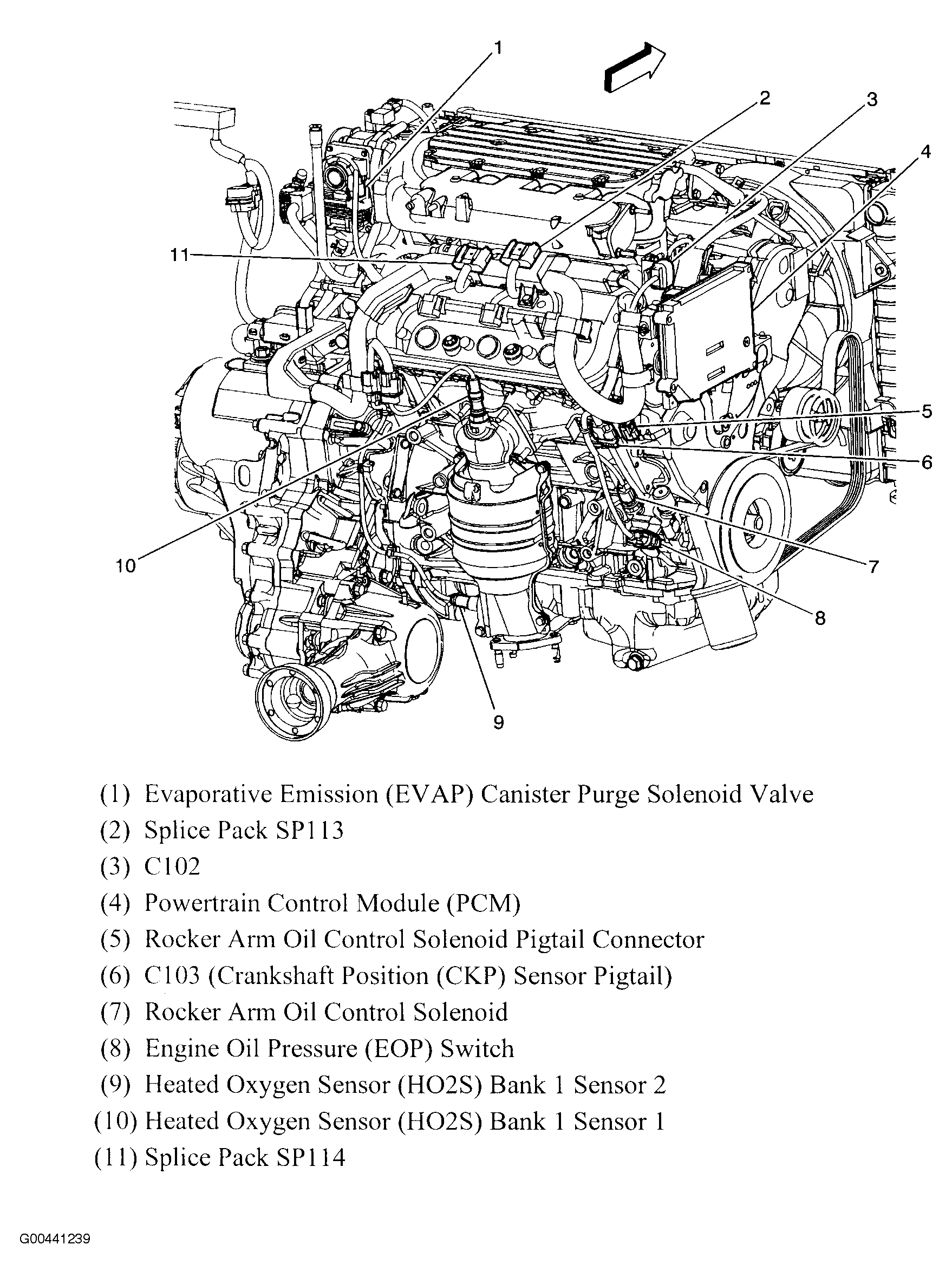

Fig 47: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

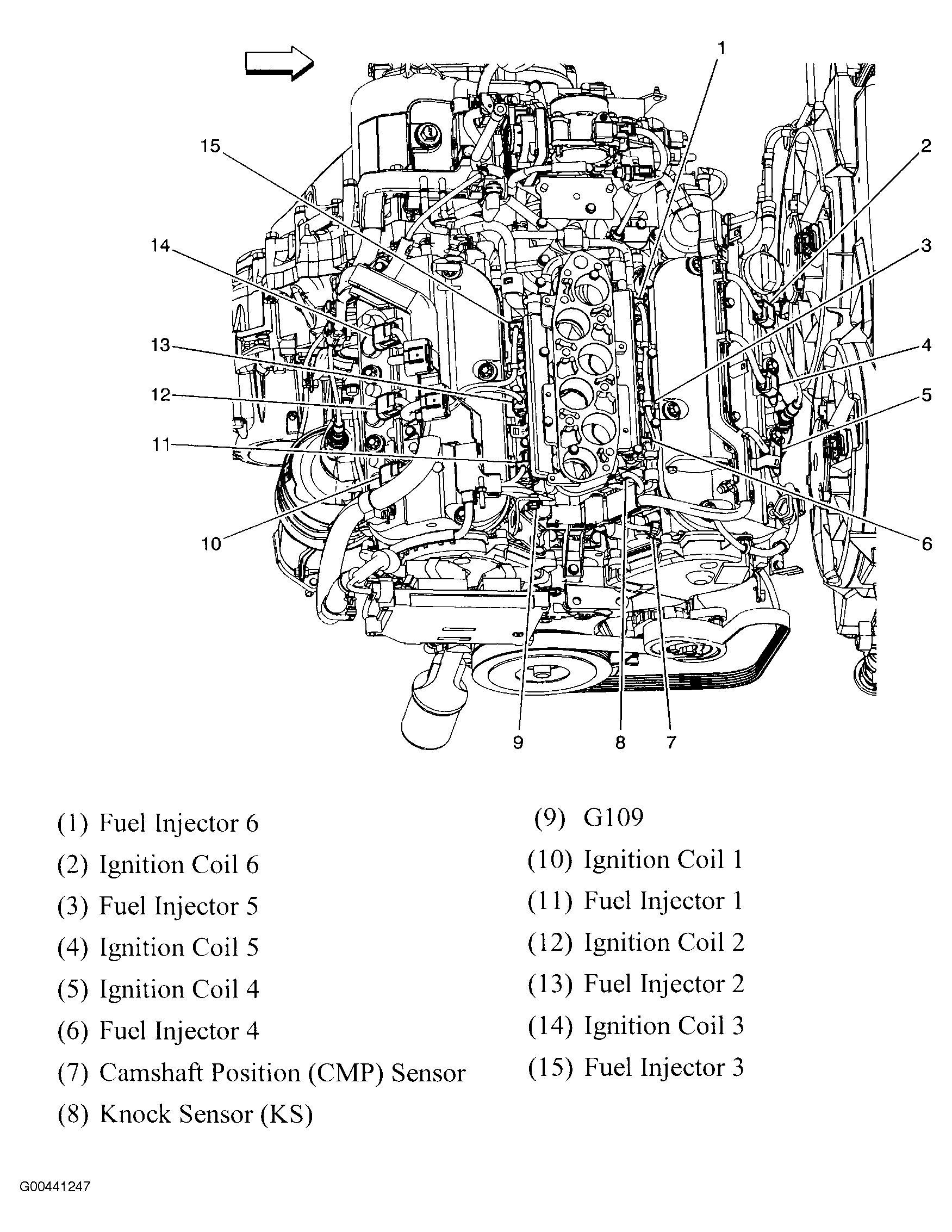

Fig 48: Top Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

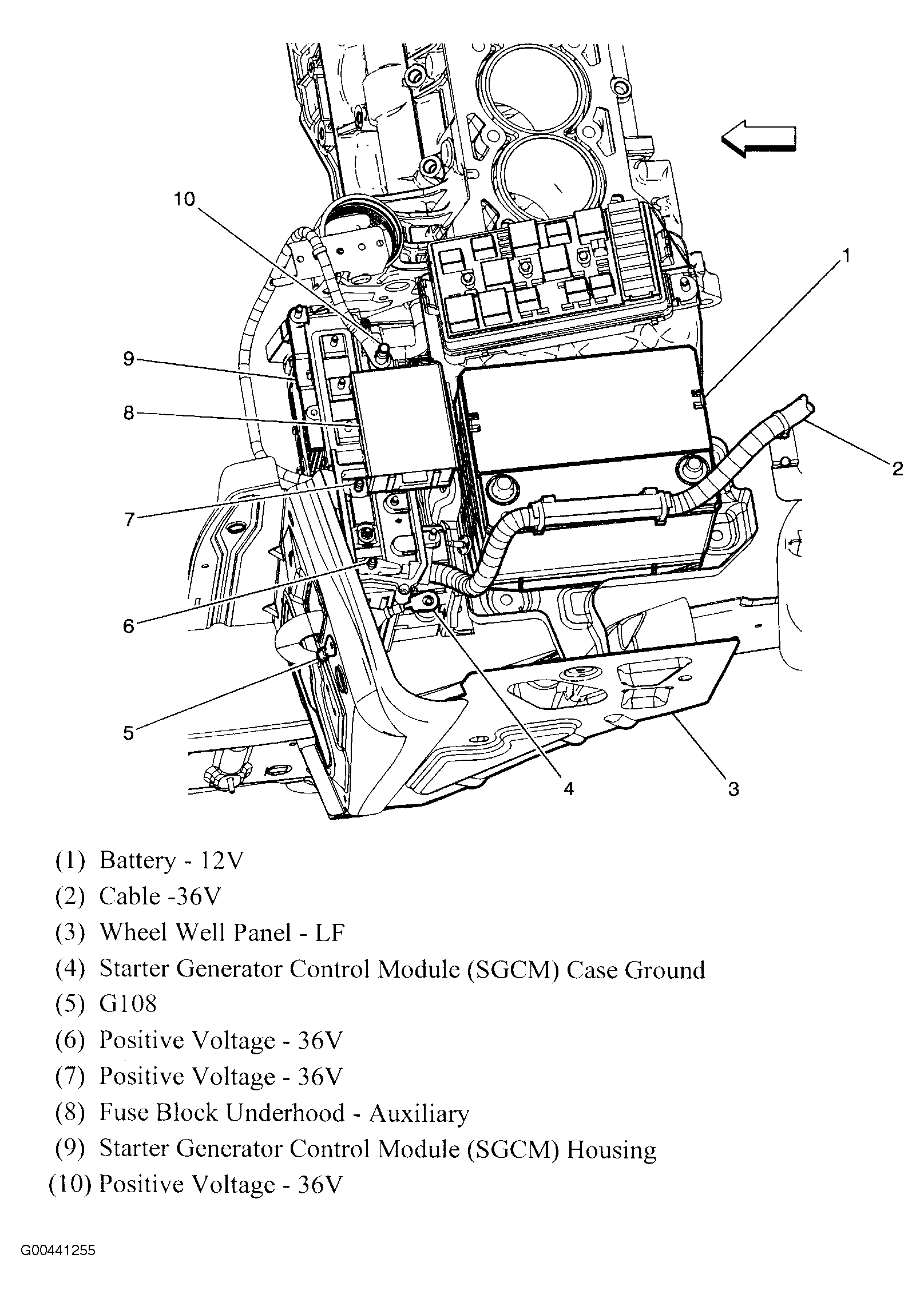

Fig 49: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

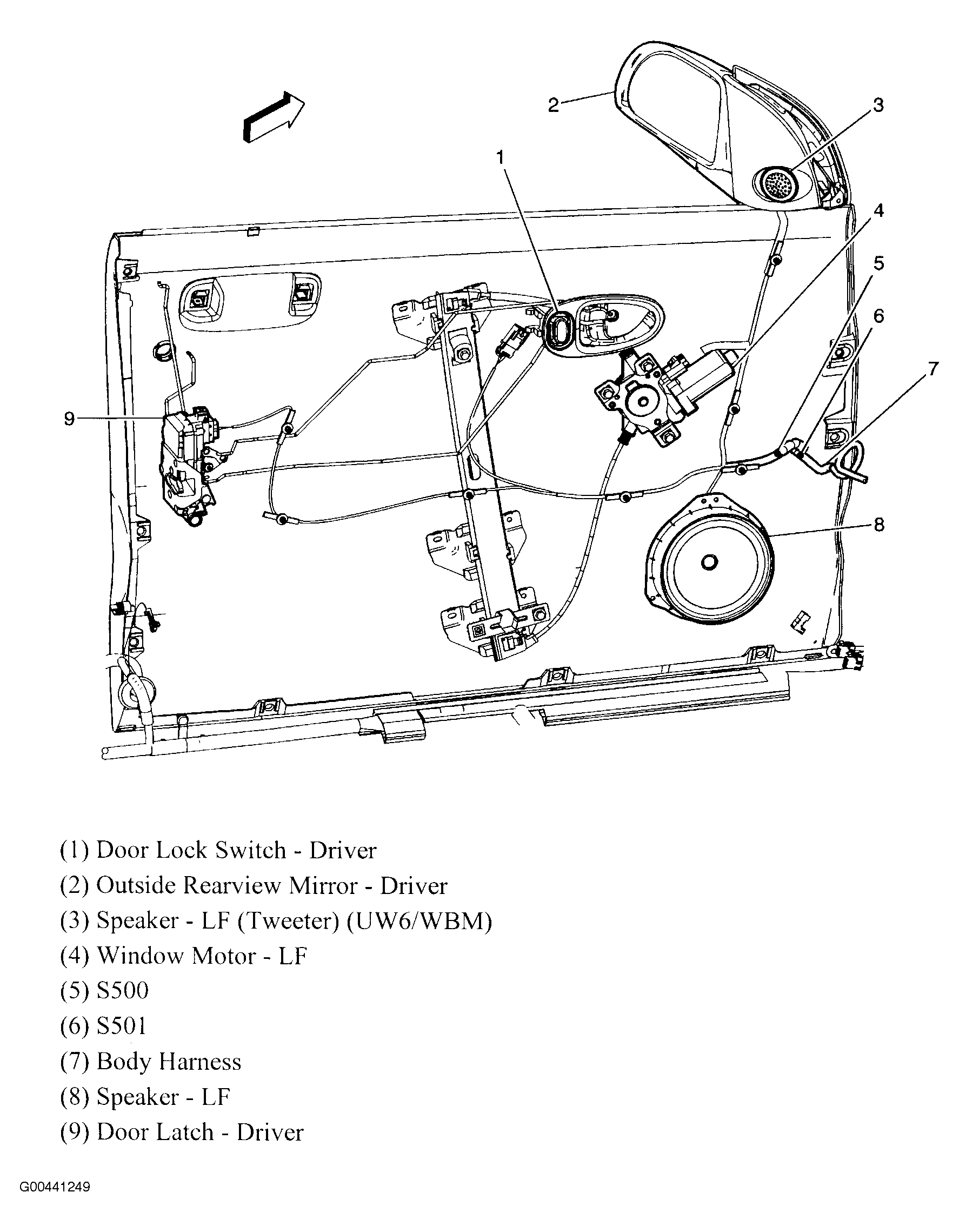

Fig 50: Driver's Door
Courtesy of GENERAL MOTORS CORP.

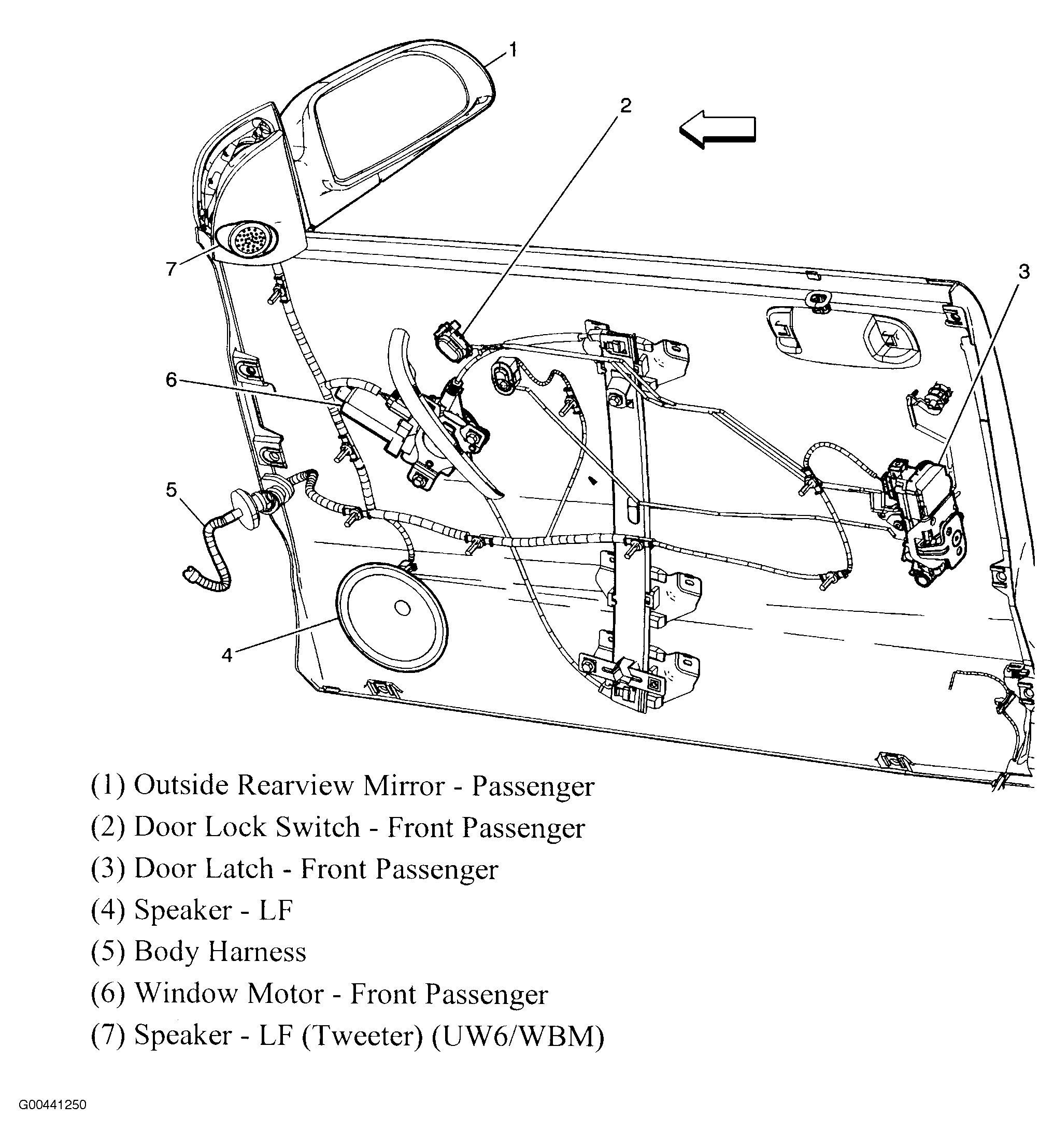

Fig 51: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

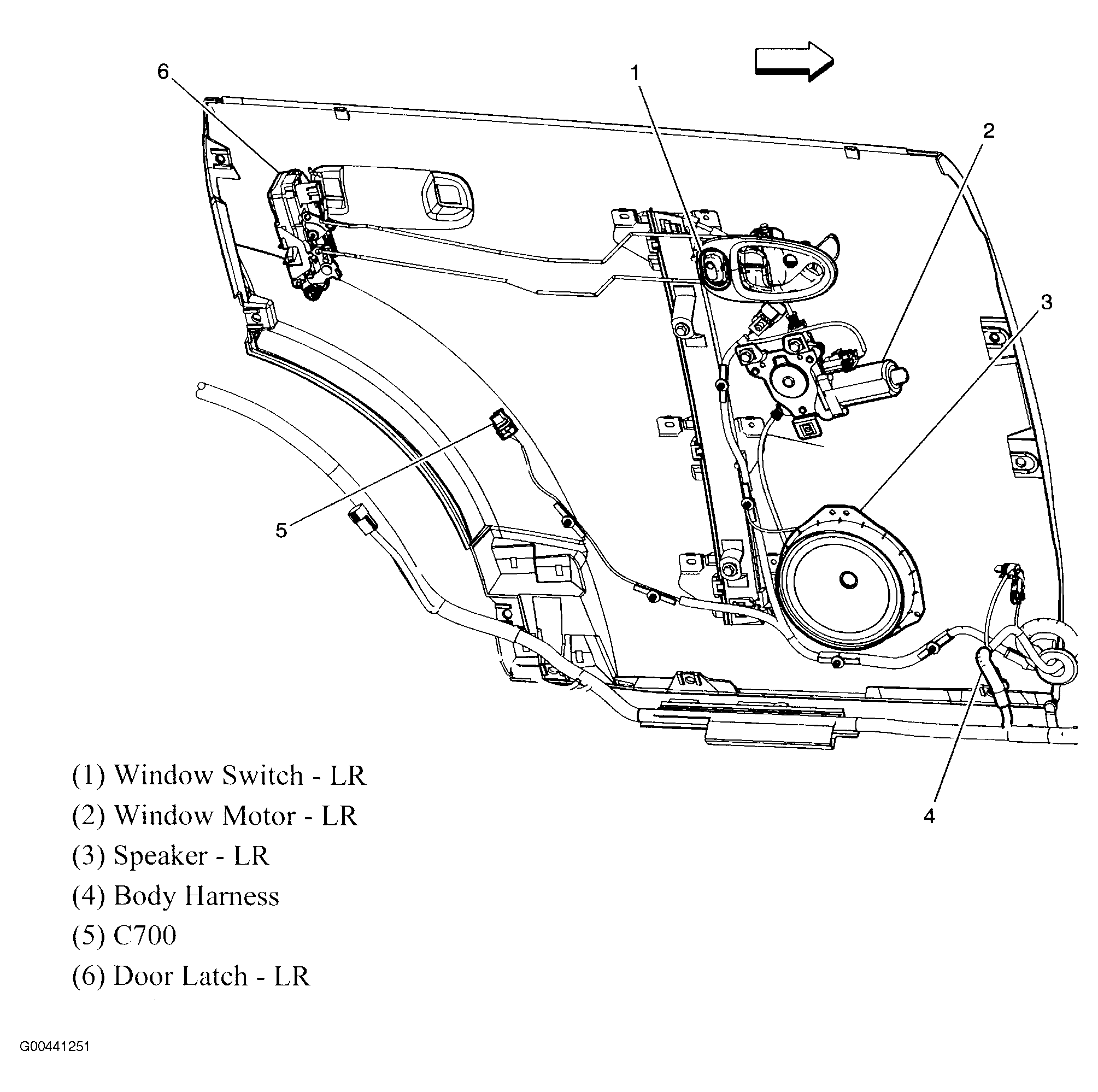

Fig 52: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

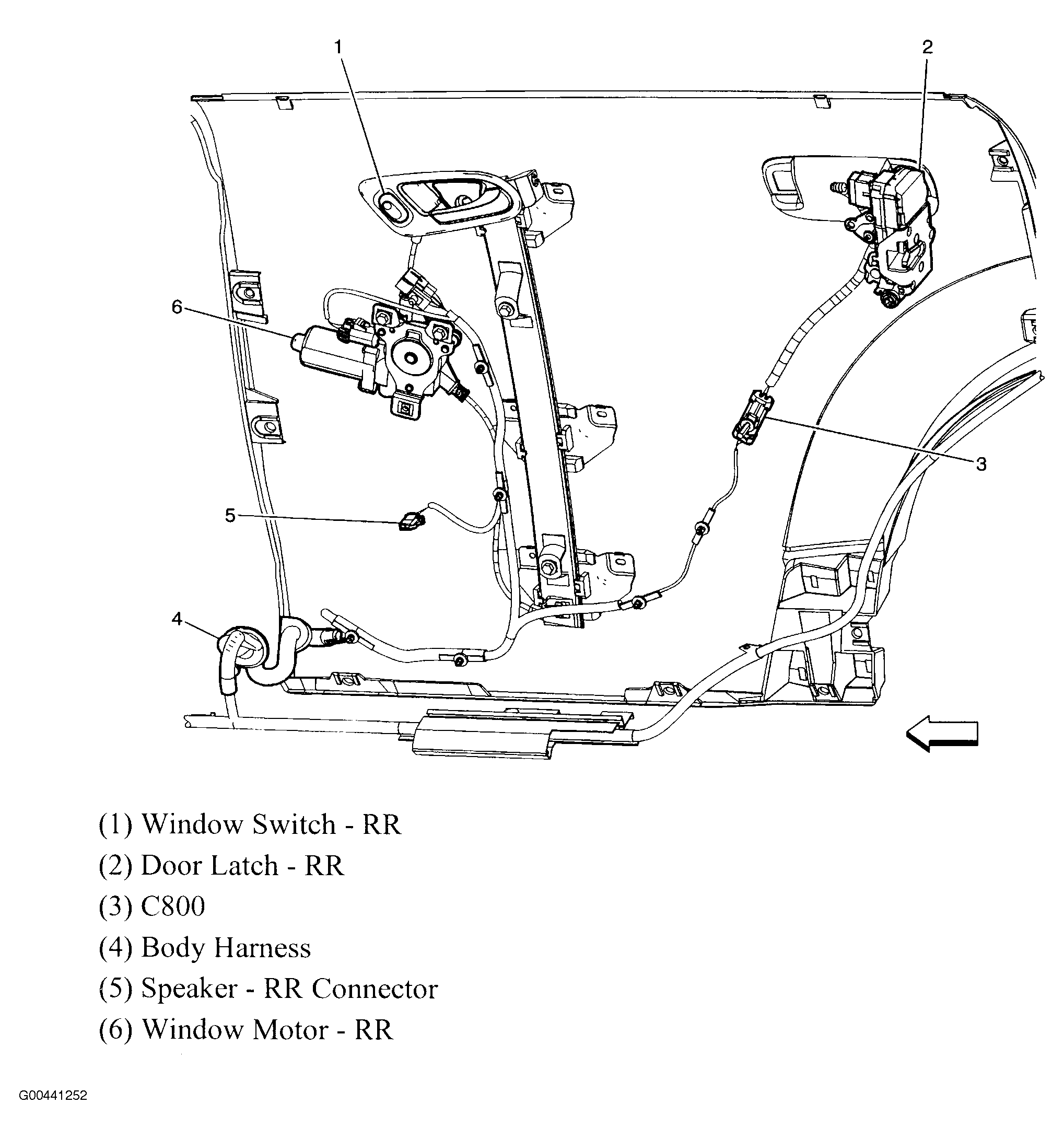

Fig 53: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 54: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 55: Front Of Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Front Of Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Above Spare Tire (Hybrid)
Courtesy of GENERAL MOTORS CORP.

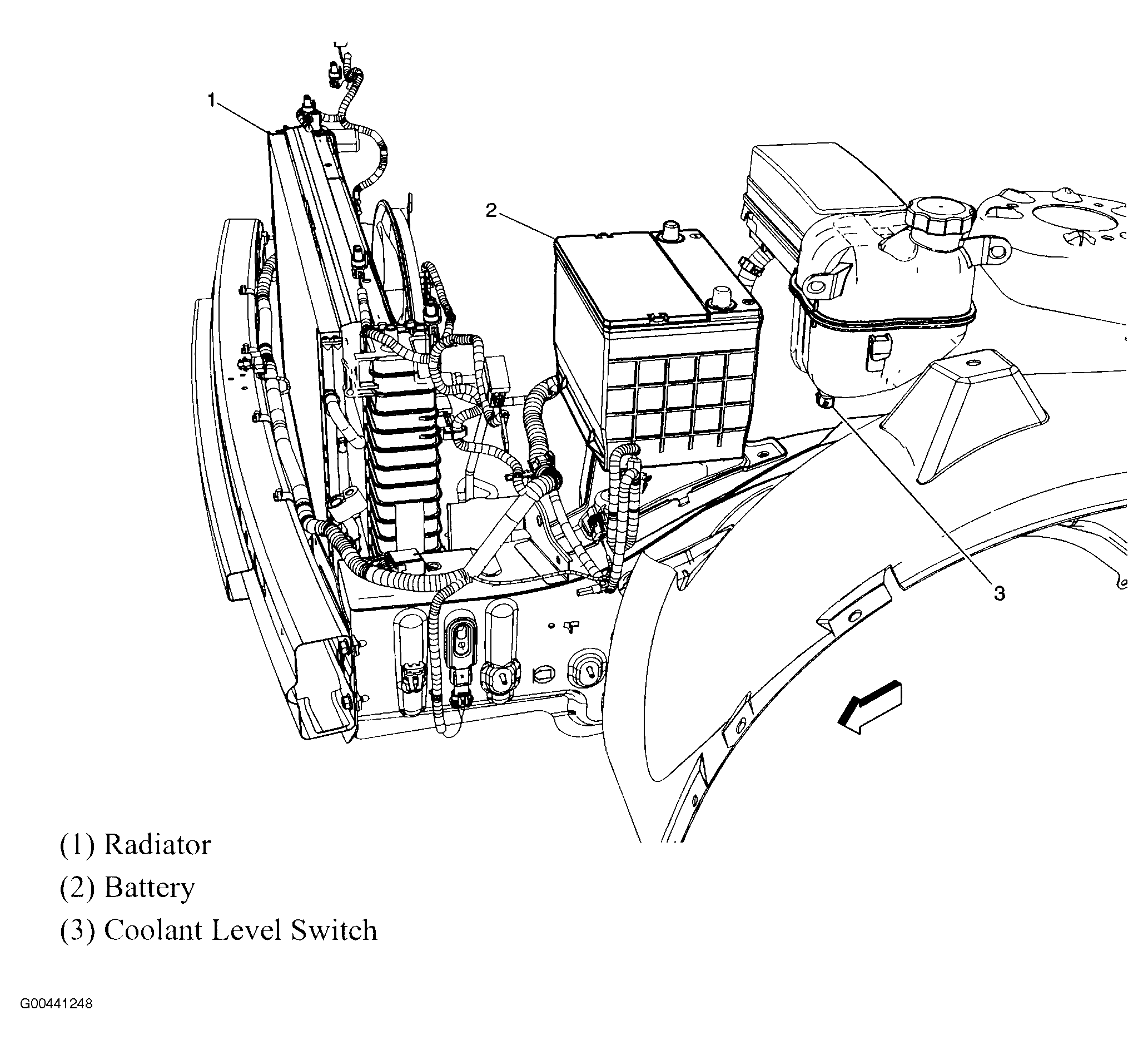

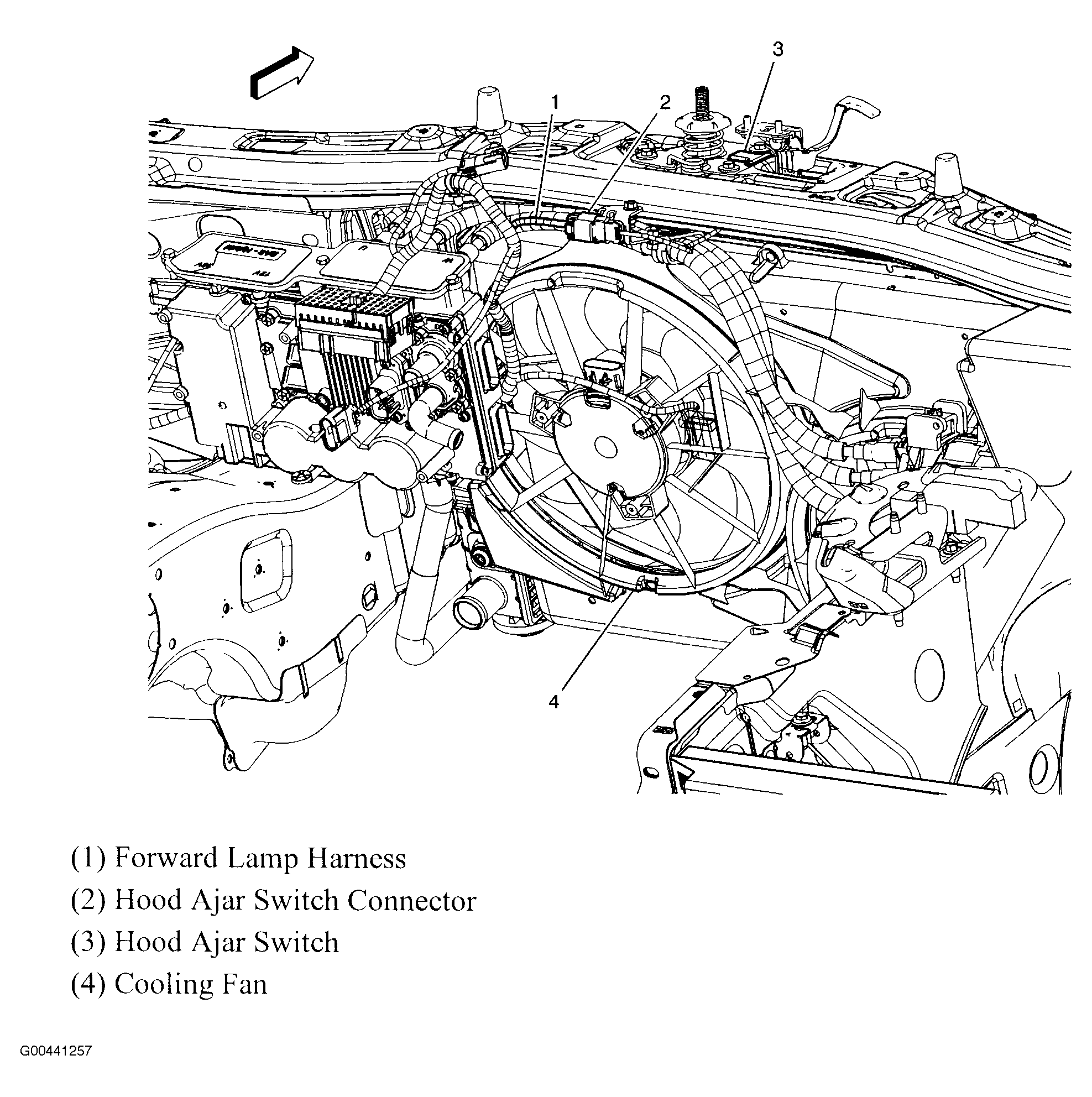

Fig 58: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

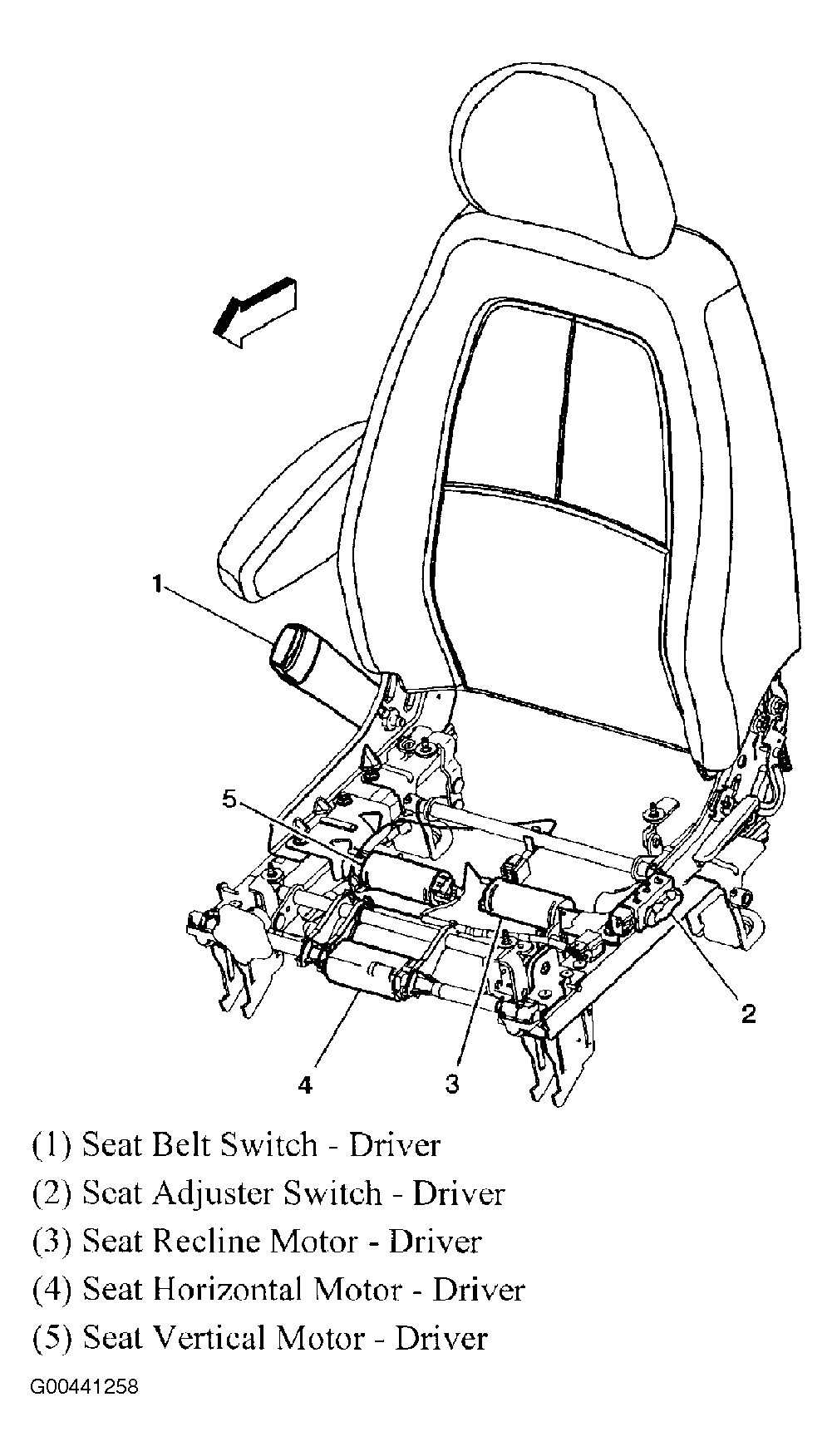

Fig 59: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 60: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Of Vehicle (Hatchback)
Courtesy of GENERAL MOTORS CORP.

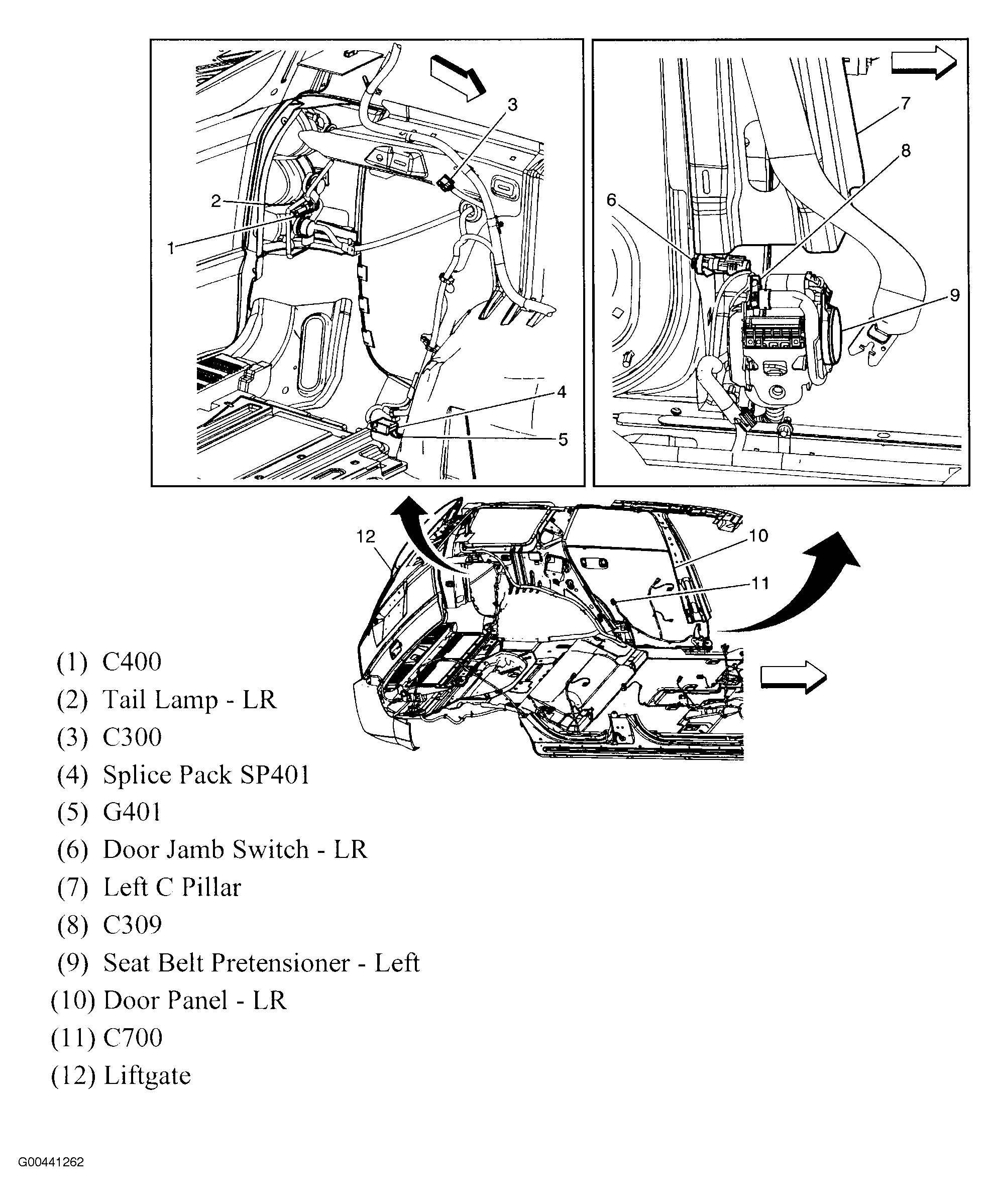

Fig 63: Vehicle Overview (Left Rear) (Hatchback)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Vehicle Overview (Right Rear) (Hatchback)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 66: Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 67: Left Side Of Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 70: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

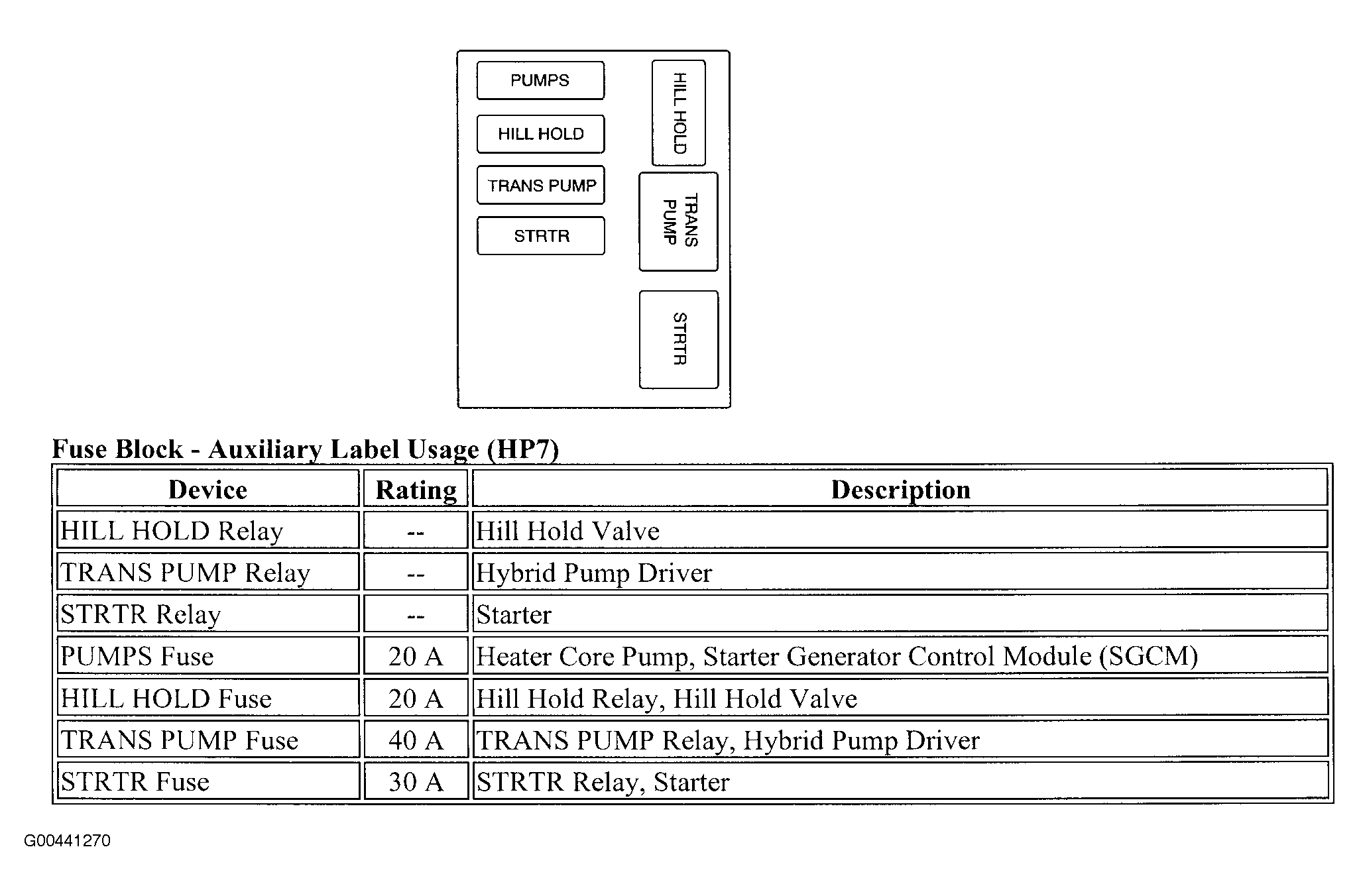

Fig 71: Auxiliary Fuse Block (Hybrid)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

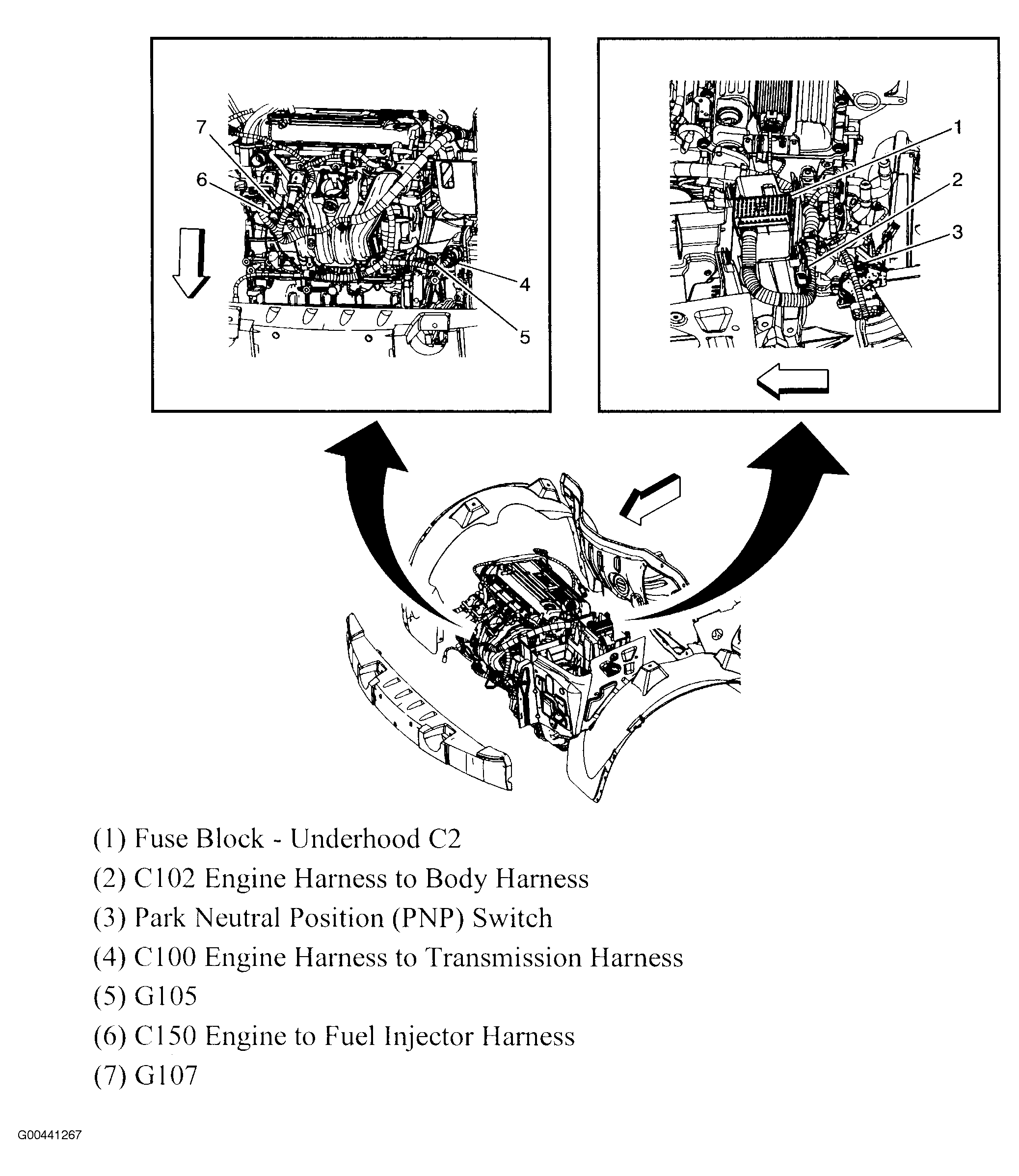

Fig 73: Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 75: Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Behind Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 77: Center Console
Courtesy of GENERAL MOTORS CORP.

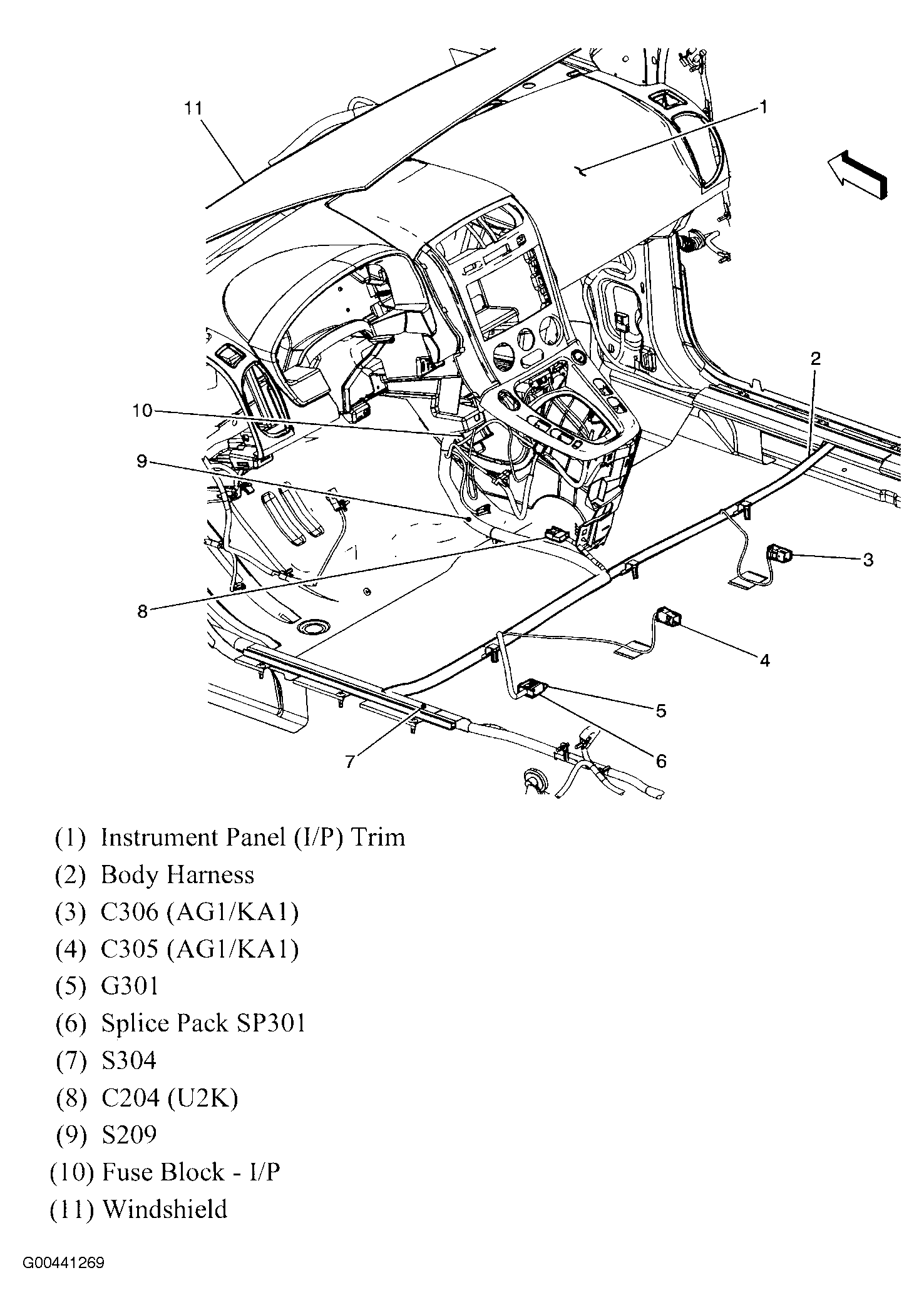

Fig 78: Dash & Floor
Courtesy of GENERAL MOTORS CORP.

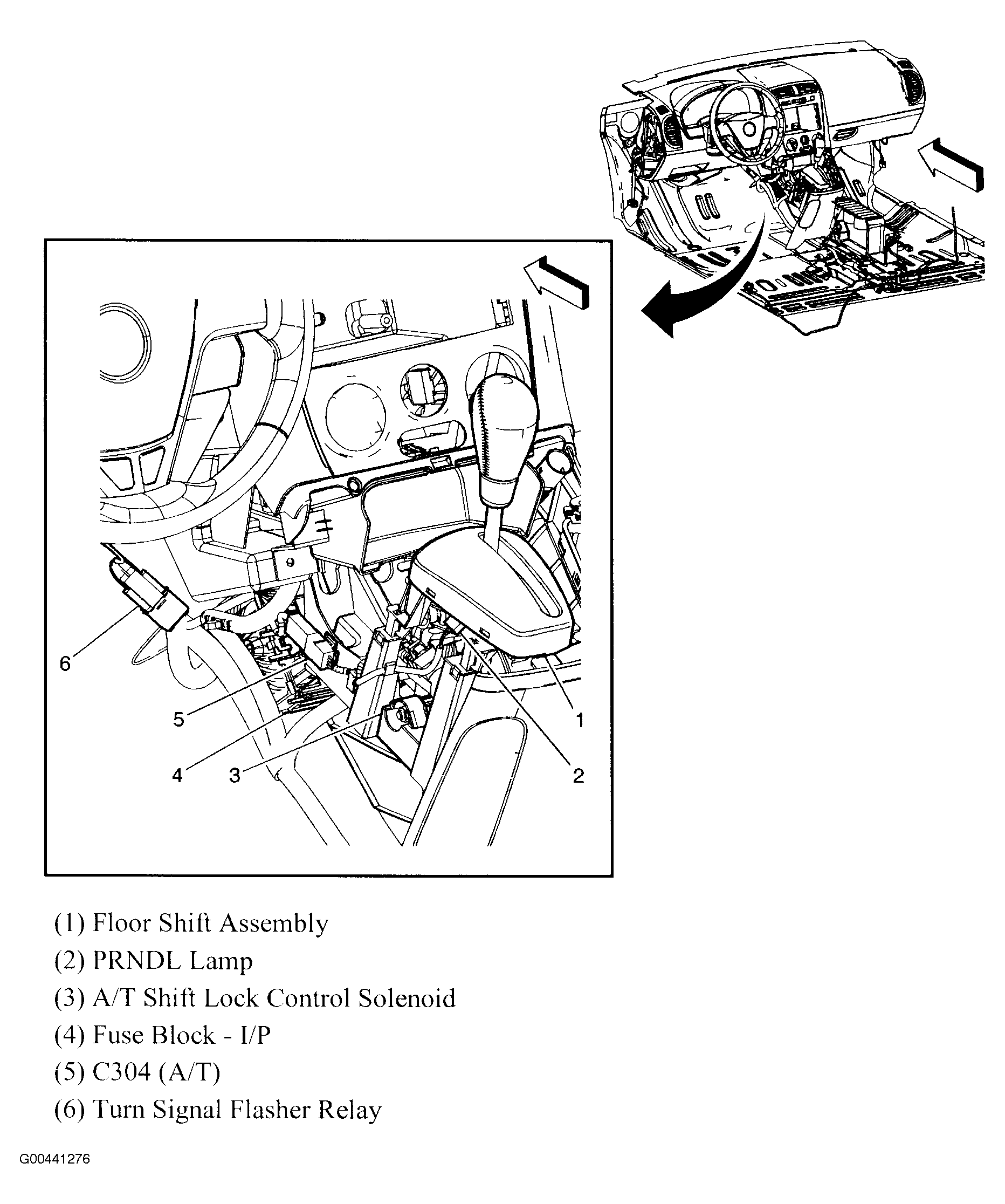

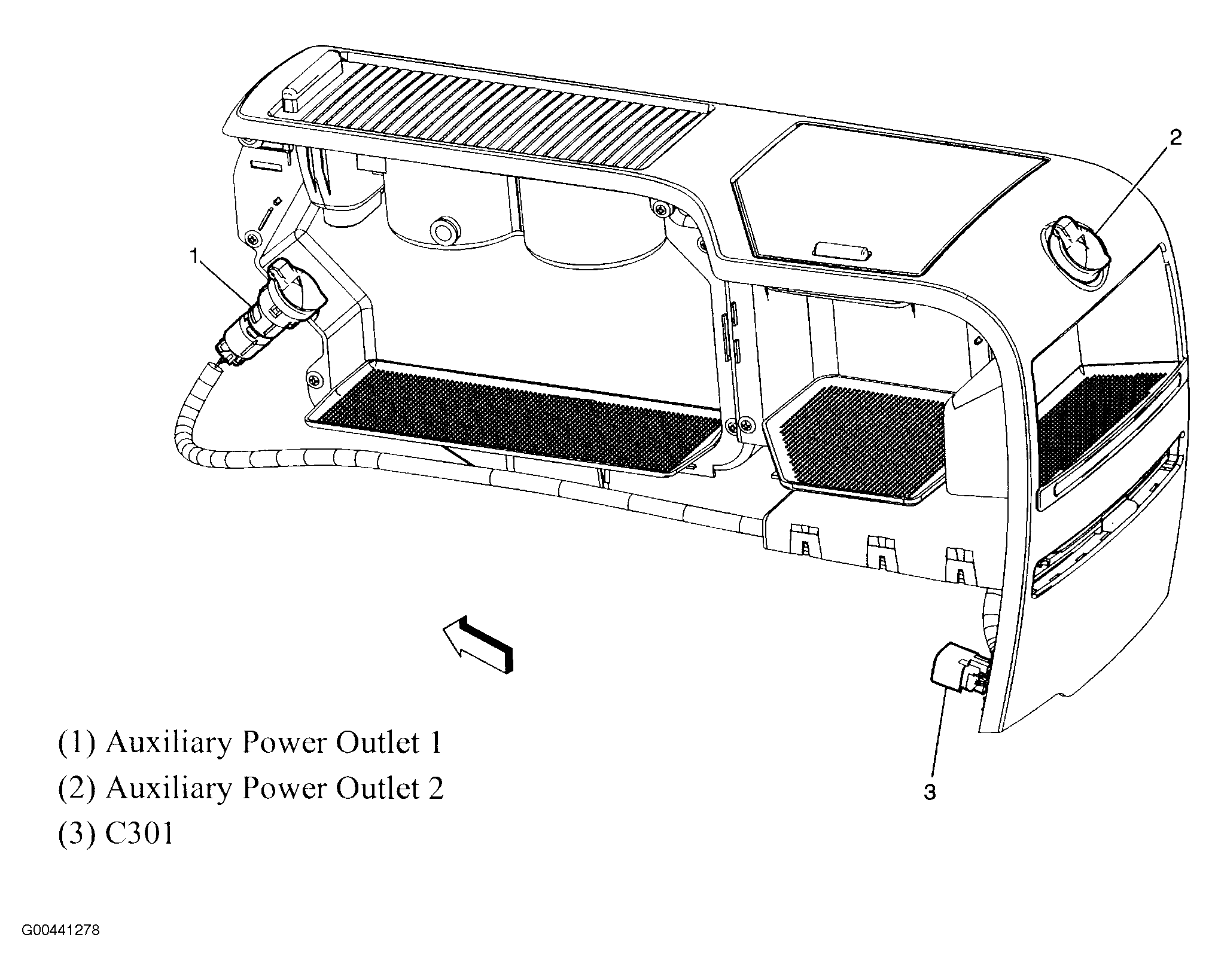

Fig 79: Floor Console
Courtesy of GENERAL MOTORS CORP.
