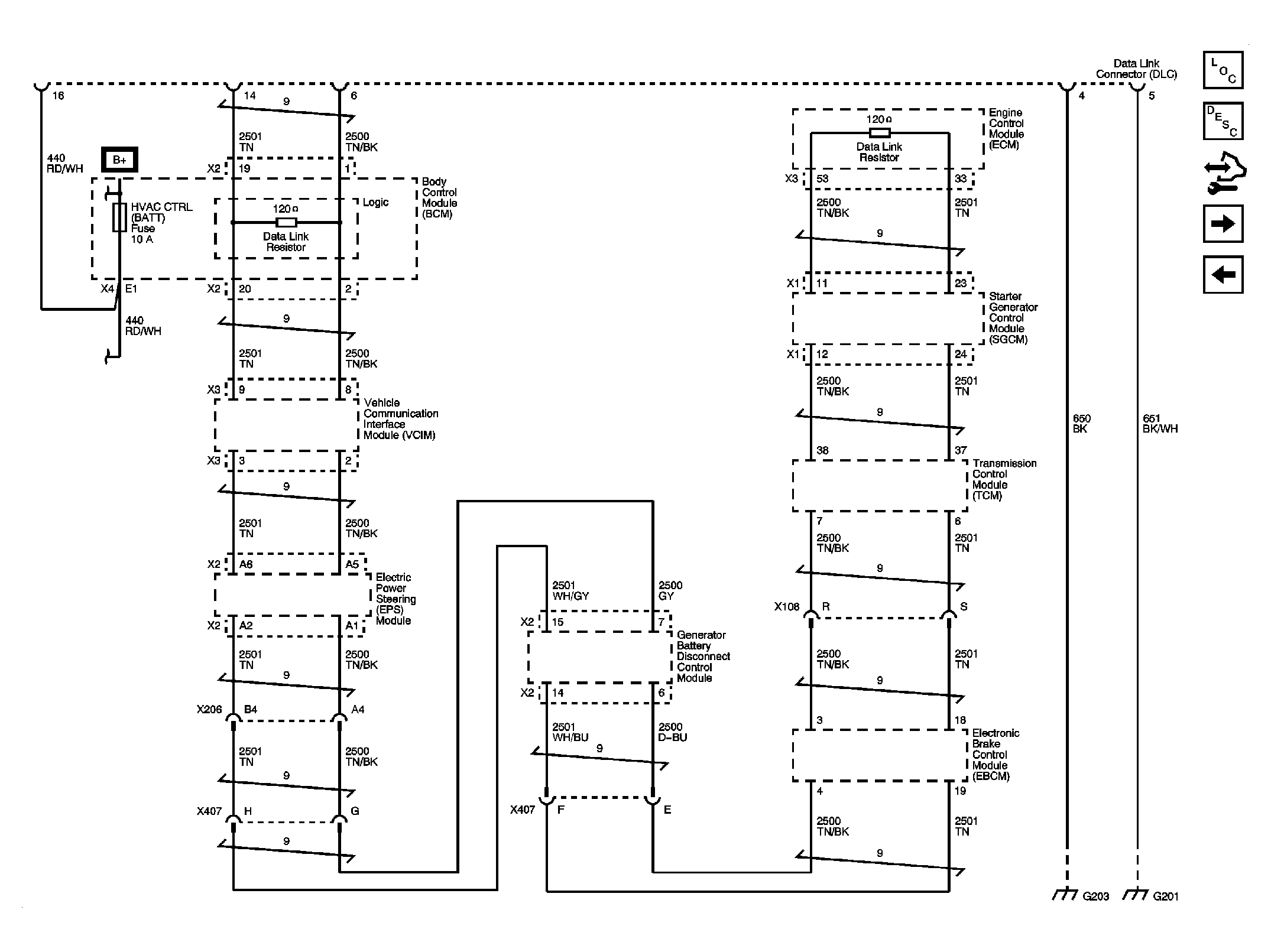

Fig 1: Power, Ground, and High Speed Serial Data (without HP7)
Courtesy of GENERAL MOTORS CORP.

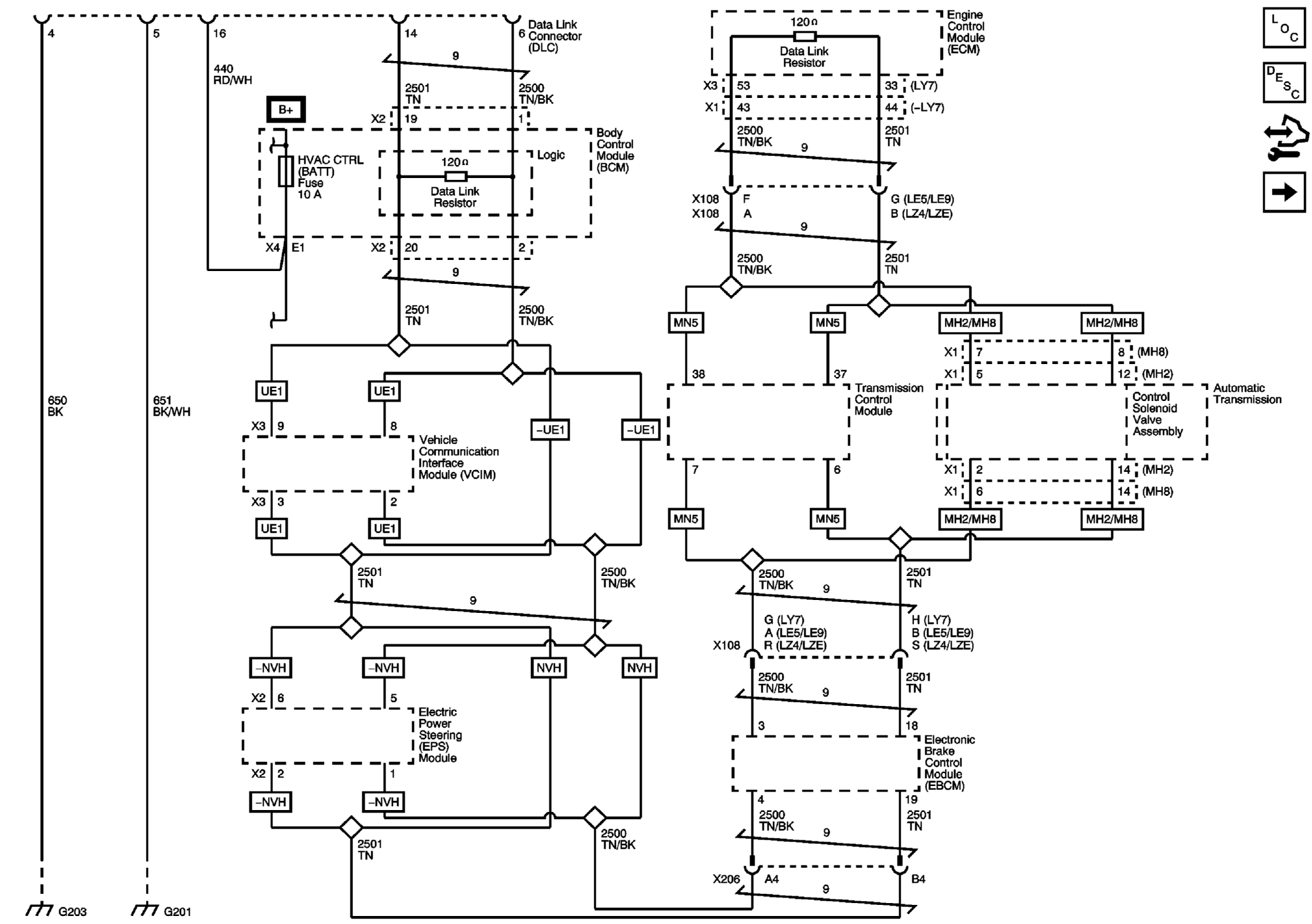

Fig 2: Power, Ground, and High Speed Serial Data (HP7)
