Entertainment Connector End Views

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
Audio Amplifier - C1 Connector End View

GM1341501Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336186
  • 15-Way 050 (WH)
Pin Wire Color Circuit No. Function
1 BN 199 Left Rear Speaker Output (+)
2 D-BU 46 Right Rear Speaker Output (+)
3-5 - - Not Used
6 TN 201 Left Front Speaker Output (+)
7 L-GN 200 Right Front Speaker Output (+)
8 YE 116 Left Rear Speaker Output (-)
9 L-BU 115 Right Rear Speaker Output (-)
10 OG 360 Amplifier Control
11-12 - - Not Used
13 OG 1950 Amplifier Present Signal
14 GY 118 Left Front Speaker Output (-)
15 D-GN 117 Right Front Speaker Output (-)
Audio Amplifier - C2 Connector End View

GM831385Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336184
  • 10-Way F (WH)
Pin Wire Color Circuit No. Function
1 L-GN 200 Right Front Speaker Output (+)
2 TN 201 Left Front Speaker Output (+)
3 D-BU 46 Right Rear Speaker Output (+)
4 BN 199 Left Rear Speaker Output (+)
5 D-GN 117 Right Front Speaker Output (-)
6 GY 118 Left Front Speaker Output (-)
7 BK 450 Ground
8 BK 450 Ground
9 L-BU 115 Right Rear Speaker Output (-)
10 YE 116 Left Rear Speaker Output (-)

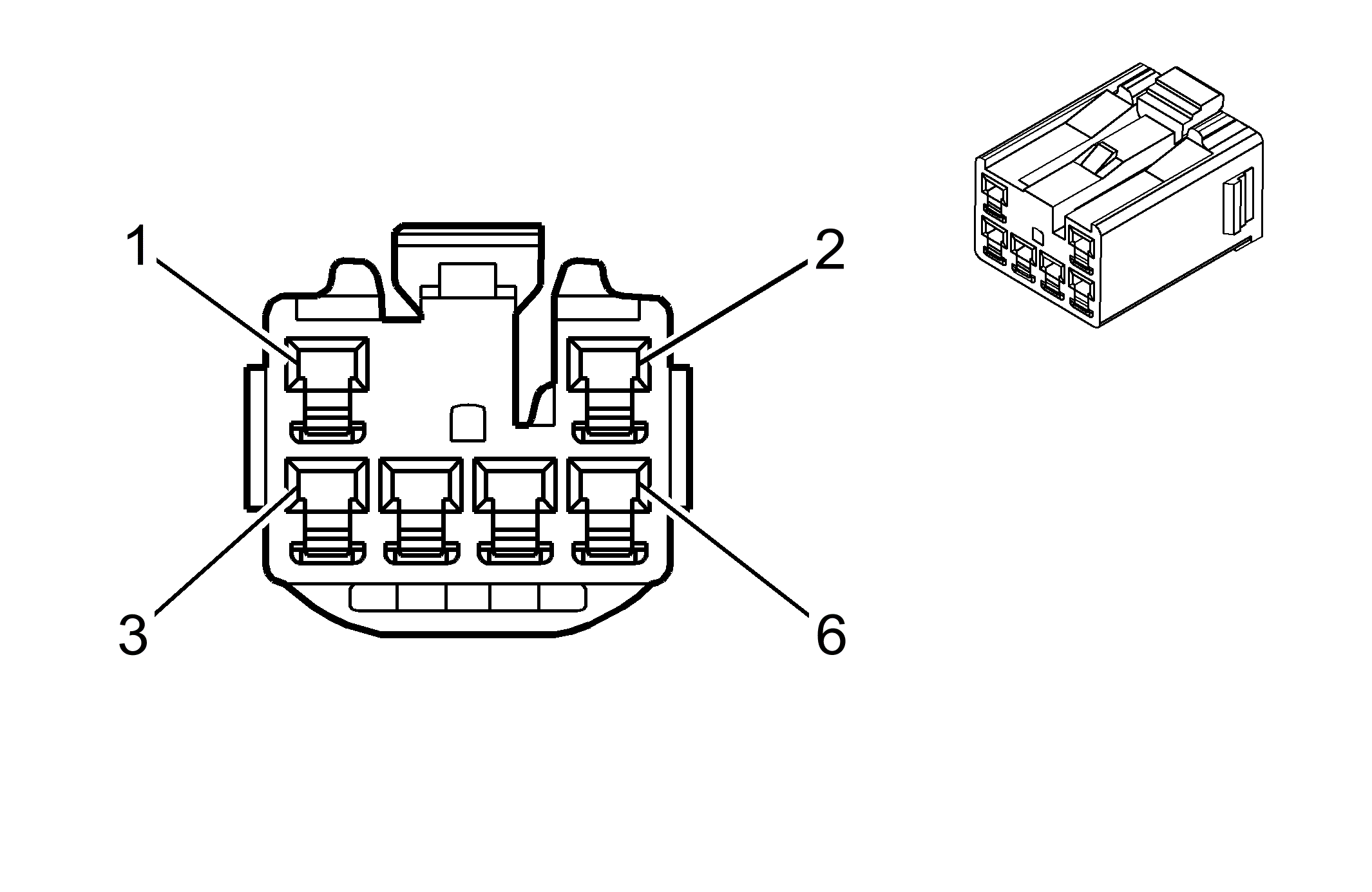

Audio Amplifier - C3 Connector End View

GM1341487Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336191
  • 6-Way F (WH)
Pin Wire Color Circuit No. Function
1 D-BU/WH 346 Left or Rear Subwoofer Speaker Output (+)
2 - - Not Used
3 L-GN/BK 1794 Left or Rear Subwoofer Speaker Output (-)
4 OG 1340 Battery Positive Voltage
5 OG 1340 Battery Positive Voltage
6 - - Not Used
Radio Connector End View

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
A3 OG 360 Amplifier Control
A4-A7 - - Not Used
A8 BN 199 Left Rear Speaker Output (+)
A9 YE 116 Left Rear Speaker Output (-)
A10 D-GN 117 Right Front Speaker Output (-)
A11 L-GN 200 Right Front Speaker Output (+)
A12 BK 550 Ground
B1 OG 440 Battery Positive Voltage
B2 YE 43 Accessory Voltage
B3 - - Not Used
B4 GY 8 Instrument Panel Lamp Supply Voltage
B5 - - Not Used
B6 OG 1950 Amplifier Present Signal
B7 - - Not Used
B8 TN 201 Left Front Speaker Output (+)
B9 GY 118 Left Front Speaker Output (-)
B10 L-BU 115 Right Rear Speaker Output (-)
B11 D-BU 46 Right Rear Speaker Output (+)
B12 BN 9 Park Lamp Supply Voltage
Speaker - LF (Woofer) Connector End View

GM1282875Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12196741
  • 2-Way F Receptacle 2.8 (BK)
Pin Wire Color Circuit No. Function
1 GY 118 Left Front Speaker Output (-)
2 TN 201 Left Front Speaker Output (+)
Speaker - LR Connector End View

GM1282875Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12196741
  • 2-Way F Receptacle 2.8 (BK)
Pin Wire Color Circuit No. Function
1 YE 116 Left Rear Speaker Output (-)
2 BN 199 Left Rear Speaker Output (+)
Speaker - RF (Woofer) Connector End View

GM1282875Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186719
  • 2-Way F Receptacle 2.8 (BK)
Pin Wire Color Circuit No. Function
1 D-GN 117 Right Front Speaker Output (-)
2 L-GN 200 Right Front Speaker Output (+)
Speaker - RR Connector End View

GM1282875Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186719
  • 2-Way F Receptacle 2.8 (BK)
Pin Wire Color Circuit No. Function
1 L-BU 115 Right Rear Speaker Output (-)
2 D-BU 46 Right Rear Speaker Output (+)
Speaker - Subwoofer Connector End View

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-BU/WH 346 Left or Rear Subwoofer Speaker Output (+)
B L-GN/BK 1794 Left or Rear Subwoofer Speaker Output (-)
Speaker - LF (Tweeter) Connector End View

GM1282877Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305566
  • 2-Way F (NA)
Pin Wire Color Circuit No. Function
1 GY 118 Left Front Speaker Output (-)
2 TN 201 Left Front Speaker Output (+)
Speaker - RF (Tweeter) Connector End View

GM1282877Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305566
  • 2-Way F (NA)
Pin Wire Color Circuit No. Function
1 D-GN 117 Right Front Speaker Output (-)
2 L-GN 200 Right Front Speaker Output (+)
