HVAC Control Module



Component Connector End Views

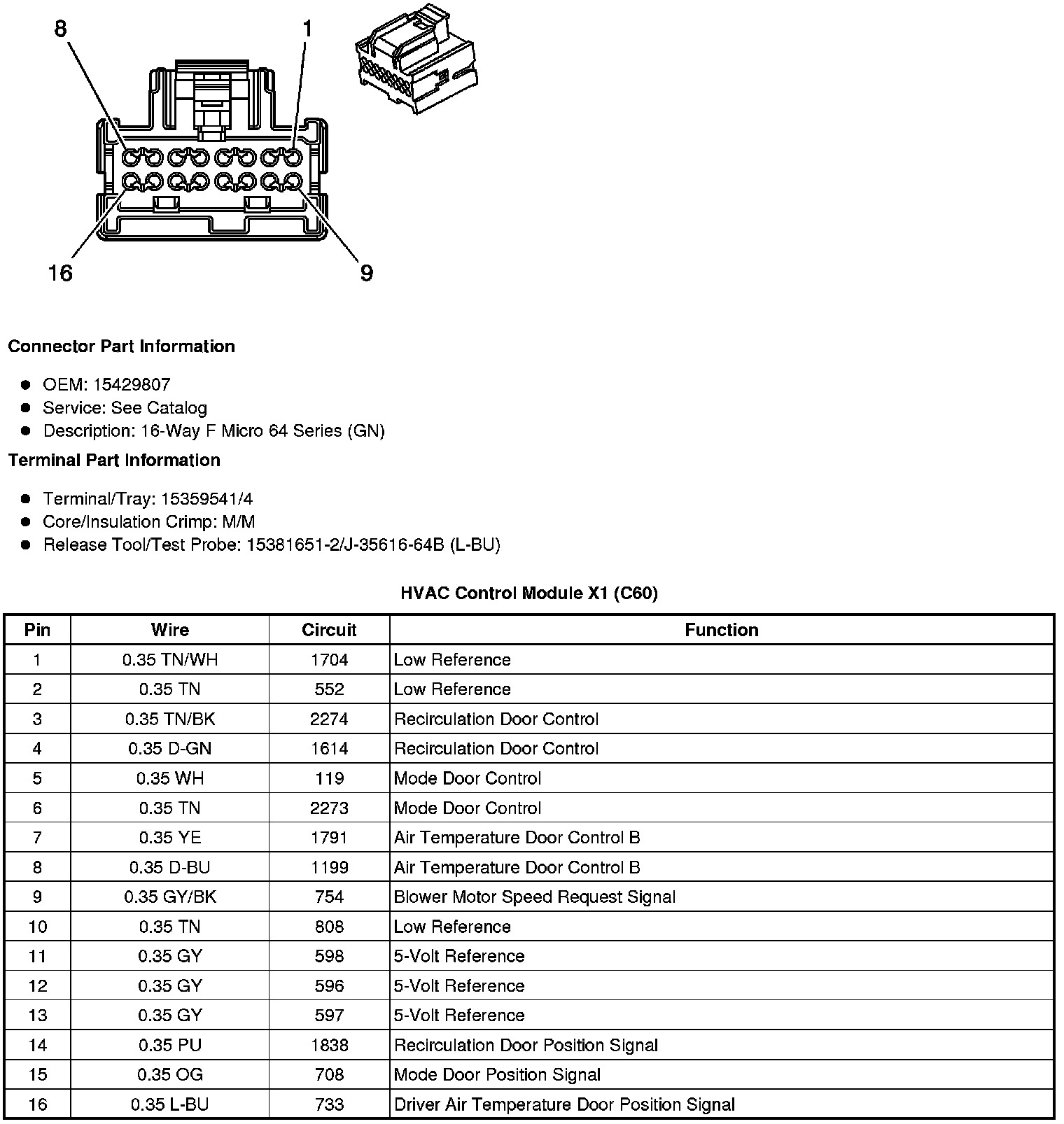

HVAC Control Module X1 (C60)

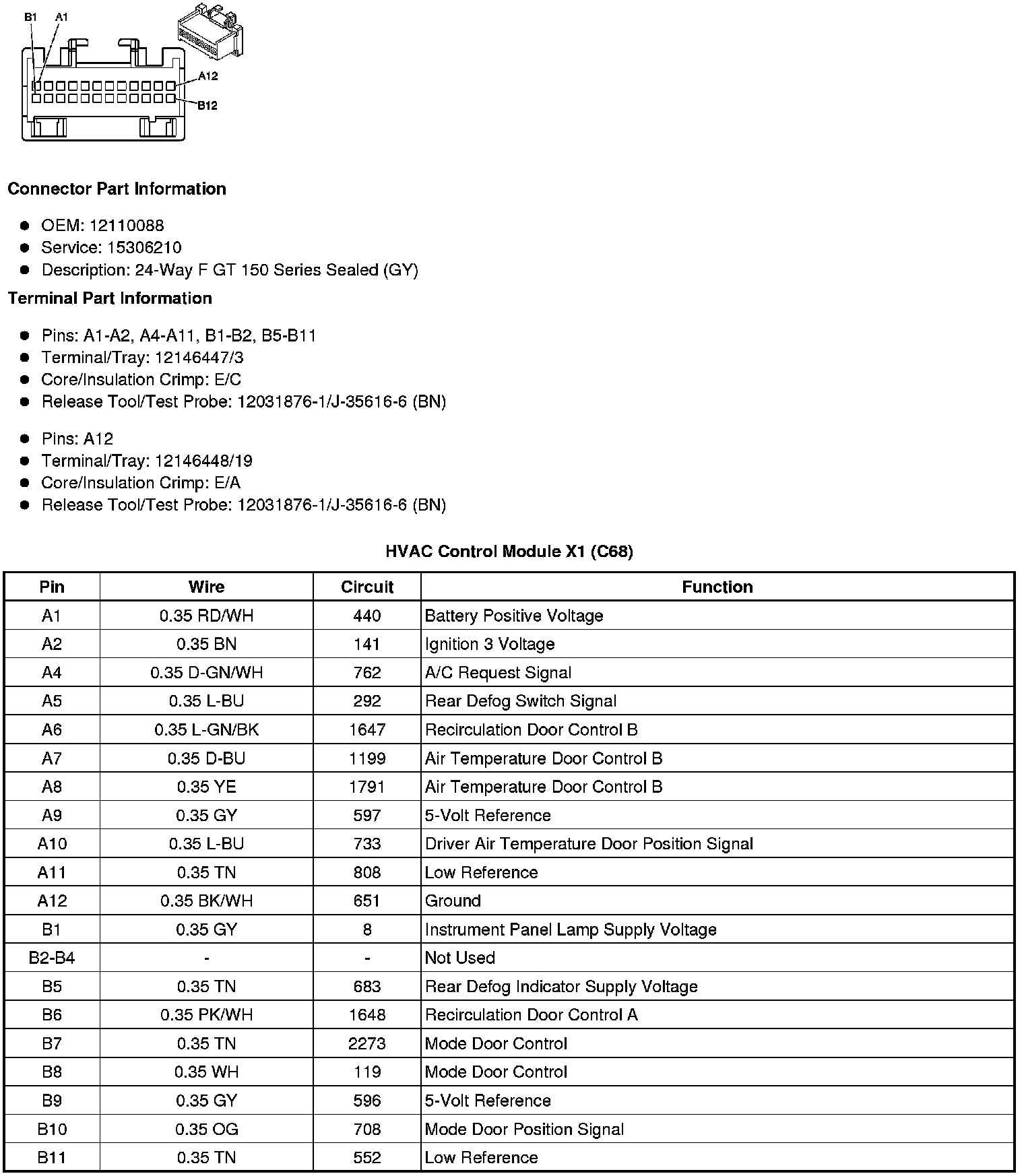

HVAC Control Module X1 (C68)

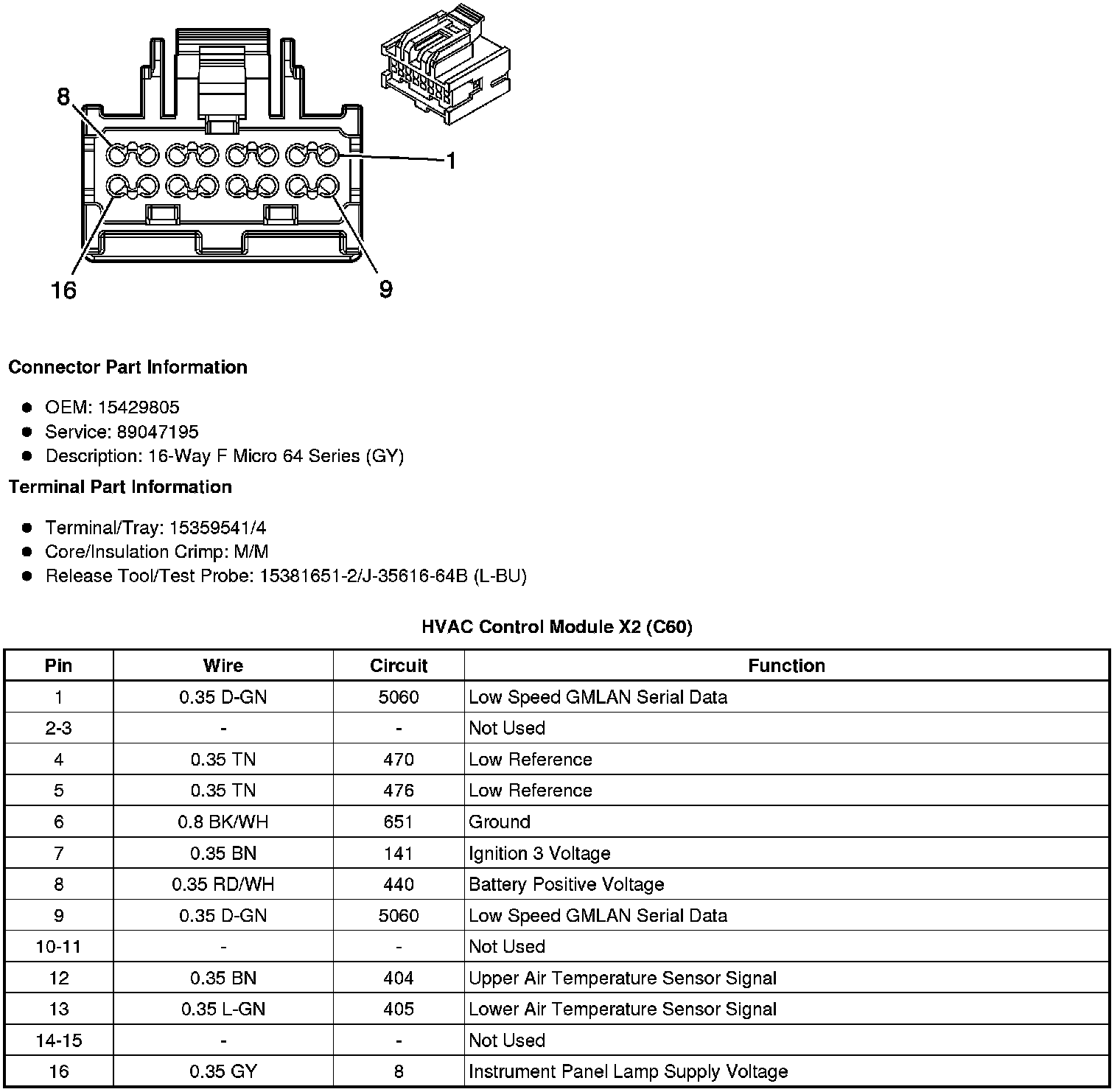

HVAC Control Module X2 (C60)

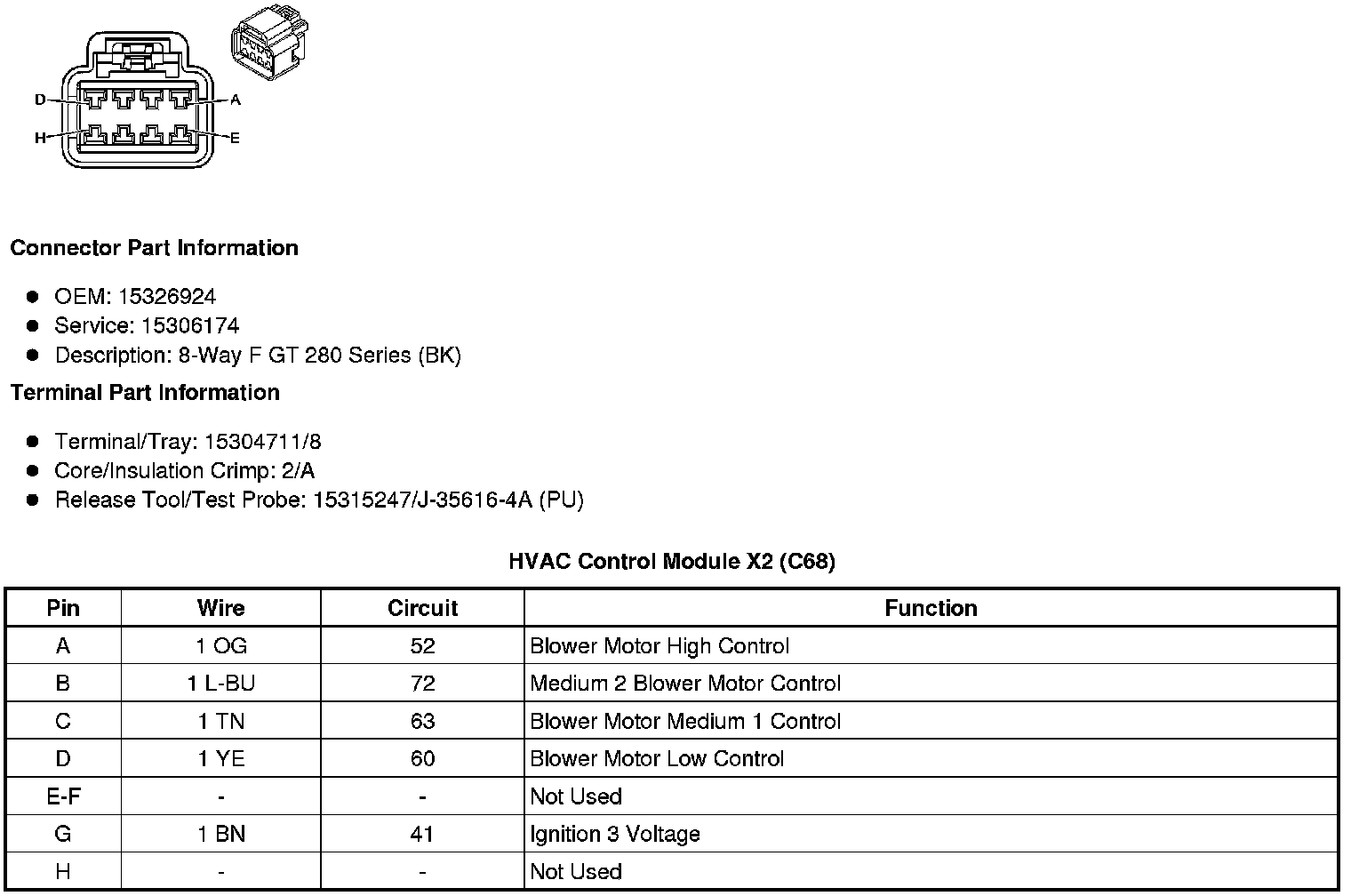

HVAC Control Module X2 (C68)
