Coolant Temperature Sensor/Switch (For Computer)



Component Connector End Views

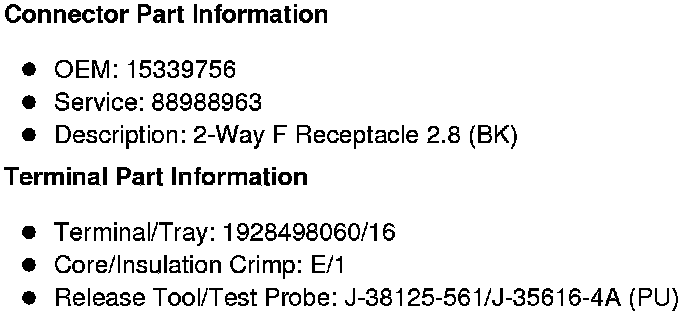

Engine Coolant Temperature (ECT) Sensor (LAT)

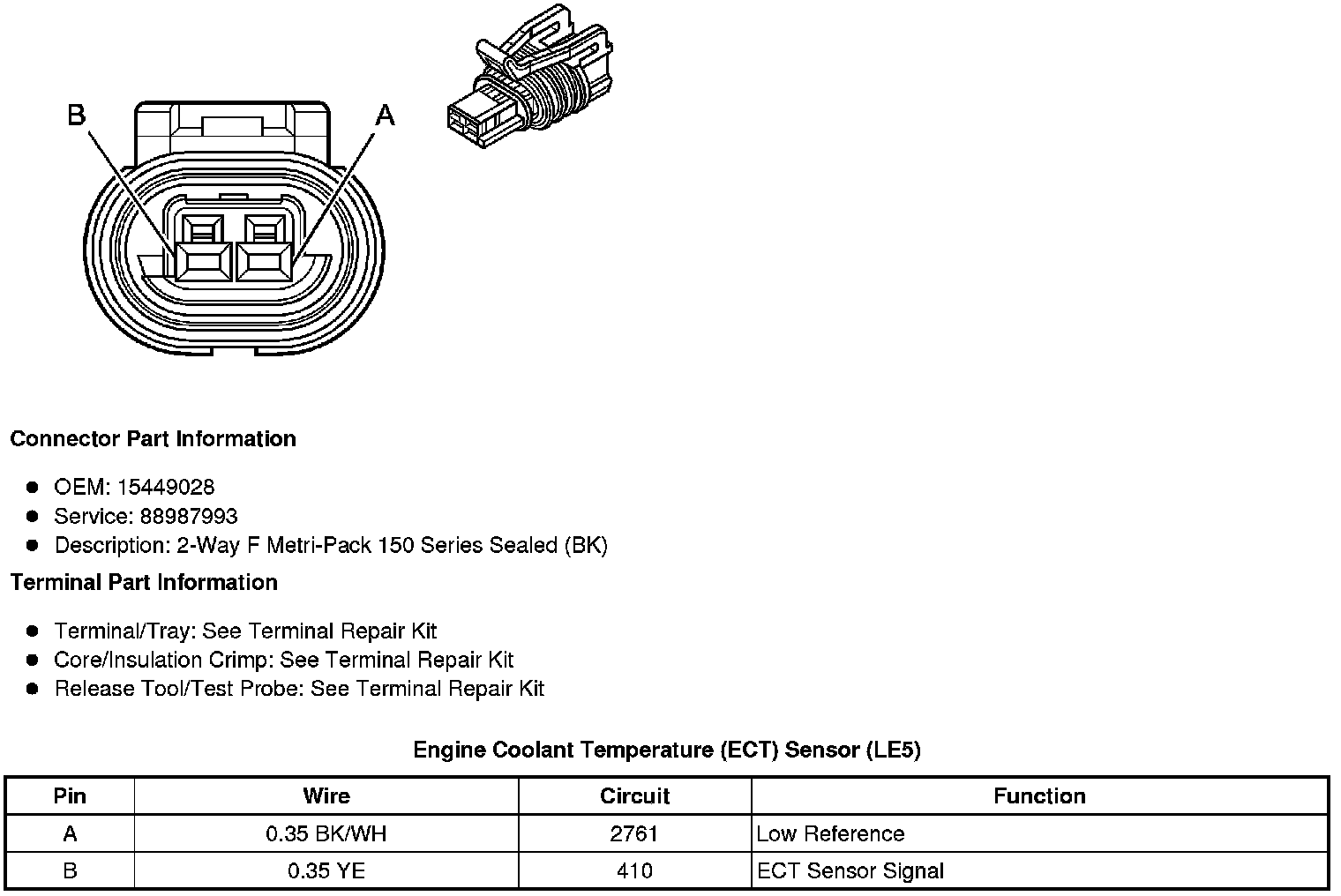

Engine Coolant temperature (ECT) Sensor (LE5)






Engine Coolant Temperature (ECT) Sensor (LY7)

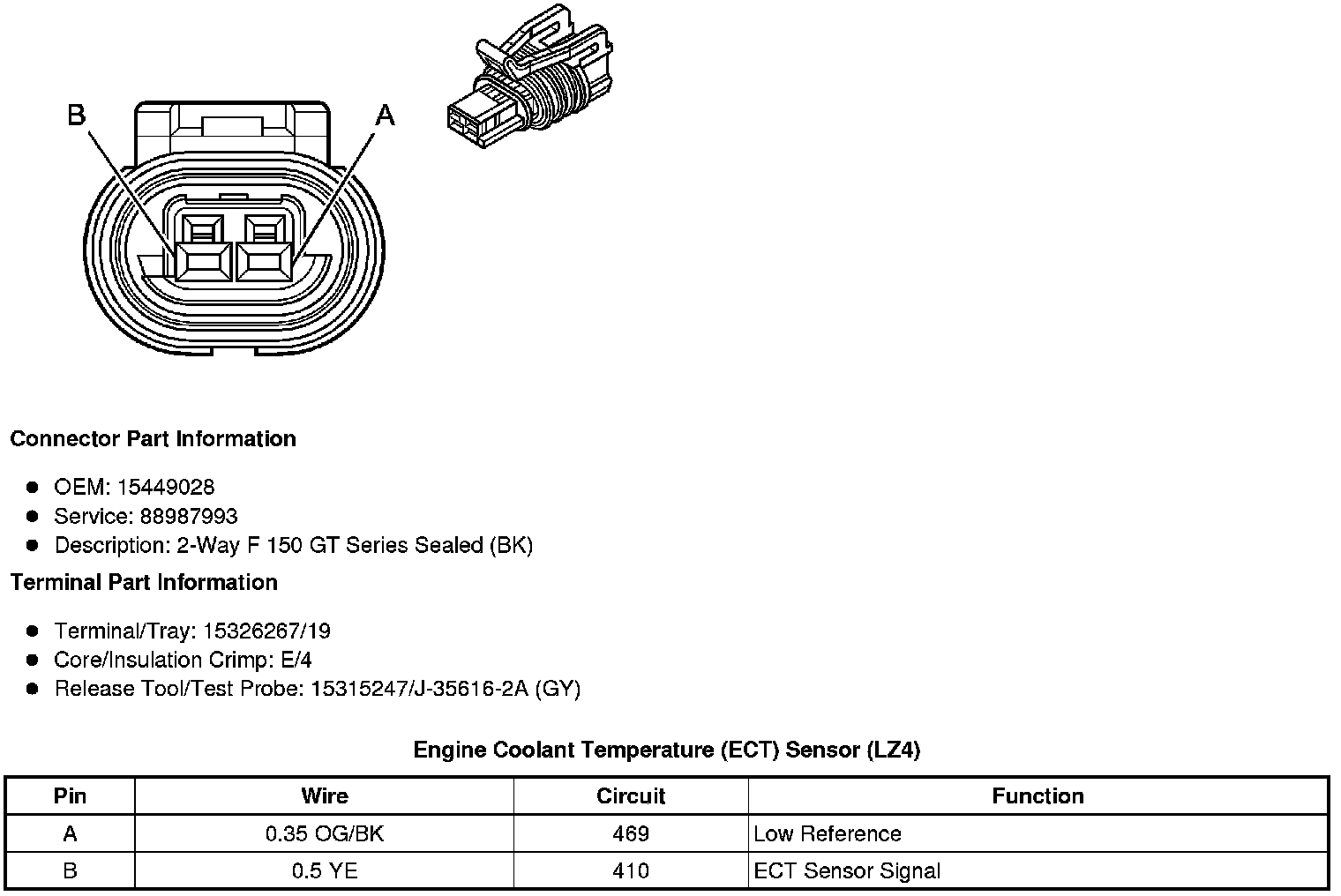

Engine Coolant Temperature (ECT) Sensor (LZ4)
