Steering Control Module



Component Connector End Views

Power Steering Control Module X1

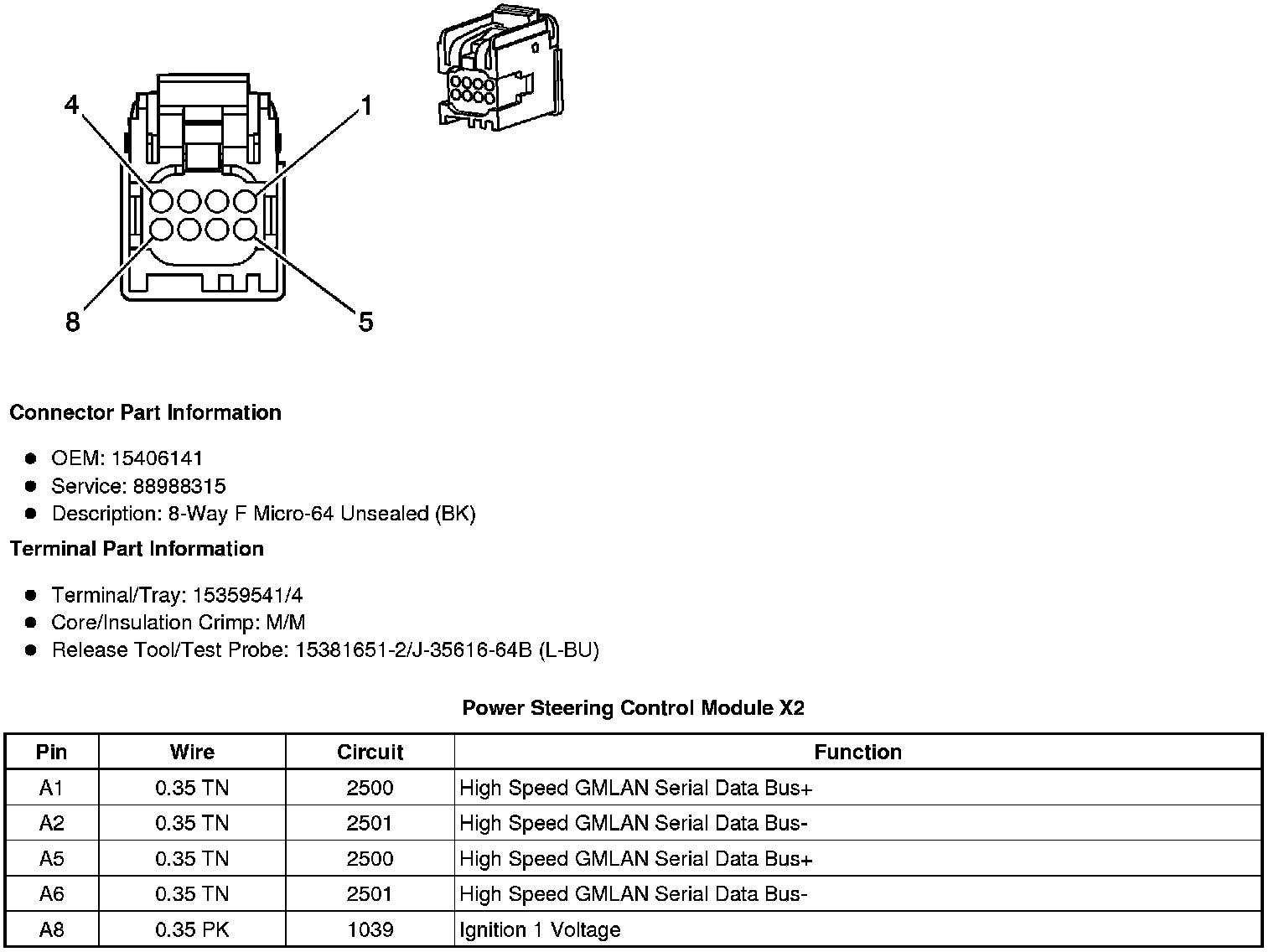

Power Steering Control Module X2

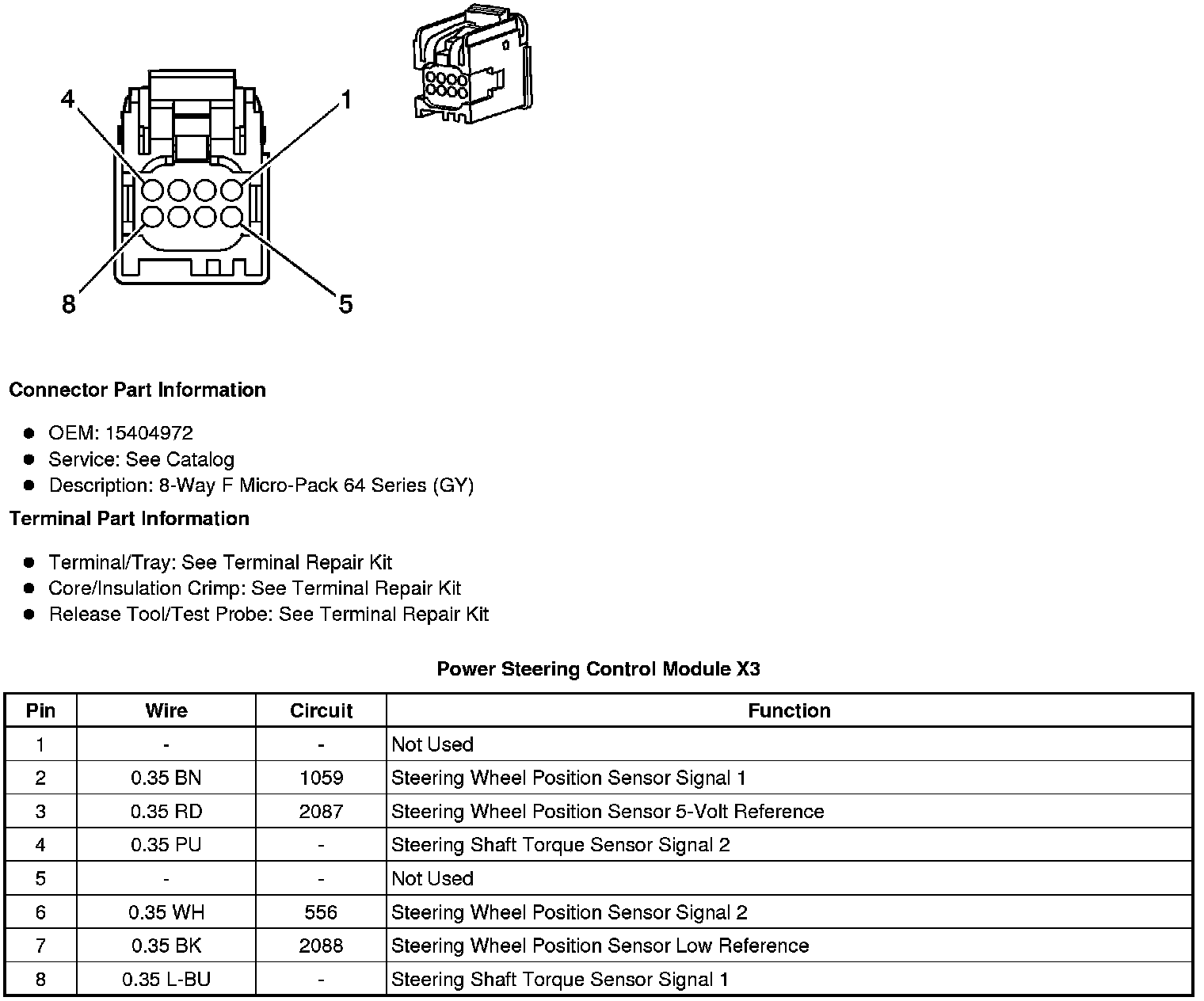

Power Steering Control Module X3
