Ground Distribution Schematics

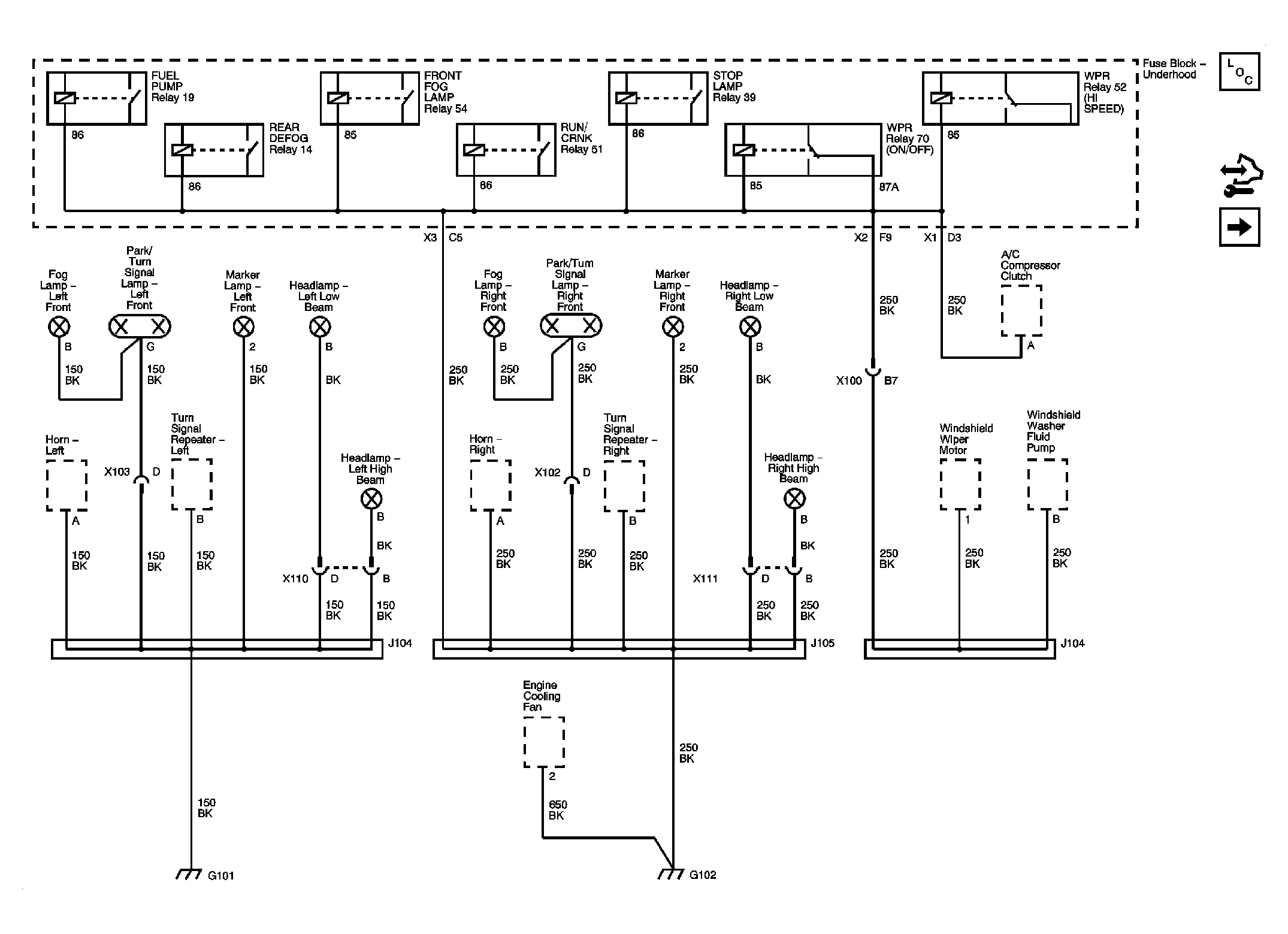

Fig 1: G101 and G102 Schematic

Courtesy of GENERAL MOTORS CORP.

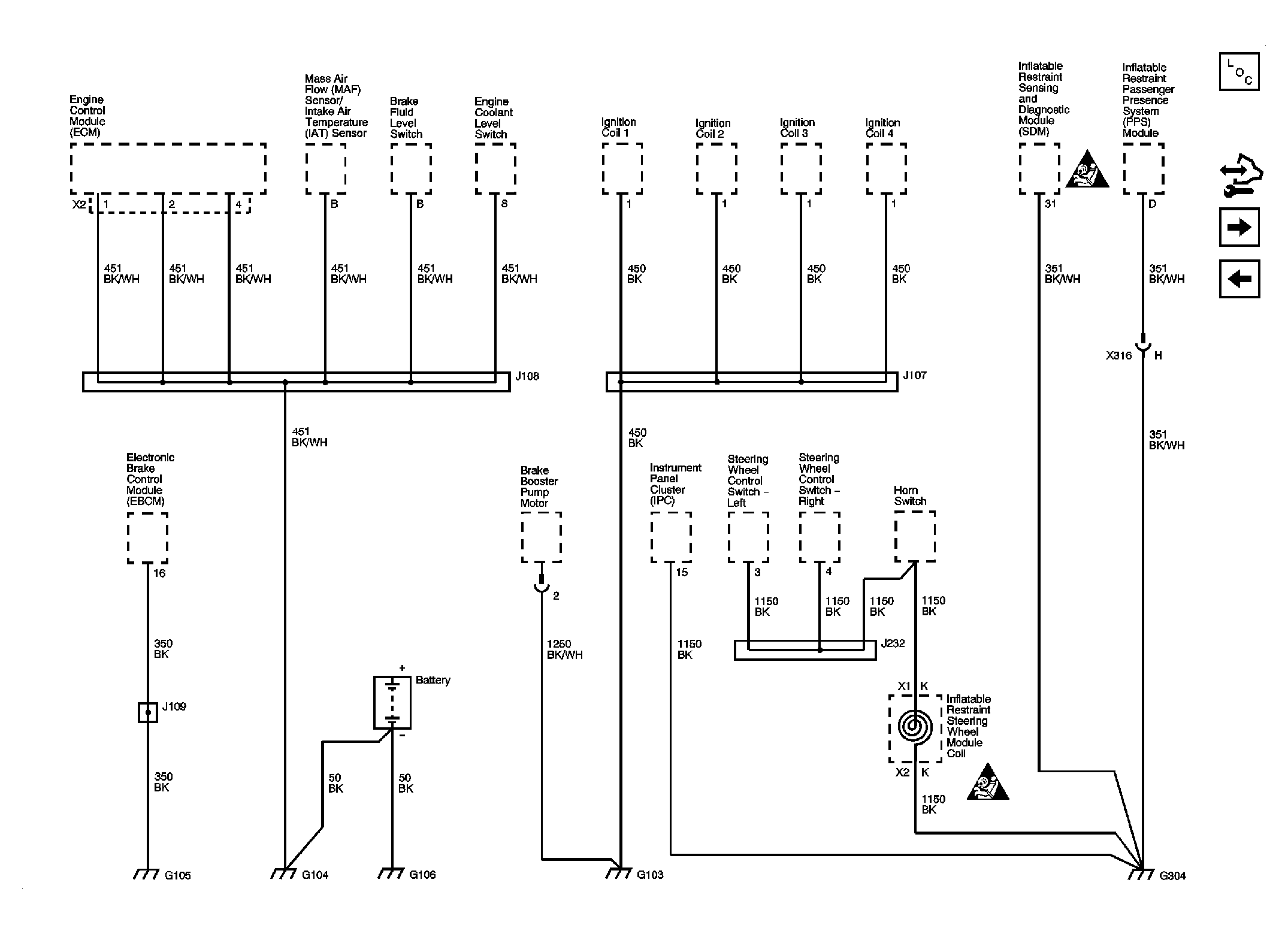

Fig 2: G103, G105, G104, G106, G304 Schematic

Courtesy of GENERAL MOTORS CORP.

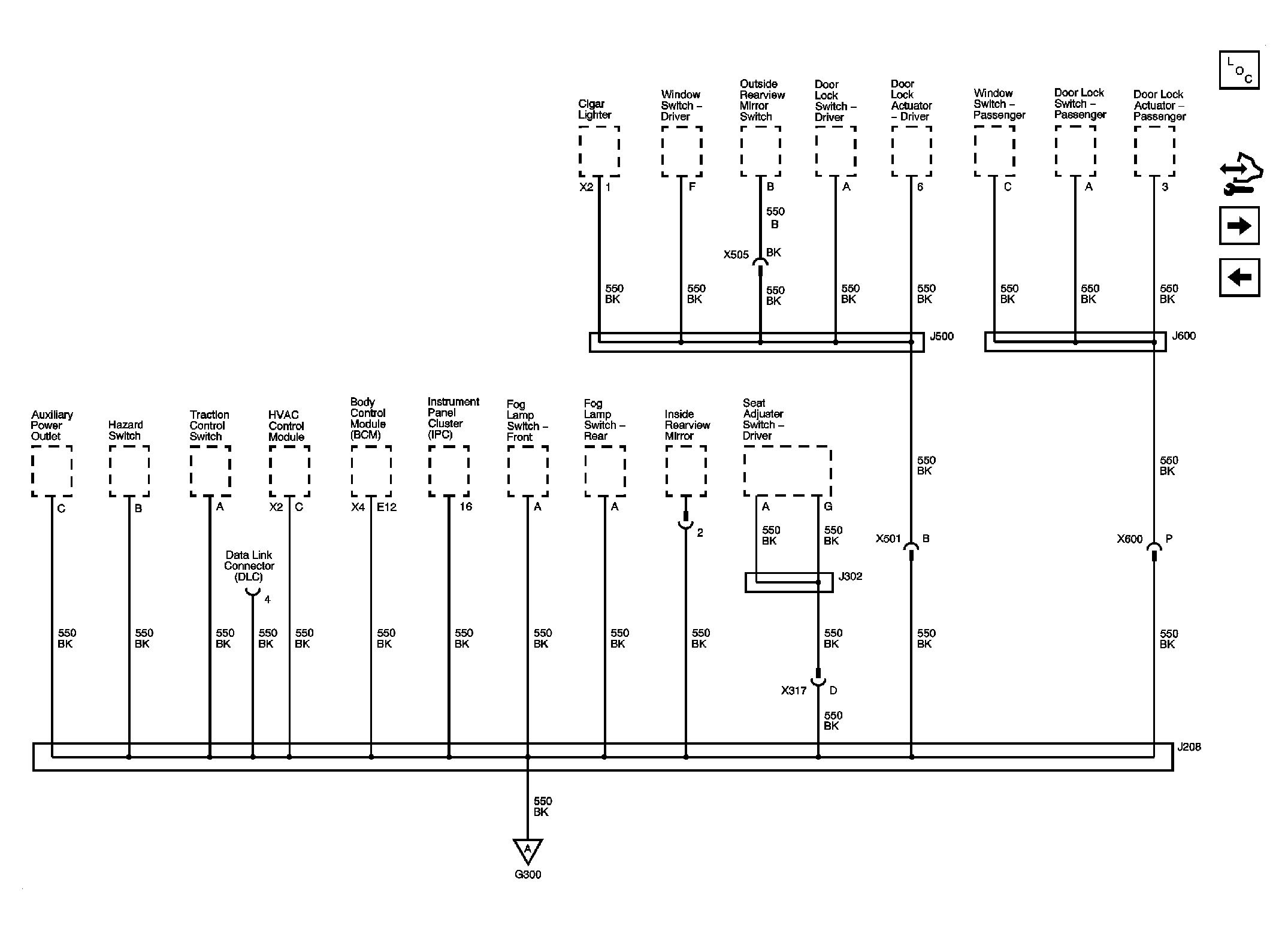

Fig 3: G300 Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

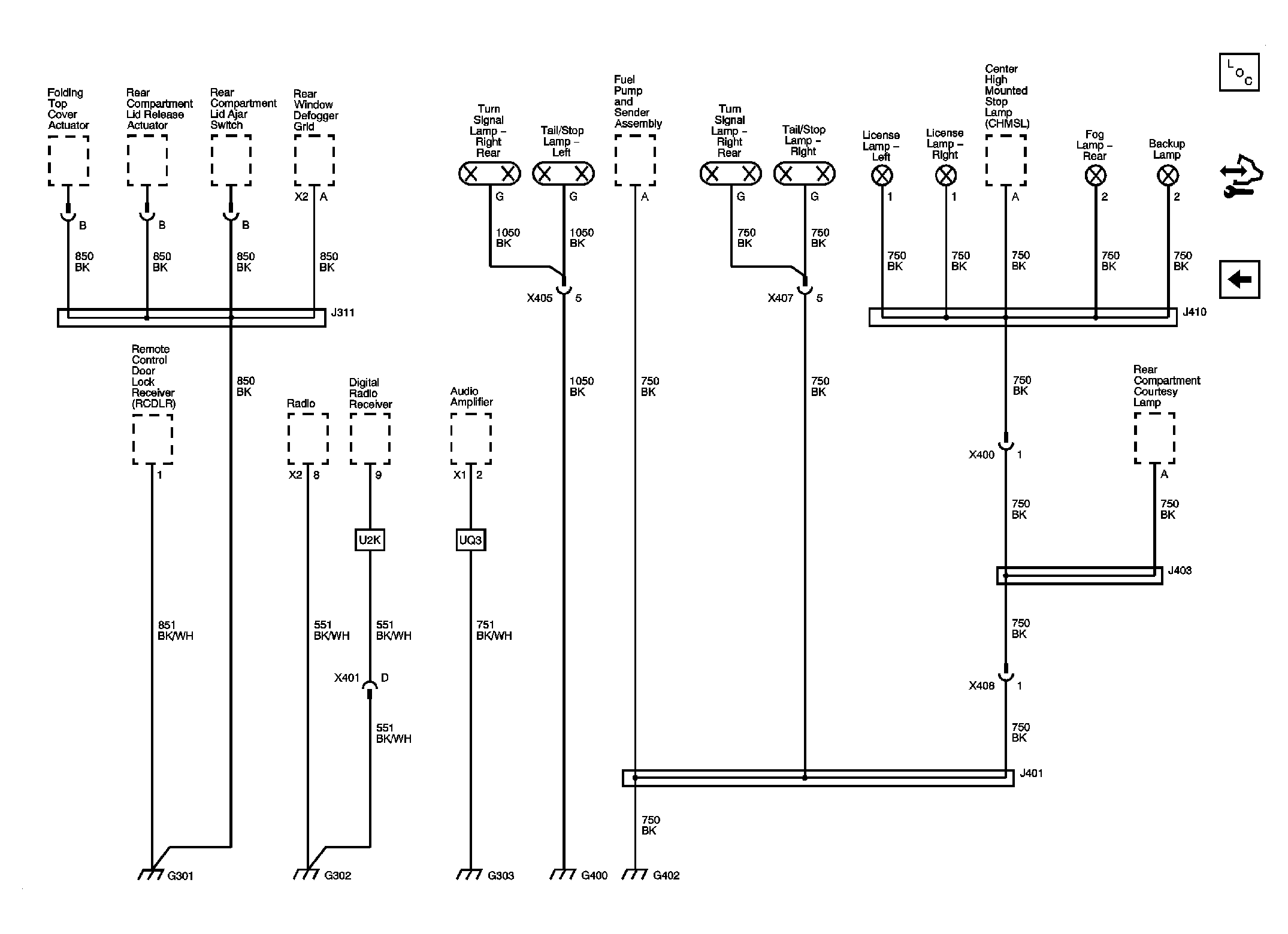

Fig 4: G300 Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 5: G301, G302, G303, G400, G402 Schematic

Courtesy of GENERAL MOTORS CORP.
