Power Distribution Schematics

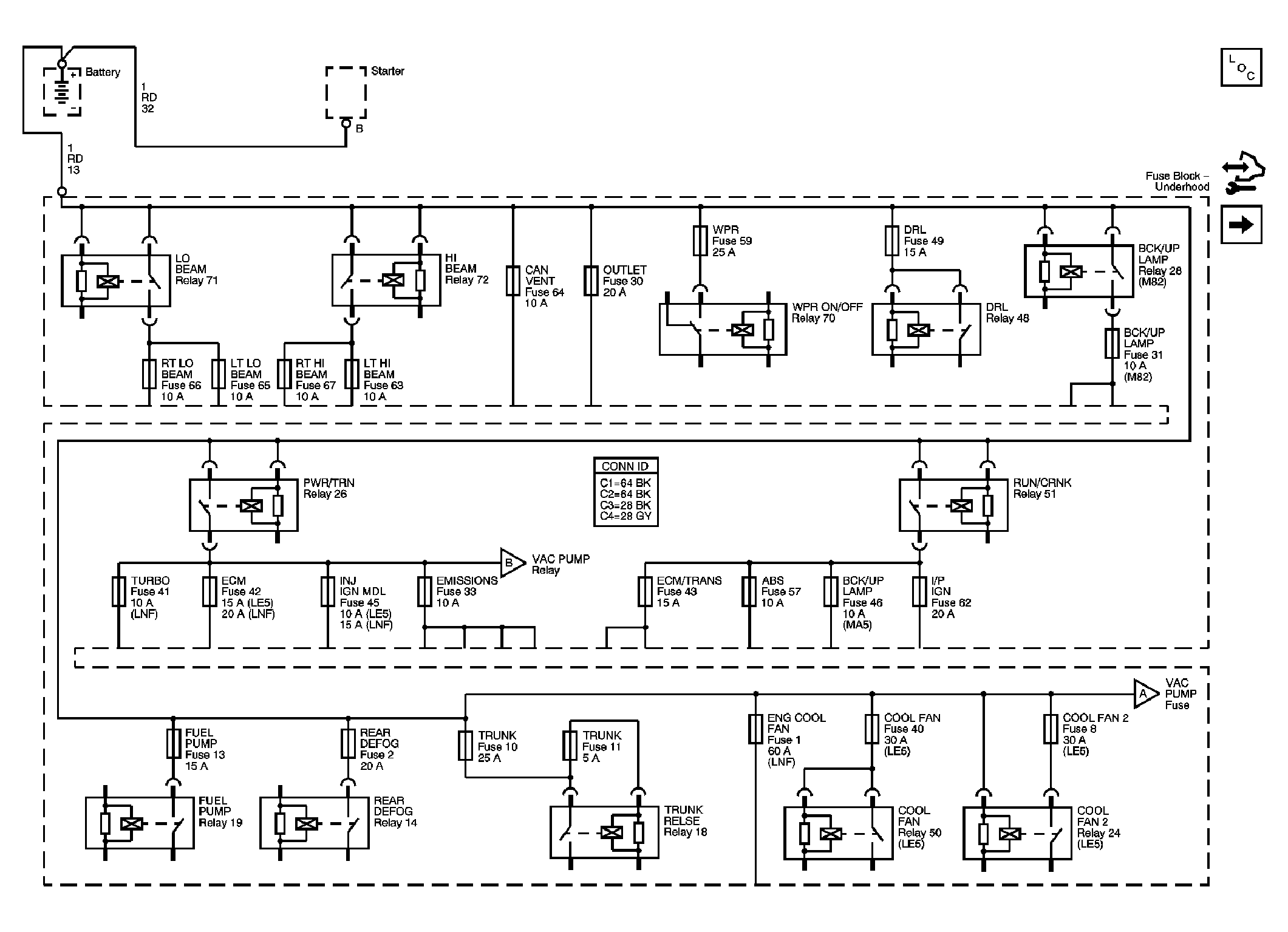

Fig 1: B+ Bus Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

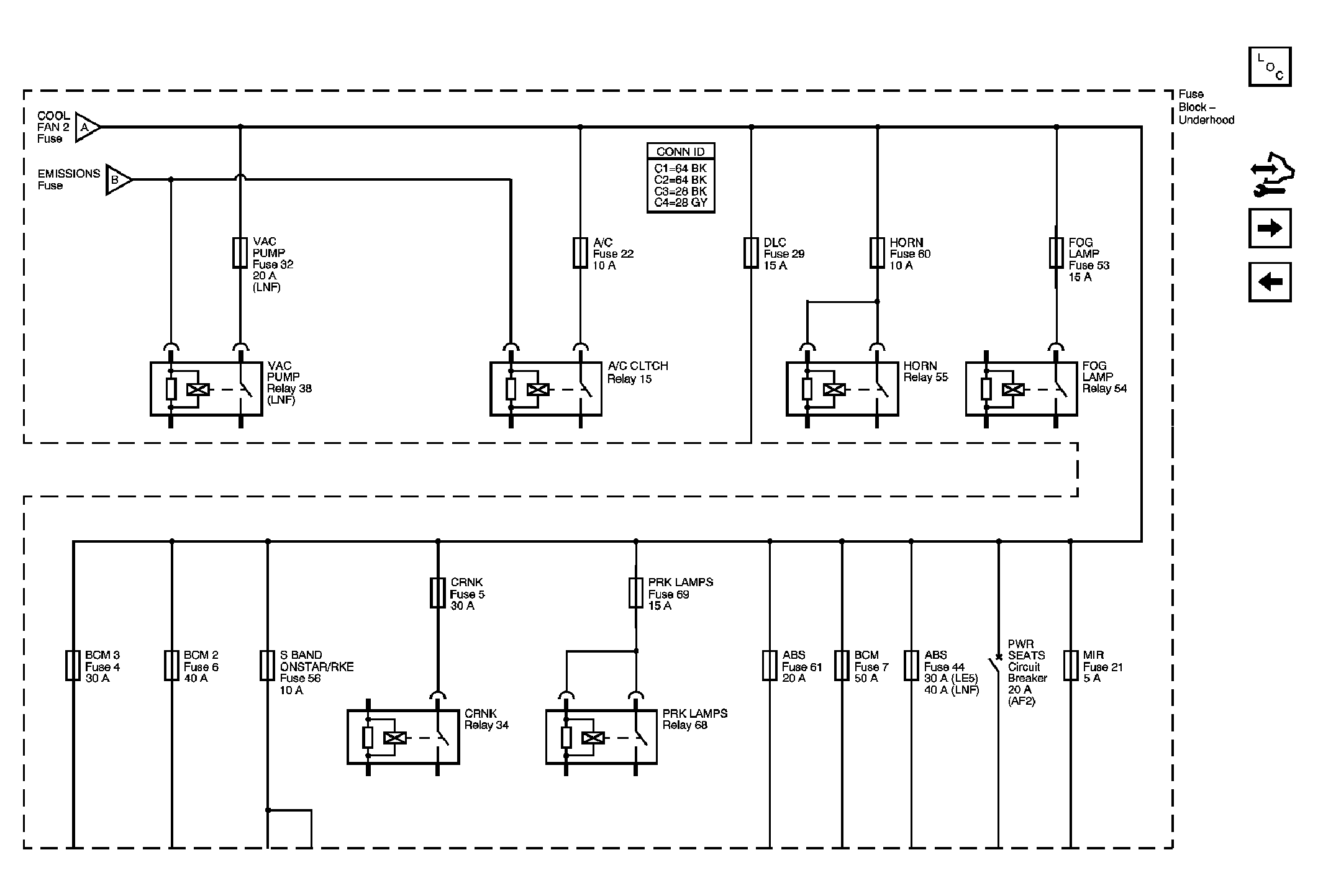

Fig 2: B+ Bus Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

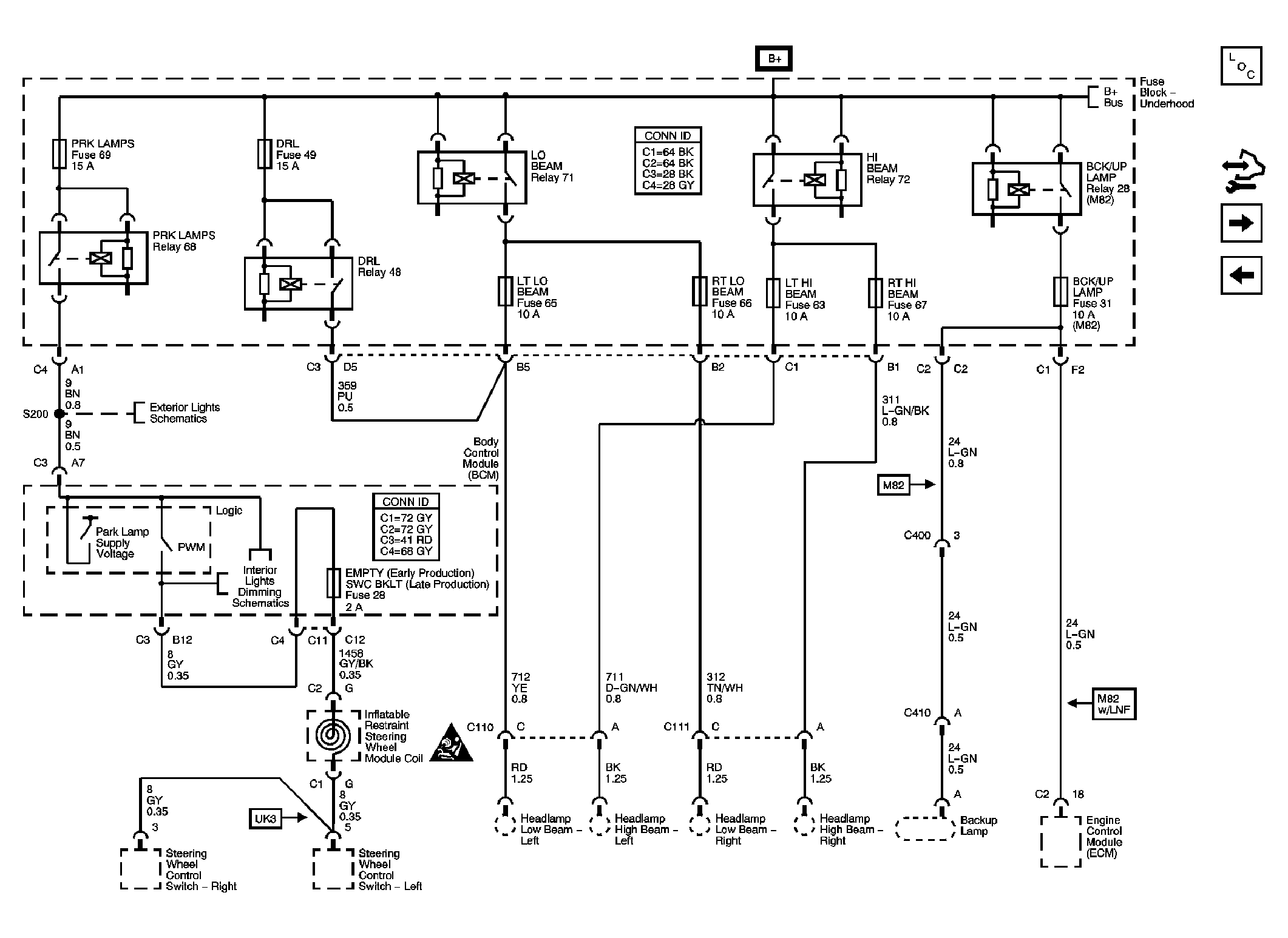

Fig 3: DRL, LO BEAM and HI BEAM Fuses, BCK/UP and Park Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

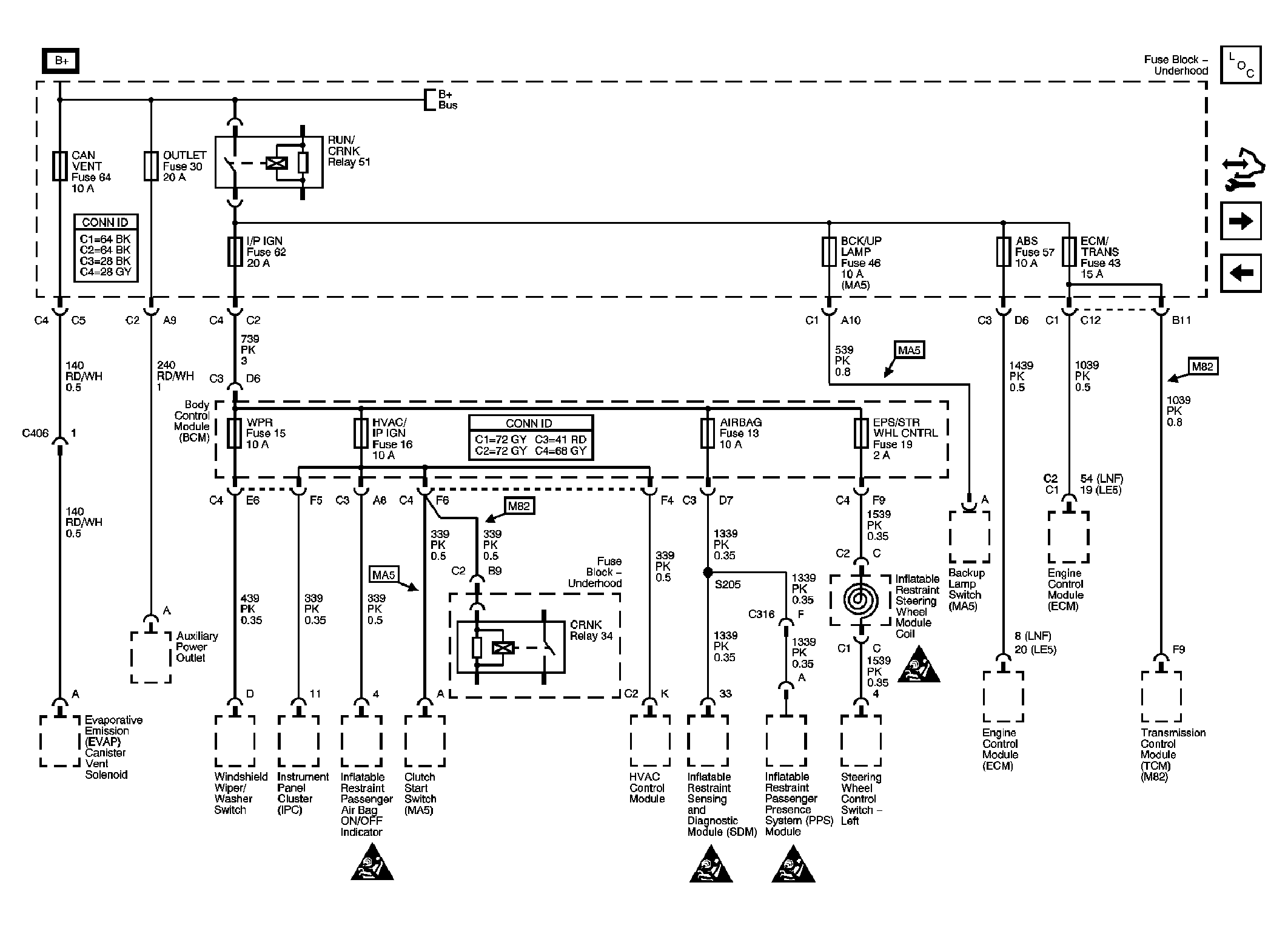

Fig 4: ABS, BCK/UP Lamp, Can Vent, ECM/Trans, I/P IGN, Air Bag, EPS/STR WHL CNTRL, HVAC/IP IGN, WPR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

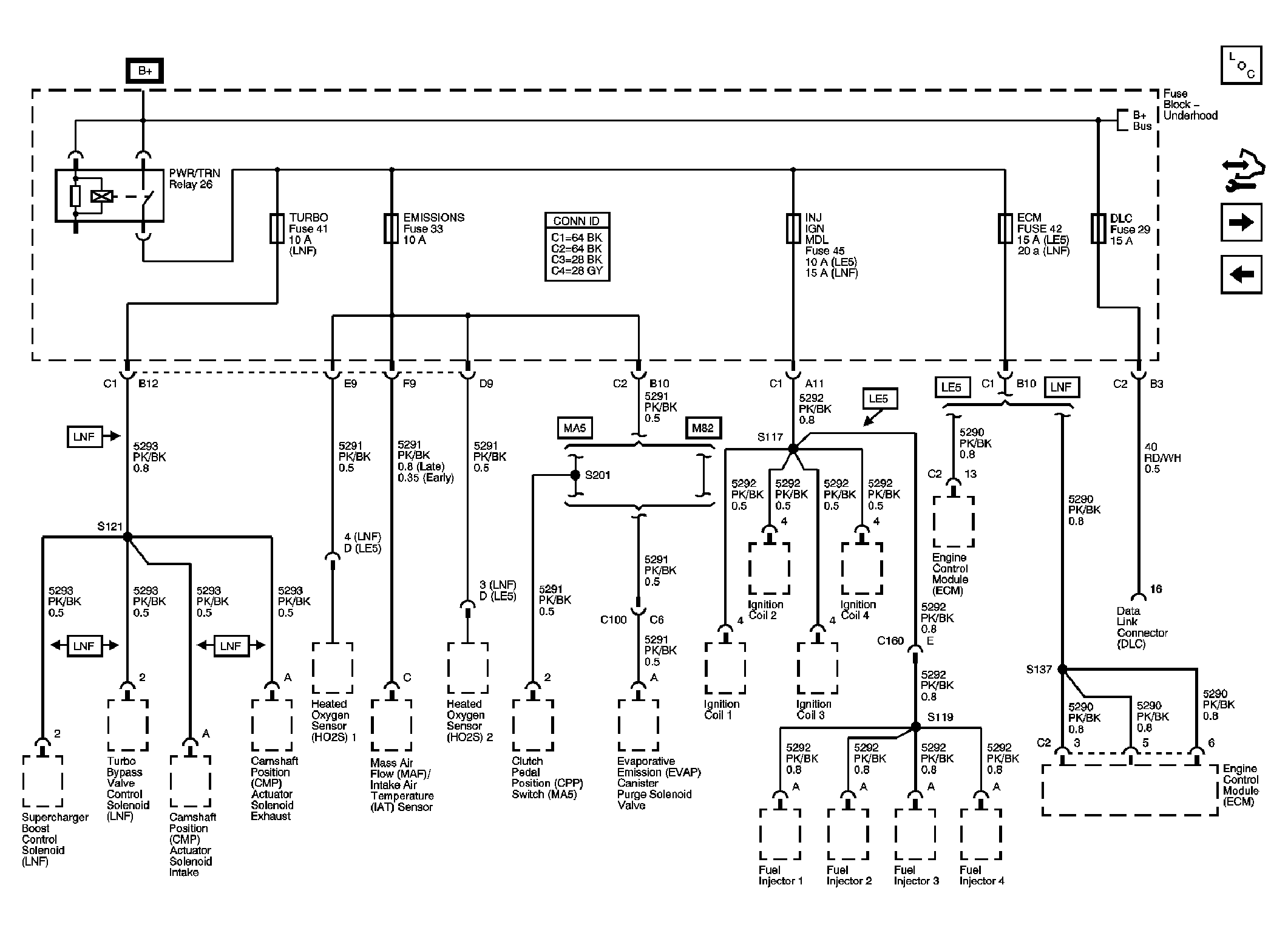

Fig 5: DLC, ECM, Emissions, INJ, IGN MDL, Turbo Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

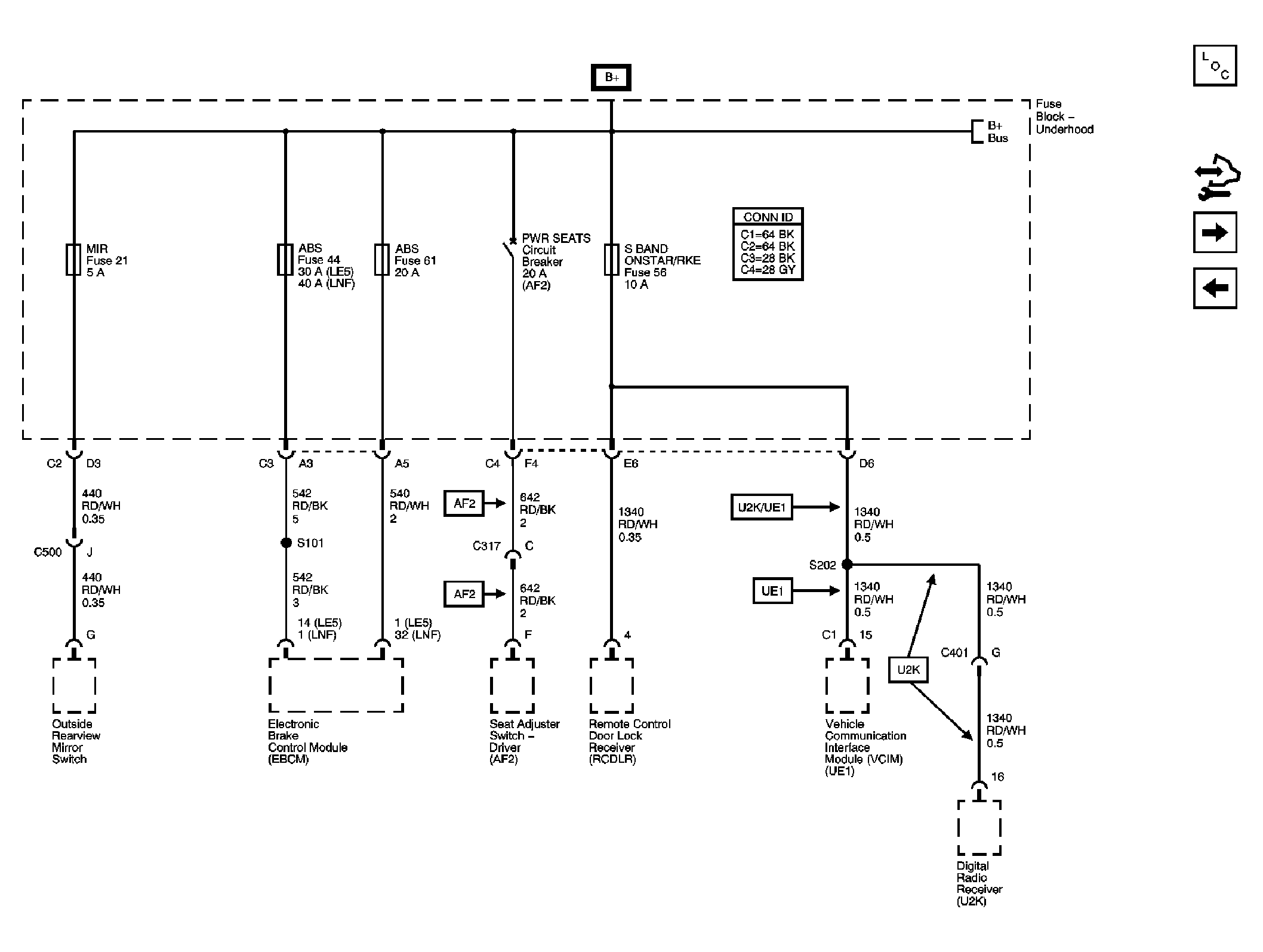

Fig 6: ABS, ABS/BCM, MIR, and S-BAND ONSTAR/RKE Fuses and PWR SEATS CIRCUIT BREAKER Schematic

Courtesy of GENERAL MOTORS CORP.

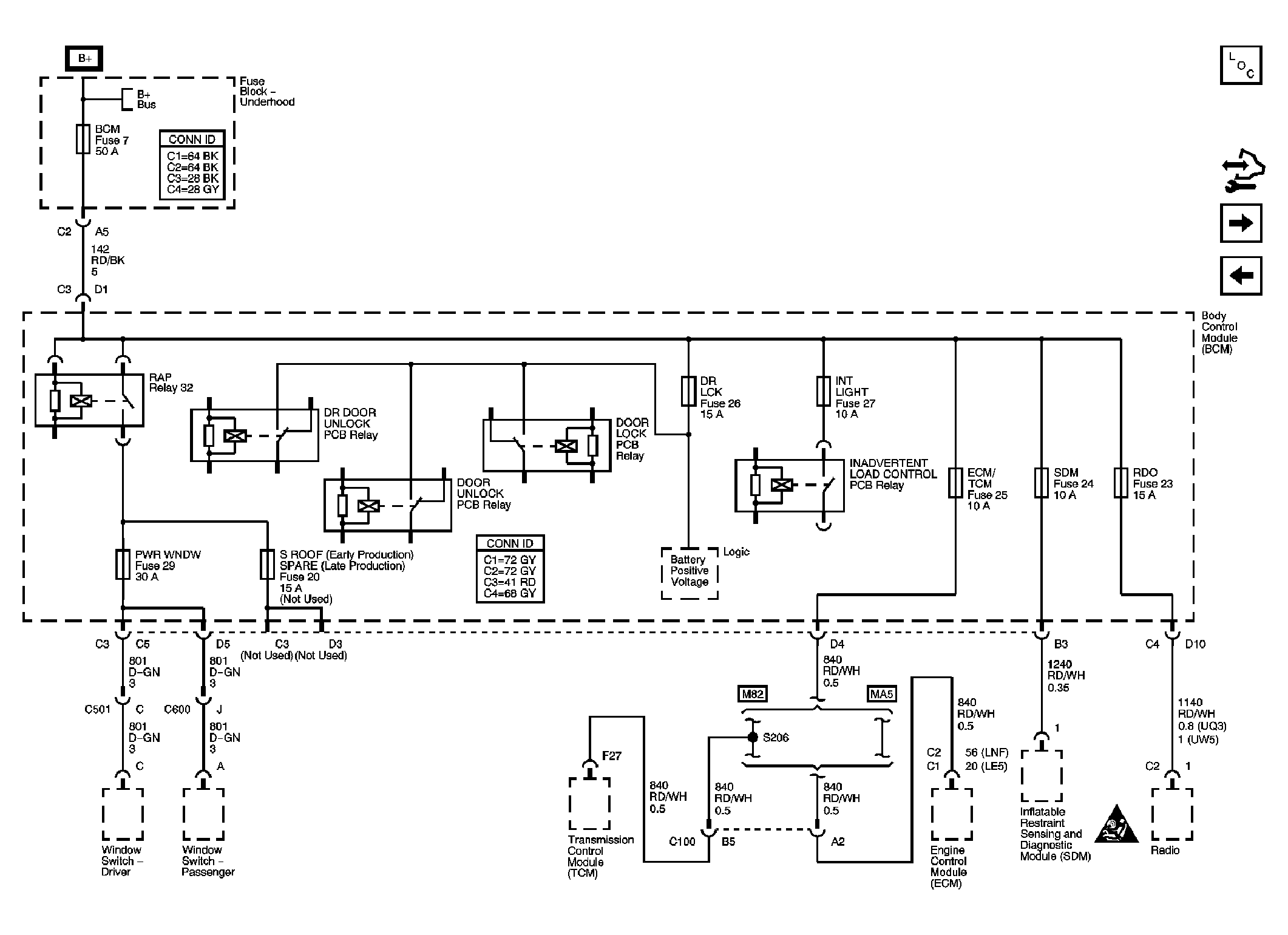

Fig 7: DOOR LOCK, ECM/TCM, INT/LPS, WINDOWS, RADIO, SDM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

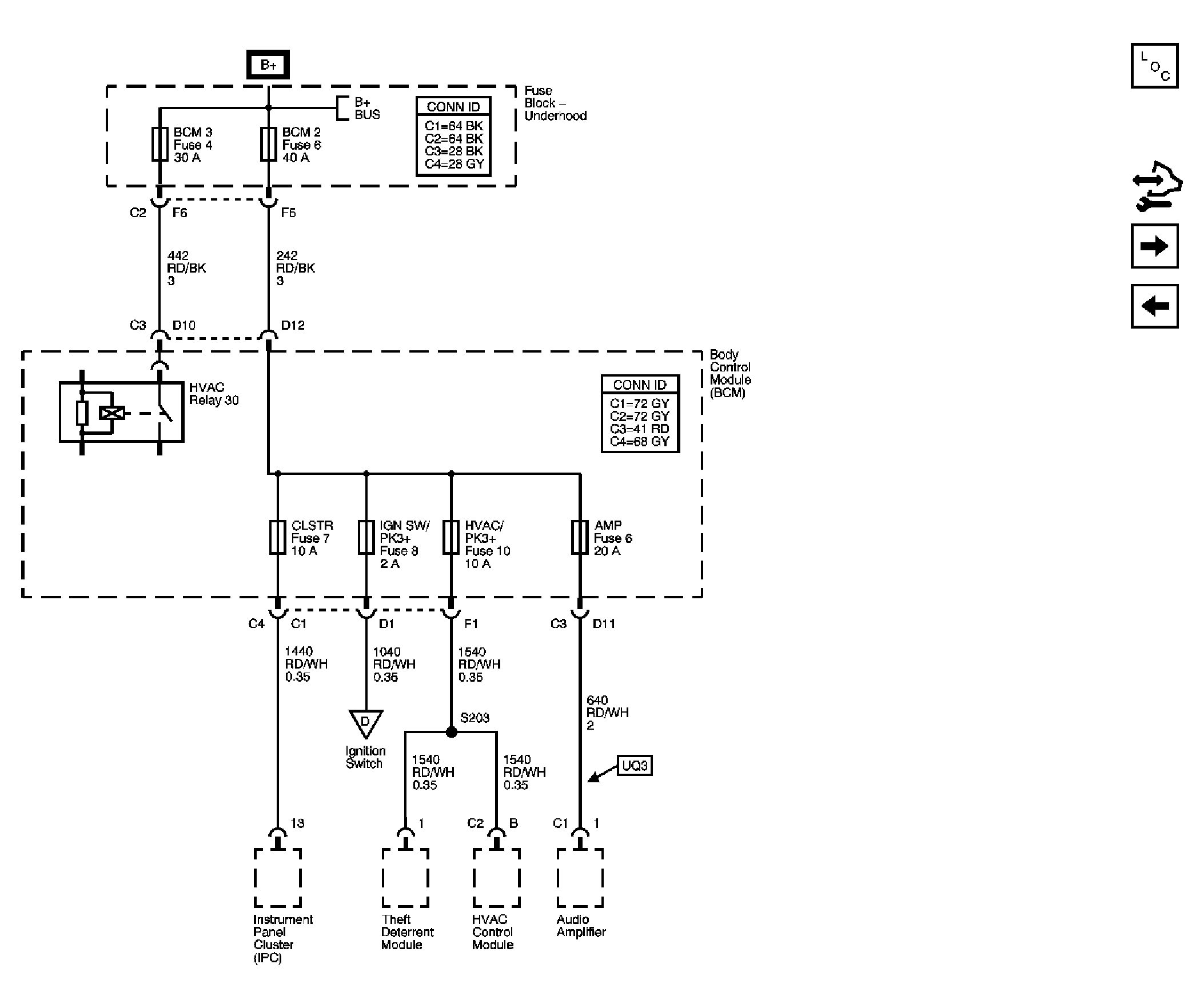

Fig 8: BCM2, BCM3, AMP, CLSTR, HVAC/PK3 and IGN SW/PK3 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

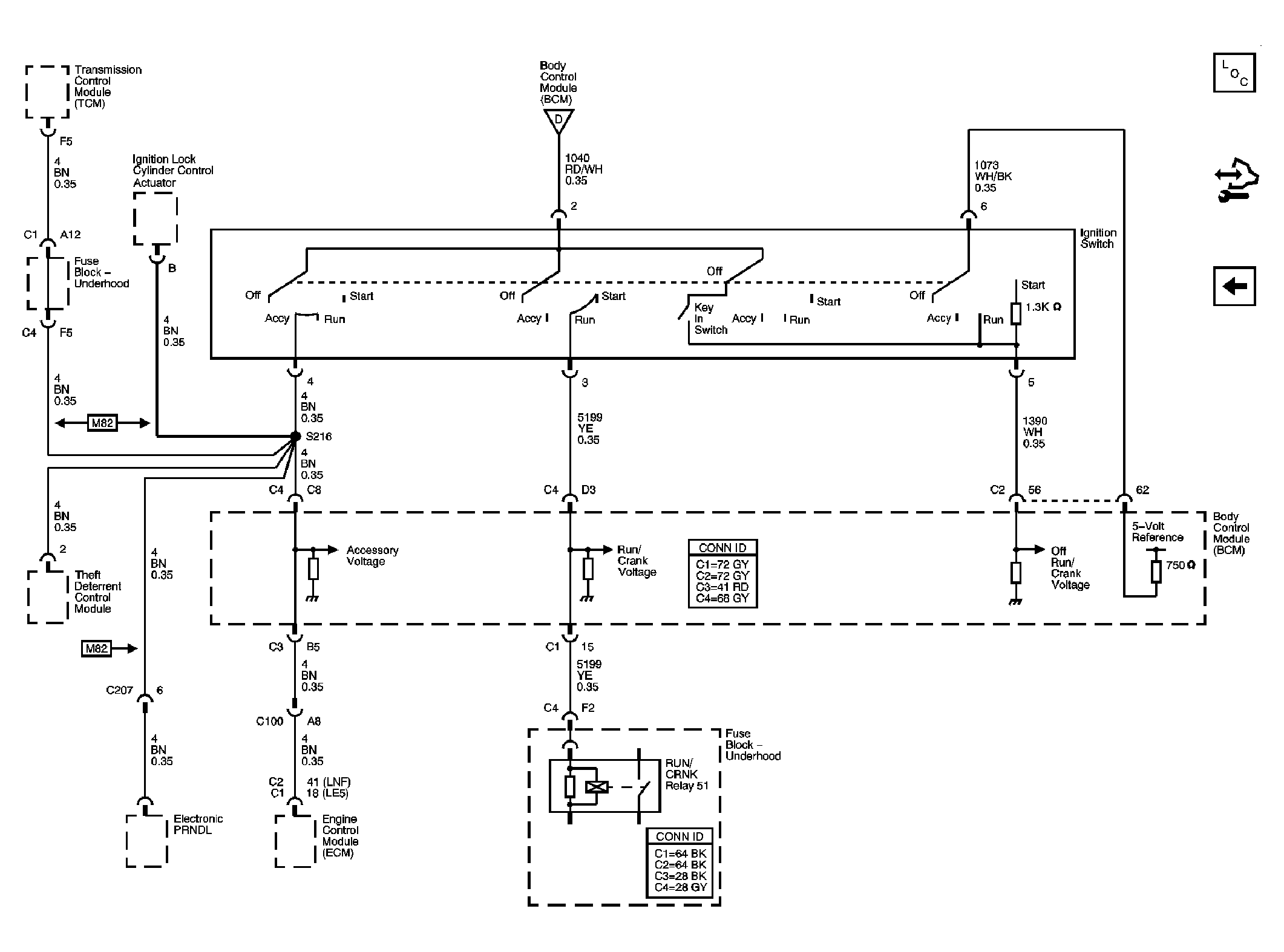

Fig 9: Ignition Switch Modes Schematic

Courtesy of GENERAL MOTORS CORP.
