Roof Lift Off Panel/Window Rear Locator Replacement

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

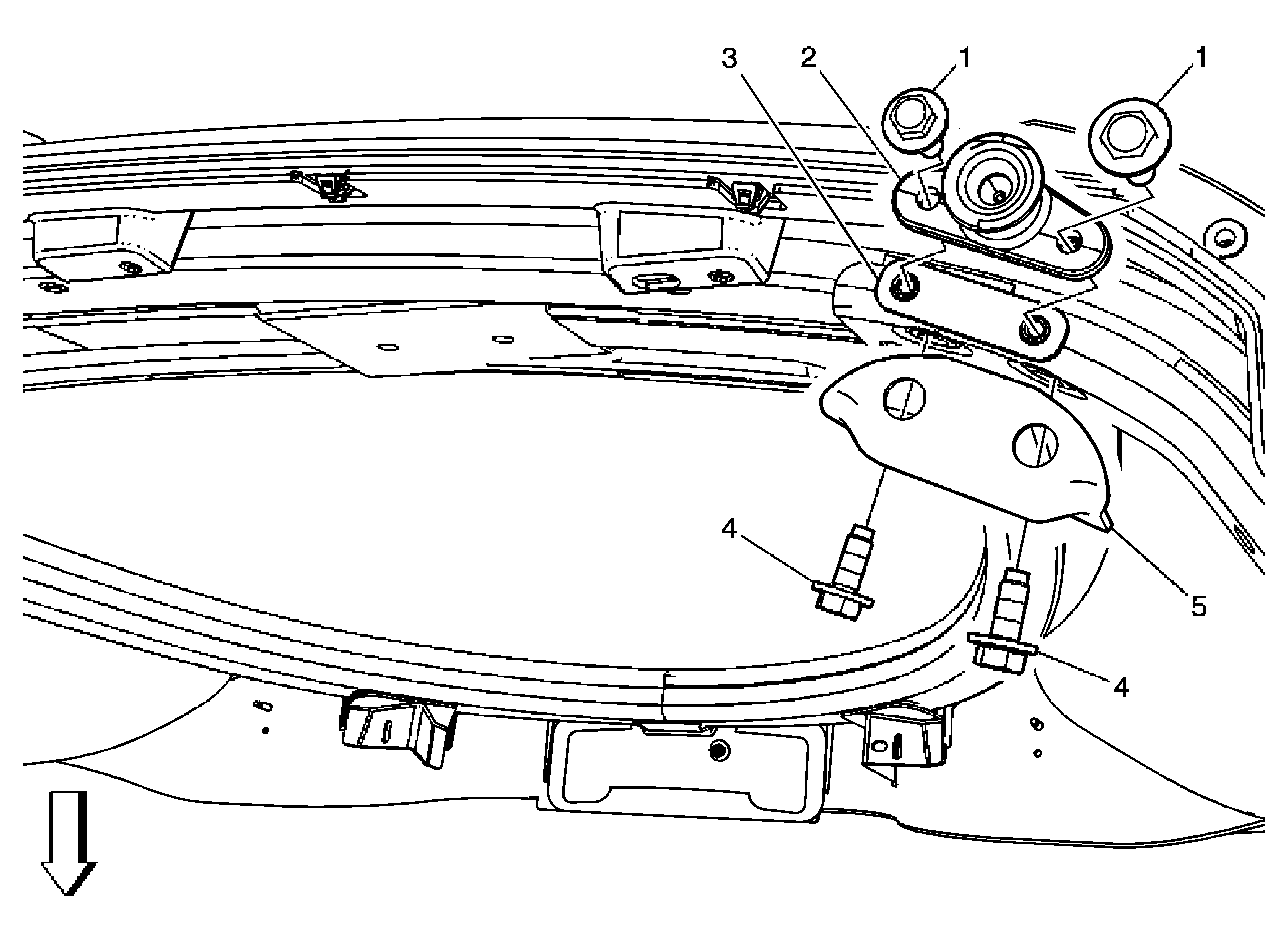

Fig 1: Identifying Roof Lift Off Panel/Window Rear Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear roof bow center interior trim Panel. Refer to Headlining Rear Trim Panel Replacement (Coupe)
1	Roof Lift Off Panel Rear Locator Base Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Place the roof panel on a protective surface. Using a marker to mark the location of the locator and locator bracket when removing. Tighten: 10 N.m (89 lb in).
2	Roof Lift Off Panel Rear Locator Base
3	Roof Lift Off Panel Rear Locator Nut Bracket
4	Roof Lift Off Panel Rear Locator Bracket Fastener (Qty: 2) Tighten: 50 N.m (37 lb ft).
5	Roof Lift Off Panel Rear Locator Bracket Procedure: When installing the rear lift off panel locator bracket ensure proper alignment. Refer to Roof Lift Off Panel Adjustment .
