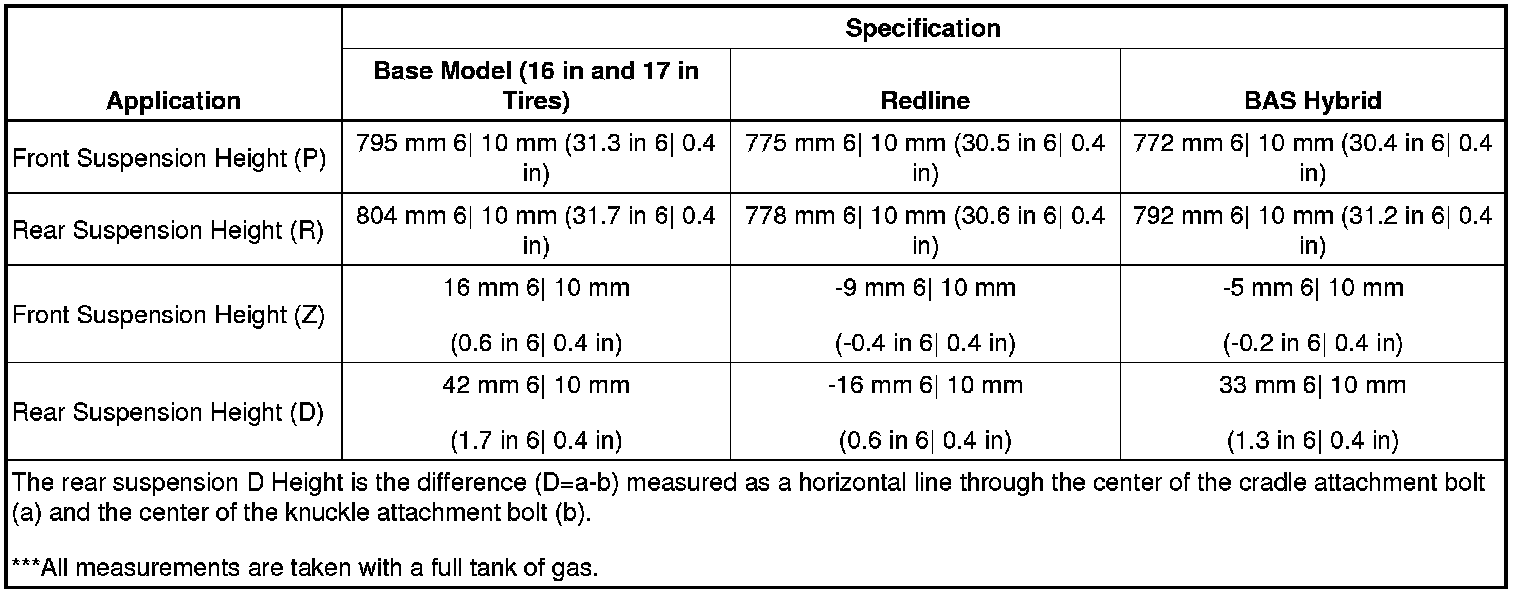

Trim Height Specifications



Trim Height Specifications





Measuring P and R Heights





Measuring Z Height

Measuring Z Height:





Measuring D Height

Measuring D Height:
