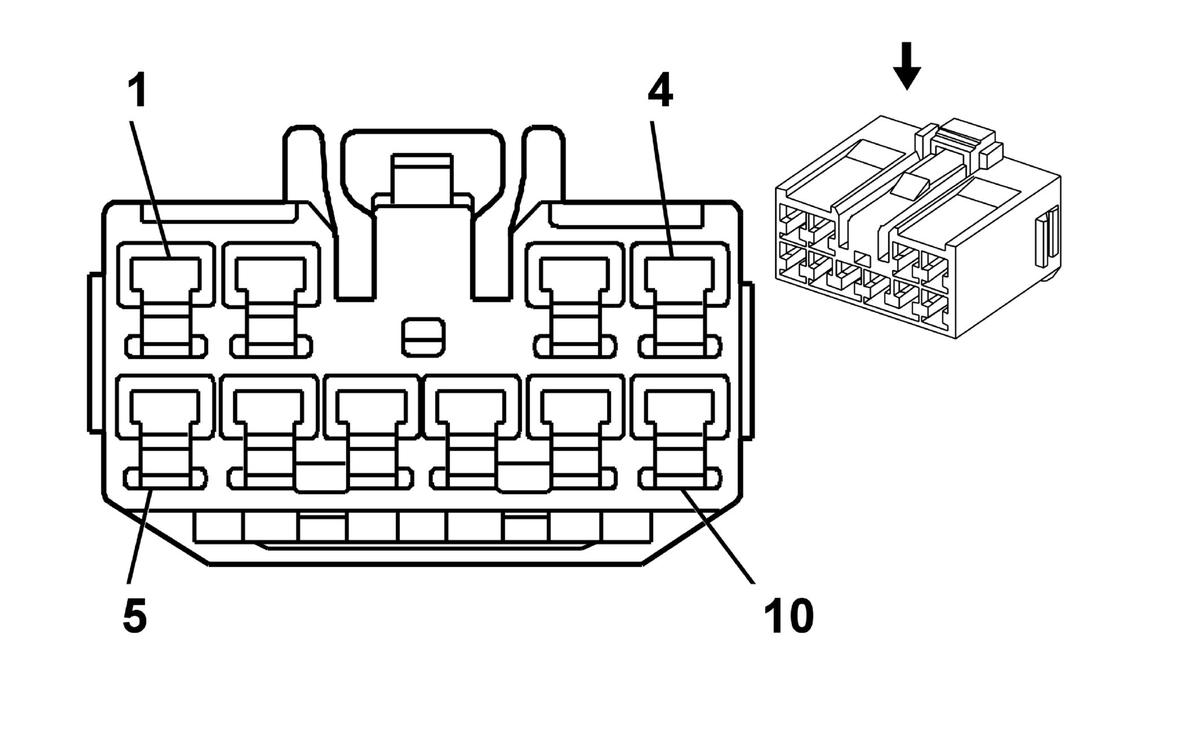

Heated Seat Control Module - Driver (KA1)
Courtesy of GENERAL MOTORS CORP. Heated Seat Control Module - Driver (KA1)
| Pin |
Wire |
Circuit |
Function |
| 1 |
1.25 YE |
2079 |
Heated Seat Cushion Temperature Sensor Signal |
| 2 |
1.25 D-BU |
6172 |
Driver Heated Seat Switch Signal |
| 3 |
1.25 RD |
2077 |
Heated Seat Cushion Element control |
| 4 |
1.25 RD/WH |
640 |
Battery Positive Voltage |
| 5 |
1.25 BK |
650 |
Ground |
| 6 |
1.25 PK |
2080 |
Driver Heated Seat Cushion Temperature Sensor Low Reference |
| 7 |
1.25 D-GN |
1661 |
Driver Heated Seat High Temperature Indicator Control |
| 8 |
1.25 WH/BK |
6177 |
Driver Heated Seat Medium Temperature Indicator Control |
| 9 |
1.25 L-GN |
1662 |
Driver Heated Seat Low Temperature Indicator Control |
| 10 |
1.25 BN |
41 |
Ignition 3 Voltage |
Connector Part Information
- OEM: MG651056
- Service: See Catalog
- Description: 10-Way F 090 II Series (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
