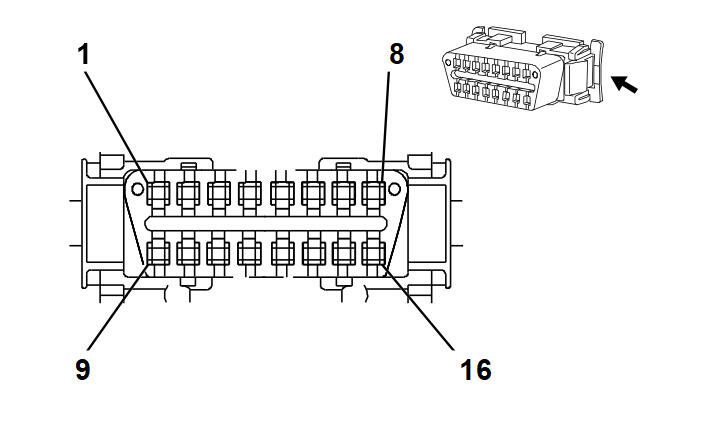

Data Link Connector (DLC)
Courtesy of GENERAL MOTORS CORP. Data Link Connector (DLC)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 2-3 |
- |
- |
Not Used |
| 4 |
0.5 BK |
350 |
Ground |
| 5 |
0.5 BK |
350 |
Ground |
| 6 |
0.5 TN/BK |
2500 |
High Speed GMLAN Serial Data Bus+ |
| 7-13 |
- |
- |
Not Used |
| 14 |
0.5 TN |
2501 |
High Speed GMLAN Serial Data Bus- |
| 15 |
- |
- |
Not Used |
| 16 |
0.5 RD/WH |
1840 |
Battery Positive Voltage |
Connector Part Information
- OEM: 13580435
- Service: See Catalog
- Description: 16-Way F CONN (BK)
|
Terminal Part Information
- Terminal/Tray: 50420-8000/15
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: 12094429/J-35616-2A (GY)
|
