Window Switch - Driver

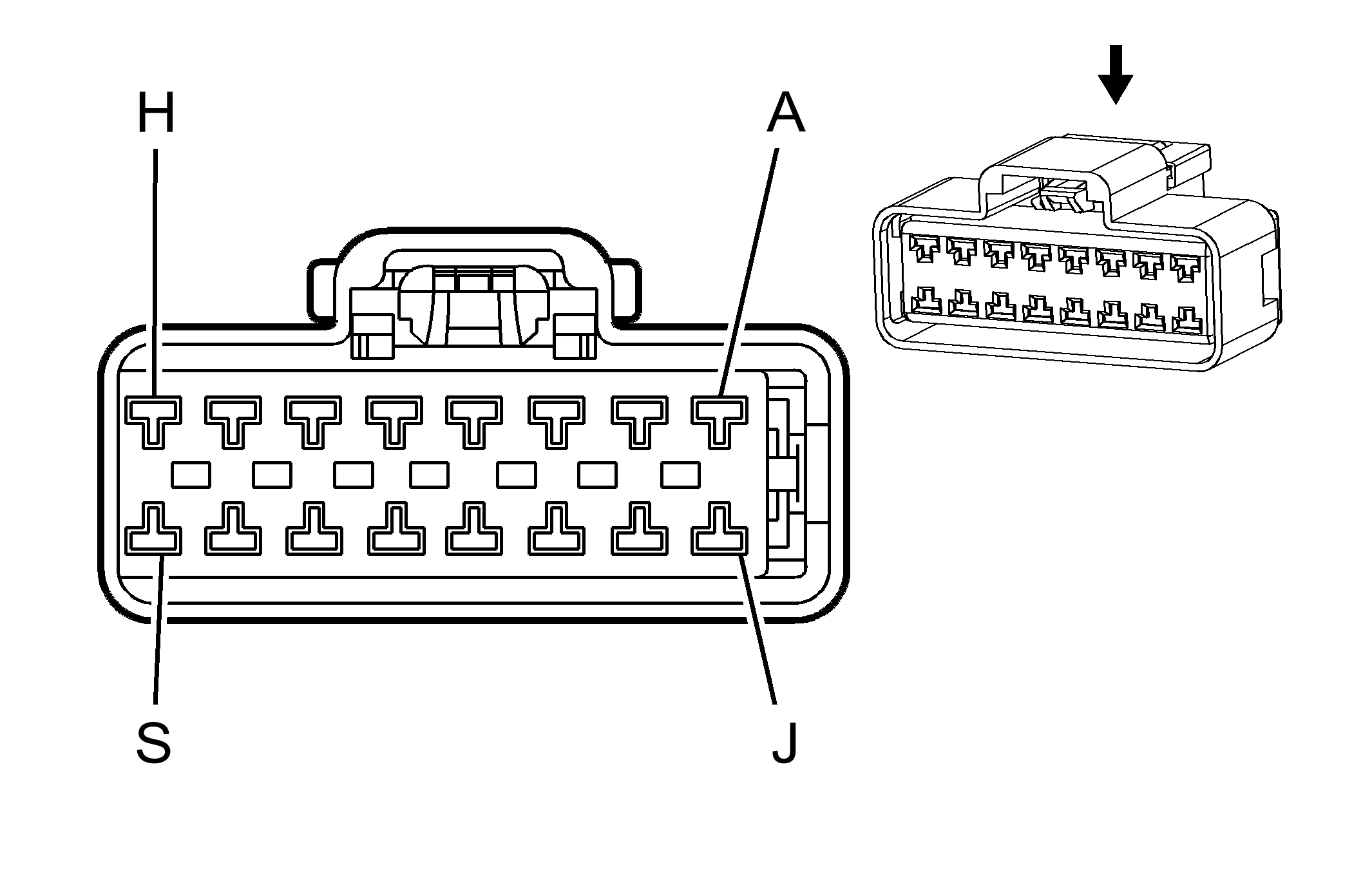

Fig 1: Window Switch - Driver
GM1963314Courtesy of GENERAL MOTORS CORP.
Window Switch - Driver

Pin Wire Circuit Function
A - - Not Used
B 2 PU 169 Power Window Master Switch Left Rear Down Signal
C 2 D-GN 168 Power Window Master Switch Left Rear Up Signal
D 2 PU 171 Power Window Master Switch Right Rear Down Signal
E - - Not Used
F 2 L-GN 170 Power Window Master Switch Right Rear Up Signal
G 2 YE 743 Accessory Voltage
H 2 D-BU 1307 Power Window Master Switch Lockout Signal
J 1 BN 165 Power Window Motor Left Front Down Control
K 1 YE 643 Accessory Voltage
L - - Not Used
M 1 D-BU 164 Power Window Motor Left Front Up Control
N - - Not Used
P 2 BK 450 Ground
R 2 TN 167 Power Window Master Switch Right Front Down Signal
S 2 L-BU 166 Power Window Master Switch Right Front Up Signal
Connector Part Information
  • OEM: 15326953
  • Service: See Catalog
  • Description: 16-Way F GT 280 (BK)
Terminal Part Information
  • Pins: B-D, F-H, P-S
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: J-M
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
