Windshield Wiper Motor

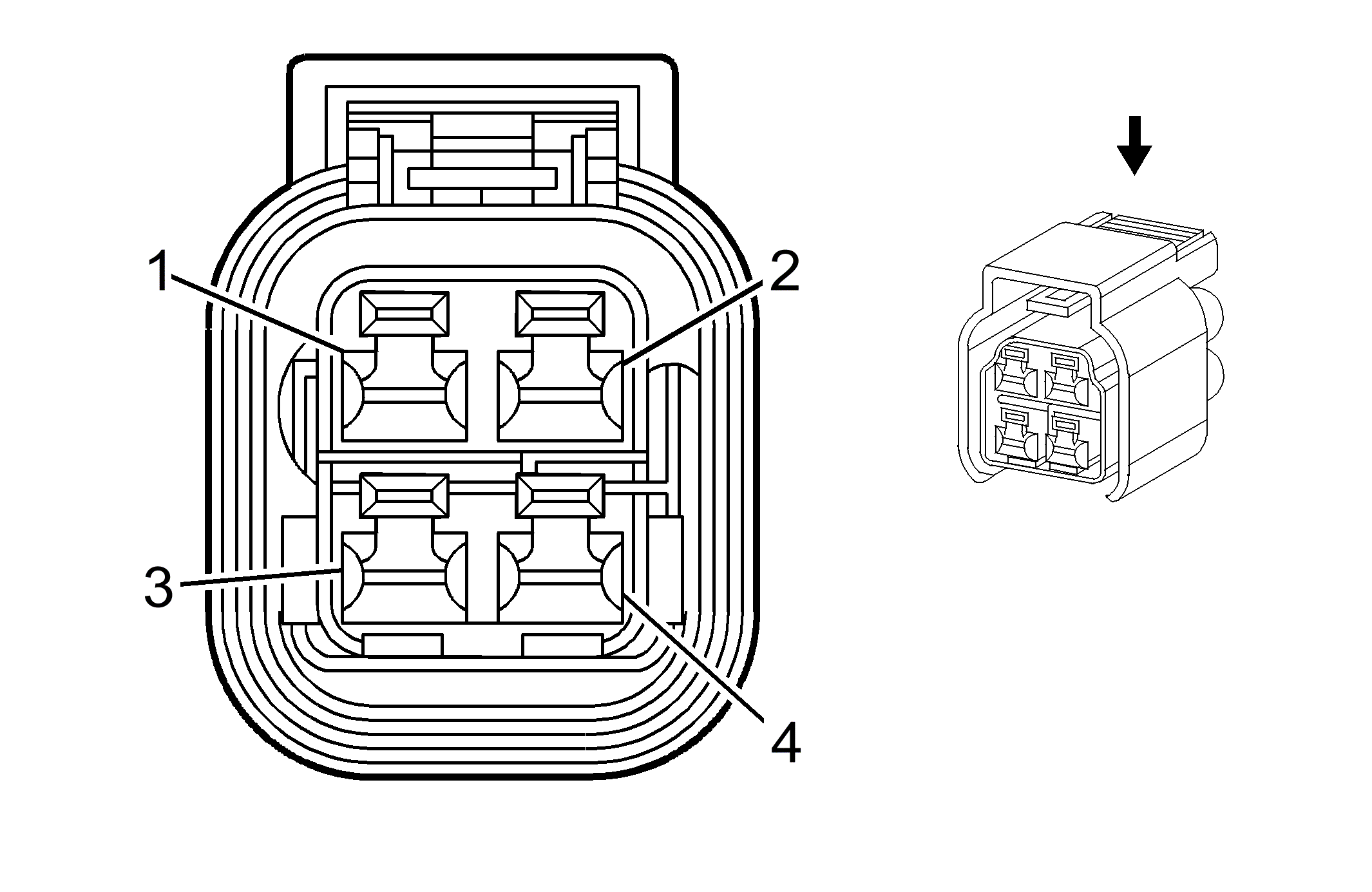

Fig 1: Windshield Wiper Motor
GM1962092Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor

Pin Wire Circuit Function
1 0.5 YE 196 Windshield Wiper Motor Park Switch Signal
2 1 BK 650 Ground
3 1 PU 92 Windshield Wiper Motor High Speed
4 1 D-GN 95 Windshield Washer Switch Signal
Connector Part Information
  • OEM: 13579273
  • Service: See Catalog
  • Description: 4-Way F 2.8 MCP-E, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
