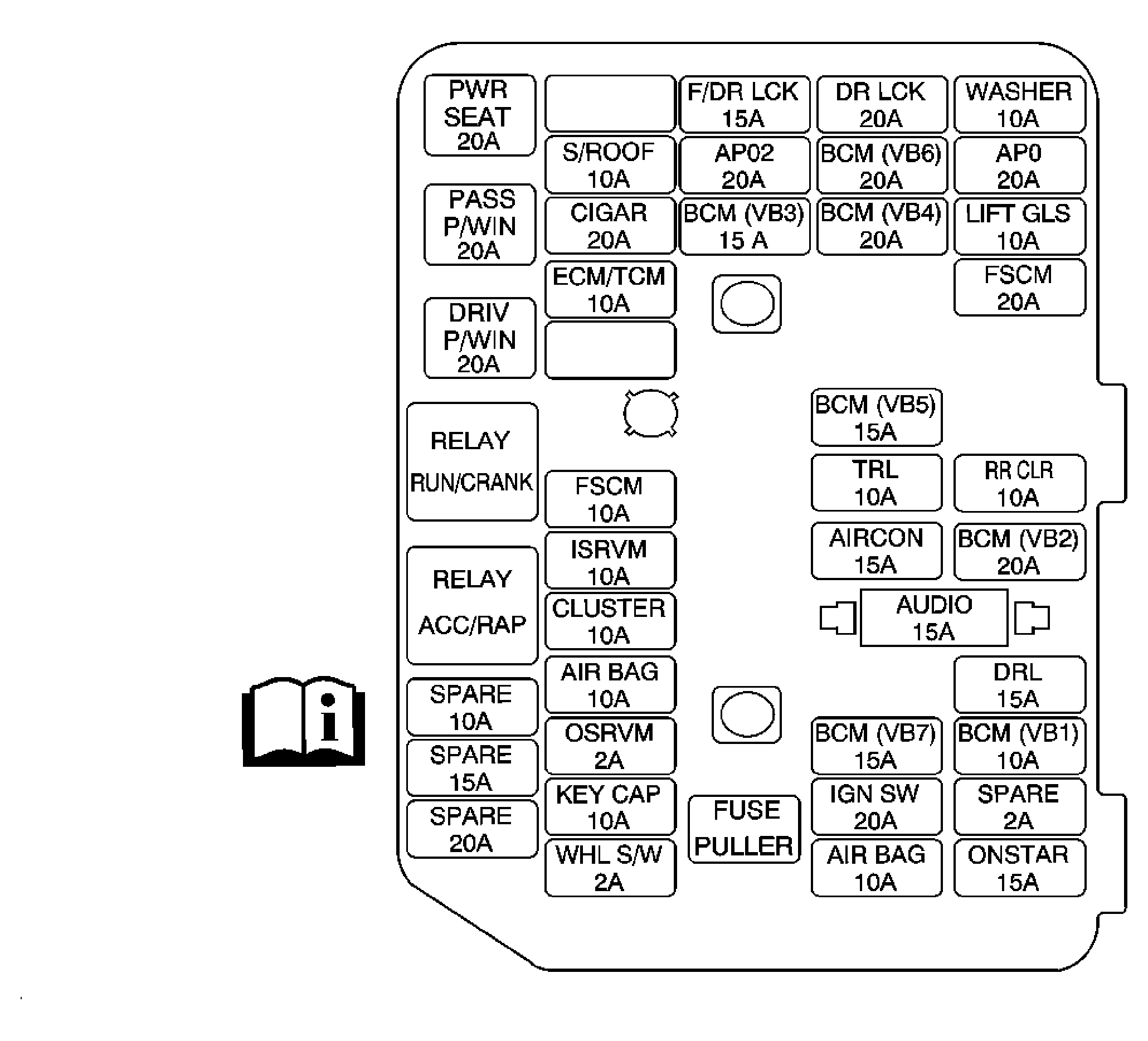

Fuse Block - I/P Label
Fuse Block - I/P Label Usage
| Device | Rating | Description |
|---|---|---|
| AIRBAG Fuse | 10A | Inflatable Restraint I/P Module Indicator (AOS), Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| AIRBAG Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM), |
| AIRCON Fuse | 15A | Data Link Connector (DLC), FATC/AIR CON, Rear Seat Audio, Rear Seat Entertainment, XM Radio Receiver |
| APO1 Fuse | 20A | Accessory Power Outlet - Center Console |
| APO2 | 20A | Accessory Power Outlet - Rear |
| AUDIO Fuse | 15A | AUDIO System, Instrument Cluster, Remote Control Door Lock Receiver (RCDLR), Security LED, Universal Garage Door Opener (UGDO) |
| BCM (VB1) Fuse | 10A | Body Control Module (BCM) |
| BCM (VB2) Fuse | 10A | BCM (INADVERT/CTSY LMP PWR) |
| BCM (VB3) Fuse | 10A | BCM (LH TURNHZD) |
| BCM (VB4) Fuse | 10A | BCM (BACKUP/STOP) |
| BCM (VB5) Fuse | 10A | BCM (Courtesy lamps, WASHER PUMP) |
| BCM (VB6) Fuse | 10A | BCM (RH TURN/HZD) |
| BCM (VB7) Fuse | 10A | BCM (DIM PWR) |
| CIGAR Fuse | 20A | Cigar Lighter |
| CLUSTER Fuse | 10A | Instrument Cluster, AOS Display |
| DRL Fuse | 15A | HDLP Low Relay |
| DR LCK Fuse | 25A | Door Lock Motor |
| ECM/TCM Fuse | 10A | Engine Control Module (ECM), Transmission Control Module (TCM), FRT Fog Relay |
| F/DR LCK Fuse | 15A | Front Driver Door Lock |
| FSCM Fuse | 10A | Fuel System Control Module |
| FSCM Fuse | 20A | Fuel System Control Module |
| IGN SW Fuse | 2A | Ignition Switch, Immobilizer |
| ISRVM Fuse | 10A | Inside Rearview Mirror, Rain Sensor |
| KEY CAP Fuse | 10A | Key Capture Solenoid, Park Switch |
| ONSTAR Fuse | 10A | ONSTAR Module |
| OSRVM Fuse | 2A | Outside Rearview Mirror Switch |
| PWR WIN DRIV Fuse | 20A | Driver Side Power Window |
| PWR WIN PASS Fuse | 30A | Passenger Side Power Window |
| PWR SEAT Fuse | 20A | Power Seat |
| RR CLR Fuse | 10A | Liftgate Latch Assembly Power Release |
| S/ROOF Fuse | 10A | Sunroof Module |
| TRL Fuse | 15A | Trailer Stop/Turn Module |
| WASHER Fuse | 10A | Washer Pump |
| WHL SW Fuse | 2 A | Steering Wheel Switch |
| Spare Fuse | ||
| Spare Fuse | ||
| Spare Fuse | ||
| Spare Fuse | ||
| Fuse Remover | ||
| RELAYS | ||
| ACC/RAP Relay | - | KEY CAP, OSRVM, DRIV PWR WIN, PASS PWR WIN and S/ROOF Fuses |
| DRL Relay | - | HDLP LO Relay |
| DR LOCK Relay | - | Door Lock Motor Control |
| DR UNLOCK Relay | - | Door Unlock Motor |
| F/DR LCK Relay | - | Front Driver Door Lock, Fuel Door Actuator |
| FRT WASHER PUMP Relay | - | Front Washer Pump |
| REAR CLOSURE Relay | - | Rear Closure Fuse |
| RUN/CRANK Relay | - | Airbag, Cluster, ECM/TCM, FSCM, ISRVM Fuses |
