I/P Compartment Lamp

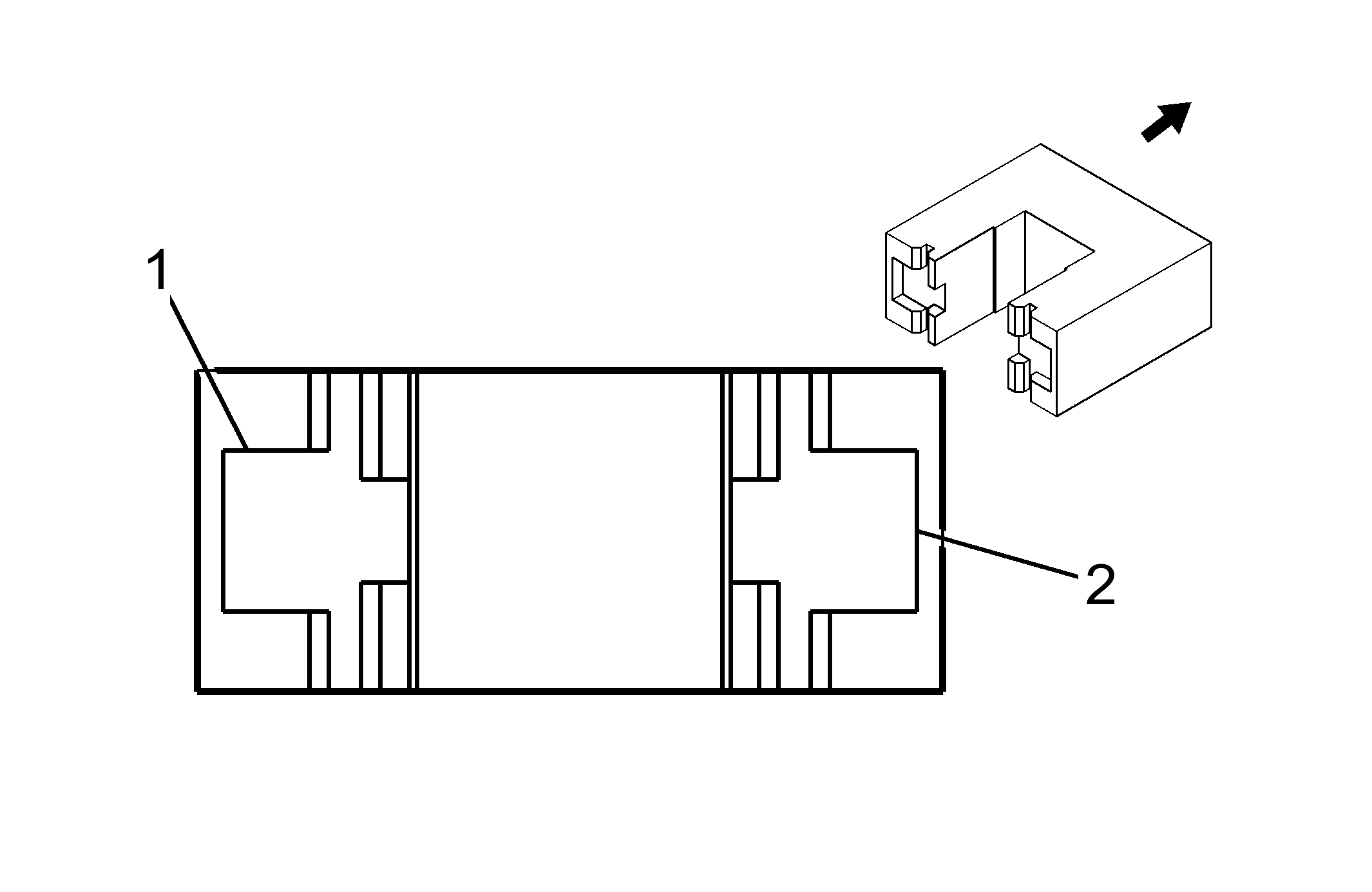

Fig 1: I/P Compartment Lamp
GM1892155Courtesy of GENERAL MOTORS CORP.
I/P Compartment Lamp

Pin Wire Circuit Function
1 0.35 OG 1732 Courtesy Lamps Supply Voltage
2 0.35 PU 175 Glove Box Lamp Control
Connector Part Information
  • OEM: 13593820
  • Service: See Catalog
  • Description: 2-Way F 250 (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
