Inline Fuse - Rear Defog Element

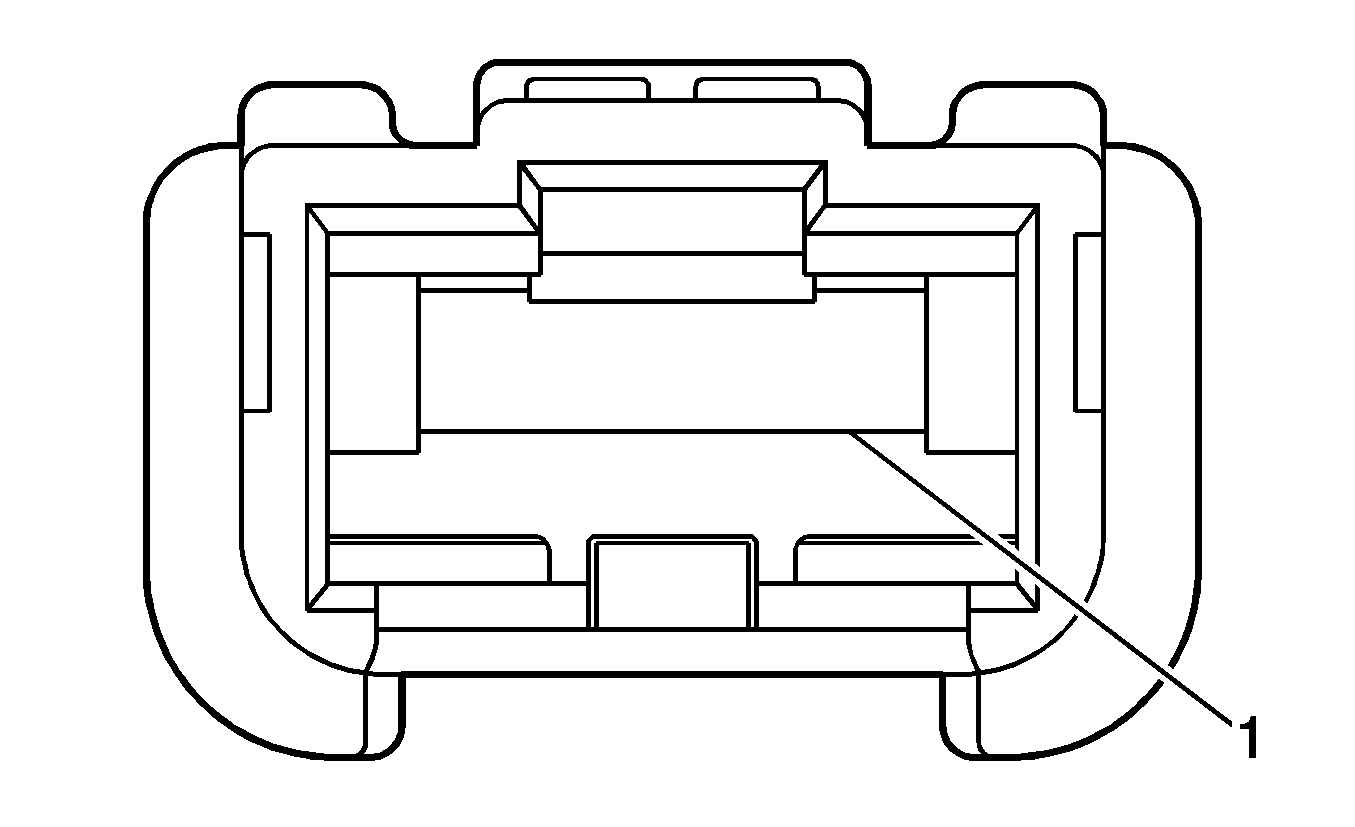

Fig 1: Inline Fuse - Rear Defog Element
GM1977739Courtesy of GENERAL MOTORS CORP.
Inline Fuse - Rear Defog Element

Pin Wire Circuit Function
1 2 PU 293 Rear Defog Element Supply Voltage
Connector Part Information
  • OEM: 13524071
  • Service: See Catalog
  • Description: 1-Way 250 ()
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
