Window Motor - Driver

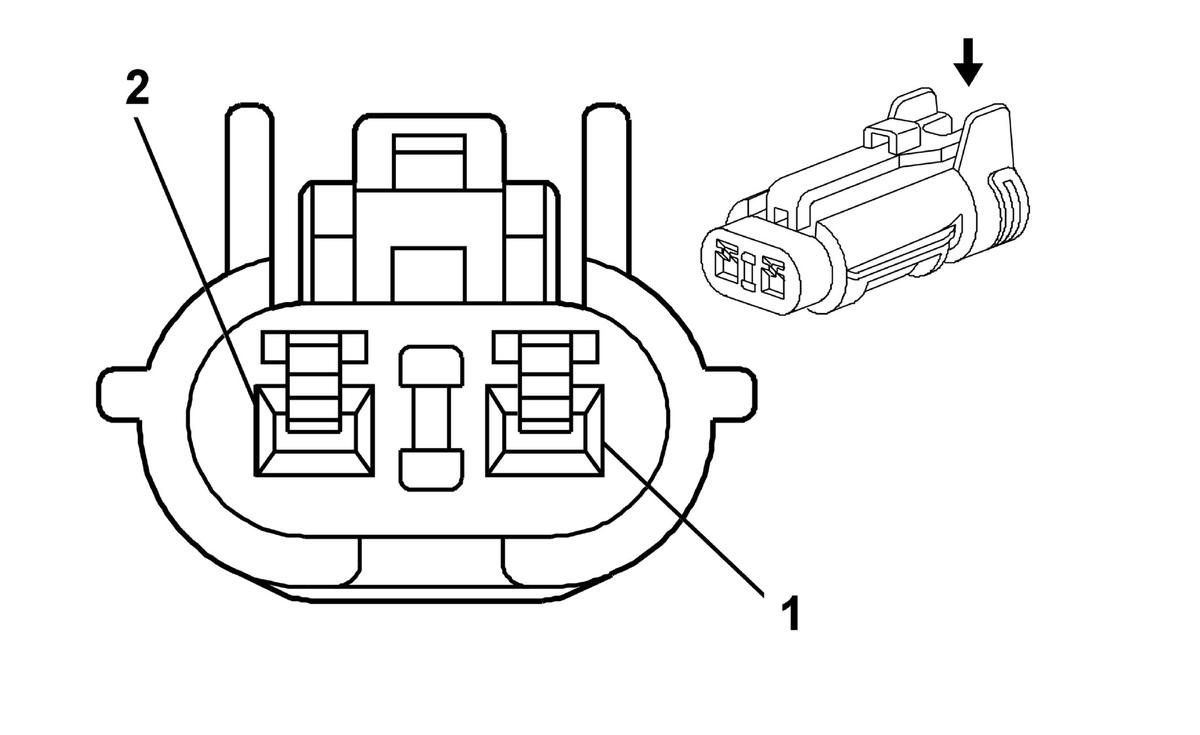

Fig 1: Window Motor - Driver
GM1891421Courtesy of GENERAL MOTORS CORP.
Window Motor - Driver

Pin Wire Circuit Function
1 1 D-BU 164 Power Window Motor Left Front Up Control
2 1 BN 165 Power Window Motor Left Front Down Control
Connector Part Information
  • OEM: 15386517
  • Service: See Catalog
  • Description: 2-Way F 070 SWP Sealed (WH)
Terminal Part Information
  • Terminal/Tray: 7116-1472/12
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 12094429/J-35616-33 (YE)
