Overdrive Range, First Gear - With Electronic Range Select Mode - A/T System Hydraulic Diagram

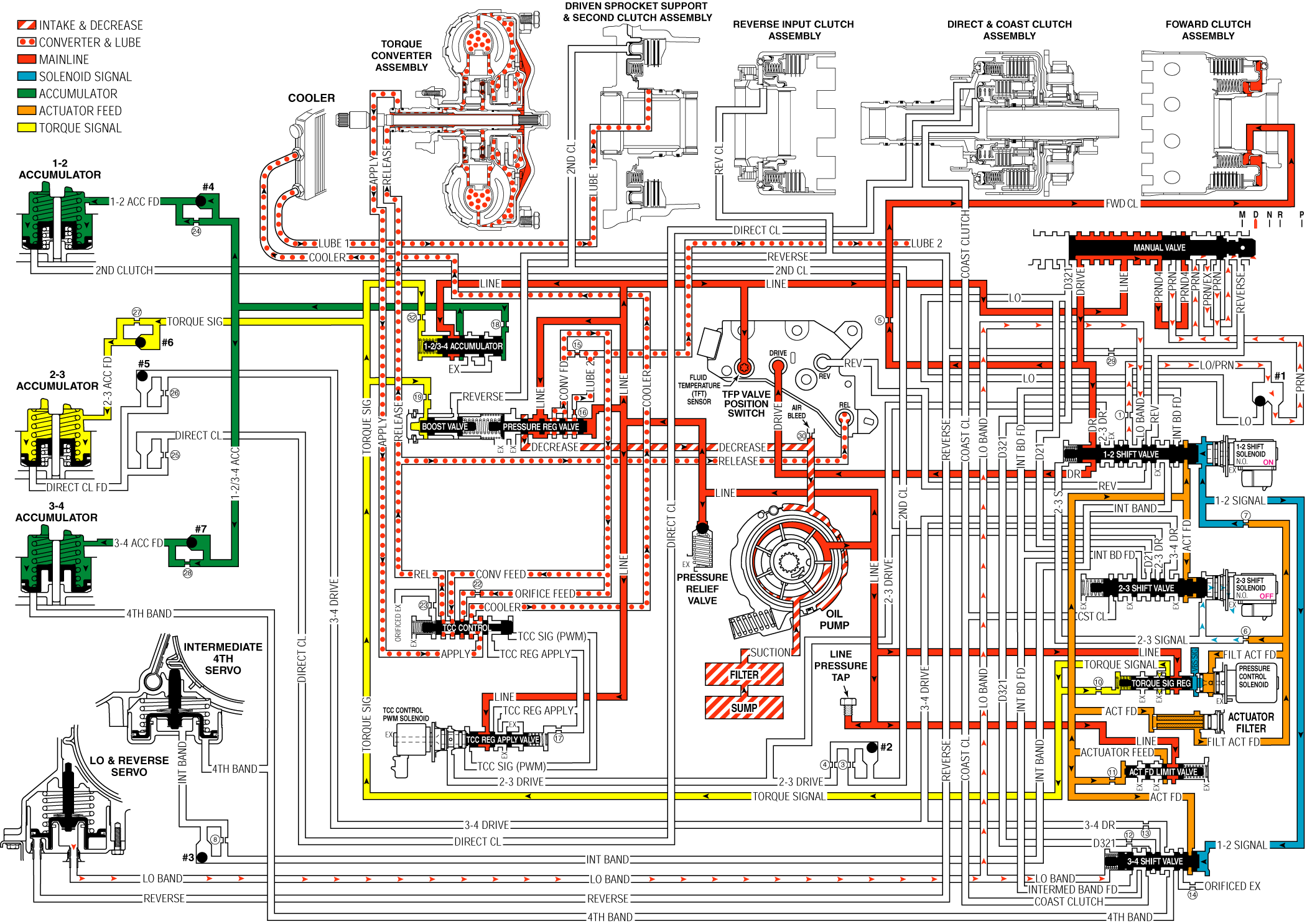

Fig 1: Overdrive Range, First Gear - With Electronic Range Select Mode
GM1205847Courtesy of GENERAL MOTORS CORP.
