Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor Replacement

Removal Procedure

1. Open the hood.




2. Remove the mass airflow sensor.

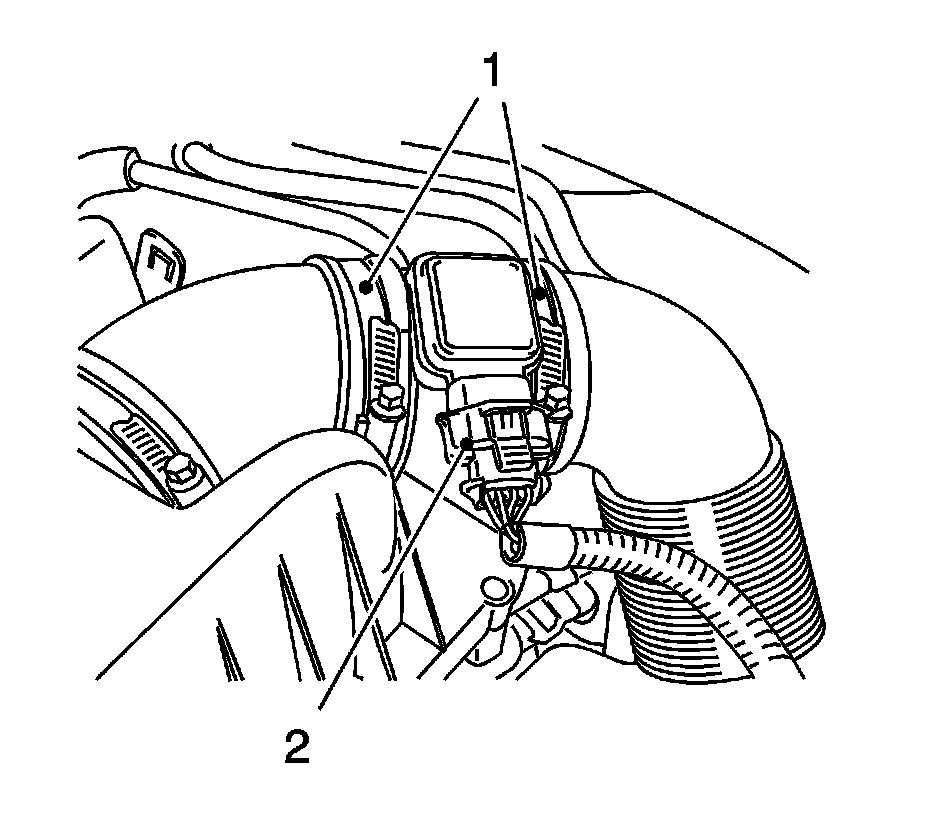

3. Disconnect the wiring harness plug (2).
4. Remove the 2 clamps (1).

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the mass airflow sensor.

Tighten the 2 clamps to 3.5 Nm (31 lb in).
Install the wiring harness plug.
2. Close the hood.
