Oxygen Sensor: Diagrams




Component Connector End Views

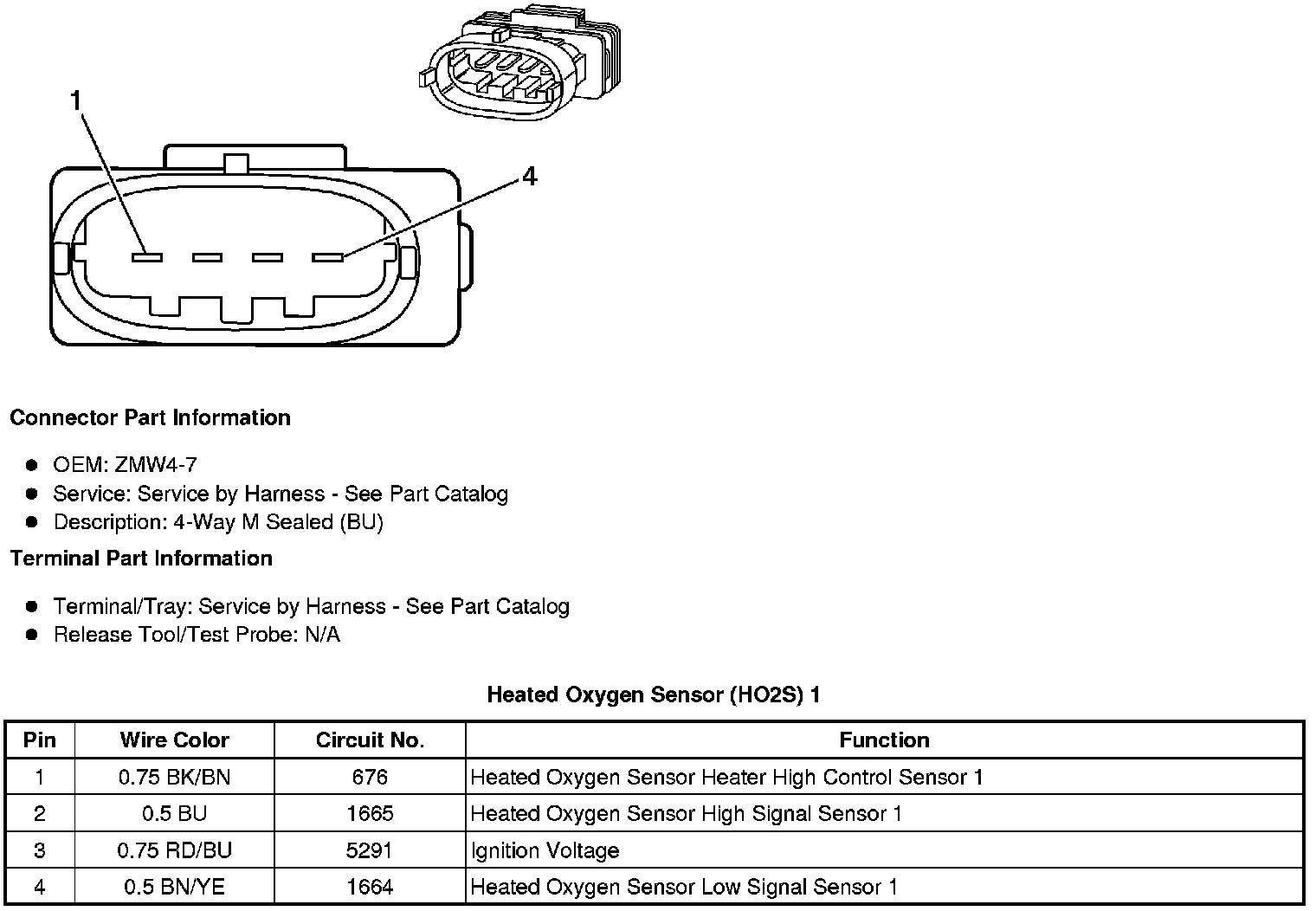

Heated Oxygen Sensor (HO2S) 1





Heated Oxygen Sensor (HO2S) 2
