Radio/Navigation System Schematics

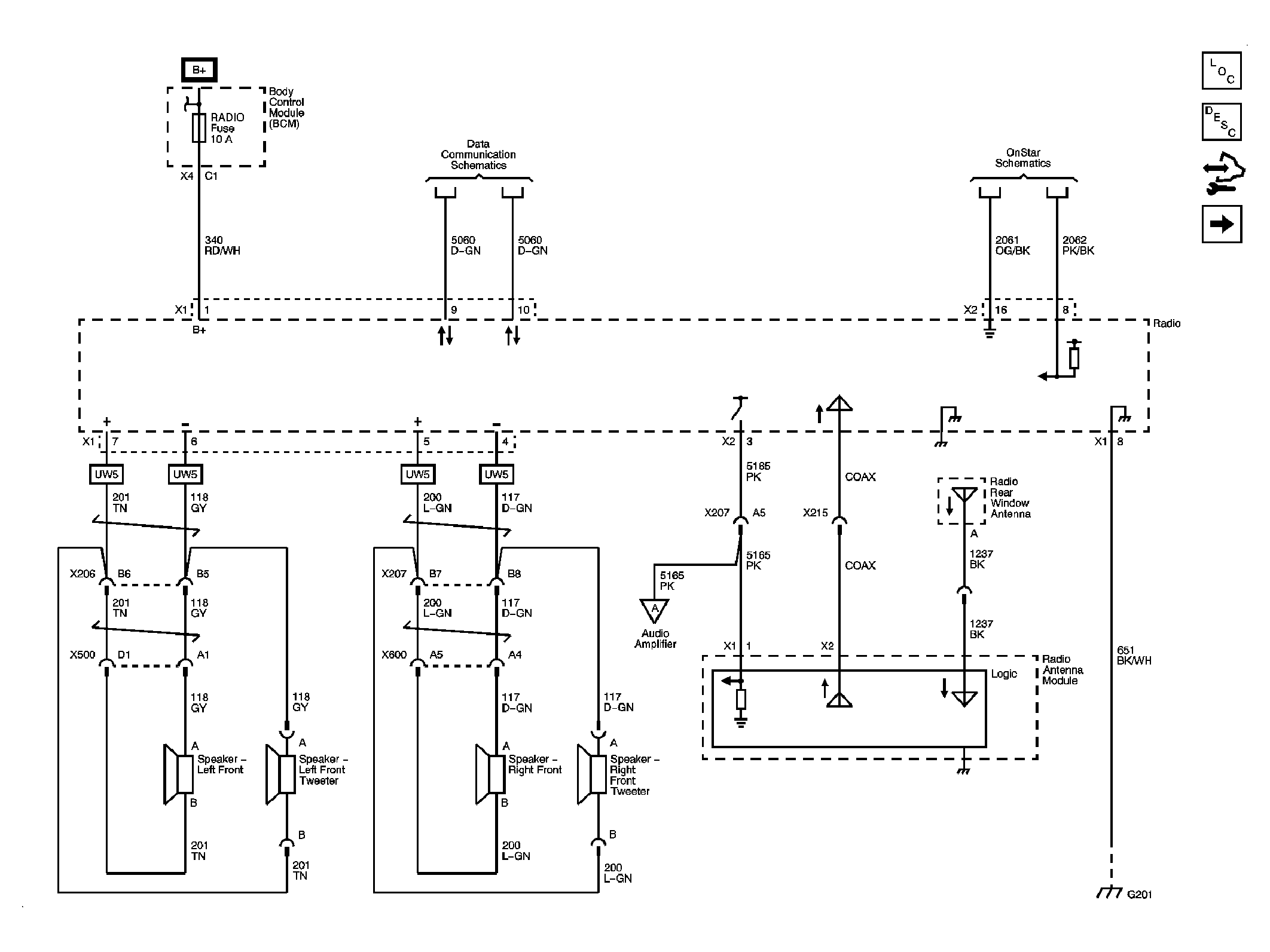

Fig 1: Power, Ground, Front Speakers, Antenna & References

Courtesy of GENERAL MOTORS CORP.

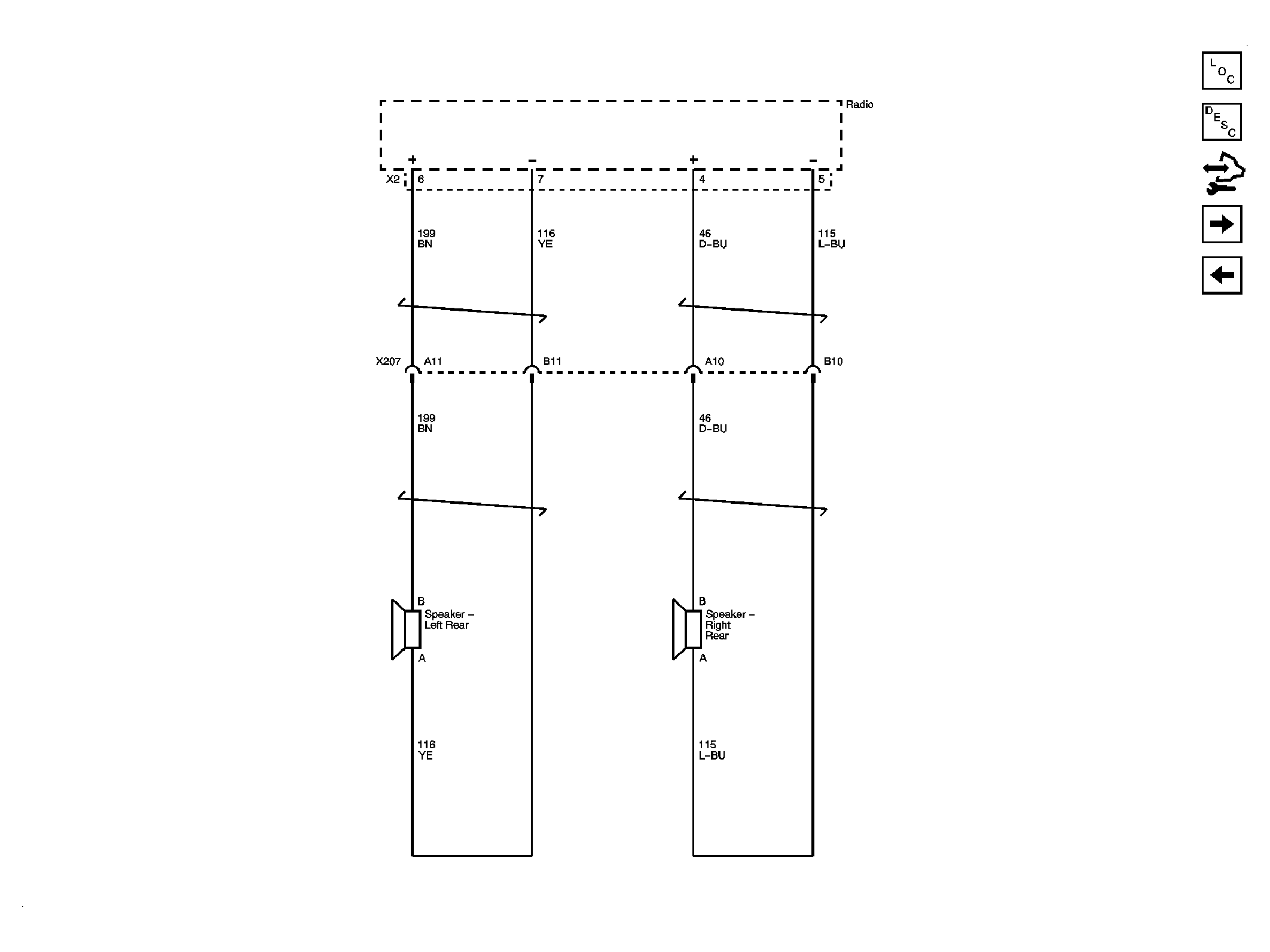

Fig 2: Rear Speakers (UW5)

Courtesy of GENERAL MOTORS CORP.

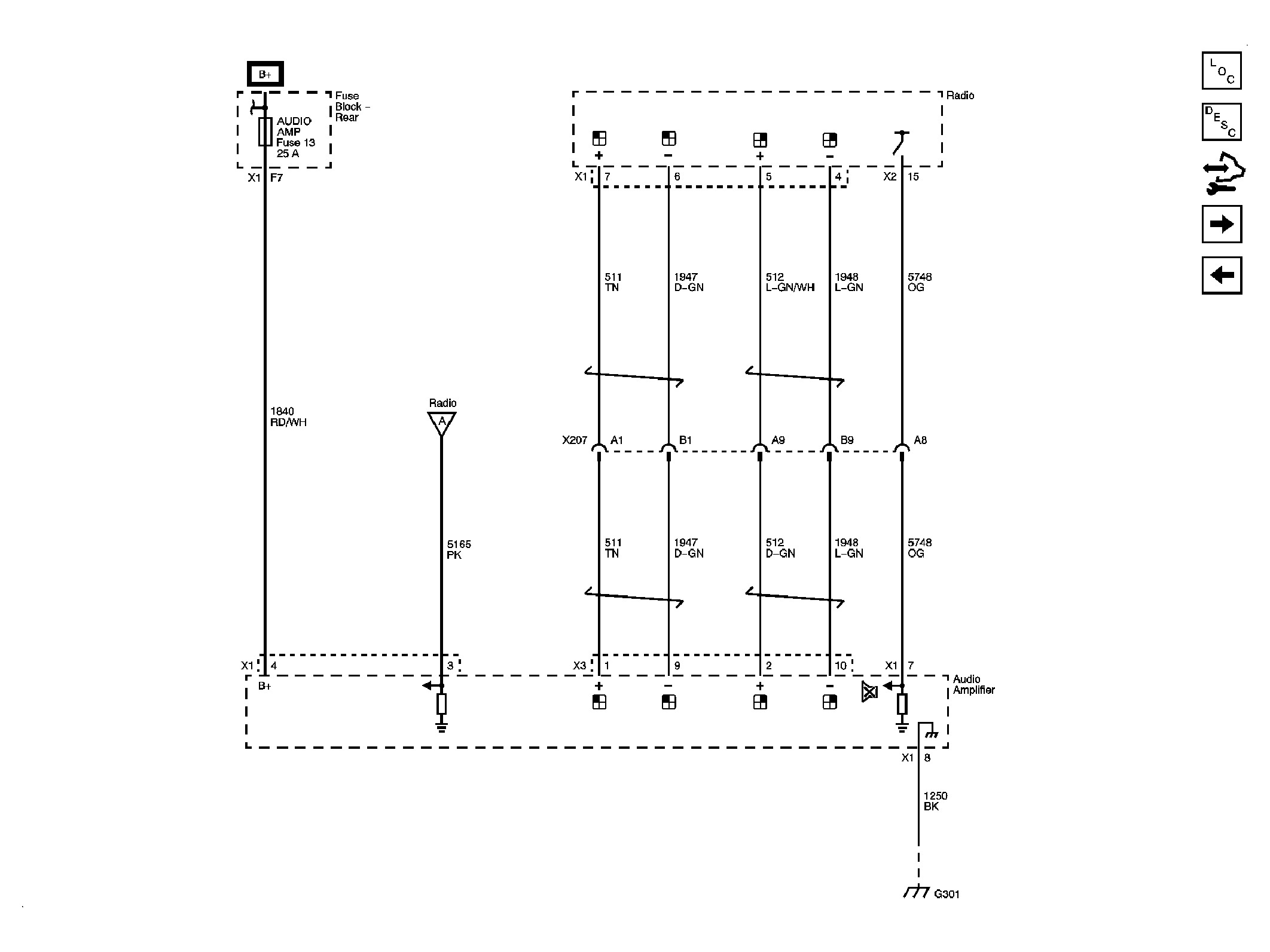

Fig 3: Amplifier (UQ3)

Courtesy of GENERAL MOTORS CORP.

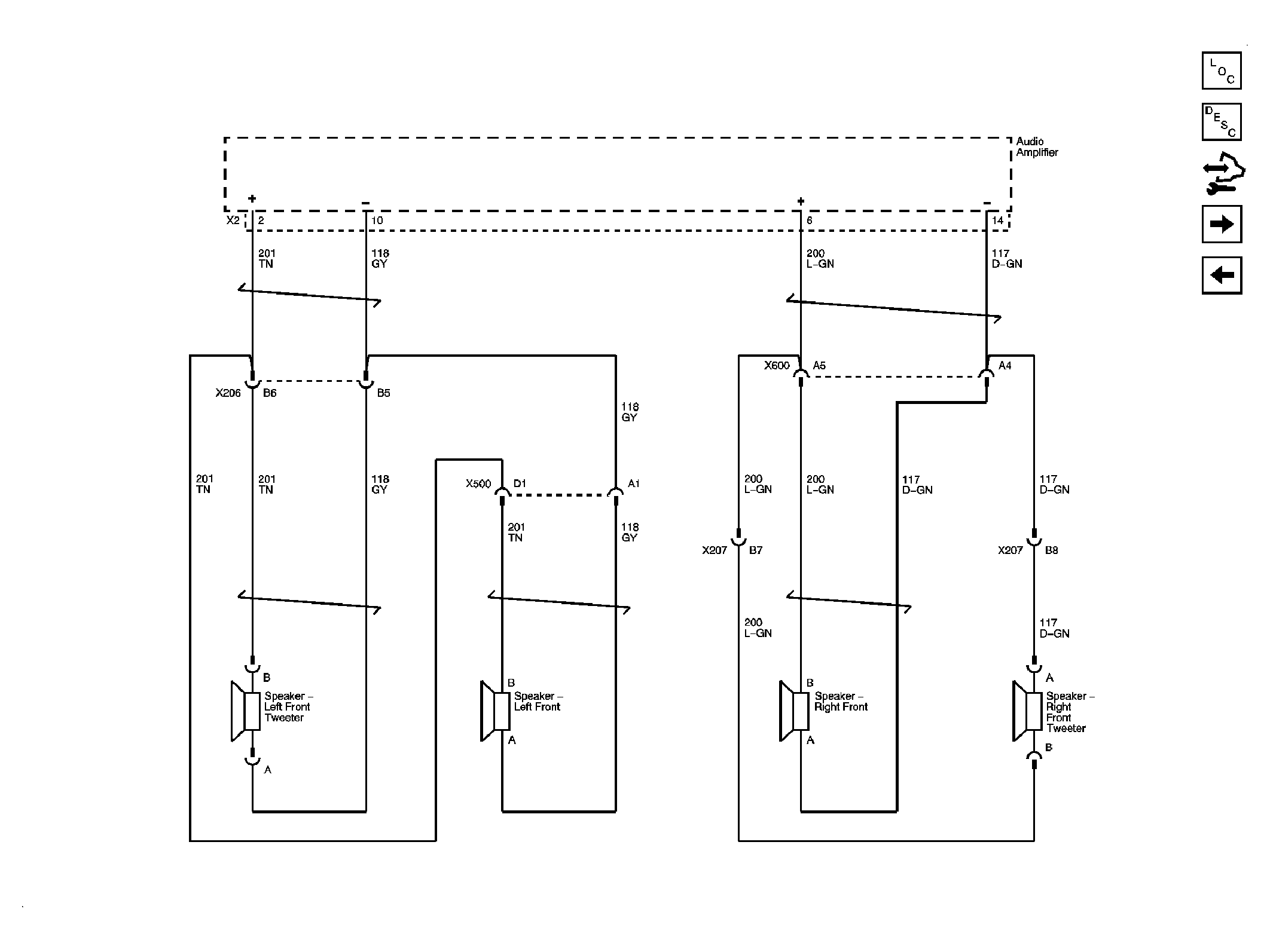

Fig 4: Front Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

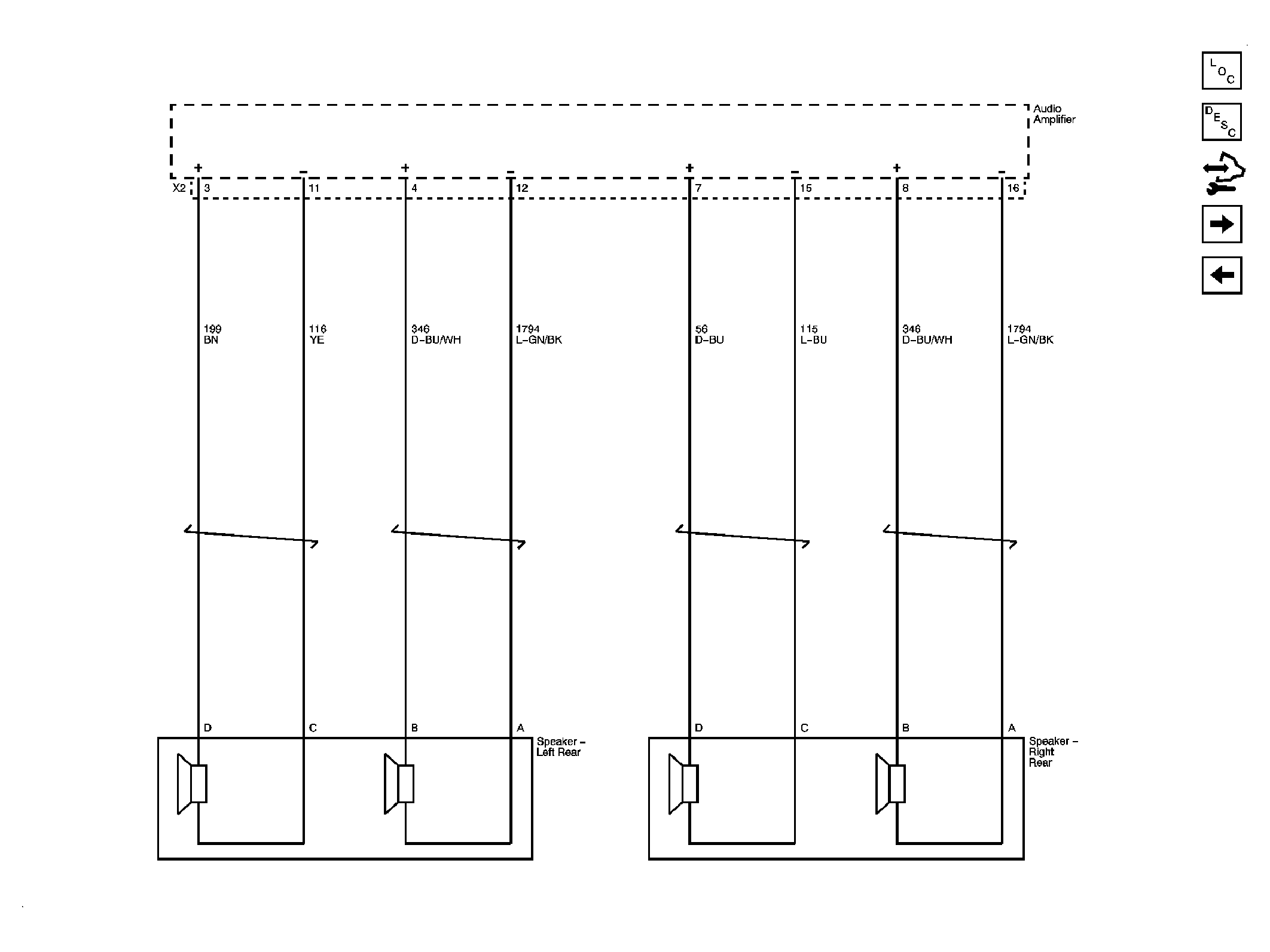

Fig 5: Rear Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

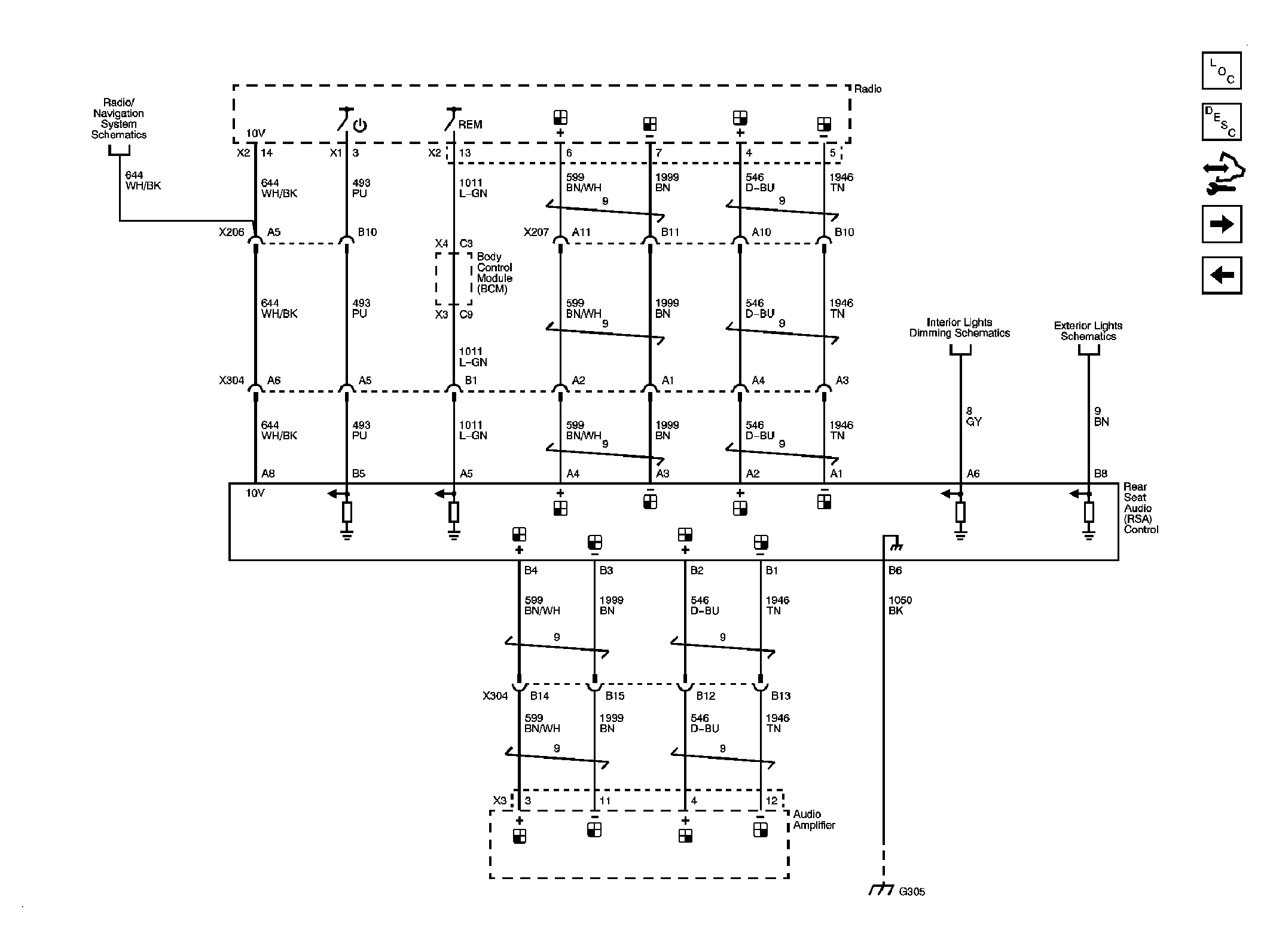

Fig 6: Rear Seat Audio (RSA) Controller

Courtesy of GENERAL MOTORS CORP.

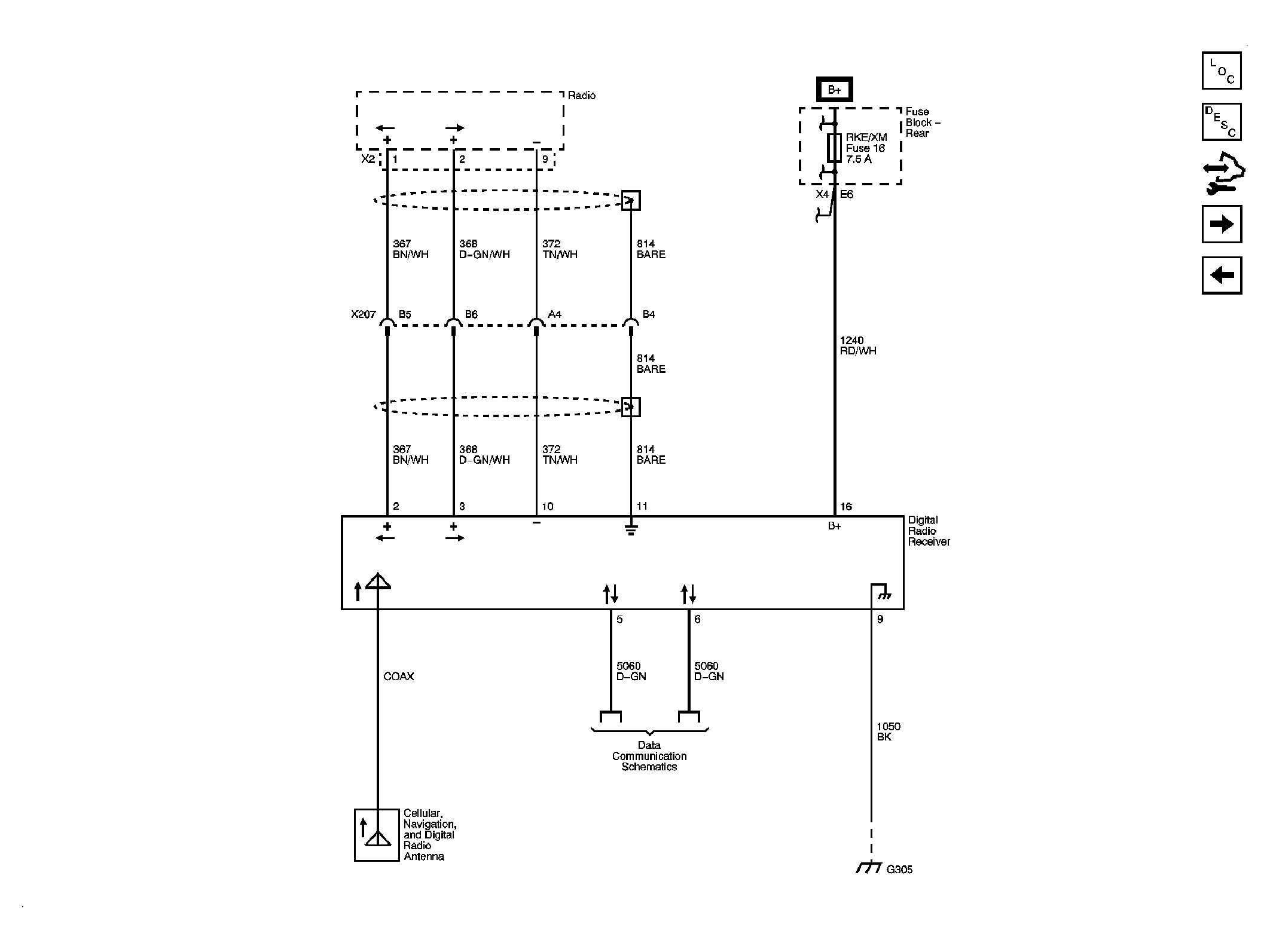

Fig 7: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

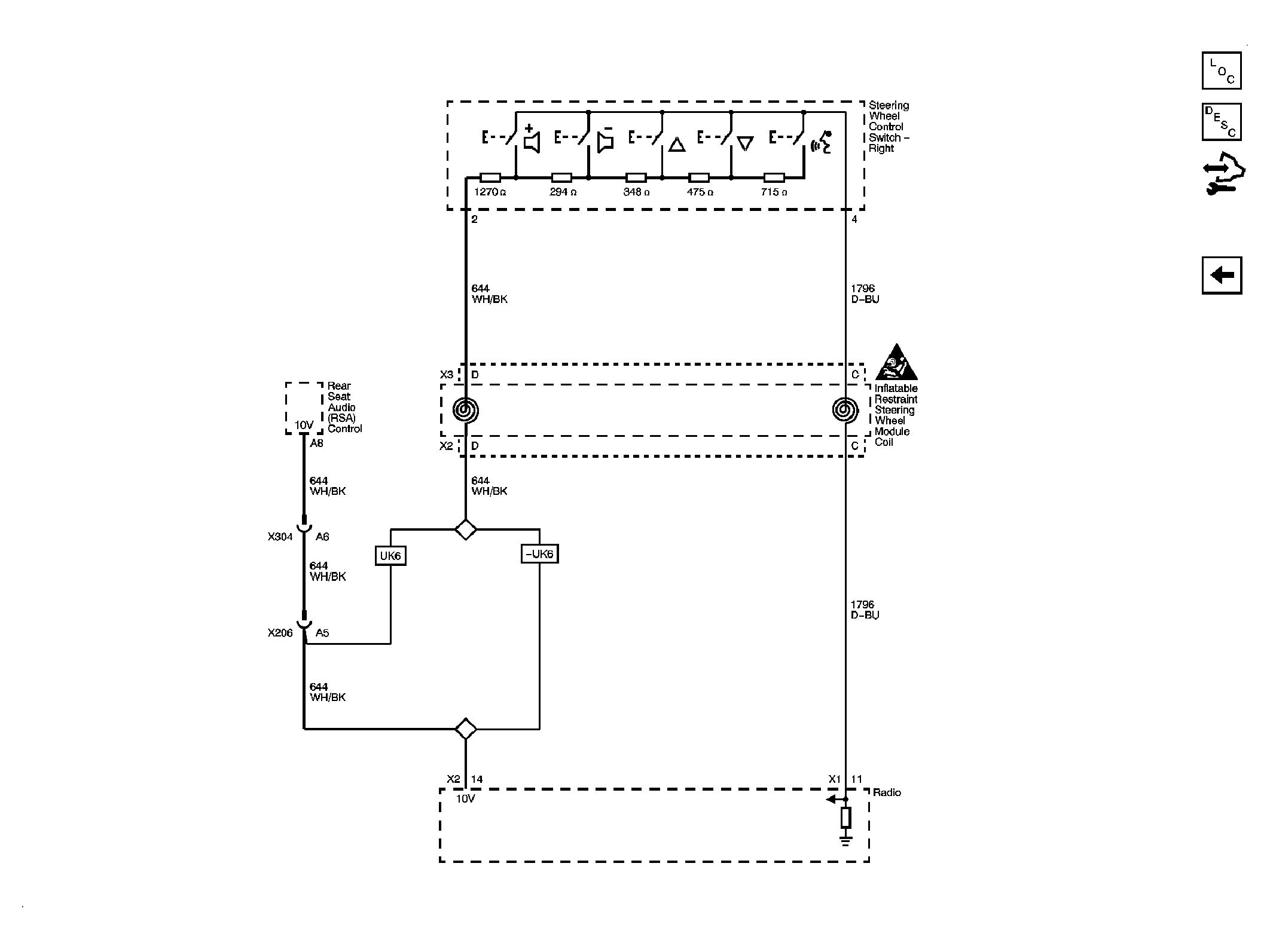

Fig 8: Redundant Radio Controls

Courtesy of GENERAL MOTORS CORP.
