Steering Control Module




Component Connector End Views

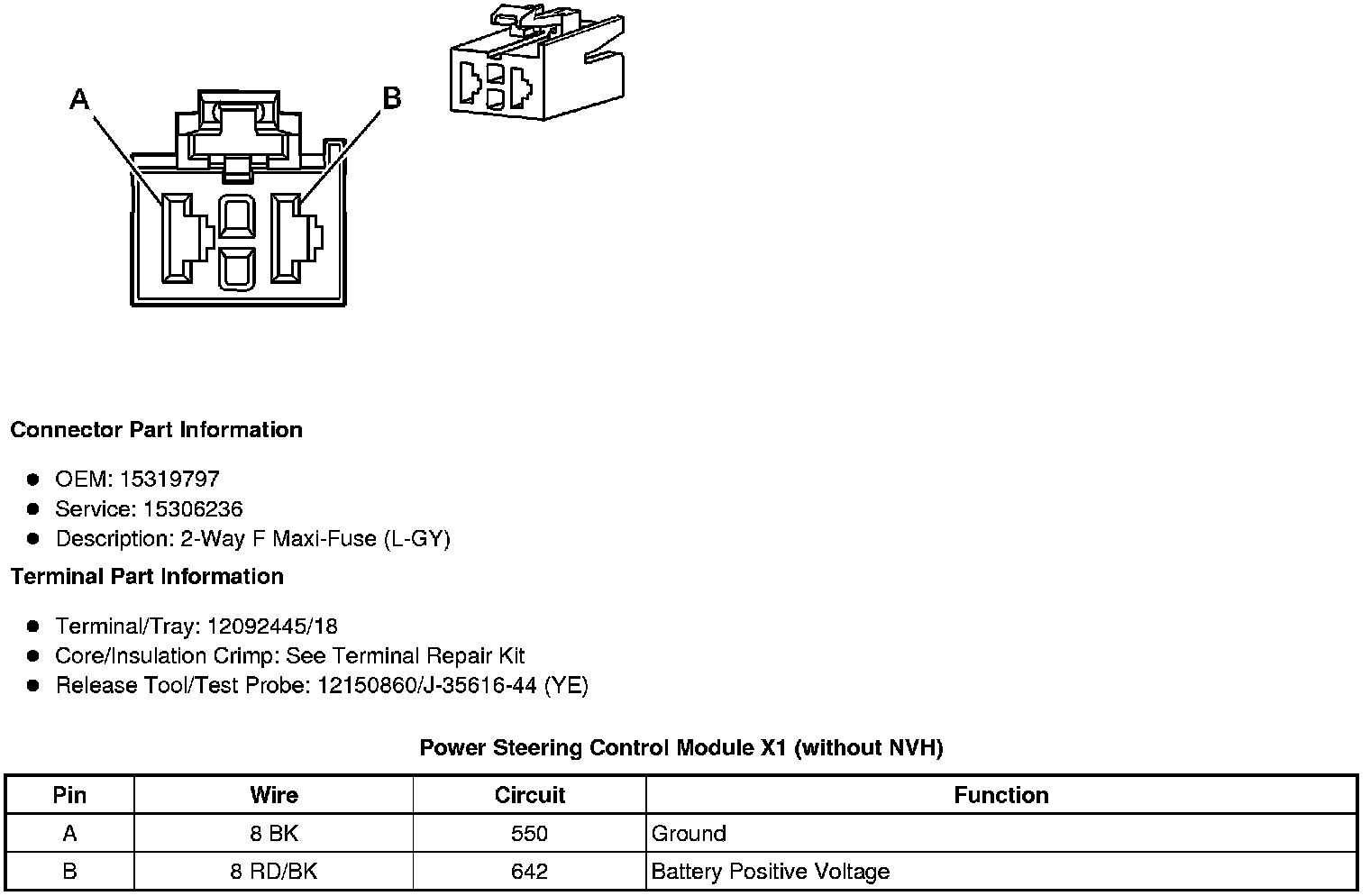

Power Steering Control Module X1 (without NVH)






Power Steering Control Module X2 (without NVH)

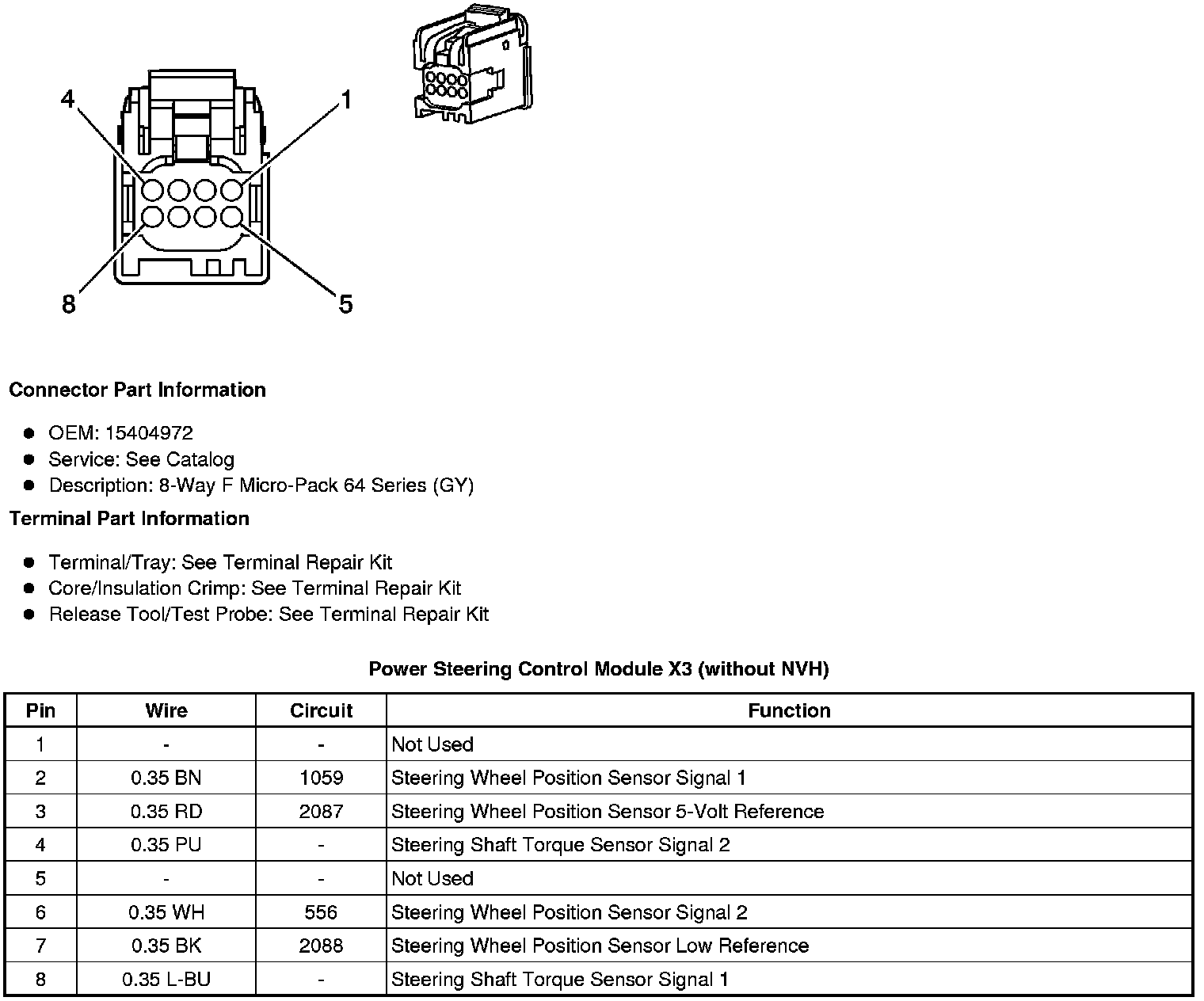

Power Steering Control Module X3 (without NVH)
