Data Communication Schematics

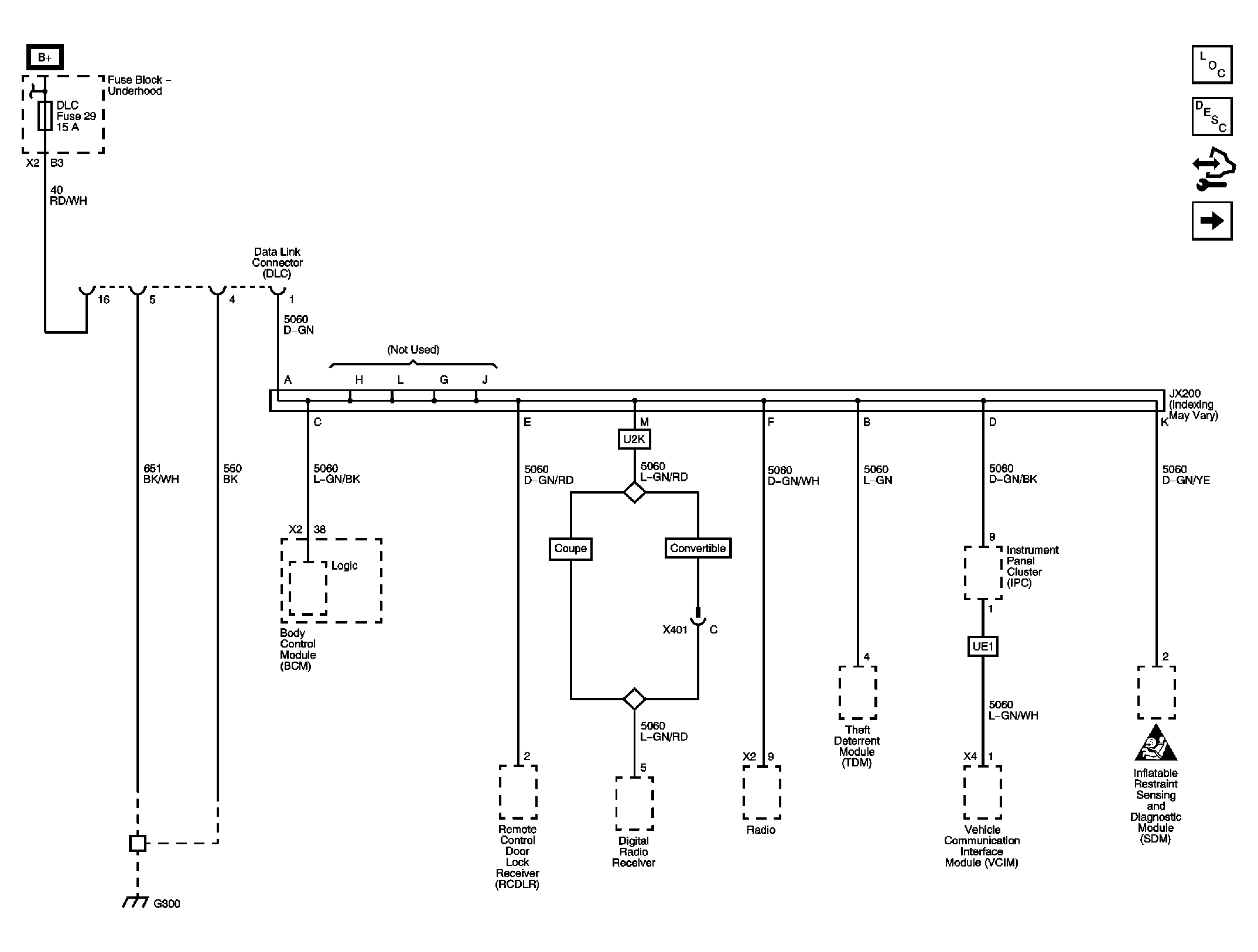

Fig 1: Low Speed LAN
GM2049652Courtesy of GENERAL MOTORS CORP.

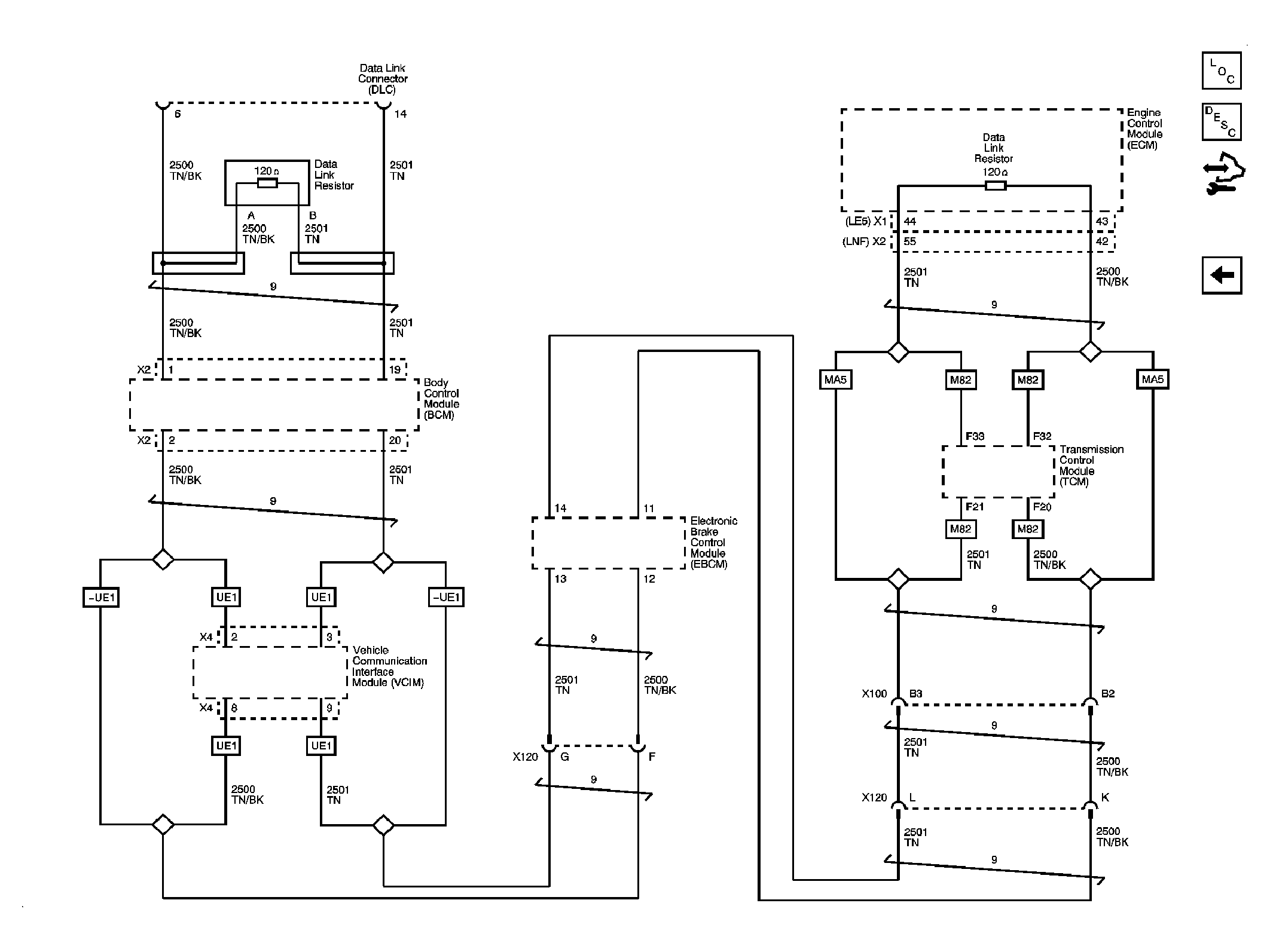

Fig 2: High Speed LAN
GM2049654Courtesy of GENERAL MOTORS CORP.
