Ignition Switch

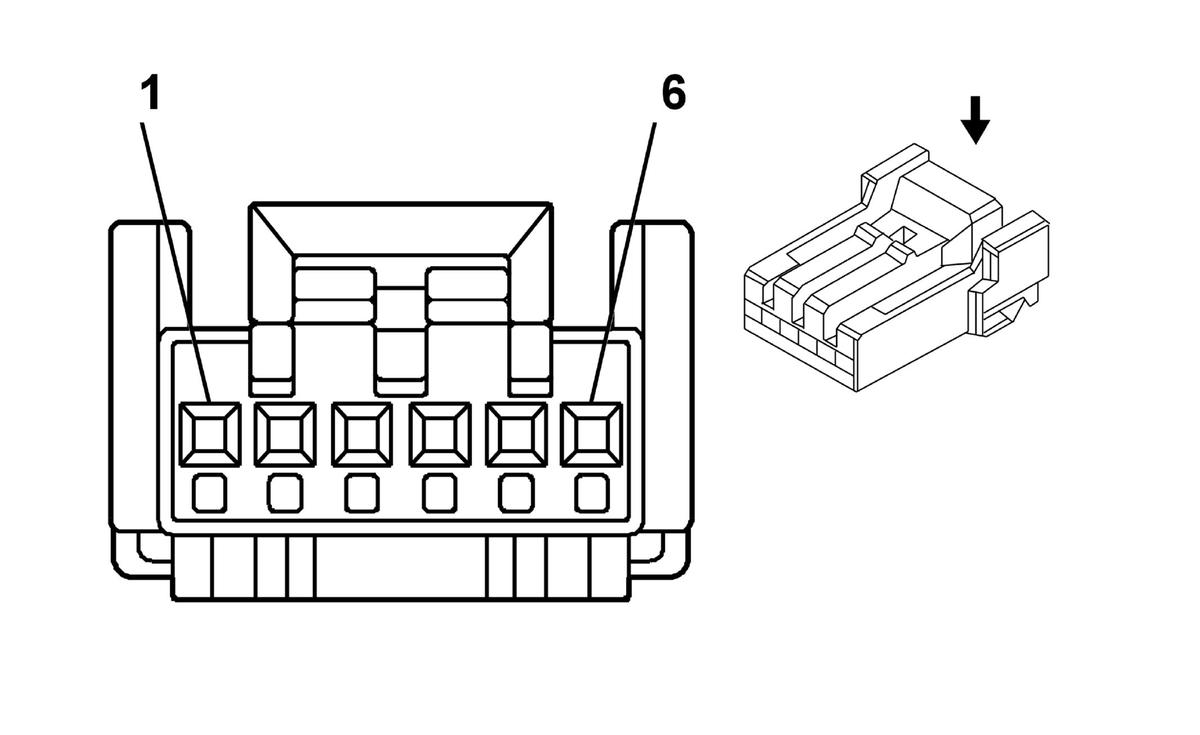

Fig 1: Ignition Switch Connector End View
GM307727Courtesy of GENERAL MOTORS CORP.
Ignition Switch

Pin Wire Circuit Function
1 - - Not Used
2 0.35 RD/WH 1040 Battery Positive Voltage
3 0.35 YE 5199 Run/Crank Relay Coil Control
4 0.35 BN 4 Accessory Voltage
5 0.35 WH 1390 Off/Run/Crank Voltage
6 0.35 WH/BK 1073 Ignition Key Resistor Signal
Connector Part Information
  • OEM: 1L-AG5-6S-S3C1
  • Service: 88987854
  • Description: 6-Way F 1L - AG5 Series (GN)
Terminal Part Information
  • Pins: 2, 3, 4, 5, 6
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651/J-35616-64B (L-BU)
