Inflatable Restraint Steering Wheel Module Coil X3

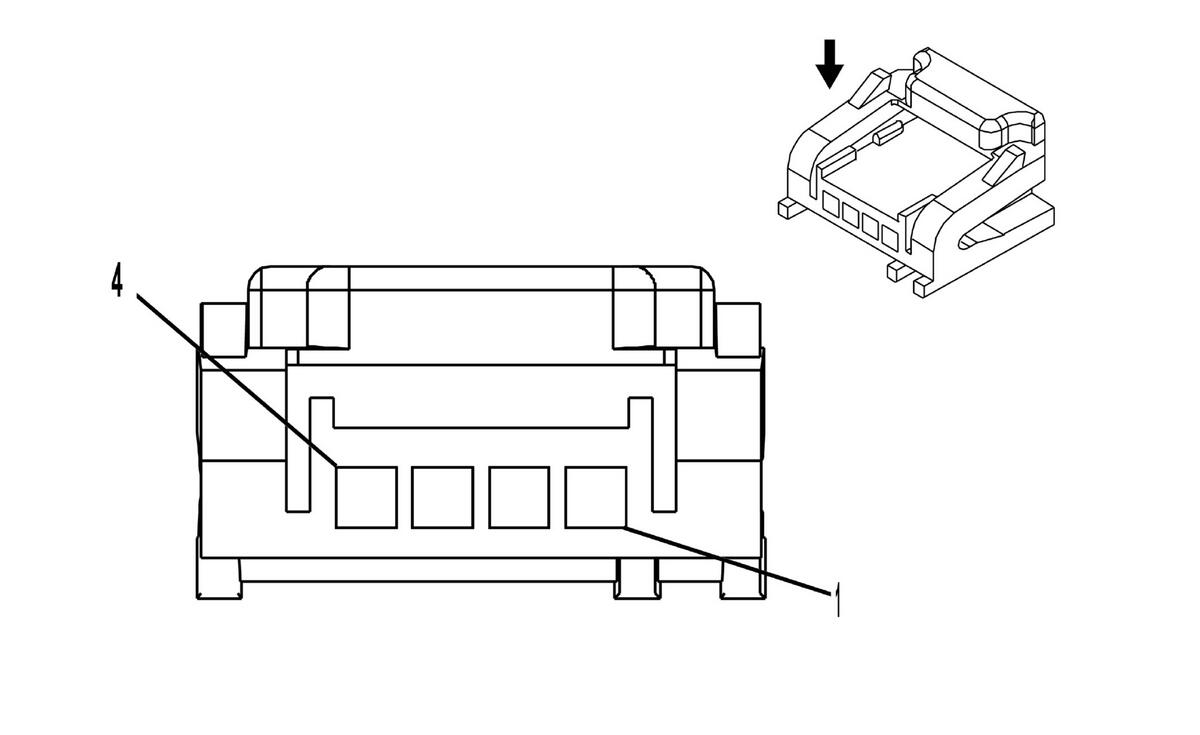

Fig 1: Inflatable Restraint Steering Wheel Module Coil X3 Connector End View
GM1399226Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Steering Wheel Module Coil X3

Pin Wire Circuit Function
1 0.5 BN 3020 Steering Wheel Module - Stage 1 - Low Control
2 0.5 TN 3021 Steering Wheel Module - Stage 1 - High Control
3 0.5 PK 3022 Steering Wheel Module - Stage 2 - Low Control
4 0.5 WH 3023 Steering Wheel Module - Stage 2 High Control
Connector Part Information
  • OEM: 15393421
  • Service: 88987853
  • Description: 4-Way F Micro-Pack 064 (YE)

Terminal Part Information
  • Terminal/Tray: Serviced with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
