Wheel Speed Sensor (WSS) - Right Front

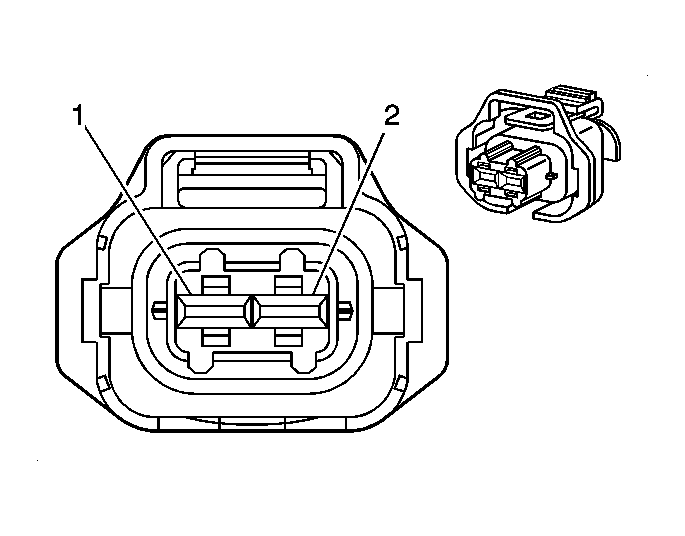

Fig 1: Wheel Speed Sensor - Right Front Connector End View
GM1592617Courtesy of GENERAL MOTORS CORP.
Wheel Speed Sensor (WSS) - Right Front

Pin Wire Circuit Function
1 0.8 D-GN 872 Right Front Wheel Speed Sensor Signal
2 0.8 TN 833 Low Reference
Connector Part Information
  • OEM: 1-928-403-698
  • Service: 19115595
  • Description: 2-Way Sealed F (BK)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: 2/1
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
