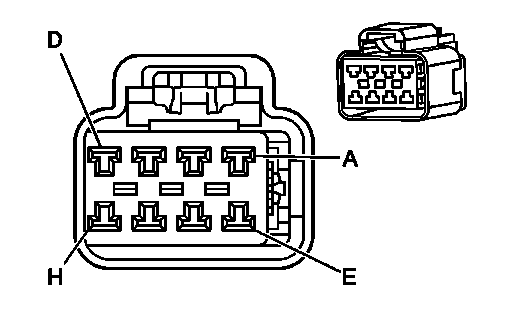

Window Switch - Driver (A31)
Courtesy of GENERAL MOTORS CORP. Window Switch - Driver (A31)
| Pin |
Wire |
Circuit |
Function |
| A |
3.0 L-BU |
166 |
Power Window Master Switch Right Front Up Signal |
| B |
0.35 GY |
8 |
Instrument Panel Lamp Supply |
| C |
3.0 D-GN |
801 |
Retained Accessory Power Fuse Supply Voltage |
| D |
3.0 TN |
167 |
Power Window Master Switch Right Front Down Signal |
| E |
- |
- |
Not Used |
| F |
2.0 BK |
550 |
Ground |
| G |
3.0 D-BU |
164 |
Power Window Motor Left Front Up Control |
| H |
3.0 BN |
165 |
Power Window Motor Left Front Down Control |
Connector Part Information
- OEM: 15449340
- Service: 88987856
- Description: 8-Way F GT 280 Series (BK)
|
Terminal Part Information
- Pins: B
- Terminal/Tray: 15304711/8
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 15315247/J-35616-4A (PU)
- Pins: A, C, D, F, G, H
- Terminal/Tray: 15304713/19
- Core/Insulation Crimp: Pins A, C, D, G, H F/D
- Core/Insulation Crimp: Pins F 4/4
- Release Tool/Test Probe: 15315247/J-35616-4A (PU)
|
