Disassembled Views

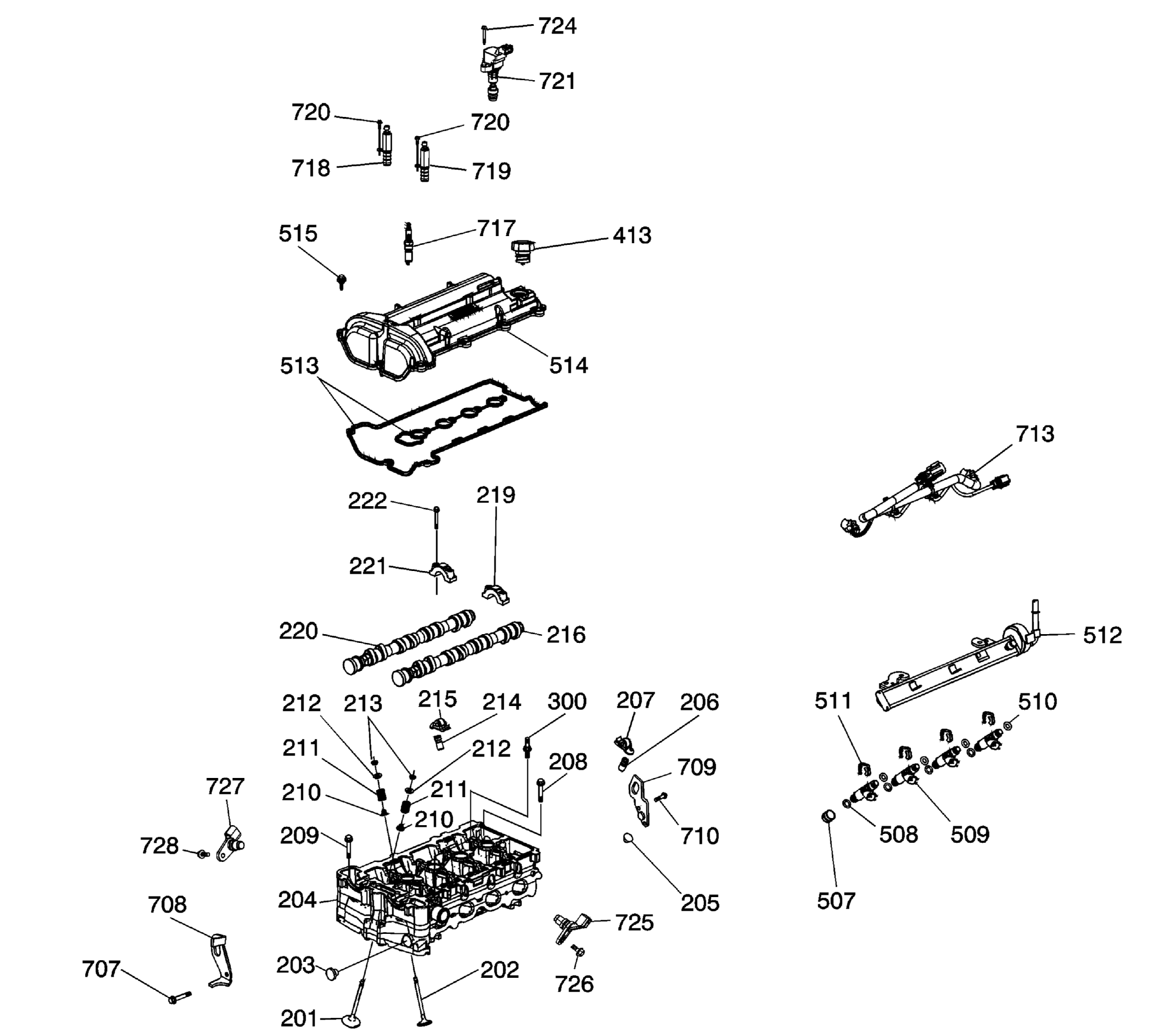

Fig 1: Identifying Cylinder Head & Components
GM1866996Courtesy of GENERAL MOTORS CORP.
Callout Component Name
201 Exhaust Valve
202 Intake Valve
203 Timing Chain Guide Bolt Access Hole
204 Cylinder Head
205 Cylinder Head Gallery Plug
206 Hydraulic Lash Adjuster
207 Roller Finger Follower
208 Cylinder Head Bolt
209 Small Cylinder Head Bolt
210 Valve Stem Seal
211 Valve Spring
212 Valve Spring Retainer
213 Valve Keys
214 Hydraulic Lash Adjuster
215 Roller Finger Follower
216 lntake Camshaft
219 Camshaft Cap
220 Exhaust Camshaft
221 Camshaft Cap
222 Camshaft Cap Bolt
300 Coolant Air Bleed Fitting
413 Engine Oil Fill Cap
507 Fuel Injector Rotator Cup
508 Fuel Injector O-ring
509 Fuel Injector
510 Fuel Injector O-ring
511 Fuel Injector Clip
512 Fuel Rail
513 Camshaft Cover Gasket
514 Camshaft Cover
515 Camshaft Cover Bolt
707 Front Lift Bracket Bolt
708 Front Lift Bracket
709 Rear Lift Bracket
710 Rear Lift Bracket Bolt
713 Fuel Injector Wiring Harness
717 Spark Plug
718 Camshaft Position Actuator Solenoid Valve - Exhaust
719 Camshaft Position Actuator Solenoid Valve - Intake
720 Camshaft Position Actuator Solenoid Valve Bolt
721 Ignition Coil
724 Ignition Coil Bolt
725 Camshaft Position Sensor
726 Camshaft Position Sensor Bolt
727 Camshaft Position Sensor
728 Camshaft Position Sensor Bolt

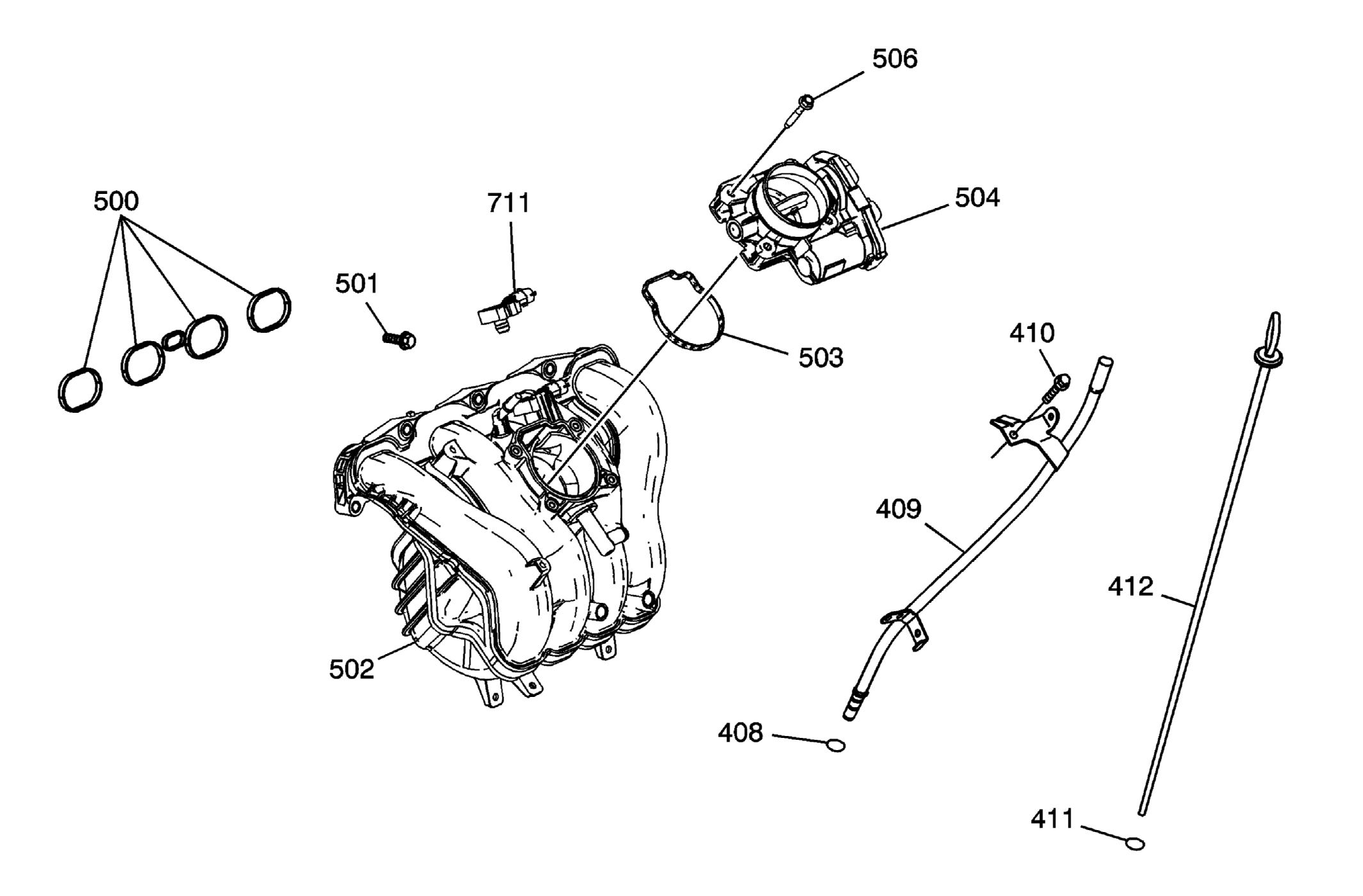

Fig 2: Identifying Intake Manifold & Components
GM1866997Courtesy of GENERAL MOTORS CORP.
Callout Component Name
408 Oil Indicator Tube O-ring
409 Oil Indicator Tube
410 Oil Indicator Tube Bolt
411 Oil Indicator O-ring
412 Oil Indicator
500 Intake Manifold Gasket
501 Intake Manifold Bolt
502 Intake Manifold
503 Throttle Body Seal
504 Throttle Body
506 Throttle Body Bolt
711 Map Sensor

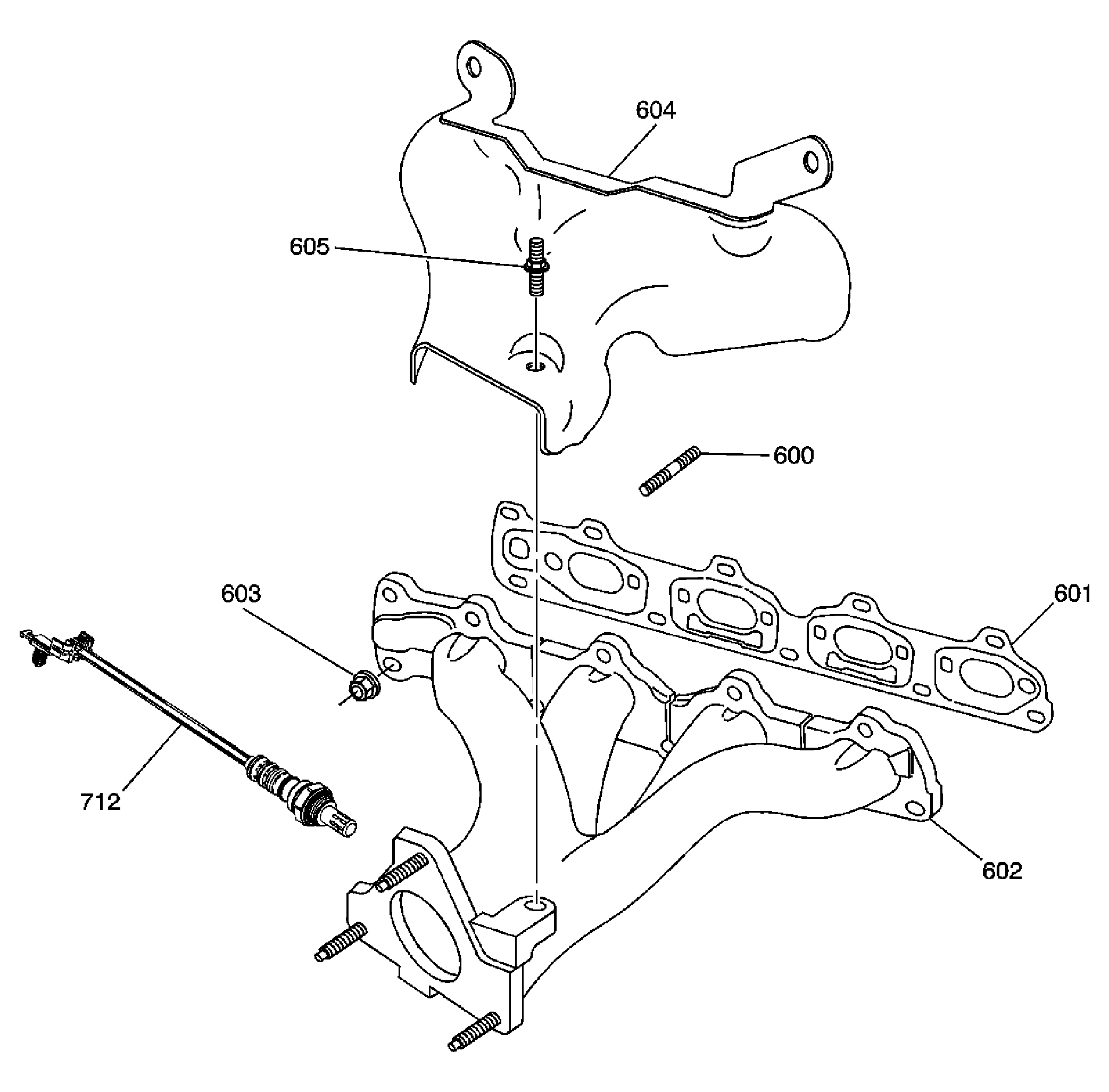

Fig 3: Identifying Exhaust Manifold & Components
GM1244840Courtesy of GENERAL MOTORS CORP.
Callout Component Name
600 Exhaust Manifold Stud
601 Exhaust Manifold Gasket
602 Exhaust Manifold
603 Exhaust Manifold Nut
604 Exhaust Manifold Heat Shield
605 Exhaust Manifold Heat Shield Stud
712 Oxygen Sensor
Fig 4: Identifying Engine Block & Components
GM1866998Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
101 Crankshaft Bearing - Upper
102 Crankshaft Thrust Bearing - Upper
103 Crankshaft
104 Crankshaft Bearing - Lower
105 Crankshaft Thrust Bearing - Lower
106 Lower Crankcase
107 Lower Crankcase Perimeter Bolt
108 Lower Crankcase Main Bearing Bolt
109 Crankshaft Rear Seal
110 Flywheel - Automatic Transmission
111 Automatic Transaxle Flywheel to Crankshaft Bolt
112 Manual Transaxle Flywheel
113 Manual Transaxle Flywheel Bolt
114 Engine Block to Transaxle Alignment Pin
115 Engine Block Gallery Plug
116 Cylinder Head Alignment Pin
117 Cylinder Bore Sleeve
118 Connecting Rod Cap Bolt
119 Connecting Rod
120 Connecting Rod Bearing
121 Piston Assembly
122 Piston Ring Assembly
200 Cylinder Head Gasket
301 Thermostat Housing
302 Thermostat Housing to Block Gasket
303 Water Pipe Support Bracket Bolt
304 Water Pipe Support Bracket Bolt Stud
305 Water Pipe Support Bracket
306 Thermostat Gasket
307 Thermostat
308 Thermostat Housing Cap
309 Thermostat Housing Cap Bolt
310 Water Transfer Pipe
311 Water Transfer Pipe O-ring Seals
312 Water Pump
313 Water Pump to Engine Block Seal
400 Engine Oil Pan
401 Engine Oil Pan Alignment Pins
402 Engine Oil Pan Drain Plug
403 Engine Oil Pan Bolt
404 Engine Oil Pan Long Bolt
405 Oil Filter
406 Oil Filter Cap O-ring
407 Oil Filter Cap
433 Piston Oil Squirter
700 Oil Pressure Switch
701 Crankshaft Position Sensor Bolt
702 Crankshaft Position Sensor
703 Knock Sensor
706 Coolant Temperature Sensor

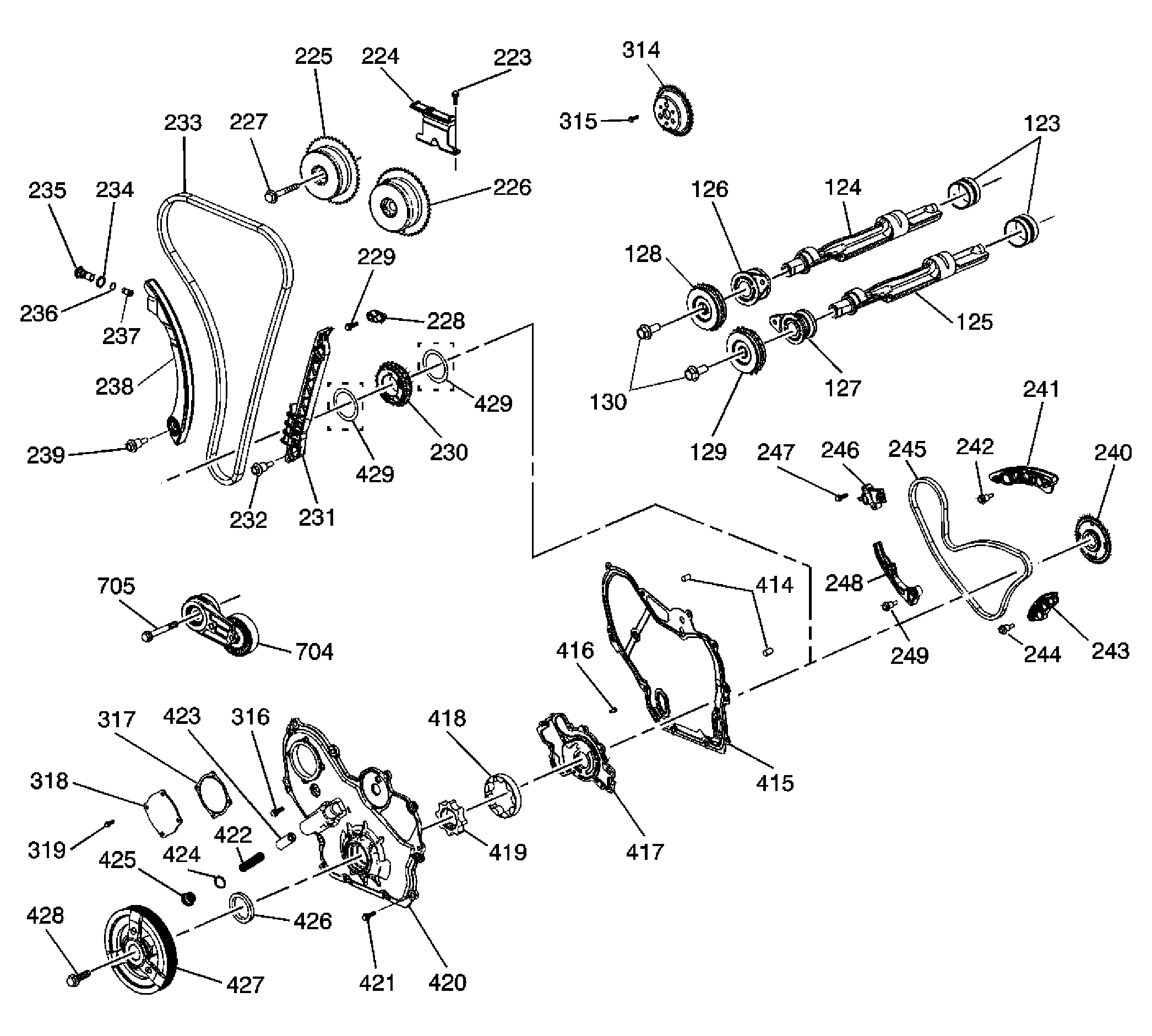

Fig 5: Identifying Timing Chain & Components
GM2128096Courtesy of GENERAL MOTORS CORP.
Callout Component Name
123 Balance Shaft Rear Bearing
124 Exhaust Balance Shaft
125 Intake Balance Shaft
126 Exhaust Balance Shaft Bearing Carrier
127 Intake Balance Shaft Bearing Carrier
128 Exhaust Balance Shaft Drive Sprocket
129 Intake Balance Shaft Drive Sprocket
130 Balance Shaft Drive Sprocket Bolts
223 Upper Timing Chain Guide Bolt
224 Upper Timing Chain Guide
225 Exhaust Camshaft Position Actuator
226 Intake Camshaft Position Actuator
227 Camshaft Position Actuator Bolt
228 Timing Chain Oil Nozzle
229 Timing Chain Oil Nozzle Bolt
230 Timing Chain Drive Sprocket
231 Fixed Timing Chain Guide
232 Fixed Timing Chain Guide Bolt
233 Timing Chain
234 Timing Chain Tensioner Washer
235 Timing Chain Tensioner Body
236 Timing Chain Tensioner O-ring Seal
237 Timing Chain Tensioner Plunger
238 Adjustable Timing Chain Guide
239 Adjustable Timing Chain Guide Bolt
240 Balance Shaft Drive Sprocket
241 Balance Shaft Drive Chain Guide
242 Balance Shaft Drive Chain Guide Bolt
243 Balance Shaft Drive Chain Guide
244 Balance Shaft Drive Chain Guide Bolt
245 Balance Shaft Drive Chain
246 Balance Shaft Drive Chain Tensioner Assembly
247 Balance Shaft Drive Chain Tensioner Assembly Bolt
248 Adjustable Balance Shaft Drive Chain Guide
249 Adjustable Balance Shaft Drive Chain Guide Bolt
314 Water Pump Drive Sprocket
315 Water Pump Drive Sprocket Bolt
316 Water Pump Bolt
317 Engine Front Cover Access Plate Gasket
318 Engine Front Cover Access Plate
319 Engine Front Cover Access Plate Bolt
414 Engine Front Cover Alignment Pins
415 Engine Front Cover Gasket
416 Oil Pump Cover Bolt
417 Oil Pump Cover
418 Oil Pump Outer Gerotor
419 Oil Pump Inner Gerotor
420 Engine Front Cover
421 Engine Front Cover Bolt
422 Oil Pressure Relief Valve Spring
423 Oil Pressure Relief Valve Plunger
424 Oil Pressure Relief Valve O-ring Seal
425 Oil Pressure Relief Valve Plug
426 Crankshaft Front Seal
427 Crankshaft Damper
428 Crankshaft Damper Bolt
429 Friction Washer, some models
704 Belt Tensioner
705 Belt Tensioner Bolt
