Cylinder Head - Front View

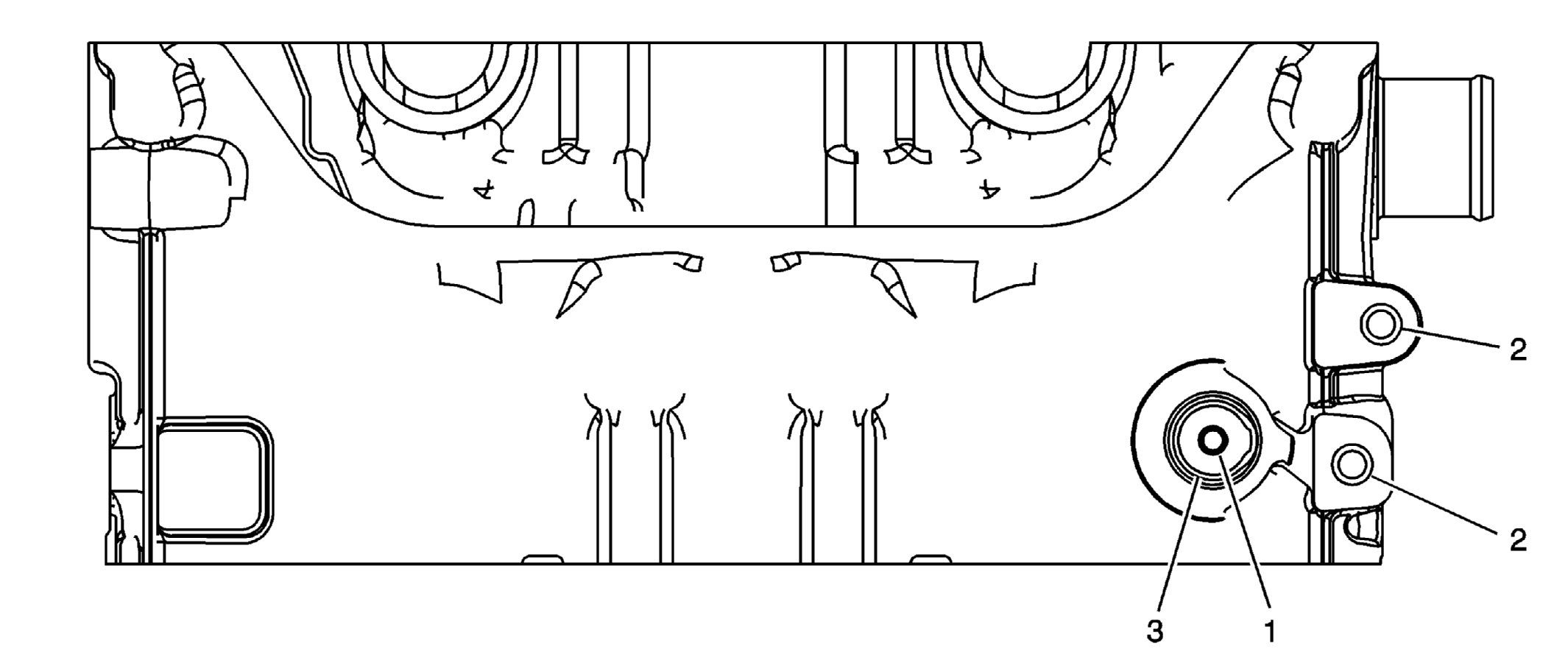

Fig 1: Locating Bolts On Cylinder Head - Front View
GM2109051Courtesy of GENERAL MOTORS CORP.
Service Call Out Thread Size Insert Drill Counterbore Tool Tap Driver Drill Depth (Maximum) Tap Depth (Maximum)
J 42385-850 MM (IN) MM (IN)
1 M6 x 1 205 201 202 203 204 20 0.787 16 0.63
2 M8 x 1.25 210 206 207 208 209 25 0.984 20 0.787
3 M22 x 1.5 No Service Tools Available THRU THRU
