Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82)

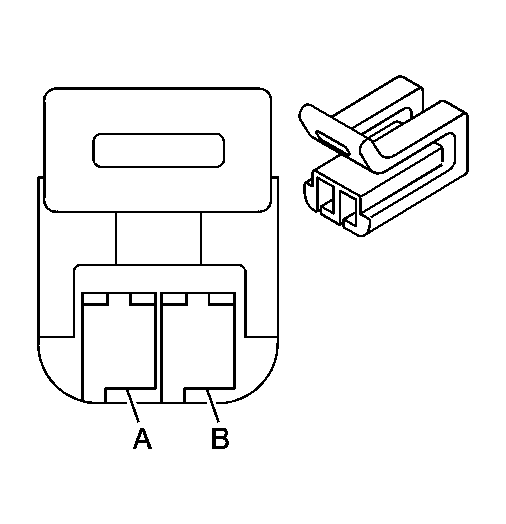

Fig 1: Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82) Connector End View
GM800008Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82)

Pin Wire Circuit Function
A YE 1230 Automatic Transmission Input Speed Sensor High Signal
B WH 1231 Automatic Transmission Input Speed Sensor Low Signal
Connector Part Information
  • OEM: 12162201
  • Service: 12162201
  • Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)

Terminal Part Information
  • Terminal/Tray: 12103881/2
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 1180559-1/J-35616-14 (GN)
