Disassembled Views

Fig 1: Identifying Cylinder Head & Components
GM1770225Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position Actuator Solenoid Valve - Intake
2 Camshaft Position Actuator Solenoid Valve Bolt
3 Camshaft Position Actuator Solenoid Valve Bolt
4 Camshaft Position Actuator Solenoid Valve - Exhaust
5 Upper Intake Manifold Sight Shield Grommet
6 Ball Stud
7 Upper Intake Manifold Sight Shield Grommet
8 Turbocharger Coolant Feed Pipe Fitting
9 Turbocharger Coolant Feed Hose Gasket
10 Turbocharger Coolant Feed Hose Clamp
11 Turbocharger Coolant Feed Hose
12 Turbocharger Coolant Feed Hose Bolt
13 Turbocharger Coolant Feed Hose Gasket
14 Turbocharger Coolant Feed Hose Clamp
15 Upper Intake Manifold Sight Shield Grommet
16 Ball Stud
17 Ignition Coil Bolt
18 Ignition Coil Bolt Retainer
19 Ignition Coil
20 Spark Plug
21 Camshaft Cover Bolt
22 Camshaft Cover Bolt Retainer
23 Oil Fill Cap
24 Oil Fill Cap Seal
25 Camshaft Cover
26 Camshaft Cover Seal
27 Camshaft Cover Seal
28 Camshaft Cap Bolt
29 Camshaft Cap
30 Camshaft Cap
31 Camshaft Cap
32 Exhaust Camshaft
33 Intake Camshaft
34 Camshaft Position Sensor Bolt
35 Camshaft Position Sensor
36 Camshaft Position Sensor O-Ring
37 Roller Finger Follower
38 Hydraulic Lash Adjuster
39 Roller Finger Follower
40 Hydraulic Lash Adjuster
41 Cylinder Head Bolt
42 Coolant Air Bleed Fitting
43 Valve Keys
44 Valve Spring Retainer
45 Valve Spring
46 Valve Stem Seal
47 Small Cylinder Head Bolt
48 Cylinder Head
49 Timing Chain Guide Bolt Access Hole
50 Exhaust Valve
51 Intake Valve
52 Camshaft Position Sensor Bolt
53 Camshaft Position Sensor - Intake
54 Camshaft Position Sensor O-Ring
55 Cylinder Head Gallery Plug
56 Rear Lift Bracket
57 Rear Lift Bracket Bolt
58 Cylinder Head Cover Plate Seal
59 Cylinder Head Cover Plate
60 Cylinder Head Cover Plate Bolt
61 Fuel Injector Seal
62 Fuel Injector
63 Fuel Injector O-Ring
64 Fuel Injector Hold Down Clamp
65 Fuel Rail
66 Fuel Rail Pressure Sensor
67 Fuel Injector Wiring Harness
68 Fuel Rail Bolt

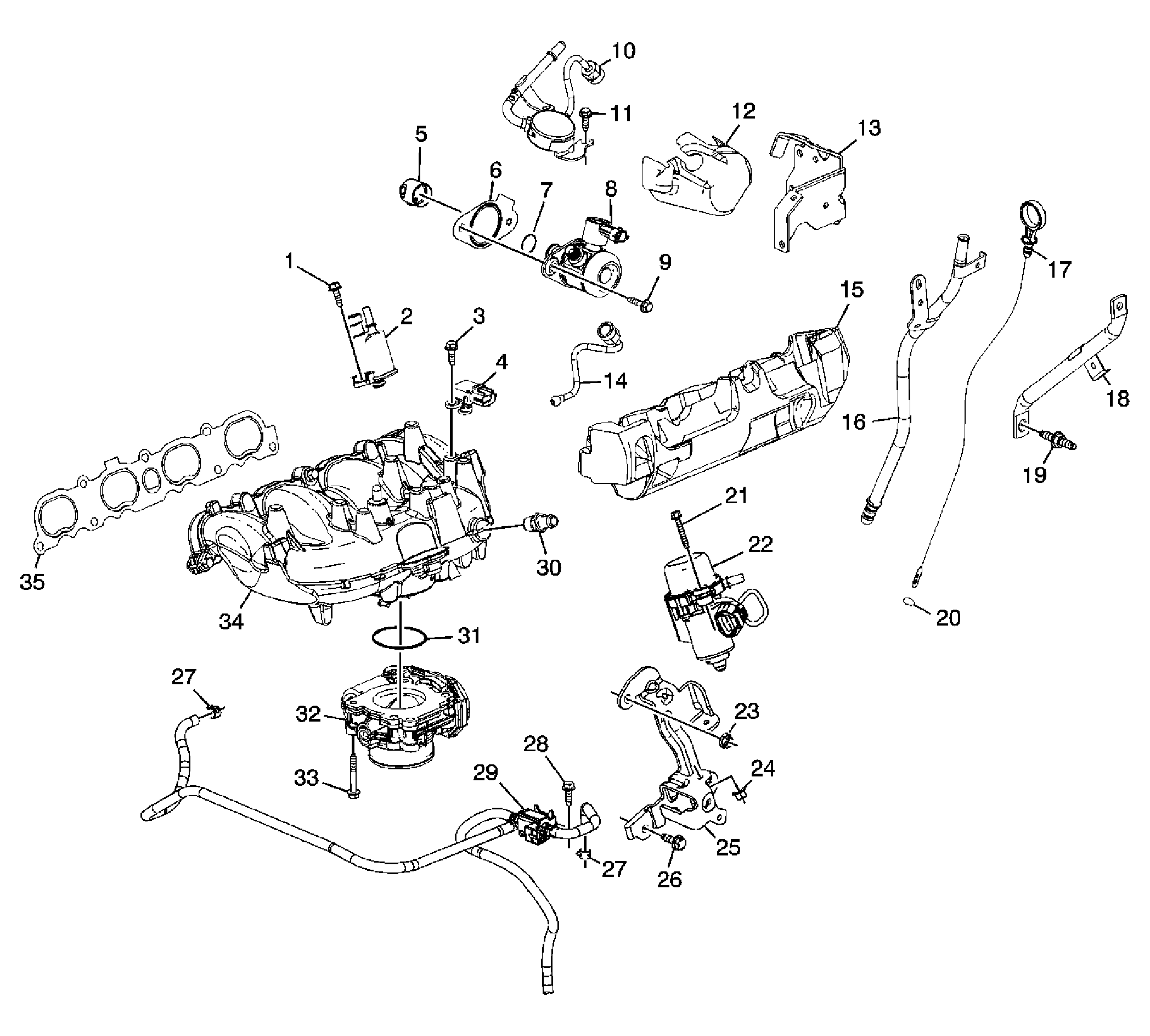

Fig 2: Identifying Intake Manifold & Components
GM2051374Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative (EVAP) Emission Purge Solenoid Valve Bolt
2 EVAP Purge Solenoid Valve
3 Manifold Absolute Pressure (MAP) Sensor Bolt
4 MAP Sensor
5 Fuel Pump Lifter
6 High Pressure Fuel Pump Gasket
7 High Pressure Fuel Pump O-Ring
8 High Pressure Fuel Pump
9 High Pressure Fuel Pump Bolt
10 Fuel Feed Line
11 Fuel Feed Line Bolt
12 High Pressure Fuel Pump Insulator
13 High Pressure Fuel Pump Cover
14 High Pressure Fuel Line
15 Fuel Injector Insulator
16 Oil Indicator Tube
17 Oil Indicator
18 Intake Manifold Brace
19 Intake Manifold Brace Stud
20 Oil Indicator O-Ring
21 Vacuum Pump Bolt
22 Vacuum Pump
23 Vacuum Pump Bracket Nut
24 Vacuum Pump Bracket Nut
25 Vacuum Pump Bracket
26 Vacuum Pump Bracket Bolt
27 Charger AIR Bypass Tube Assembly Clip
28 AIR Bypass Valve Solenoid Bolt
29 AIR Bypass Valve Solenoid
30 Power Brake Booster Fitting
31 Throttle Body Seal
32 Throttle Body
33 Throttle Body Bolt
34 Intake Manifold
35 Intake Manifold Gasket

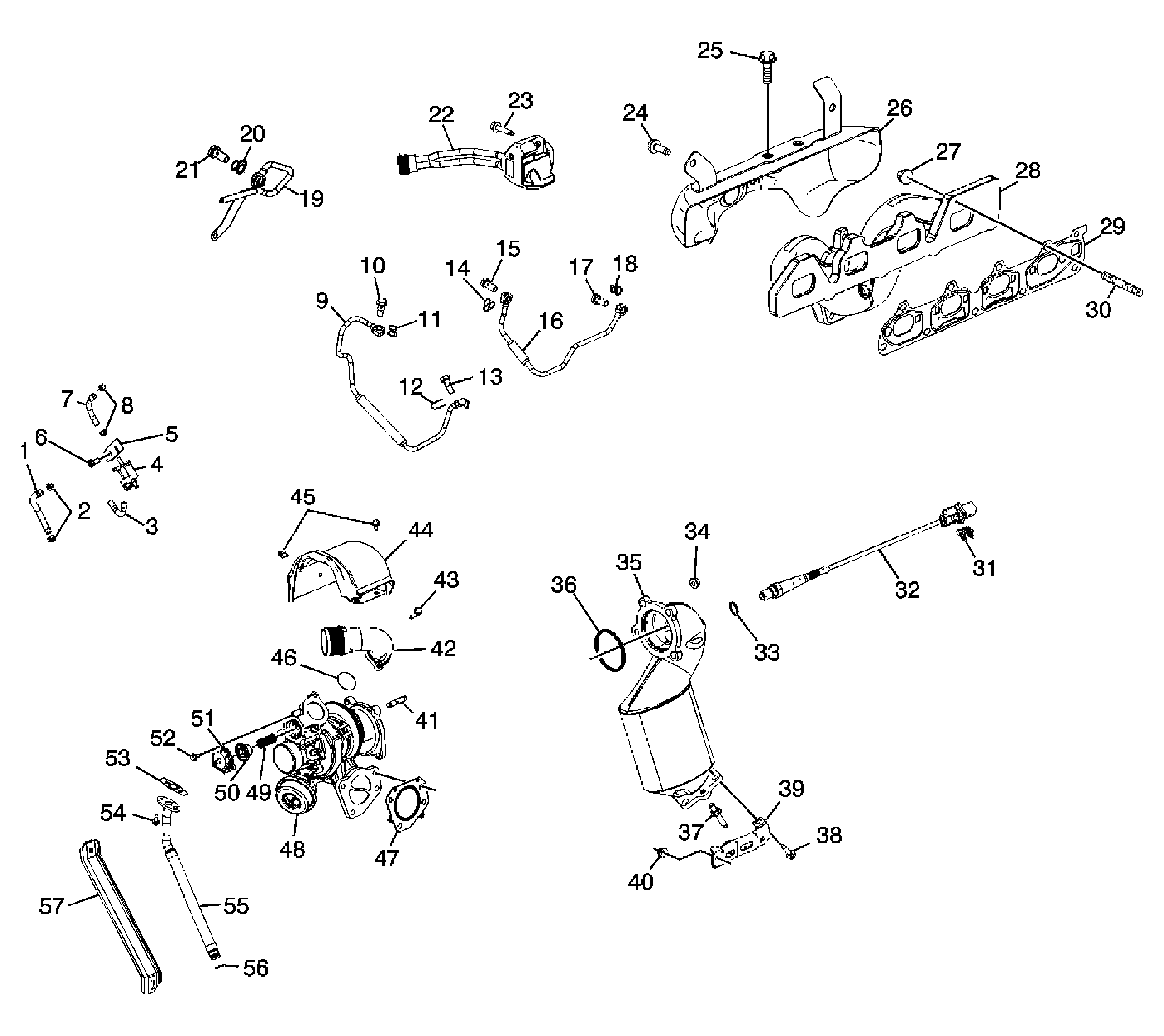

Fig 3: Identifying Exhaust Manifold & Components
GM2045490Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turbocharger Wastegate Regulator Solenoid Hose
2 Turbocharger Wastegate Regulator Solenoid Hose Clamp
3 Turbocharger Wastegate Regulator Solenoid Hose
4 Turbocharger Wastegate Regulator Solenoid Valve Assembly
5 Turbocharger Wastegate Regulator Solenoid Valve Bracket
6 Turbocharger Wastegate Regulator Solenoid Valve Bracket Bolt/Screw
7 Turbocharger Wastegate Regulator Solenoid Hose
8 Turbocharger Wastegate Regulator Solenoid Hose Clamp
9 Turbocharger Oil Feed Pipe
10 Turbocharger Oil Feed Pipe Bolt
11 Turbocharger Oil Feed Pipe Gasket
12 Turbocharger Oil Feed Pipe Gasket
13 Turbocharger Oil Feed Pipe Bolt
14 Turbocharger Coolant Return Pipe Gasket
15 Turbocharger Coolant Return Pipe Bolt
16 Turbocharger Coolant Return Pipe
17 Turbocharger Coolant Return Pipe Bolt
18 Turbocharger Coolant Return Pipe Gasket
19 Turbocharger Coolant Feed Pipe
20 Turbocharger Coolant Feed Pipe Gasket
21 Turbocharger Coolant Feed Pipe Bolt
22 Engine Coolant Heater
23 Engine Coolant Heater Bolt
24 Exhaust Manifold Heat Shield Bolt
25 Exhaust Manifold Heat Shield Bolt
26 Exhaust Manifold Heat Shield
27 Exhaust Manifold Nut
28 Exhaust Manifold
29 Exhaust Manifold Gasket
30 Exhaust Manifold Stud
31 Oxygen Sensor Fastener
32 Oxygen Sensor
33 Oxygen Sensor Gasket
34 Catalytic Converter Nut
35 Catalytic Converter
36 Catalytic Converter Seal
37 Catalytic Converter Stud
38 Catalytic Converter Bracket Bolts
39 Catalytic Converter Bracket
40 Catalytic Converter Bracket Nut
41 Catalytic Converter Stud
42 Turbocharger Air Cooler Outlet Pipe
43 Turbocharger Air Cooler Outlet Pipe Bolt
44 Turbocharger Heat Shield
45 Turbocharger Heat Shield Bolts
46 Turbocharger Air Cooler Outlet Pipe Seal
47 Turbocharger Gasket
48 Turbocharger
49 Turbocharger Air Bypass Valve Spring
50 Turbocharger Air Bypass Diaphragm Assembly
51 Turbocharger Air Bypass Valve Cover
52 Turbocharger Air Bypass Valve Cover Bolt
53 Turbocharger Oil Return Pipe Gasket
54 Turbocharger Oil Return Pipe Bolt
55 Turbocharger Oil Return Pipe
56 Turbocharger Oil Return Pipe O-Ring
57 Turbocharger Brace
Fig 4: Identifying Engine Block & Components
GM1770235Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Water Pump to Engine Block Seal
2 Water Pump Seal
3 Water Pump
4 Water Pump Bolt
5 Outlet Pipe O-rings
6 Outlet Pipe
7 Coolant Thermostat Housing Bolt
8 Coolant Thermostat Housing
9 Thermostat Housing to Block Gasket
10 Coolant Thermostat Housing Seal
11 Coolant Temperature Sensor
12 Thermostat
13 Coolant Inlet
14 Coolant Inlet Bolt
15 Water Pipe Support Bracket
16 Water Pipe Support Bracket Bolt
17 Water Pipe Support Bracket Bolt Stud
18 Piston Ring Assembly
19 Piston Assembly
20 Connecting Rod Bushing
21 Connecting Rod
22 Connecting Rod Bearing
23 Connecting Rod Cap Bolt
24 Oil Cooler O-ring
25 Oil Cooler
26 Oil Cooler Bolt
27 Front Lift Bracket
28 Front Lift Bracket Bolt
29 Cylinder Head Gasket
30 Cylinder Bore Liner
31 Cylinder Head Alignment Pin
32 Oil Filter Cap
33 Oil Filter Cap O-ring
34 Oil Filter
35 Engine Block Gallery Plug
36 Engine Block to Transaxle Alignment Pin
37 Crankshaft Position Sensor
38 Crankshaft Position Sensor Bolt
39 Oil Pressure Switch
40 Piston Oil Nozzle Assembly
41 Manual Transaxle Flywheel to Crankshaft Bolt
42 Flywheel - Manual Transaxle
43 Automatic Transaxle Flywheel to Crankshaft Bolt
44 Flywheel - Automatic Transaxle
45 Crankshaft Rear Seal
46 Engine Block
47 Crankshaft Thrust Bearing - Upper
48 Crankshaft Bearing - Upper
49 Crankshaft
50 Crankshaft Thrust Bearing - Lower
51 Crankshaft Bearing - Lower
52 Lower Crankcase Main Bearing Bolt
53 Lower Crankcase Perimeter Bolt
54 Engine Oil Pan
55 Engine Oil Pan Alignment Pins
56 Lower Crankcase Main Bearing Bolt
57 Engine Oil Pan Drain Plug
58 Engine Oil Pan Bolt
59 Engine Oil Pan Long Bolt
60 Knock Sensor - Rear
61 Knock Sensor - Front
62 Starter Bolt
63 Starter

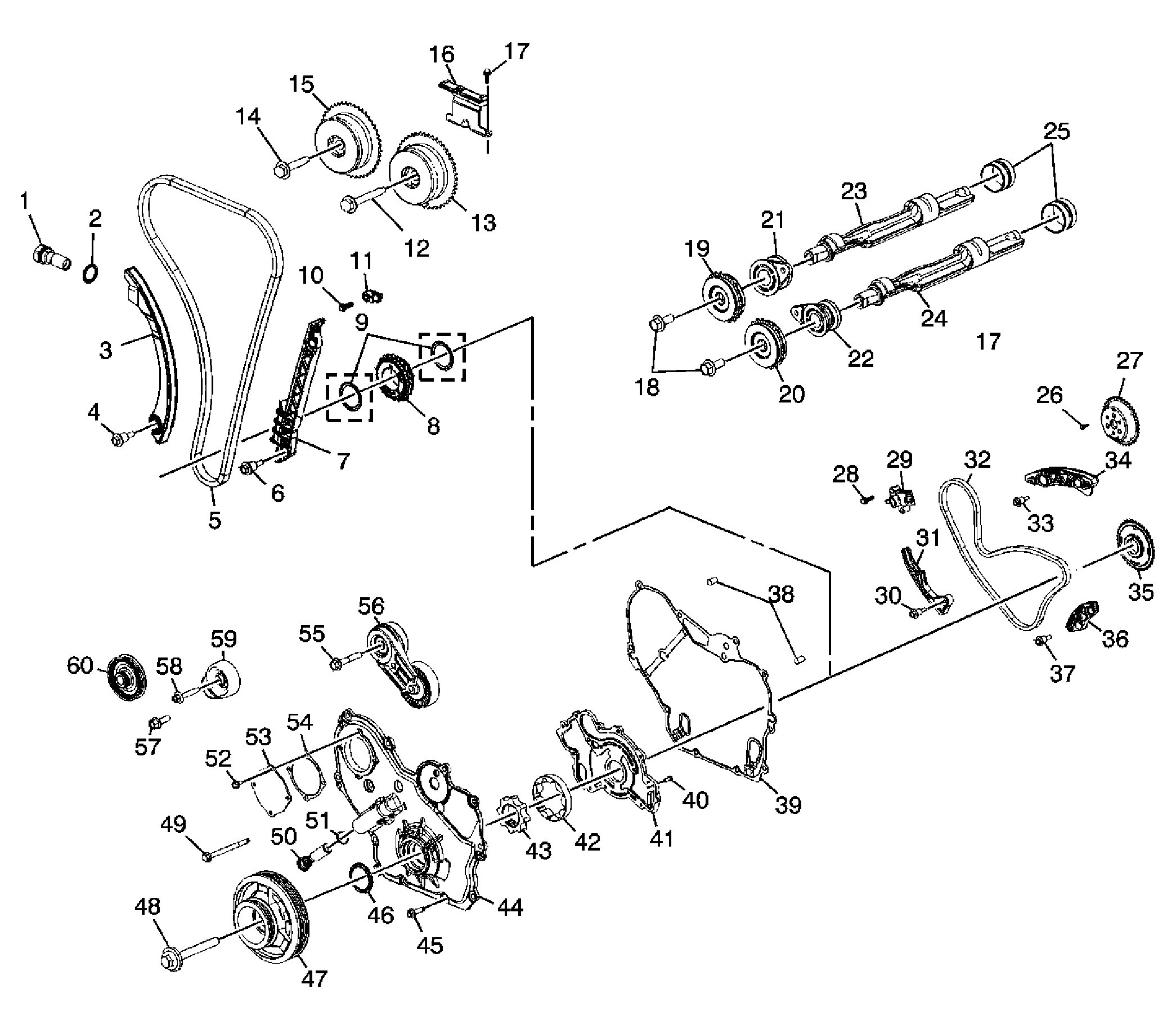

Fig 5: Identifying Timing Chain & Components
GM2064105Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Timing Chain Tensioner Body
2 Timing Chain Tensioner Seal
3 Adjustable Timing Chain Guide
4 Adjustable Timing Chain Guide Bolt
5 Timing Chain
6 Fixed Timing Chain Guide Bolt
7 Fixed Timing Chain Guide
8 Timing Chain Drive Sprocket
9 Friction Washers, some models
10 Timing Chain Oil Nozzle Bolt
11 Timing Chain Oil Nozzle
12 Camshaft Position Actuator Bolt
13 Intake Camshaft Position Actuator
14 Camshaft Position Actuator Bolt
15 Exhaust Camshaft Position Actuator
16 Upper Timing Chain Guide
17 Upper Timing Chain Guide Bolt
18 Balance Shaft Drive Sprocket Bolts
19 Exhaust Balance Shaft Drive Sprocket
20 Intake Balance Shaft Drive Sprocket
21 Exhaust Balance Shaft Bearing Carrier
22 Intake Balance Shaft Bearing Carrier
23 Exhaust Balance Shaft
24 Intake Balance Shaft
25 Balance Shaft Rear Bearing
26 Water Pump Drive Sprocket Bolt
27 Water Pump Drive Sprocket
28 Balance Shaft Drive Chain Tensioner Assembly Bolt
29 Balance Shaft Drive Chain Tensioner Assembly
30 Adjustable Balance Shaft Drive Chain Guide Bolt
31 Adjustable Balance Shaft Drive Chain Guide
32 Balance Shaft Drive Chain
33 Balance Shaft Drive Chain Guide Bolt
34 Balance Shaft Drive Chain Guide
35 Balance Shaft Drive Sprocket
36 Balance Shaft Drive Chain Guide
37 Balance Shaft Drive Chain Guide Bolt
38 Engine Front Cover Alignment Pins
39 Engine Front Cover Gasket
40 Oil Pump Cover Bolt
41 Oil Pump Cover
42 Oil Pump Gear
43 Oil Pump Inner Rotor
44 Engine Front Cover
45 Engine Front Cover Bolt
46 Crankshaft Front Oil Seal
47 Crankshaft Balancer
48 Crankshaft Balancer Bolt
49 Engine Front Cover Bolt
50 Oil Pressure Relief Valve
51 Oil Pressure Relief Valve O-Ring
52 Water Pump Sprocket Access Cover Bolt
53 Water Pump Sprocket Access Cover
54 Water Pump Sprocket Access Cover Gasket
55 Belt Tensioner Bolt
56 Belt Tensioner
57 Belt Tensioner Bolt
58 Belt Tensioner Pulley Bolt
59 Belt Tensioner
60 Power Steering Pump Pulley
