Knock Sensor: Diagrams




Component Connector End Views

Knock Sensor 1 (LCS/LZ4)

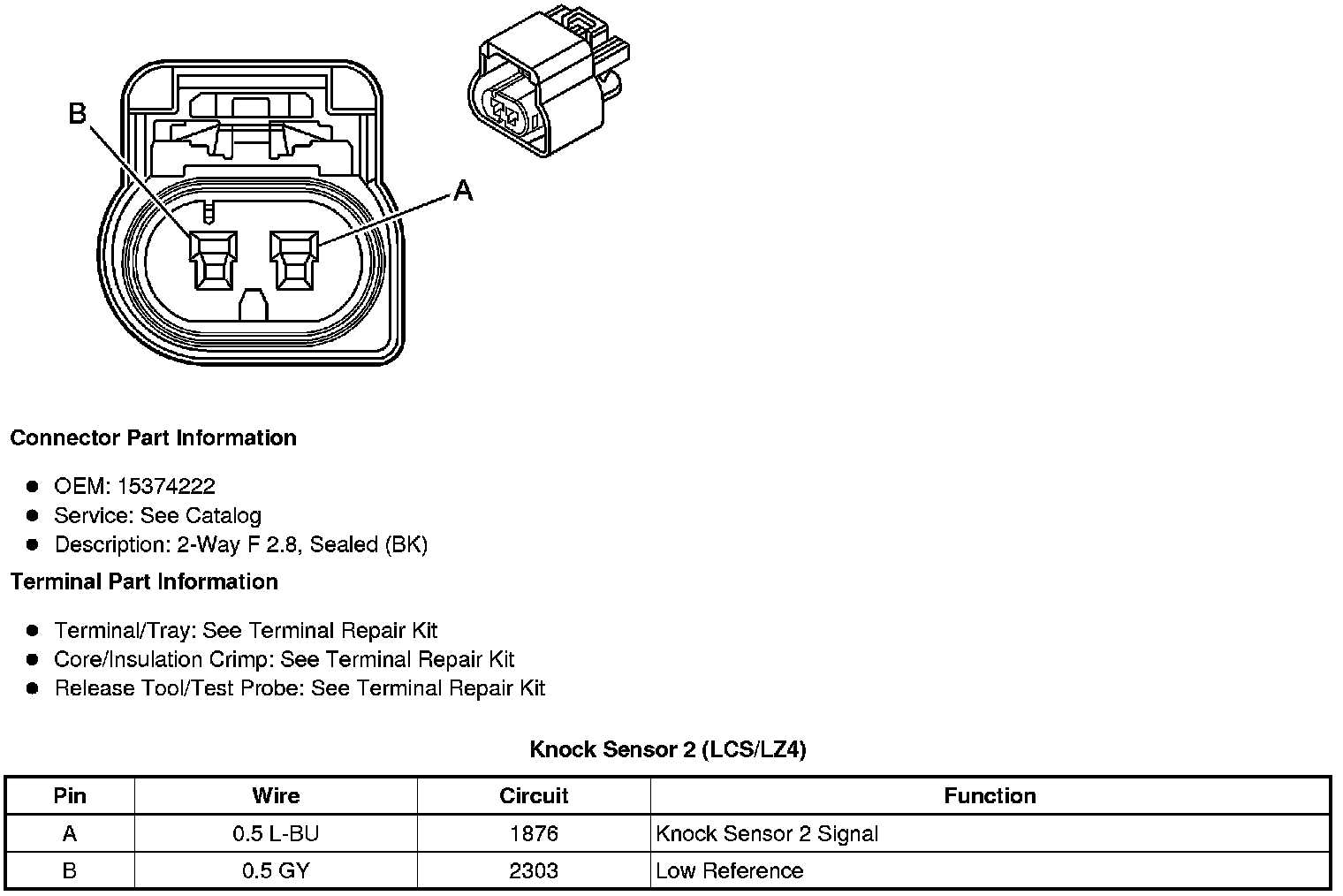

Knock Sensor 2 (LCS/LZ4)
