Knock Sensor Replacement - Bank 2

Knock Sensor Replacement - Bank 2

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

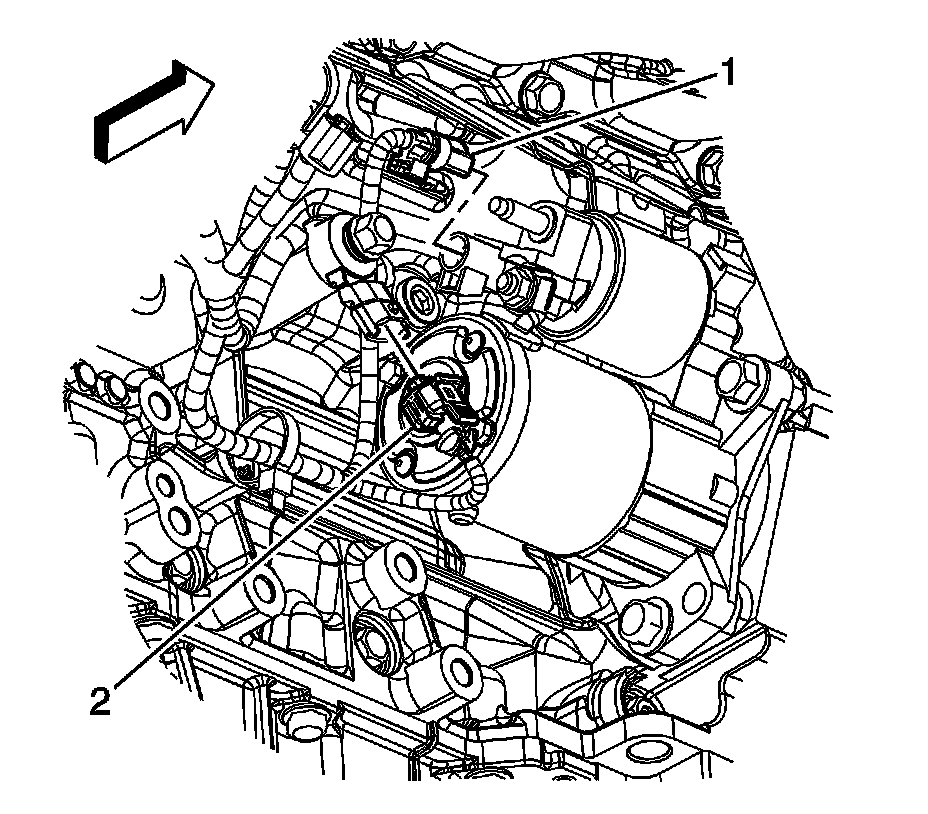

2. Disconnect the engine wiring harness electrical connector (2) from the bank 2 knock sensor.

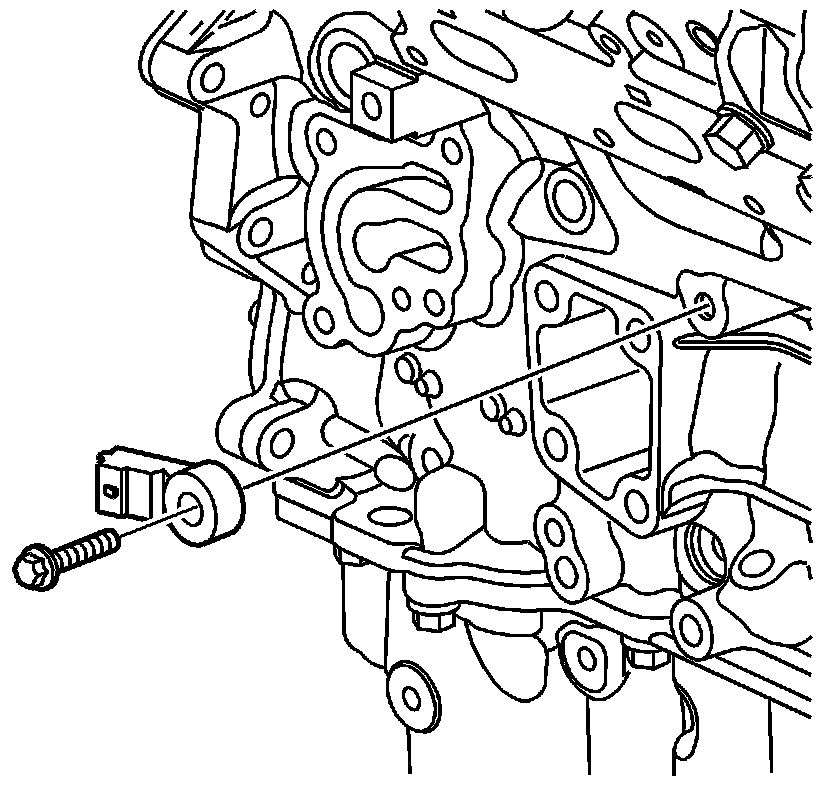

3. Loosen the knock sensor bolt and remove the knock sensor.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Position the knock sensor and tighten the knock sensor bolt. Tighten the bolt to 23 Nm (17 lb ft).




2. Connect the engine wiring harness electrical connector (2) to the bank 2 knock sensor.
3. Lower the vehicle.
