Information Bus
Data Communication Schematics

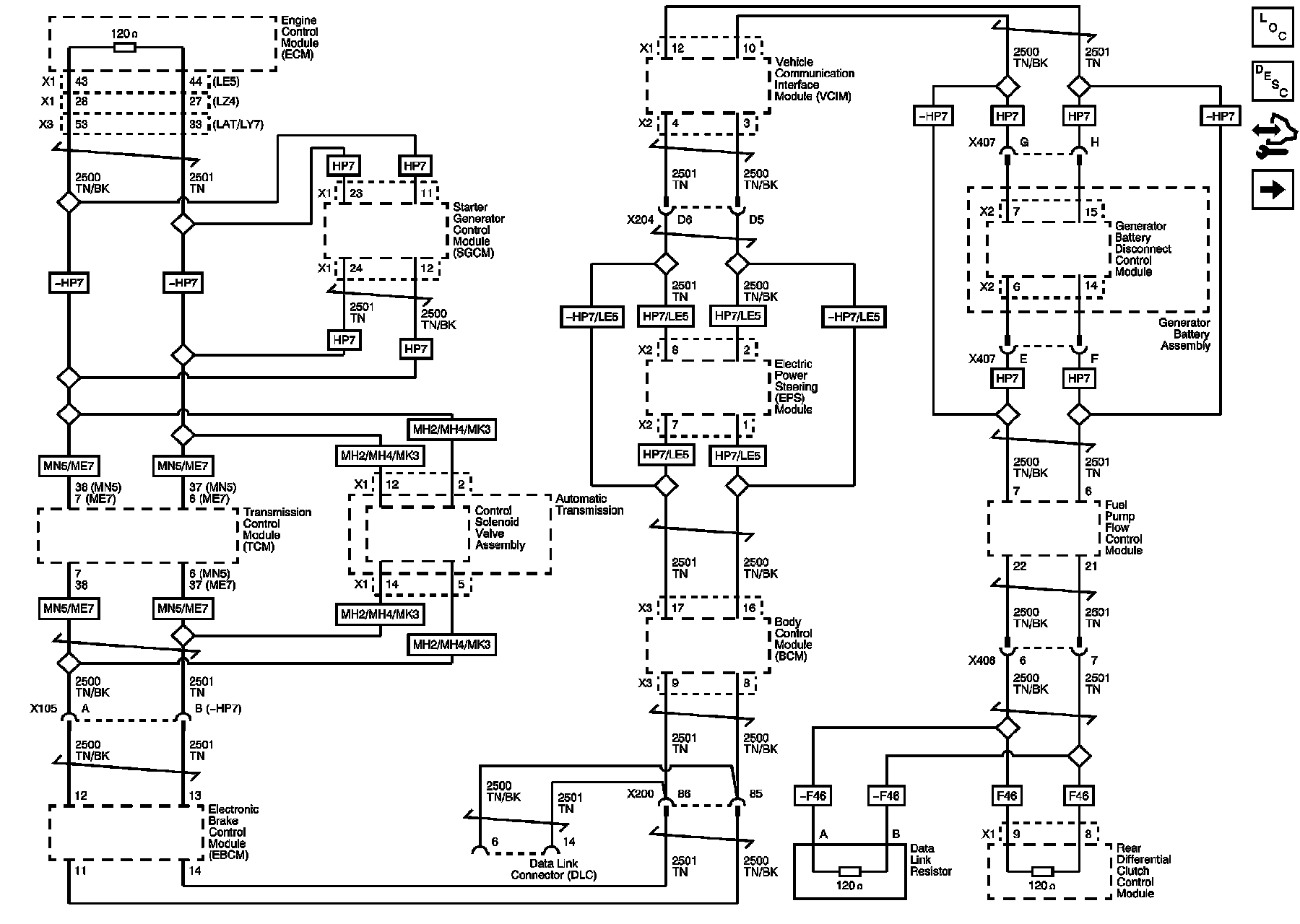

High Speed GMLAN (without HP5)

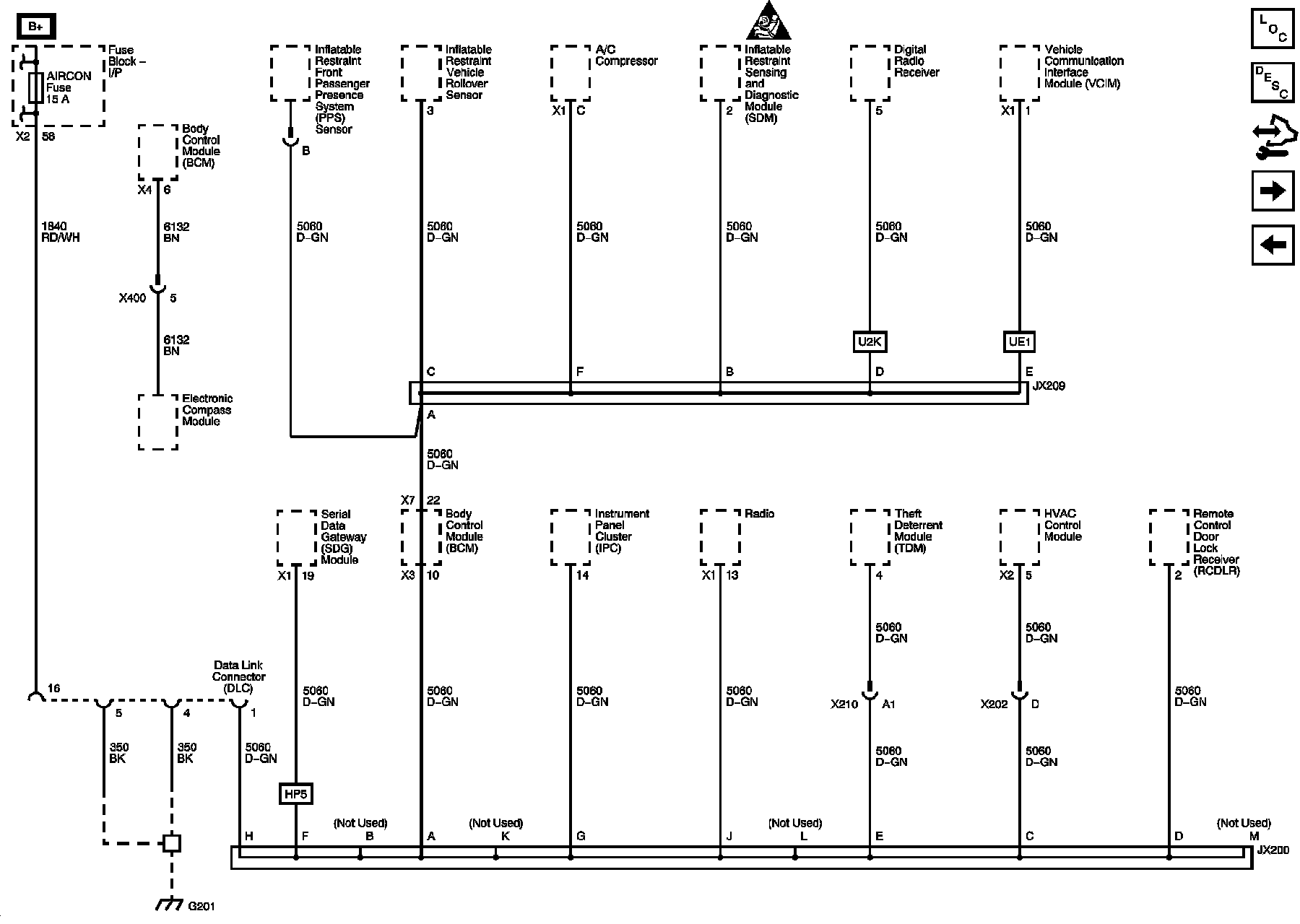

Low Speed GMLAN and Linear Interconnect Network

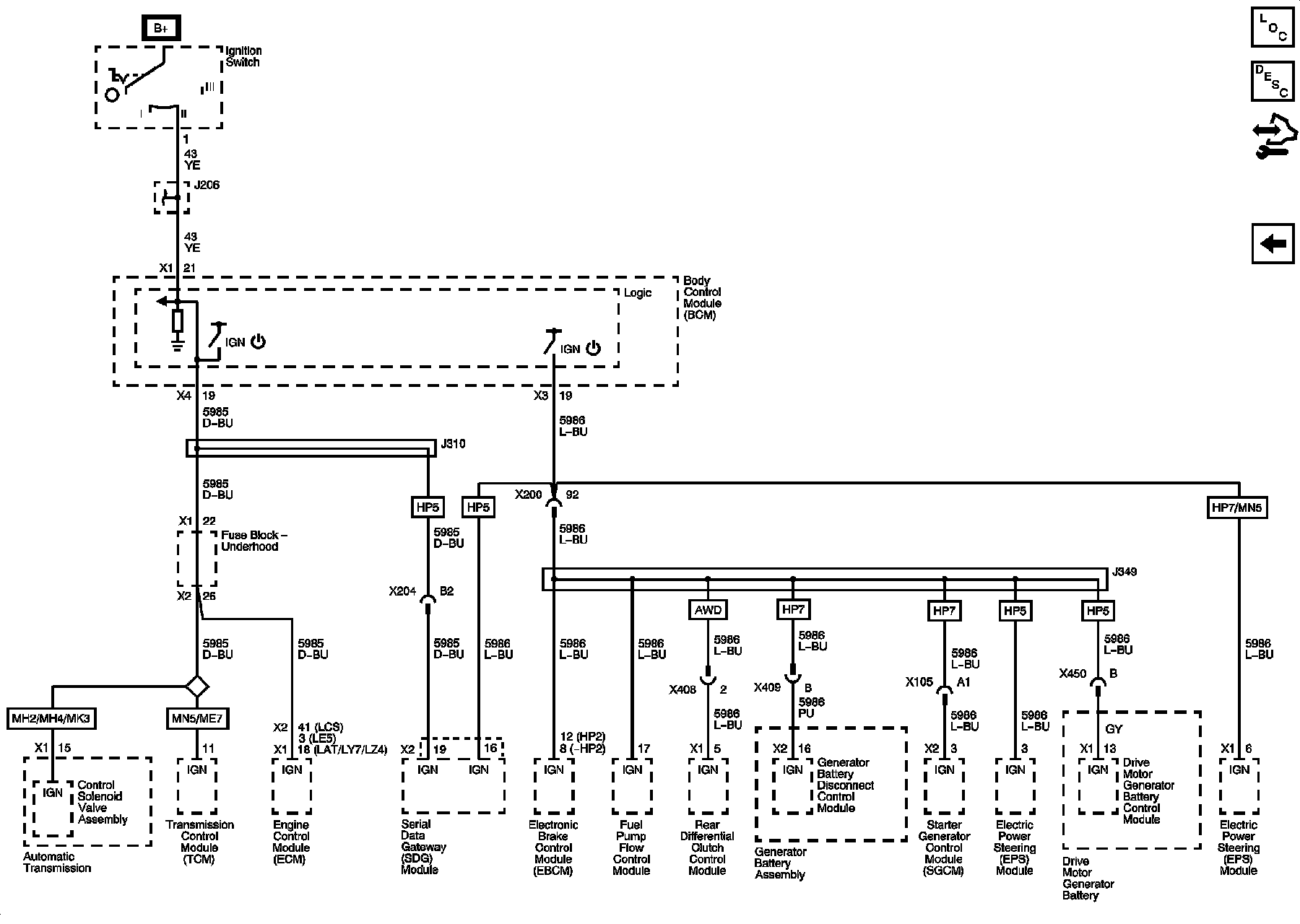

Serial Data Communications Enable, Accessory Wake Up
Data Communication Schematics
High Speed GMLAN (without HP5)
Low Speed GMLAN and Linear Interconnect Network
Serial Data Communications Enable, Accessory Wake Up
