Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor Replacement

Removal Procedure




1. Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) (Service and Repair)Fuel Tank Replacement (FWD) (Service and Repair).

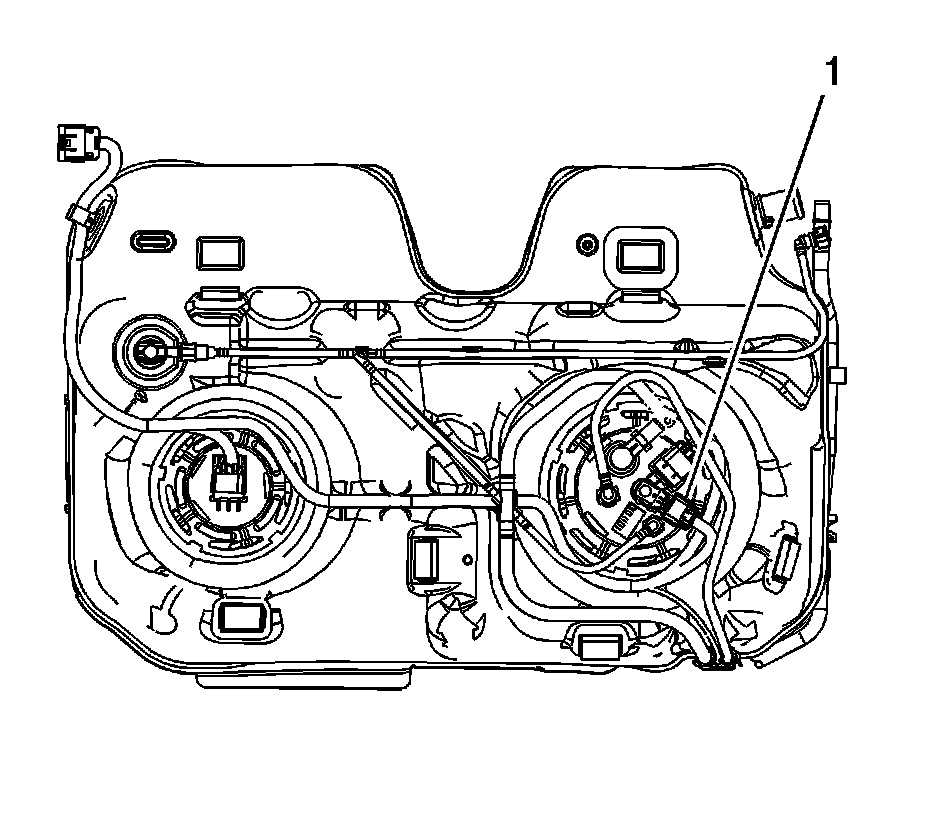

2. Disconnect the fuel tank wiring harness electrical connector (1) from the fuel tank pressure sensor.

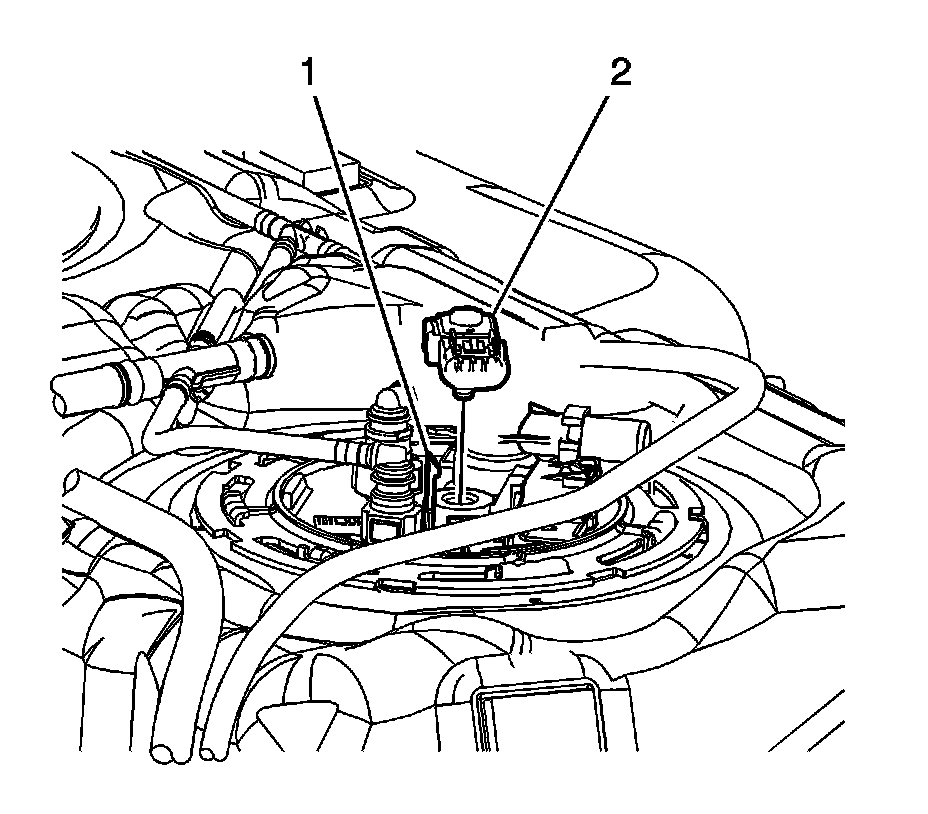

3. Disengage the retaining tab (1) securing the fuel tank pressure sensor.
4. Carefully lift and remove the fuel tank pressure sensor (2) from the fuel pump module.

Installation Procedure




1. Install the fuel tank pressure sensor (2) to the fuel pump module assembly until the sensor engages the retaining tab (1).




2. Connect the fuel tank wiring harness electrical connector (1) to the fuel tank pressure sensor.
3. Install the fuel tank. Refer to Fuel Tank Replacement (AWD) (Service and Repair)Fuel Tank Replacement (FWD) (Service and Repair).
