Fuel Pressure Control Module: Locations

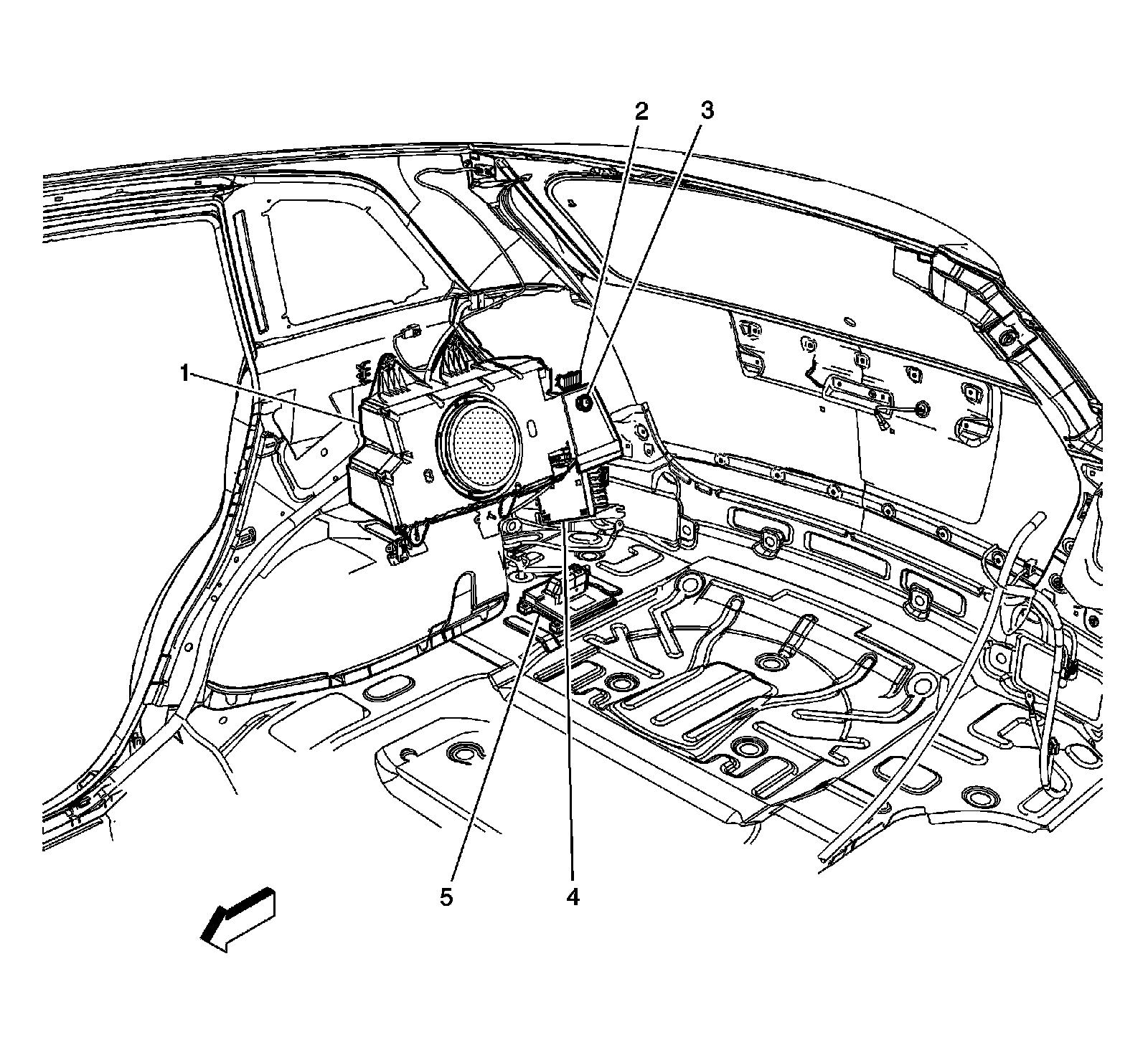

Luggage Compartment/Rear of Vehicle Component Views

Right Side of the Luggage Compartment




1 - Speaker - Subwoofer (U61)
2 - Rear Compartment Courtesy Lamp - Right
3 - Accessory Power Outlet - Rear
4 - Audio Amplifier (U61)
5 - Fuel Pump Flow Control Module
