Front of Vehicle/Engine Compartment Component Views

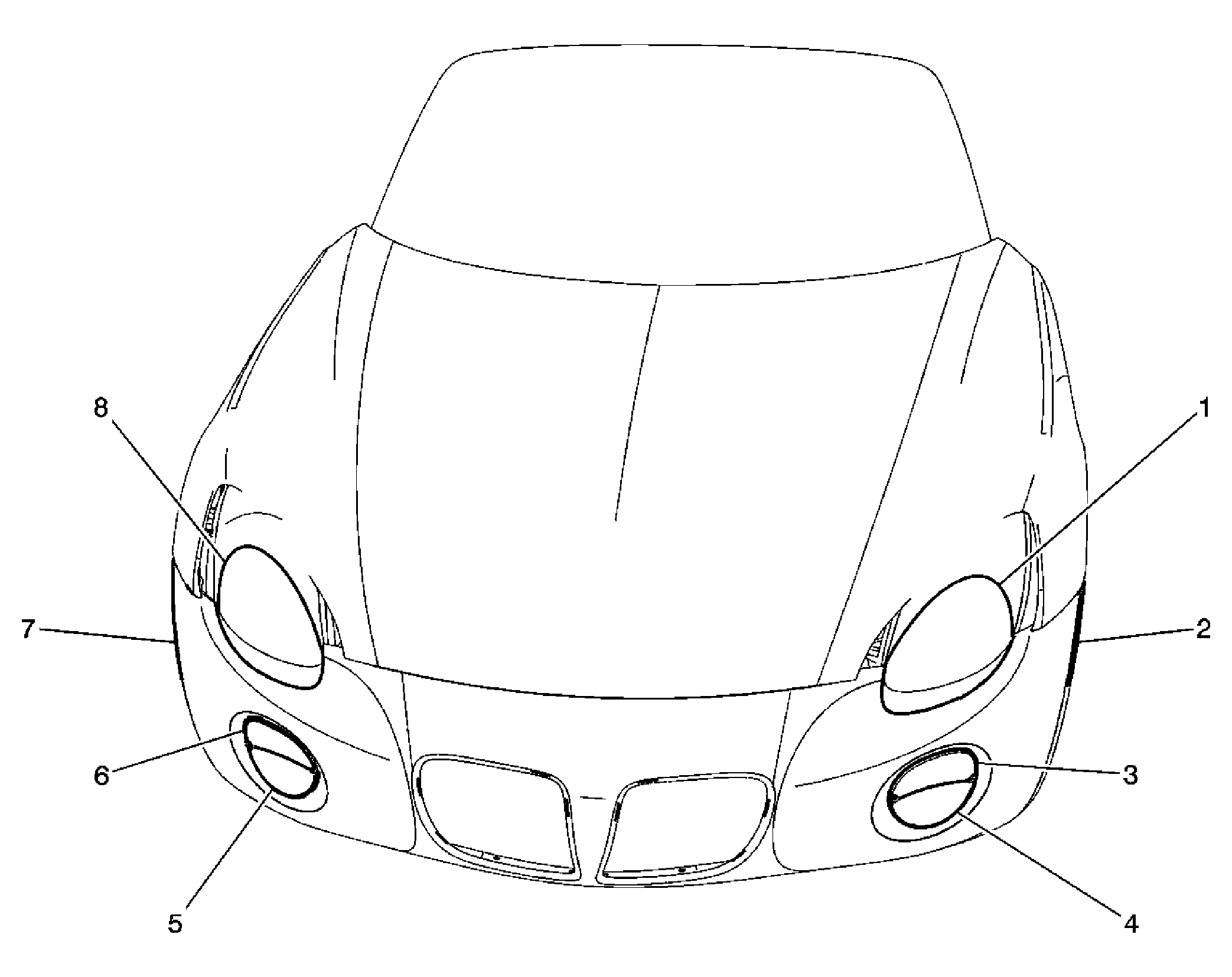

Fig 1: Identifying Front Fascia Lighting (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Side Marker Lamp - Left Front
3	Park/Turn Signal Lamp - Left
4	Fog Lamp - Left Front (T96)
5	Fog Lamp - Right Front (T96)
6	Park/Turn Signal Lamp - Right
7	Side Marker Lamp - Right Front
8	Headlamp - Right

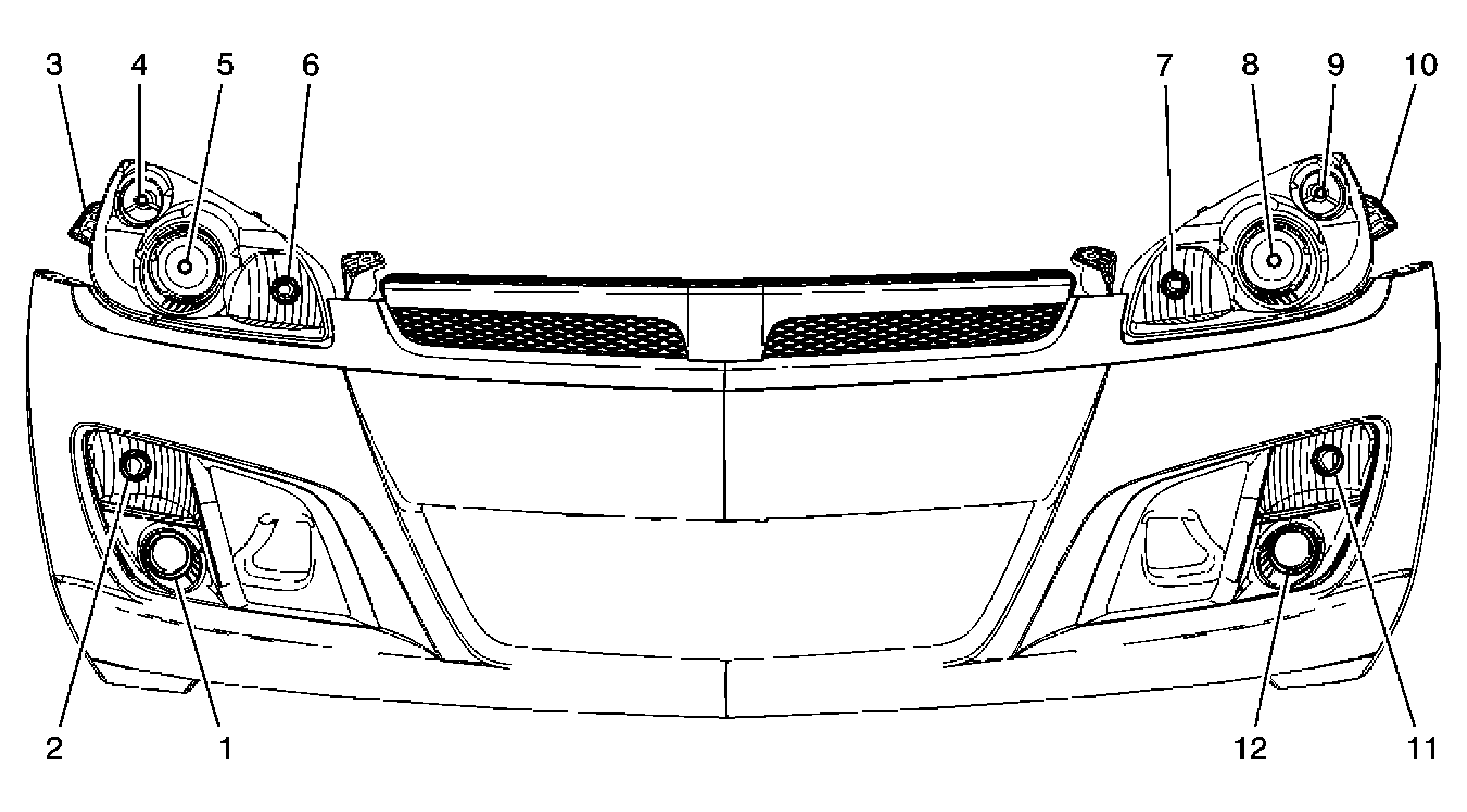

Fig 2: Identifying Front Fascia Lighting (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp - Right Front
2	Turn Signal Lamp - Right Front
3	Side Marker Lamp - Right Front
4	Park Lamp - Right Front
5	Headlamp - Right Low Beam
6	Headlamp - Right High Beam
7	Headlamp - Left High Beam
8	Headlamp - Left Low Beam
9	Park Lamp - Left Front
10	Side Marker Lamp - Left Front
11	Turn Signal Lamp - Left Front
12	Fog Lamp - Left Front

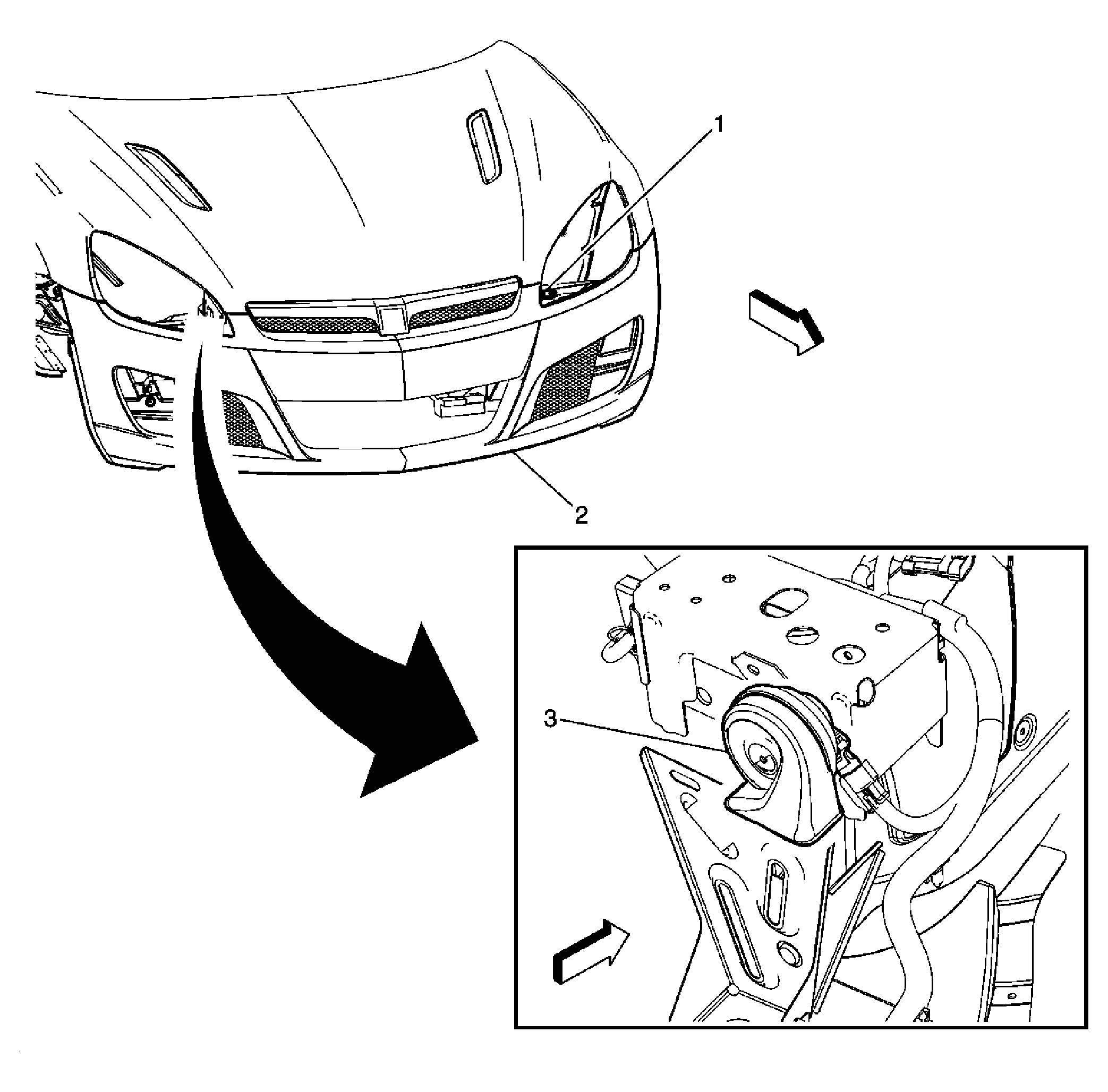

Fig 3: Identifying Front Fascia (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Air Temperature Sensor
2	Front Fascia
3	Horn

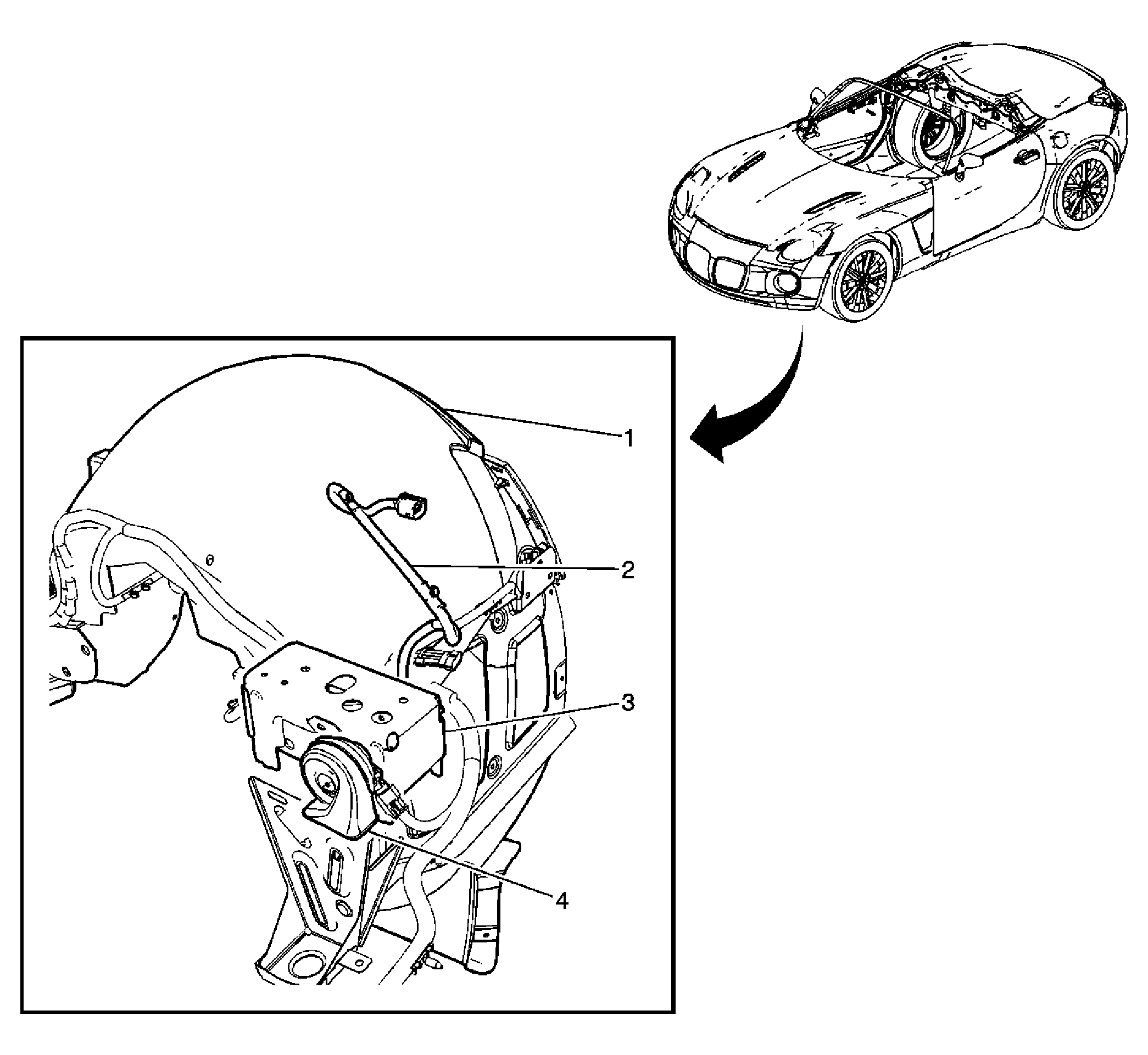

Fig 4: Identifying Engine Compartment - LF (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Well - Left
2	Forward Lamp Harness
3	Hinge Bracket
4	Horn

Fig 5: Identifying Front Engine Compartment - Lower

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Inflatable Restraint Front End Sensor - Right
3	Electronic Brake Control Module (EBCM)
4	Forward Lamp Harness
5	Inflatable Restraint Front End Sensor - Left

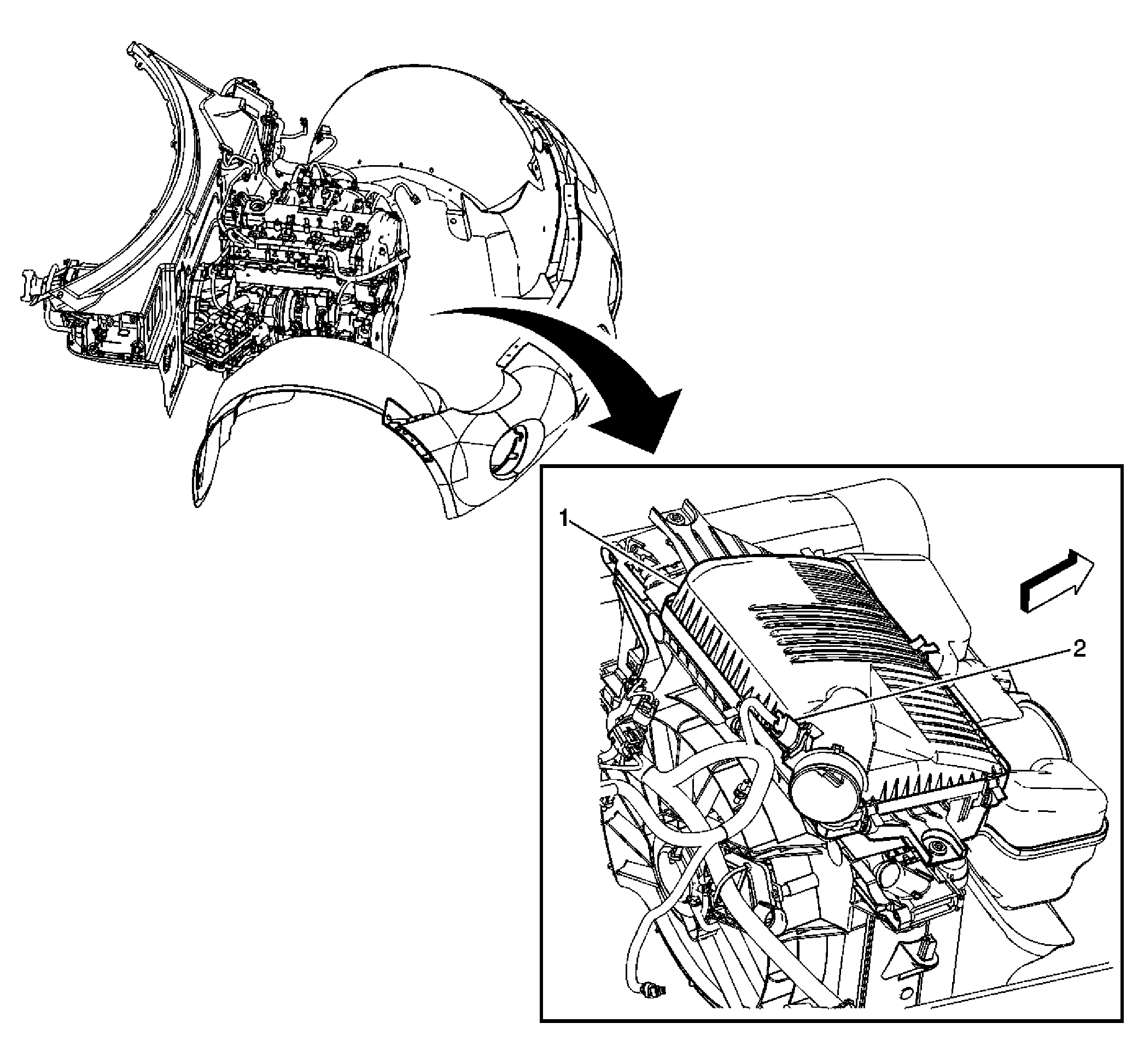

Fig 6: Identifying Front Engine Compartment - Upper

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner
2	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

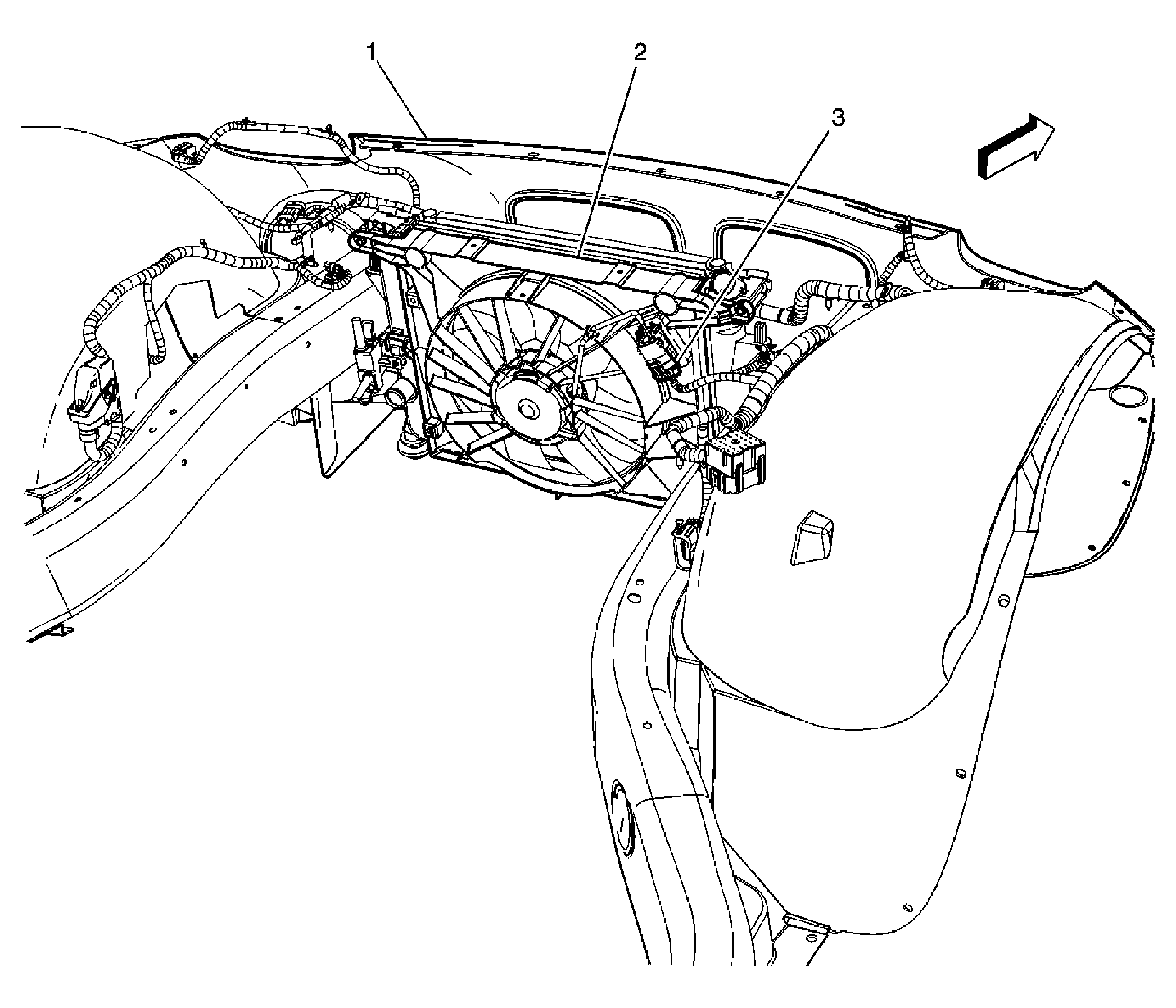

Fig 7: Identifying Front Engine Compartment - Center

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Engine Cooling Fan
3	Engine Cooling Fan Connector

Fig 8: Identifying Front Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Coolant Surge Tank
3	Engine Control Module (ECM) Connectors
4	Engine Control Module (ECM)
5	Transmission Control Module (TCM) (M82)
6	Transmission Control Module (TCM) Connector (M82)
7	Windshield Washer Fluid Pump
8	Windshield Washer Fluid Container
9	Engine Coolant Level Switch
10	Coolant Surge Tank
11	Brake Fluid Level Switch
12	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Fig 9: Identifying Fuse Block -- Underhood Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood X3
2	Fuse Block - Underhood X4
3	Fuse Block - Underhood Cable End Connector
4	Fuse Block - Underhood X1
5	Fuse Block - Underhood X2
6	G106
7	Wheel Well - Right Side
8	Battery Cable - Negative
9	Battery
10	Battery Cable - Positive

Fig 10: Identifying Front Engine Compartment (C60)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	A/C Refrigerant Pressure Sensor (C60)
3	A/C Compressor Clutch (C60)
4	Generator
