Refrigerant Line: Components

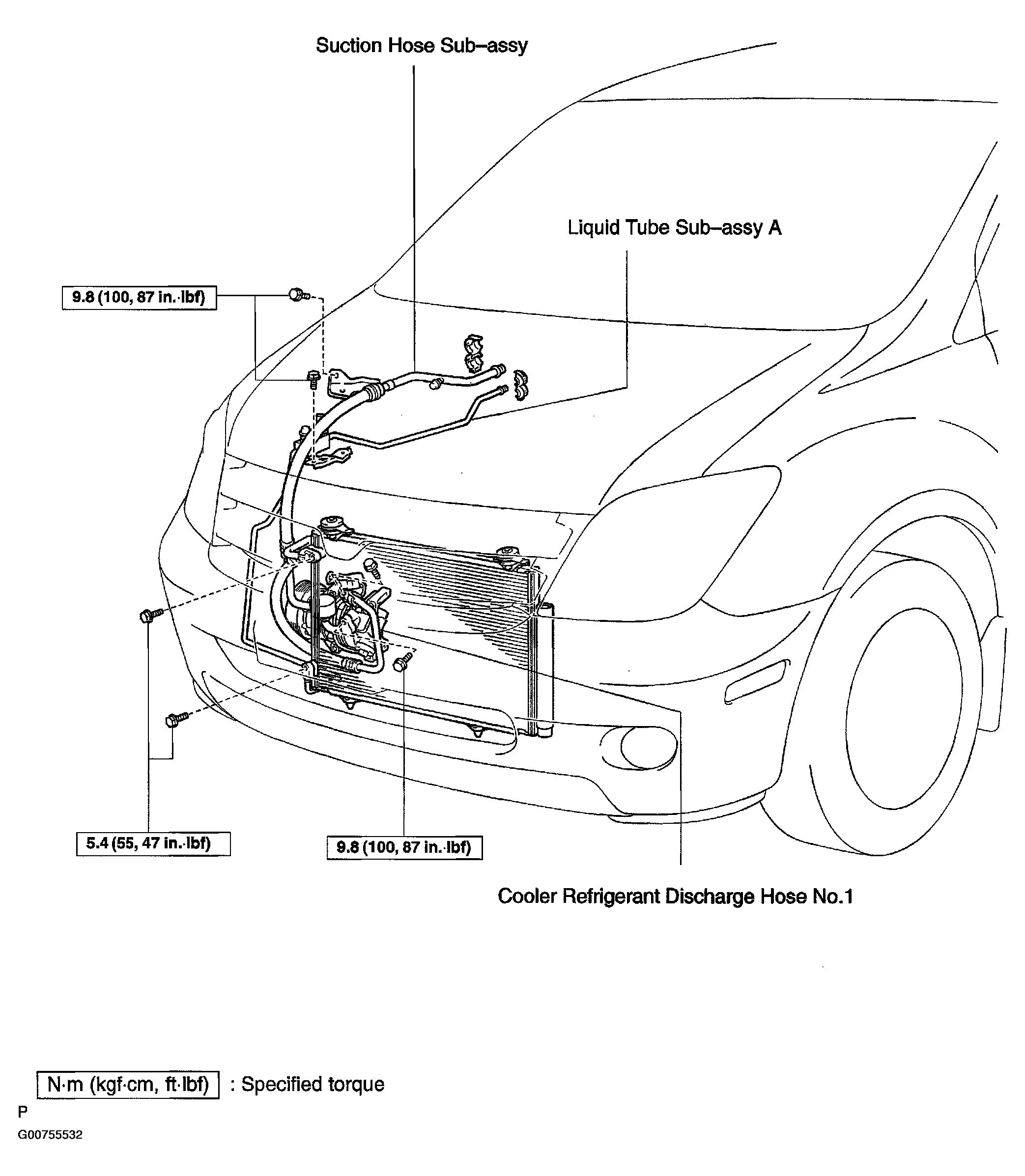

Fig 1: Locating Refrigerant Line Components
G00755532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
