Inspection Procedure

NG: Go to step 2

OK: NORMAL

1. Check that the transmitter LED illuminates 3 times when the switch is pressed 3 times.
   1. OK: Transmitter LED illuminates 3 times when the switch is pressed 3 times.

NG: Go to step   4

OK: Go to next step

1. Check standard LOCK/UNLOCK switch operation.

NG: Go to step   5

OK: REPLACE DOOR CONTROL TRANSMITTER

1. After replacing the transmitter battery, check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.
   1. OK: Doors can be locked and unlocked with transmitter.

NG: REPLACE DOOR CONTROL TRANSMITTER

OK: NORMAL

1. Check that the room lamp illuminates.

HINT:

When the room lamp does not illuminate, proceed to self-diagnostic mode after repairing the room lamp.

NEXT: Go to next step

1. Switch to self-diagnostic mode by operating the ignition switch.
   1. Make sure the vehicle is in a condition where wireless control functions can be operated (See WIRELESS DOOR LOCK CONTROL SYSTEM ), insert the key into the ignition key cylinder and remove it.
   2. Within 5 seconds of removing the key (step ( 1)), insert the key into the ignition key cylinder. Then turn the ignition switch ON and OFF.
   3. Within 30 seconds of turning the ignition switch OFF again (step ( 2)), perform the following 9 times: turn the ignition switch ON and OFF.

   HINT:

   • Turning the ignition switch ON after step ( 3) has been completed will end self-diagnostic mode.
   • Do not lock or unlock doors during self-diagnostic mode.
   NOTE: If the change to the self-diagnostic mode has failed, the system will return to normal mode.
2. Check that the system has switched to self-diagnostic mode by comparing the flash patterns of the room lamp to the timing chart on the left.

   OK:

   1. Room lamp and timing chart have same flash patterns.

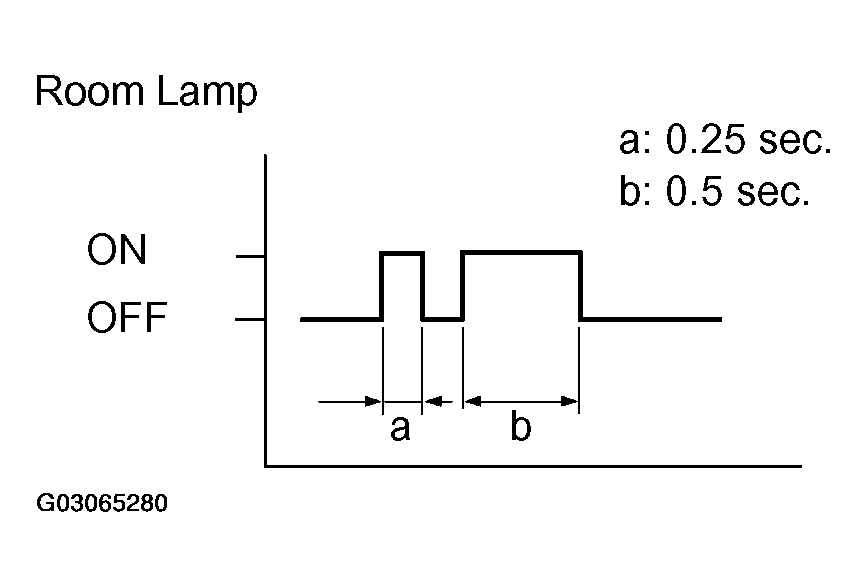

Fig 1: Identifying Room Lamp And Timing Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step   11

OK: Go to next step

1. Check the diagnosis outputs when the door control transmitter switch is held down. The diagnosis outputs can be checked by observing the flash patterns of the room lamp.

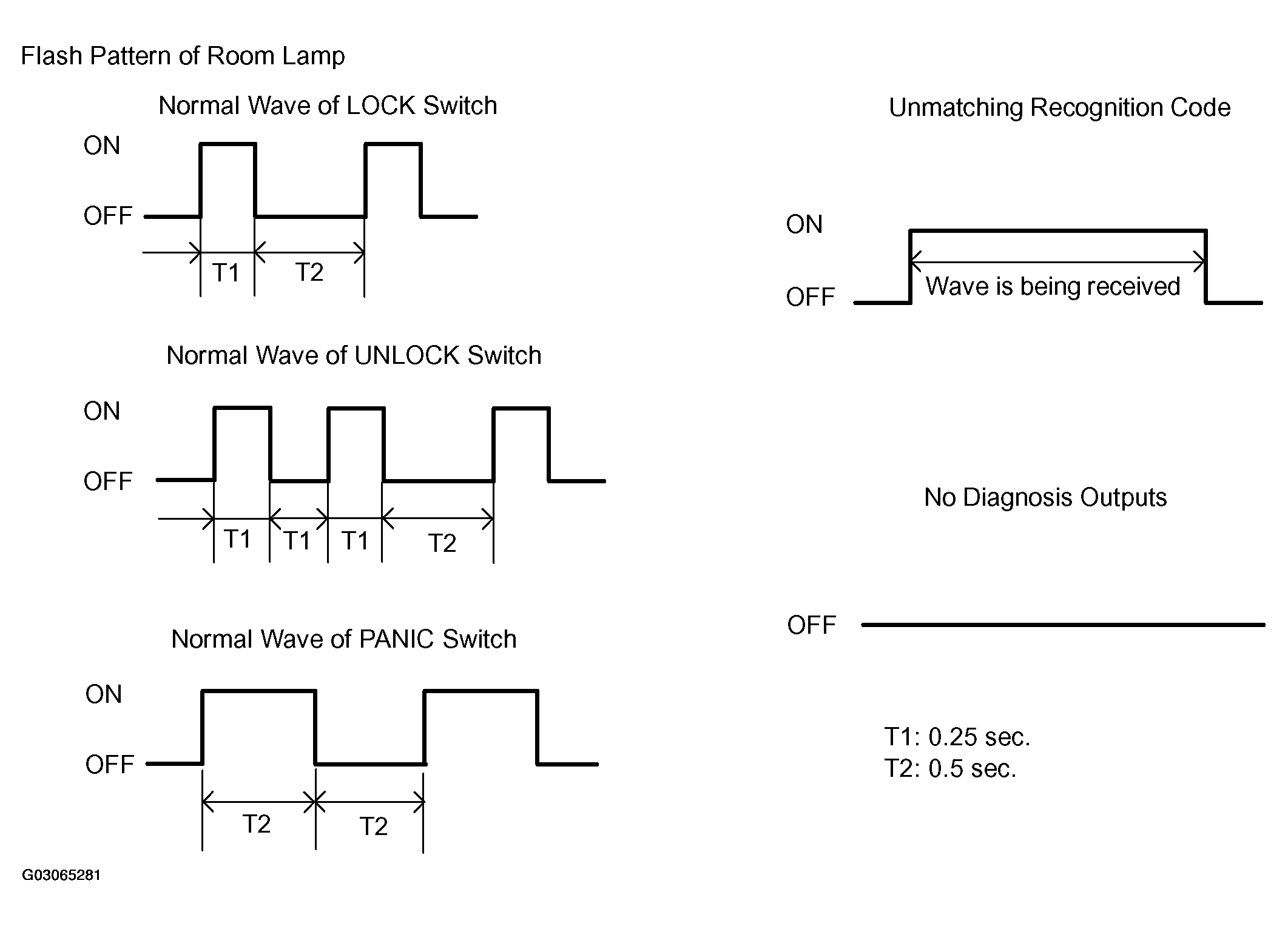

   Fig 2: Checking Using Self-Diagnostic Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result:

B: Go to step   17

C: Go to step   9

A: Go to next step

1. Check that the system can switch to rewrite mode or add mode, and that a recognition code can be registered.
   1. OK: System can switch to rewrite mode or add mode, and recognition code can be registered.

NG: Go to step   10

OK: NORMAL (CARRY OUT INSPECTION OF FUNCTION)

1. When a new or functioning door control transmitter switch for the same vehicle type is held down, check that an unmatching recognition code is output.
   1. OK: Unmatching recognition code is output.

NG: Go to step   14

OK: REPLACE DOOR CONTROL TRANSMITTER

1. After replacing the door control receiver, check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.
   1. OK: Doors can be locked and unlocked with transmitter.

NG: Go to step   17

OK: END

Result:

B: Go to step   5

A: Go to next step

1. Measure the resistance of the switch.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   1 - 2	Not pushed	10 kΩ or higher
   1 - 2	Pushed	Below 1 Ω

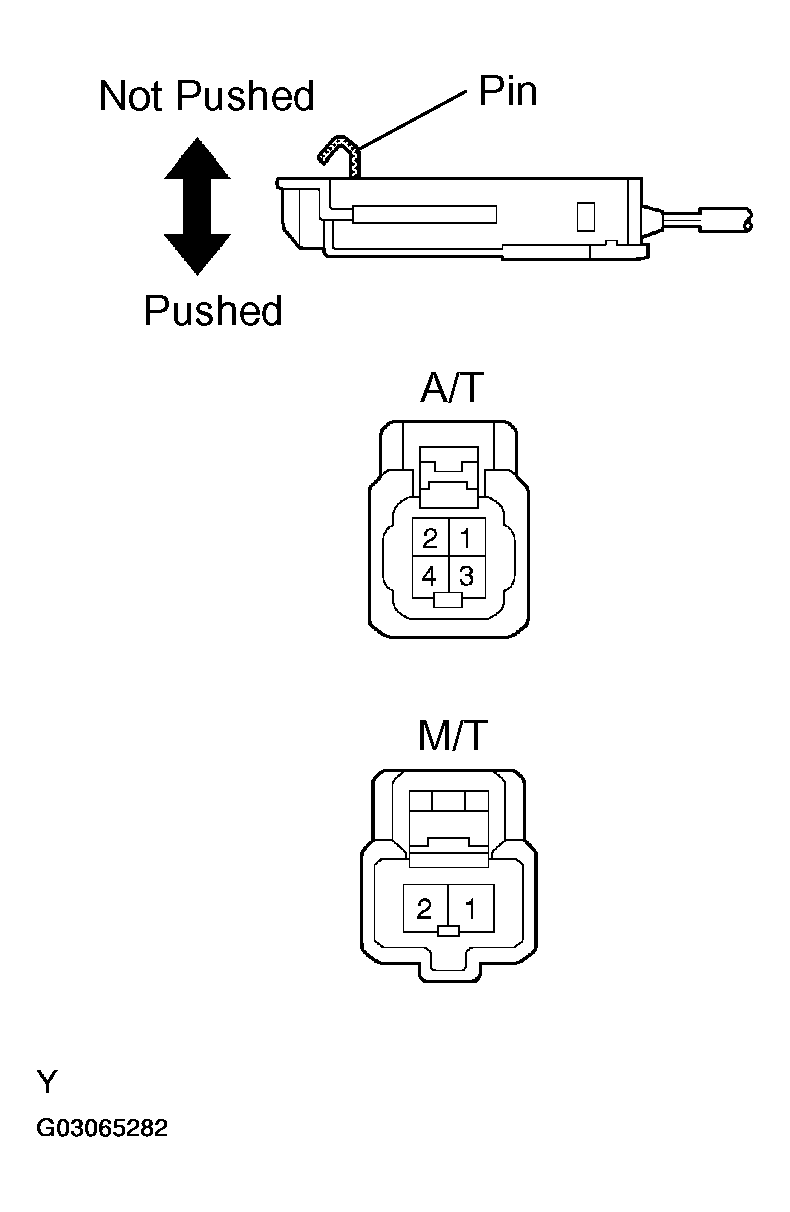

Fig 3: Inspecting Unlock Warning Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE UNLOCK WARNING SWITCH ASSY

OK: Go to next step

1. Disconnect the U1 switch connector.
2. Disconnect the 1E J/B connector.
3. Measure the resistance of the wire harness side connectors.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   U1-2 - 1E-26	Below 1 Ω
   U1-1 - Body ground	Below 1 Ω

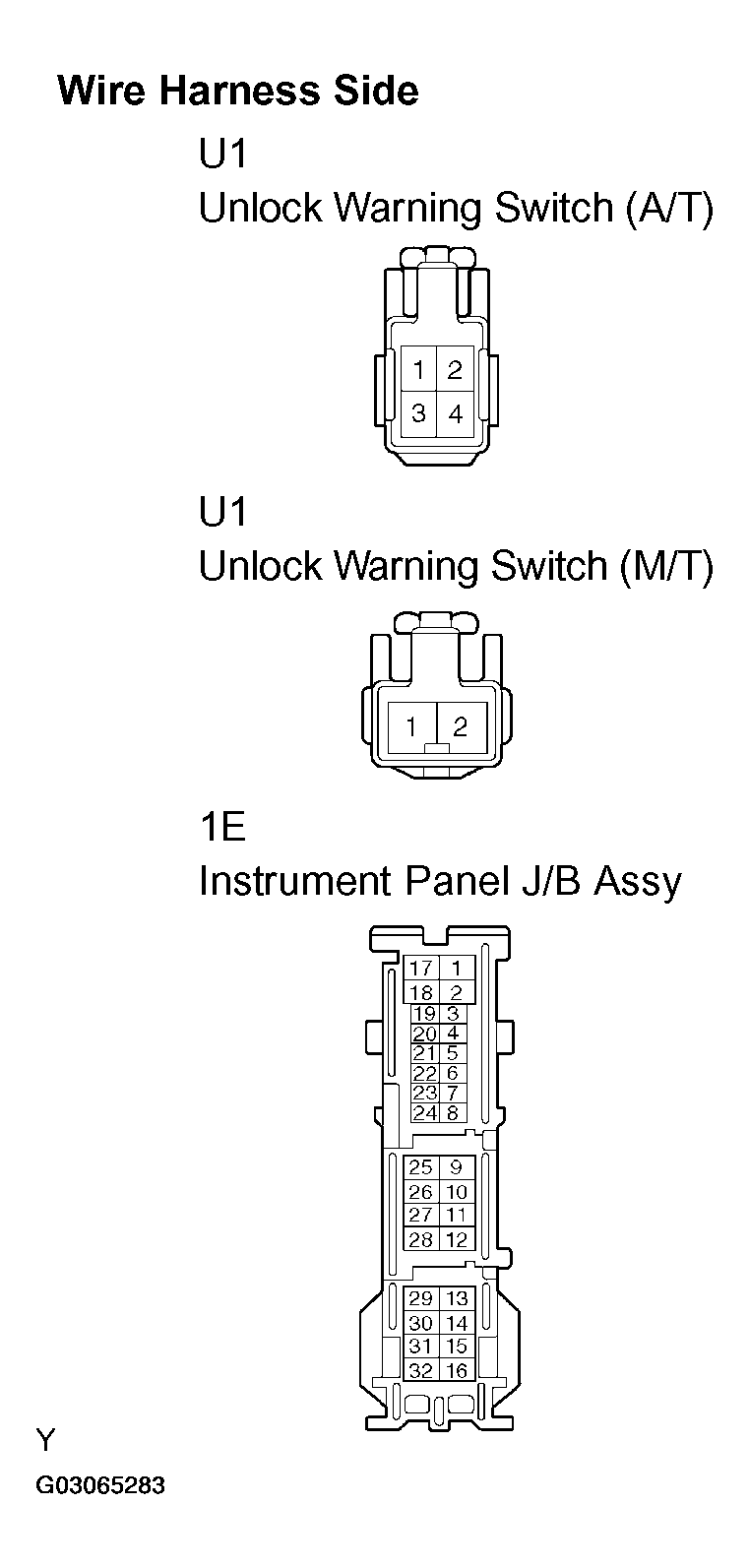

   Fig 4: Checking Wire Harness (Unlock Warning Switch Assy - Instrument Panel J/B Assembly)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

1. Disconnect the D8 receiver connector.
2. Measure the voltage and resistance of the wire harness side connector.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   D8-5 (+B) - Body ground	10 to 14 V
   D8-1 (GND) - Body ground	Below 1 Ω

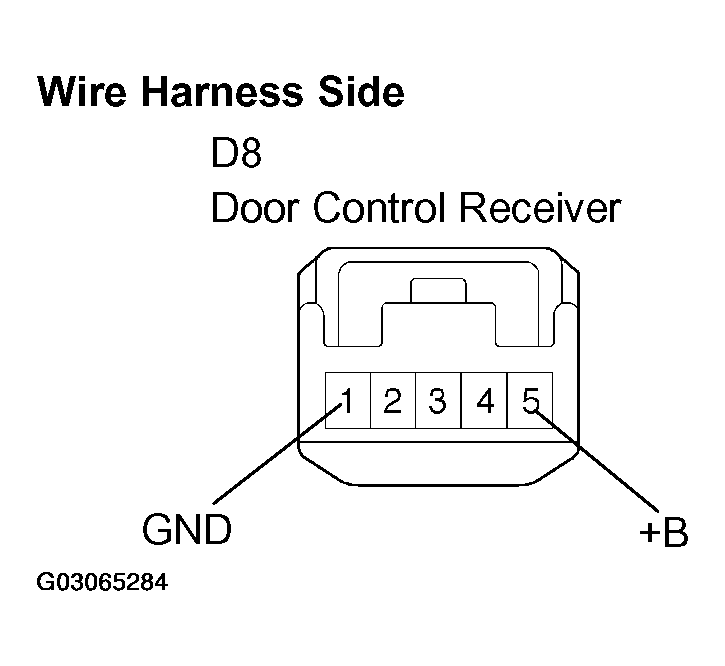

   Fig 5: Checking Wire Harness (Door Control Receiver - Battery And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

1. Reconnect the D8 receiver connector.
2. Measure the voltage of the connector.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D8-2 (RDA) - Body ground	No key in ignition key cylinder, all doors closed and each transmitter switch OFF -> ON	Below 1 V -> 10 to 14 V -> Below 1 V

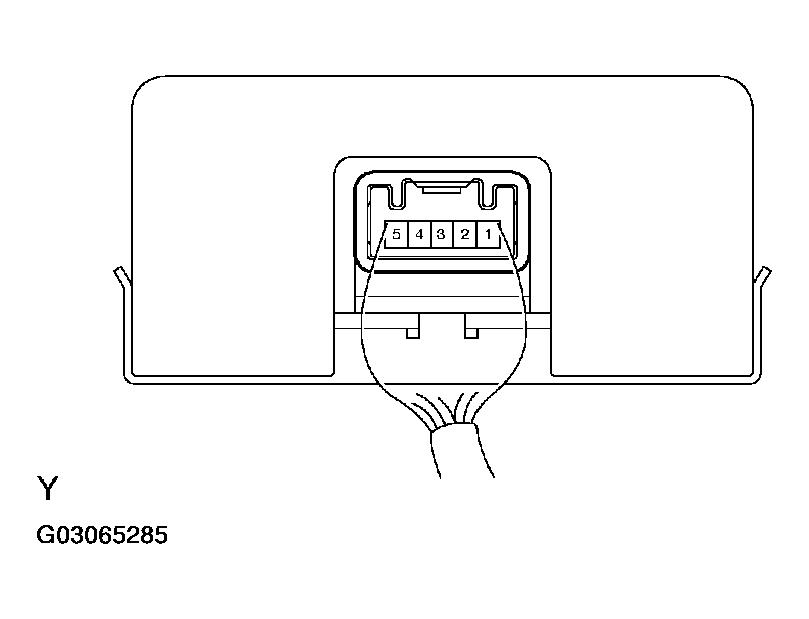

   Fig 6: Checking Door Control Receiver (Output)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step   10

OK: Go to next step

1. Disconnect the D8 receiver connector.
2. Disconnect the I6 relay connector.
3. Measure the resistance of the wire harness side connectors.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   D8-2 (RDA) - I6-7 (RDA)	Below 1 Ω
   D8-3 (PRG) - I6-6 (PRG)	Below 1 Ω
   D8-2 (RDA) or I6-7 (RDA) - Body ground	10 kΩ or higher
   D8-3 (PRG) or I6-6 (PRG) - Body ground	10 kΩ or higher

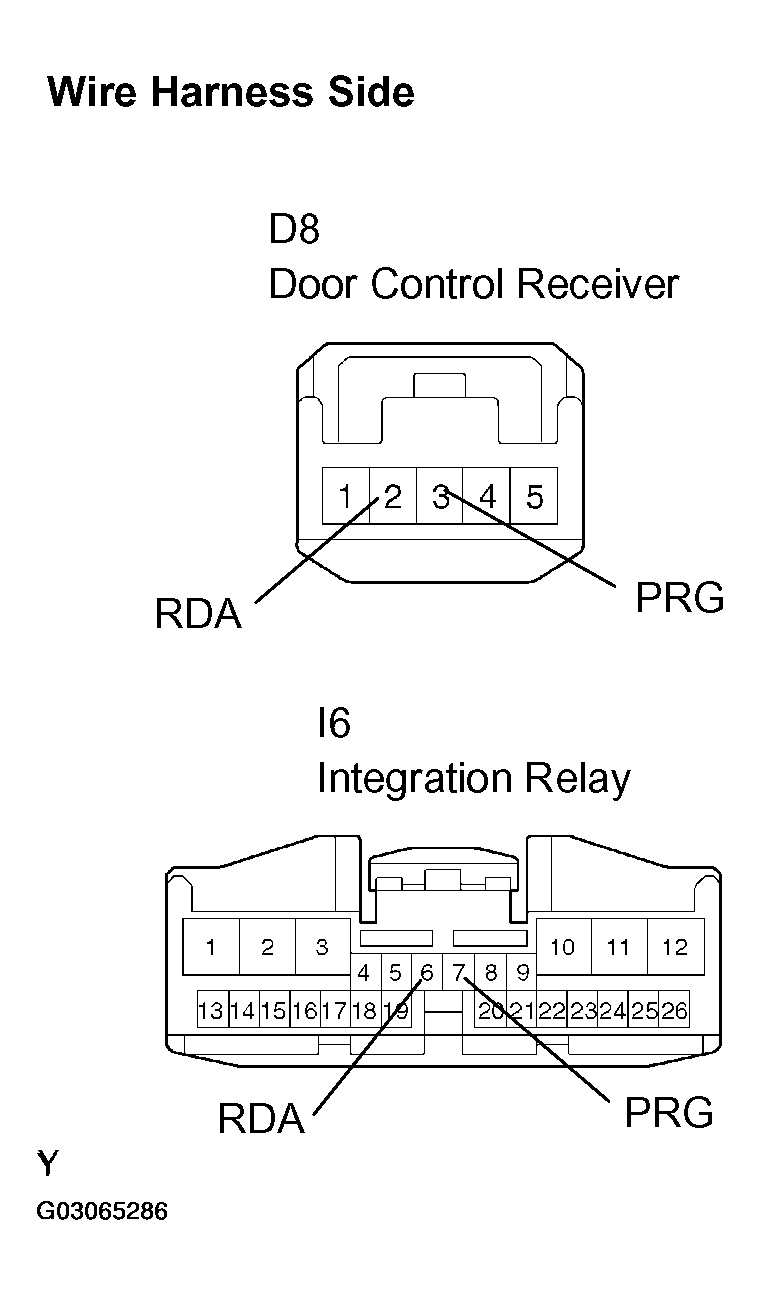

   Fig 7: Checking Wire Harness (Door Control Receiver - Integration Relay)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

1. After replacing the integration relay, check that the doors can be locked and unlocked by using the transmitter LOCK and UNLOCK switches.
   1. OK: Doors can be locked and unlocked using transmitter LOCK and UNLOCK switches.

NG: REPLACE INSTRUMENT PANEL J/B ASSY

OK: END
