Window Defogger System: Inspection
- INSPECT BACK DOOR GLASS (DEFOGGER WIRE) NOTE:
- When cleaning the glass, wipe the glass along the wire using a soft, dry cloth. Take care not to damage the defogger wires.
- Do not use detergents or glass cleaners that have abrasive ingredients.

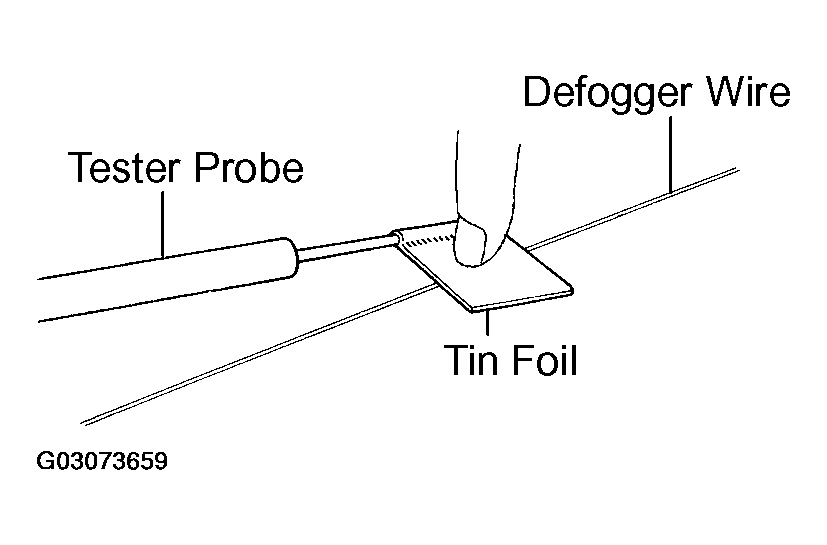

- When measuring voltage, wrap a piece of tin foil around the tip of the negative (-) tester probe and press the foil against the wire with your finger, as shown in Fig 1 .
- Turn the ignition switch ON.
- Turn the defogger switch ON.

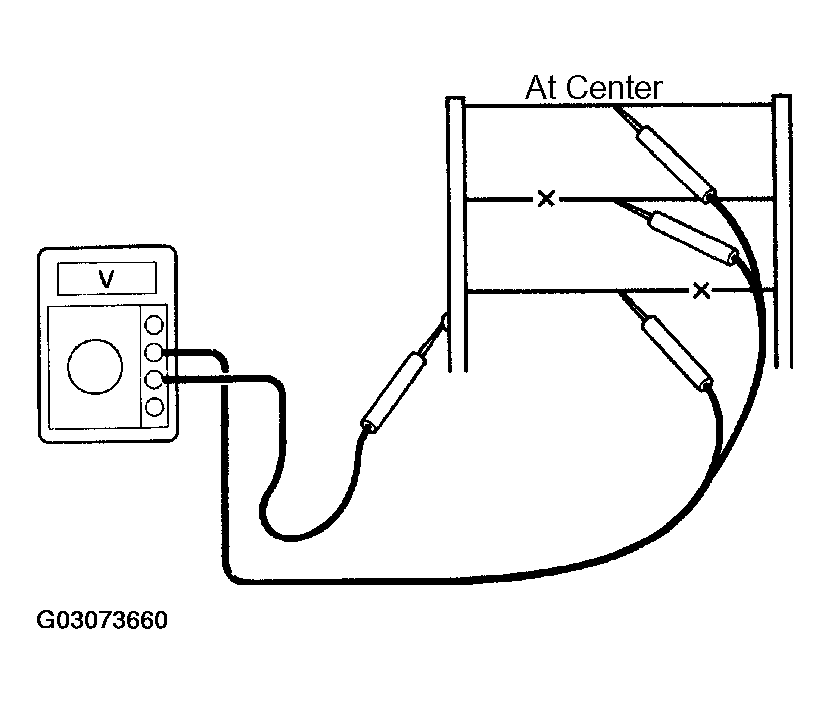

- Measure the voltage at the center of each defogger wire as shown in Fig 2
.
Standard:
VOLTAGE CRITERIA SPECIFICATIONSVoltage Criteria Approx. 5 V Wire is not broken Approx. 10 or 0 V Wire is broken Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
If the reading is approximately 10 V, the wire may be faulty between the center of the wire and the wire end on the battery side. If there is no voltage, the wire may be faulty between the center of the wire end and the wire end on the ground side.

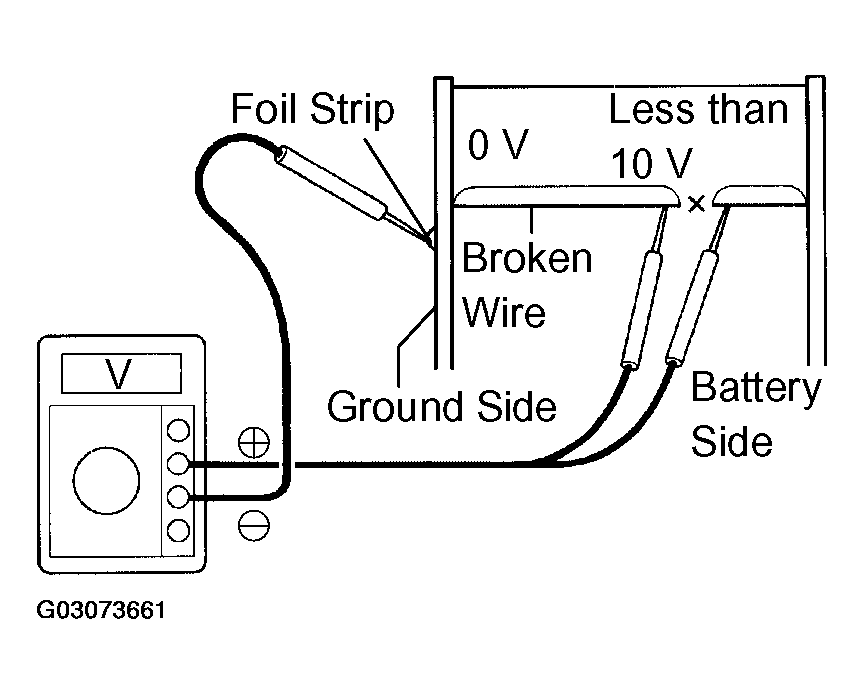

- Place the voltmeter's positive (+) lead against the defogger wire on the battery side.
- Place the voltmeter's negative (-) lead with the foil strip against the wire on the ground side.
- Slide the positive (+) lead from the battery side to the ground side.
- The point where the voltage drops from approximately 10 V to 0 V is where the defogger wire is broken.
HINT:
If the defogger wire is not broken, the voltmeter indicates 0 V as the positive (+) end of the defogger wire and gradually increases to approximately 12 V as the tester probe is moved to the other end.
- If necessary, repair the defogger wire.
- Clean the broken wire tips with grease, wax and silicone remover.

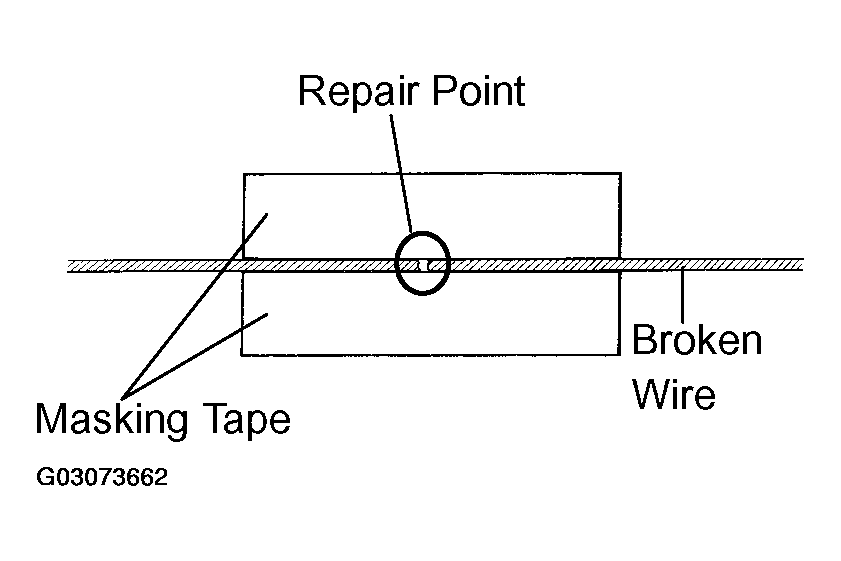

- Place masking tape along both sides of the wire.
- Thoroughly mix the repair agent (DuPont paste No. 4817 or equivalent).

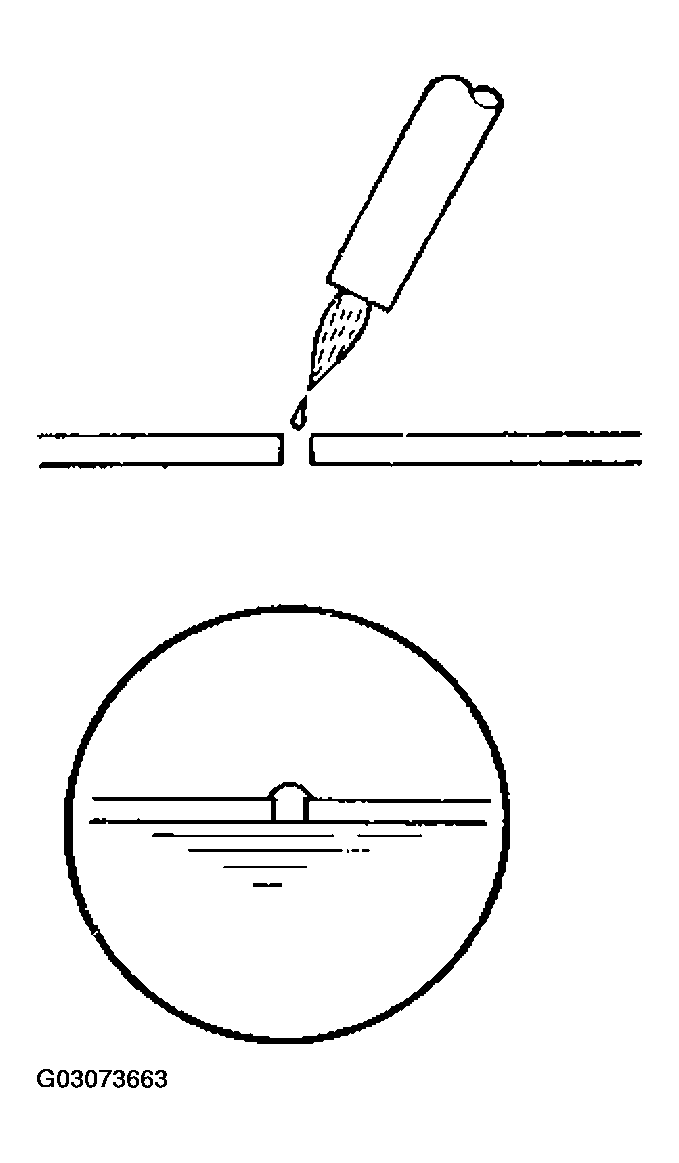

- Using a fine tip brush, apply a small amount of the agent to the wire.
- After a few minutes, remove the masking tape.NOTE: Do not repair the defogger wire again for at least 24 hours.

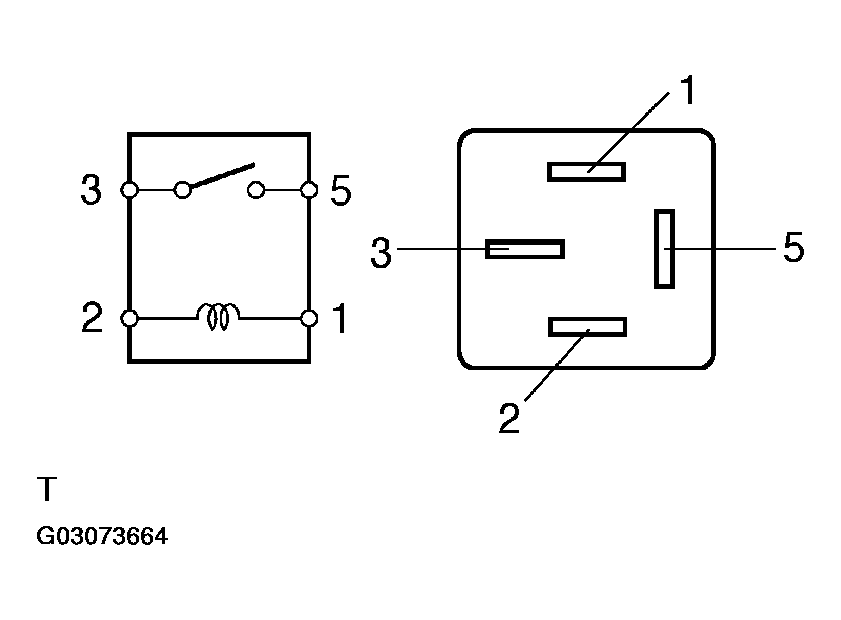

- INSPECT RELAY (Marking: IG1)
- Remove the IG1 relay from the instrument panel J/B.
- Measure the resistance of the relay.
Standard:
TESTER CONNECTION CONDITION SPECIFICATIONSTester Condition Specified Condition 3 - 5 10 kΩ or higher 3 - 5 Below 1 Ω
(when battery voltage is applied to terminals 1 and 2)
If the result is not as specified, replace the relay.

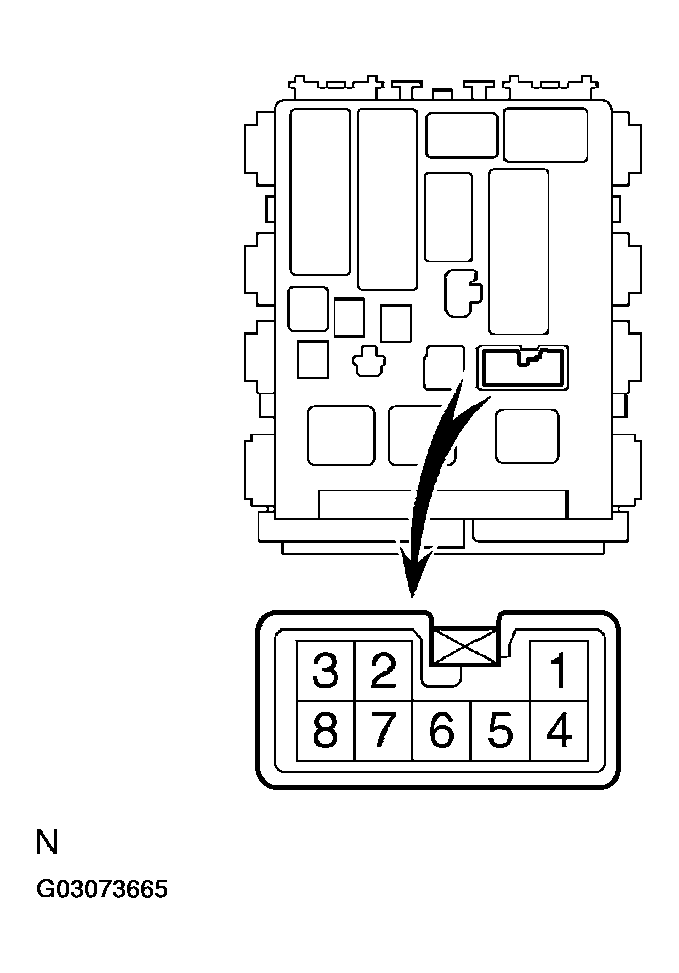

- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY (DEF RELAY)
- Disconnect the 1F connector.
- Measure the voltage.
Standard:
TESTER CONNECTION CONDITION SPECIFICATIONSTester Connection Switch Condition Specified Condition 1F-2 - Body ground OFF -> ON 0 V -> 10 to 14 V
If the result is not as specified, replace the instrument panel J/B assy.
