Engine Control Module

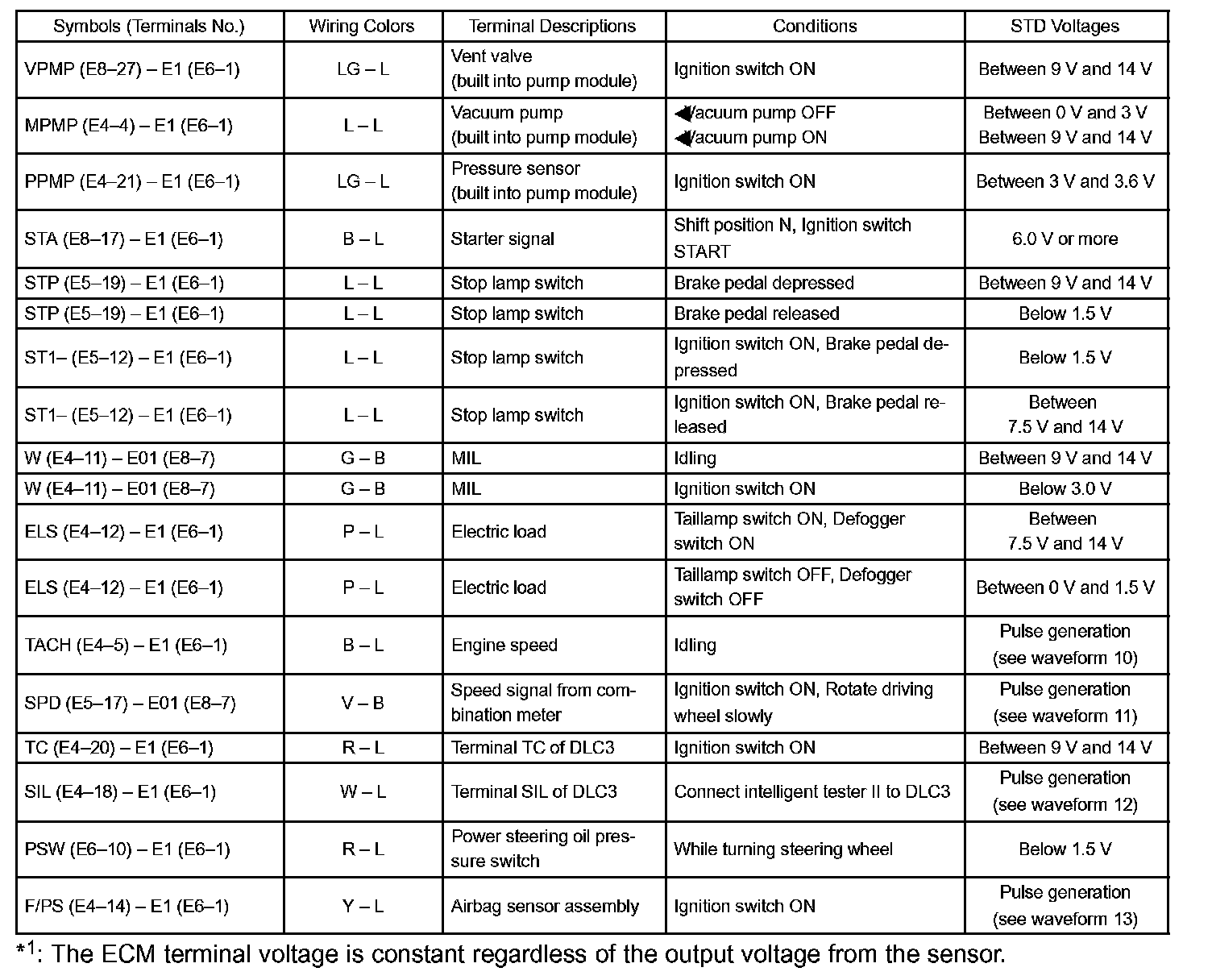

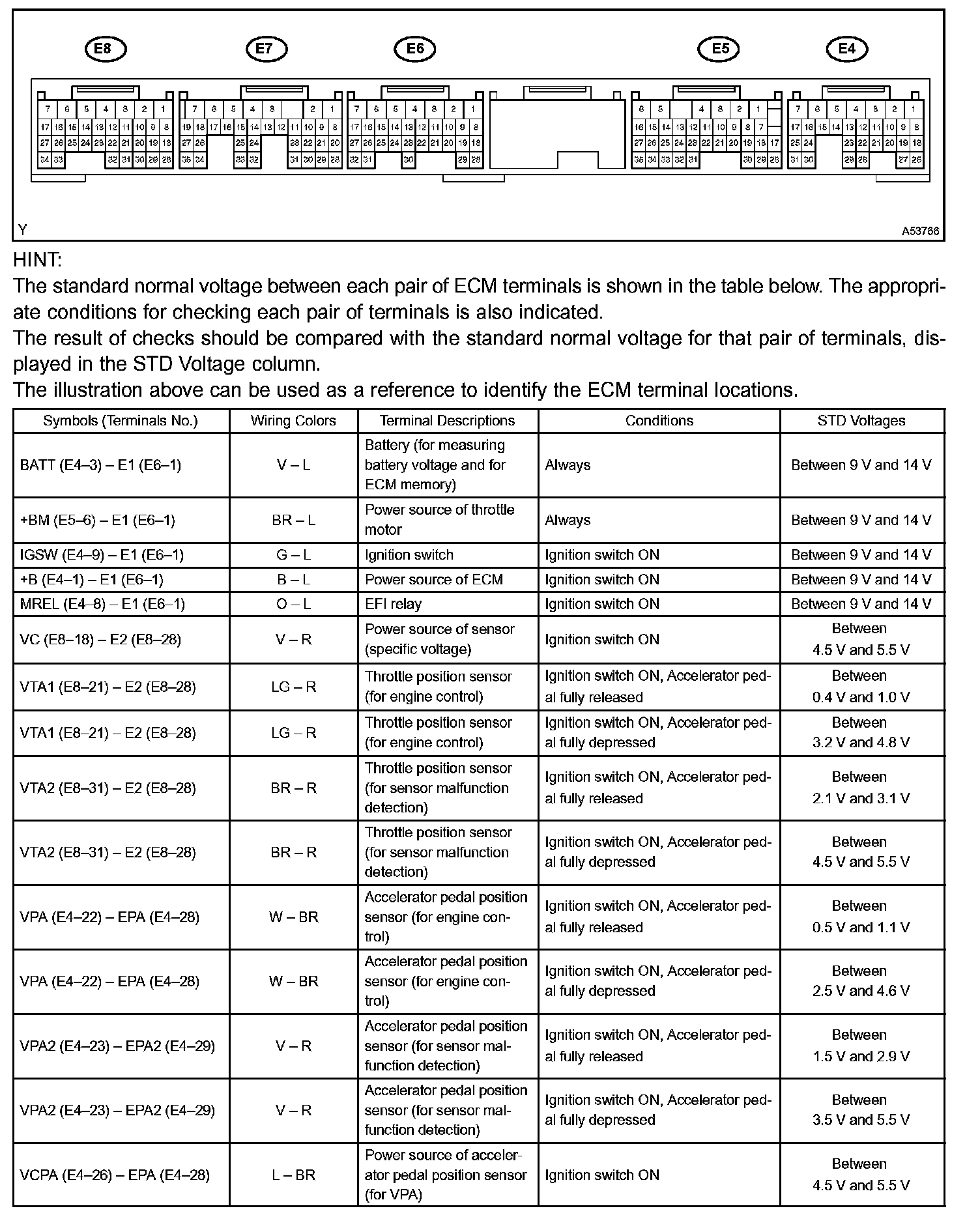

Terminals Of ECM/Pinouts Part 1:

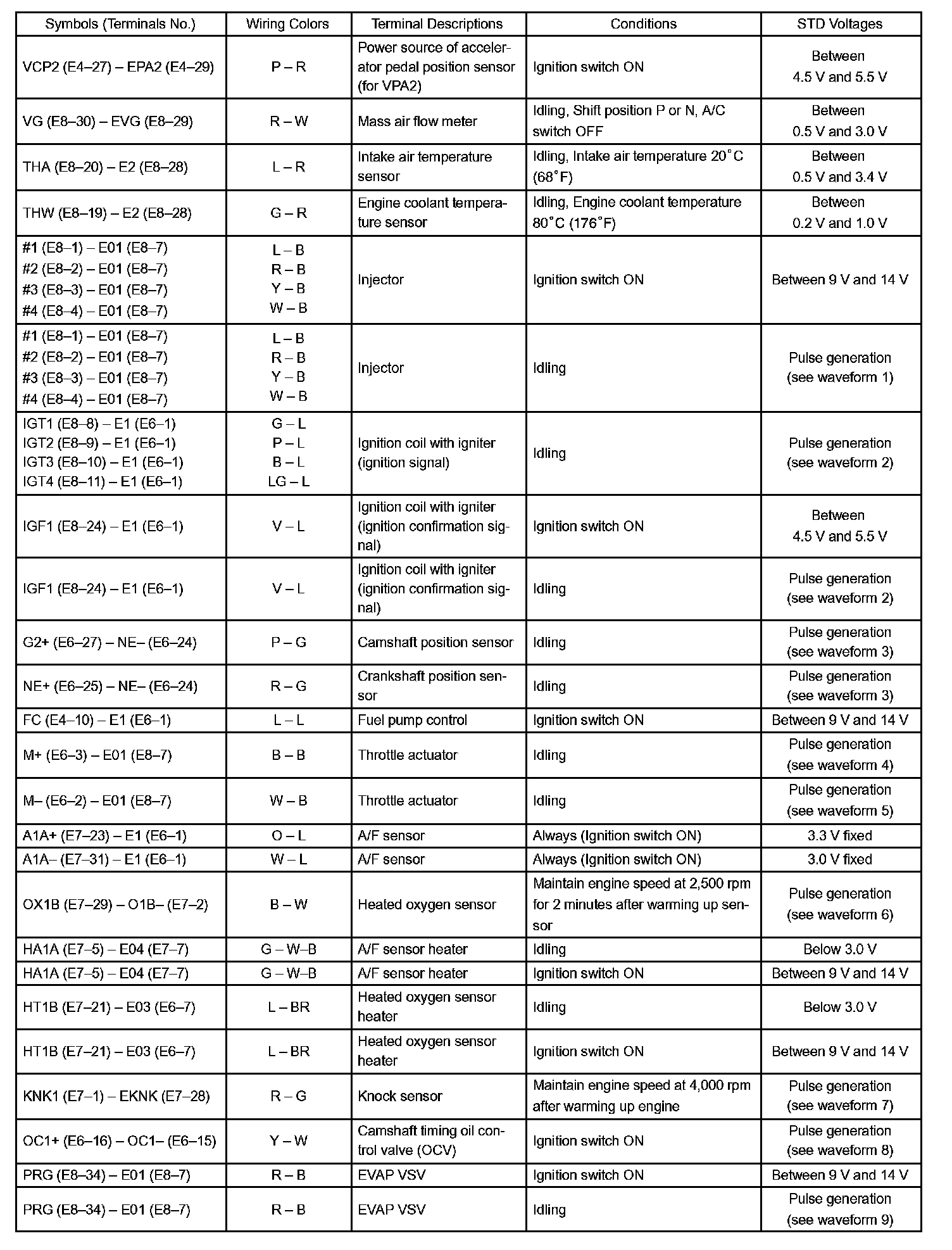

Terminals Of ECM/Pinouts Part 2:



Terminals Of ECM/Pinouts Part 3:

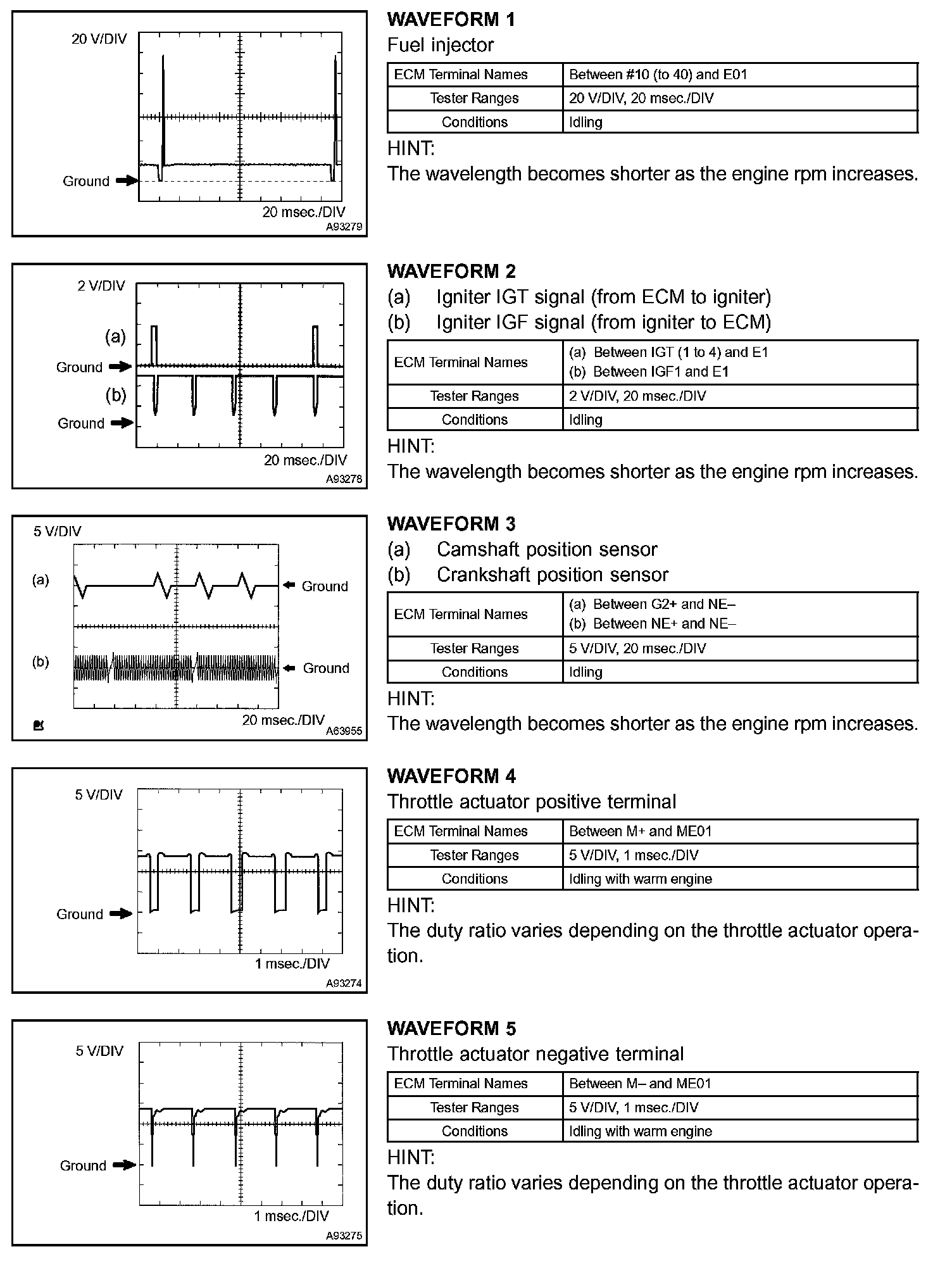

Oscilloscope Waveforms Part 1:

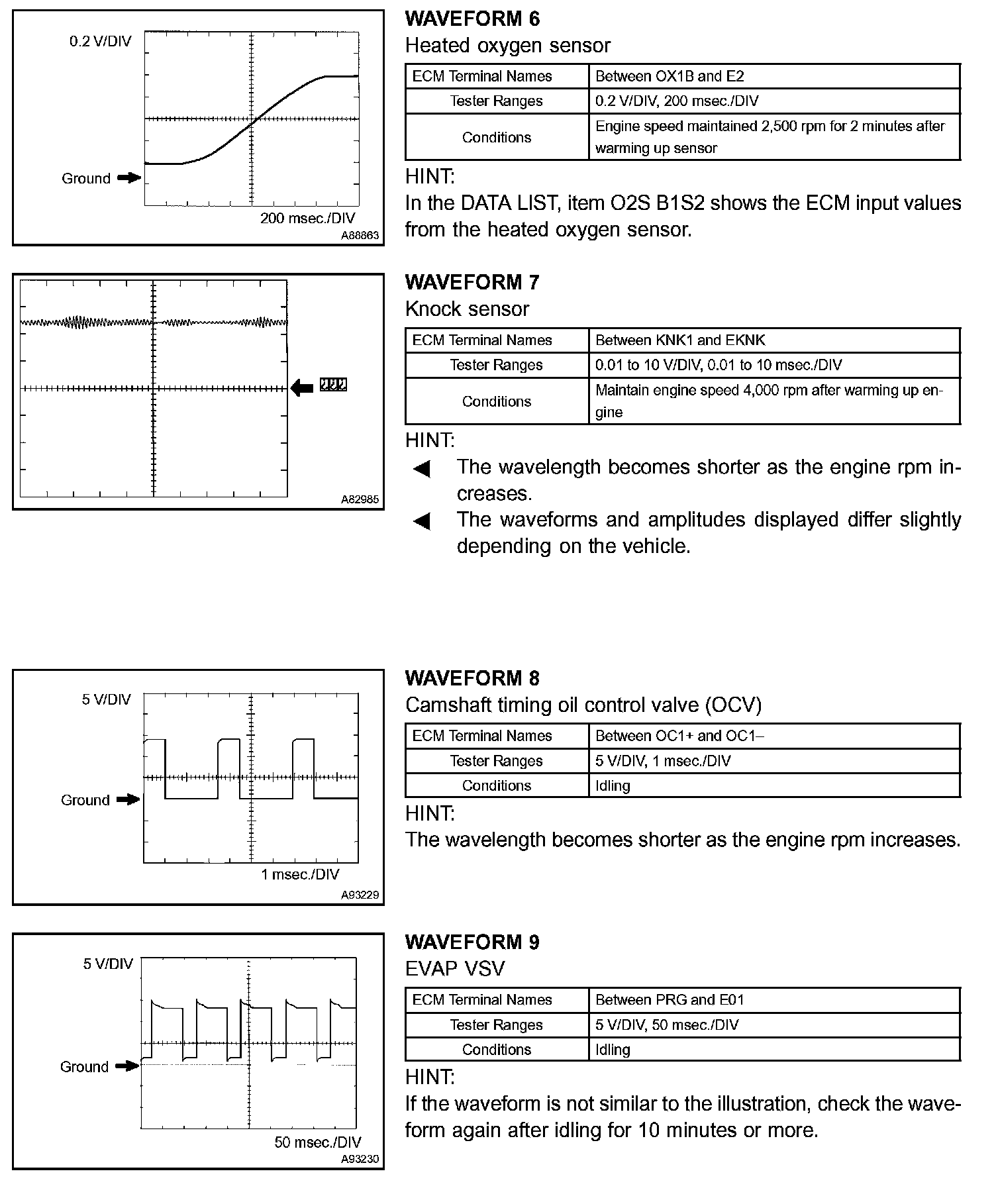

Oscilloscope Waveforms Part 2:

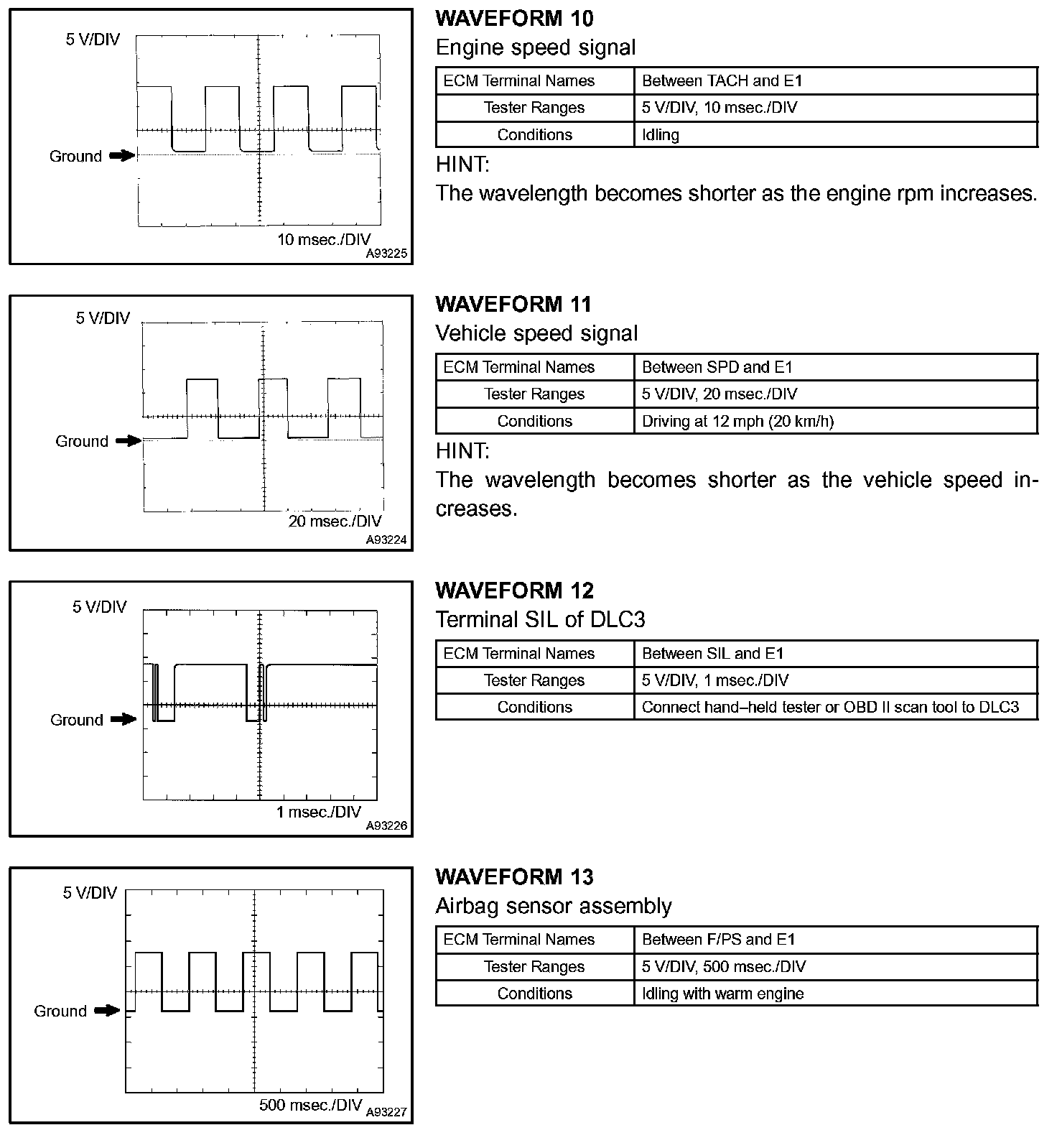

Oscilloscope Waveforms Part 3:
