Hand-Held Tester:

  1. READ VALUE USING HAND-HELD TESTER (THROTTLE VALVE OPENING PERCENTAGE)
    1. Connect a hand-held tester or OBD II scan tool to the DLC3.
    2. Start the engine.
    3. Turn the tester or scan tool ON.
    4. On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ETCS / THROTTLE POS.
    5. Read its value displayed on the tester when the accelerator pedal is released and depressed.

      Result:

      THROTTLE VALVE OPENING ANGLE POSITION

      Throttle Valve Opening Angle (%) Proceed To
      0 A
      From approximately 0 to 75 B
      Approximately 100 C

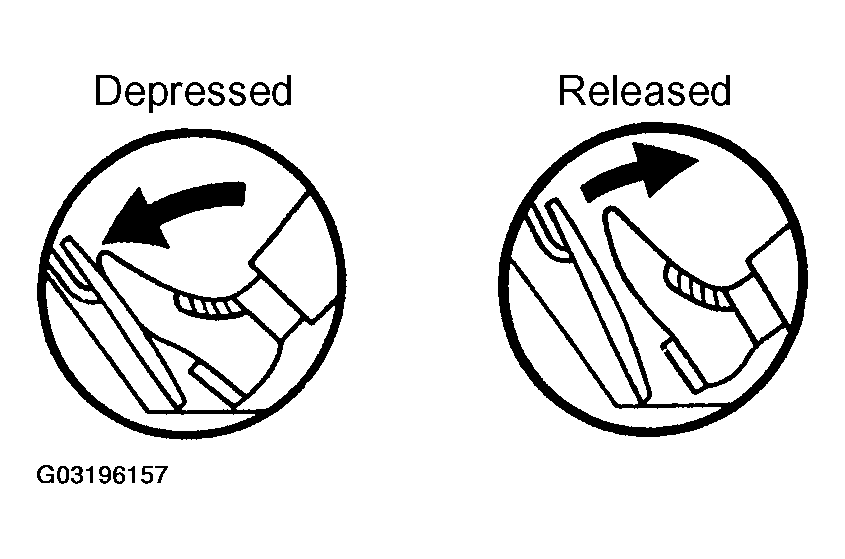

      Fig 1: Identifying Accelerator Pedal Release & Depress Position
      G03196157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B : (See  CHECK FOR INTERMITTENT PROBLEMS   )
    2. C : Go to step   4
    3. A : GO TO NEXT STEP
  2. INSPECT THROTTLE POSITION SENSOR
    1. Disconnect the T1 Throttle Position (TP) sensor connector.
    2. Measure the resistance between the terminals of the TP sensor.

      Standard:

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Throttle Valve Positions Specified Conditions
      VC (T1-1) - E2 (T1-2) - Between 2.5 kΩ and 5.9 kΩ
      VTA (T1-3) - E2 (T1-2) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (T1-3) - E2 (T1-2) Fully open Between 2.0 kΩ and 10.2 kΩ
    3. Reconnect the TP sensor connector.
      Fig 2: Disconnecting T1 Throttle Position Sensor Connector
      G03196158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPLACE THROTTLE POSITION SENSOR
    2. OK : GO TO NEXT STEP
  3. CHECK HARNESS AND CONNECTOR (ECM - THROTTLE POSITION SENSOR)
    1. Disconnect the E3 ECM connector.
    2. Measure the resistance between the terminals of the E3 ECM connector.

      Standard:

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Throttle Valve Positions Specified Conditions
      VCC (E3-18) - E2 (E3-28) - Between 2.5 kΩ and 5.9 kΩ
      VTA (E3-21) - E2 (E3-28) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (E3-21) - E2 (E3-28) Fully open Between 2.0 kΩ and 10.2 kΩ

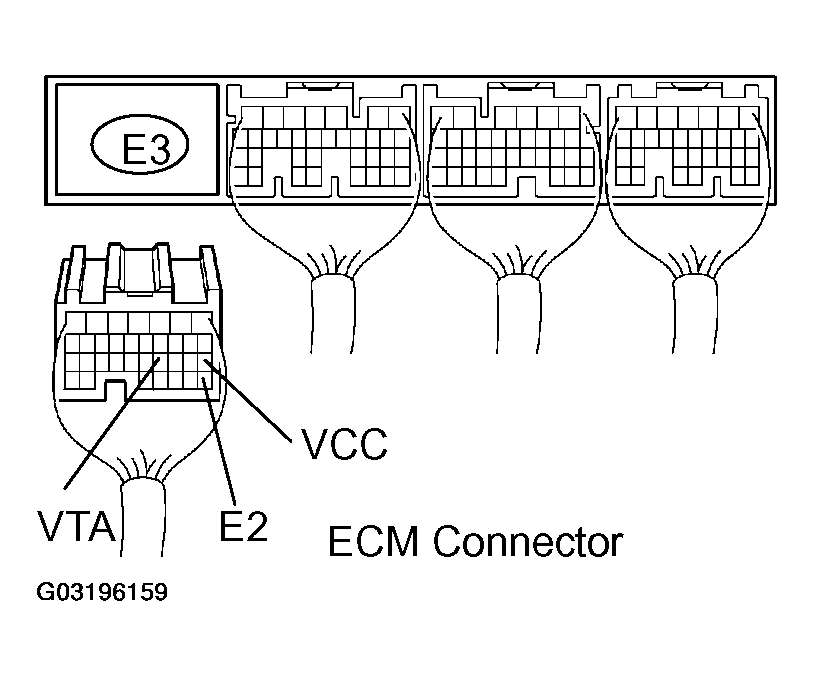

      Fig 3: Disconnecting E3 ECM Connector
      G03196159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the resistance between the terminals of the E3 ECM connector.

      Standard (Check for short):

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Specified Conditions
      VCC (E3-18) - Body ground 10 kΩ or higher
      VTA (E3-28) - Body ground 10 kΩ or higher
    4. Reconnect the ECM connector.
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK : REPLACE ECM (See  REPLACEMENT  )
  4. INSPECT THROTTLE POSITION SENSOR
    1. Disconnect the T1 TP sensor connector.
    2. Measure the resistance between the terminals of the TP sensor.

      Standard:

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Throttle Valve Positions Specified Conditions
      VC (T1-1) - E2 (T1-2) - Between 2.5 kΩ and 5.9 kΩ
      VTA (T1-3) - E2 (T1-2) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (T1-3) - E2 (T1-2) Fully open Between 2.0 kΩ and 10.2 kΩ
    3. Reconnect the TP sensor connector.

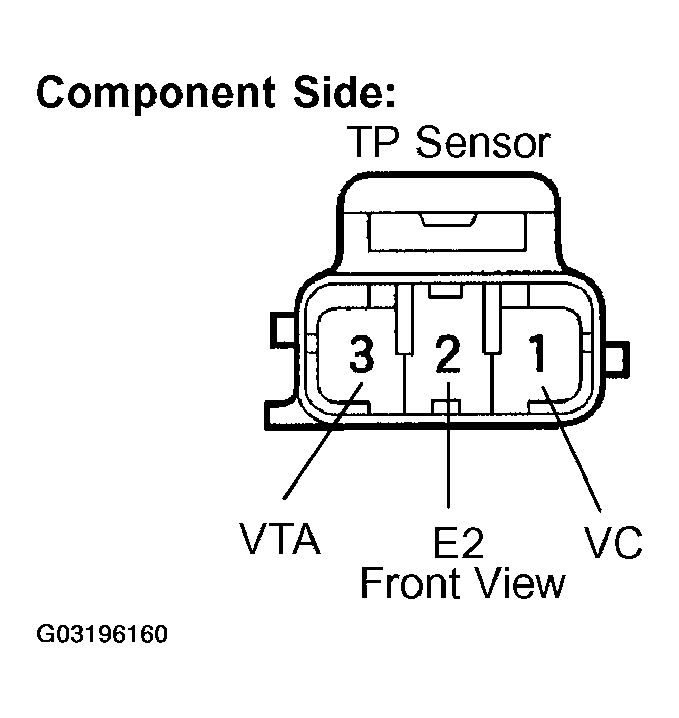

      Fig 4: Disconnecting T1 TP Sensor Connector
      G03196160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPLACE THROTTLE POSITION SENSOR"
    2. OK : GO TO NEXT STEP
  5. CHECK HARNESS AND CONNECTOR (ECM - THROTTLE POSITION SENSOR)
    1. Disconnect the E3 ECM connector.
    2. Disconnect the T1 TP sensor connector.
    3. Check the resistance.

      Standard (Check for open):

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Specified Conditions
      VC (T1-1) - VCC (E3-18) Below 1 Ω
      VTA (T1-3) - VTA (E3-21) Below 1 Ω
      E2 (T1-2) - E2 (E3-28) Below 1 Ω

      Standard (Check for short):

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Specified Conditions
      VC (T1-1) or VCC (E3-18) - Body ground 10 kΩ or higher
      VTA (T1-3) or VTA (E3-21) - Body ground 10 kΩ or higher

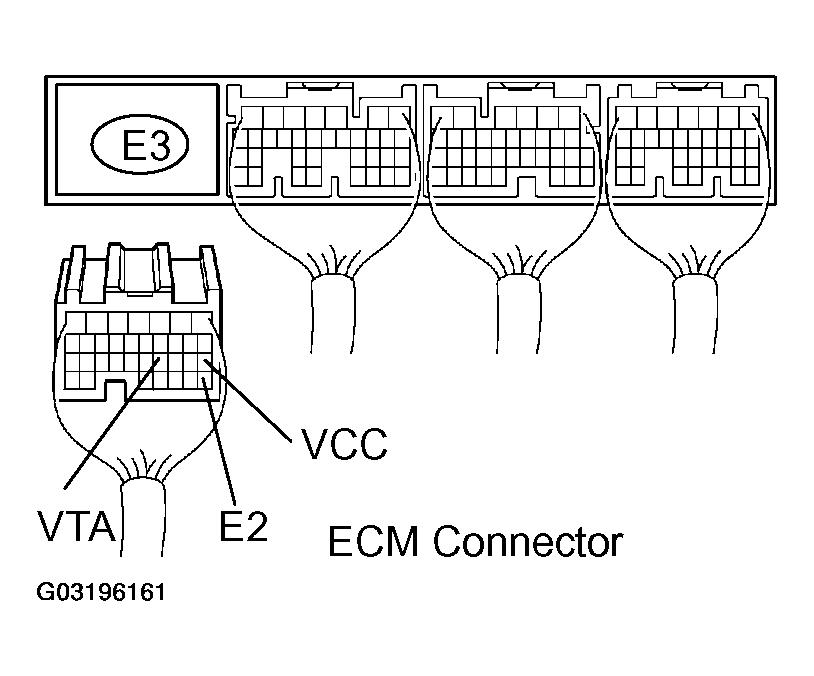

      Fig 5: Disconnecting E3 ECM Connector
      G03196161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the TP sensor connector.
    5. Reconnect the ECM connector.

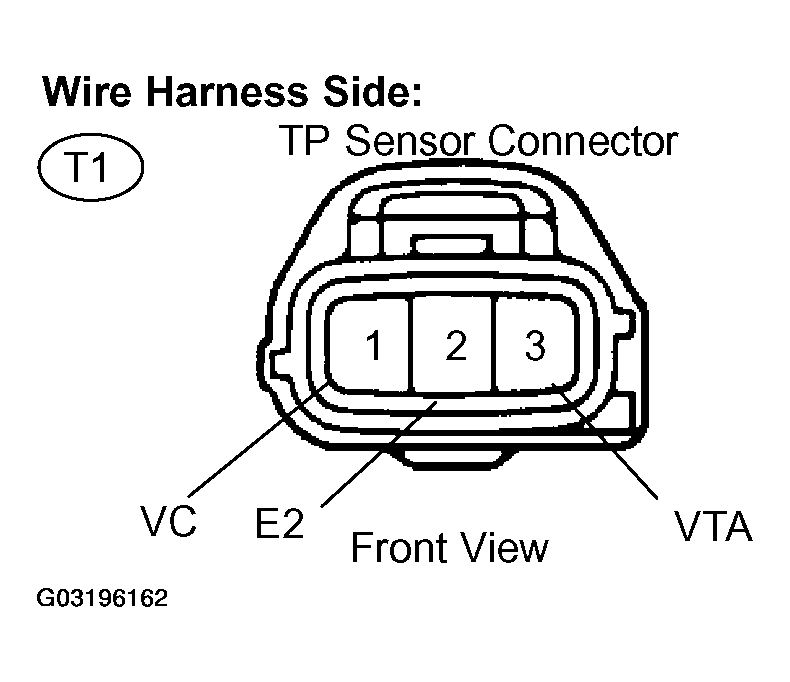

      Fig 6: Reconnecting TP Sensor Connector
      G03196162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK : REPLACE ECM (See  REPLACEMENT  )
