OBD II Scan Tool (excluding the Hand-Held Tester):

  1. INSPECT THROTTLE POSITION SENSOR
    1. Disconnect the T1 Throttle Position (TP) sensor connector.
    2. Measure the resistance between the terminals of the TP sensor.

      Standard:

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Throttle Valve Positions Specified Conditions
      VC (T1-2) - E2 (T1-1) - Between 2.5 kΩ and 5.9 kΩ
      VTA (T1-3) - E2 (T1-1) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (T1-3) - E2 (T1-1) Fully open Between 2.0 kΩ and 10.2 kΩ.
    3. Reconnect the TP sensor connector.

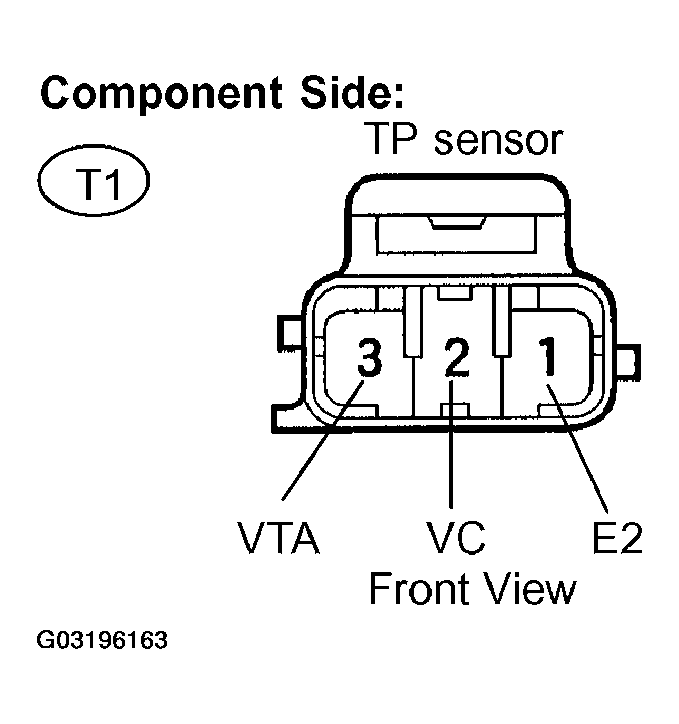

      Fig 1: Disconnecting T1 Throttle Position (TP) Sensor Connector
      G03196163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPLACE THROTTLE POSITION SENSOR
    2. OK : GO TO NEXT STEP
  2. CHECK HARNESS AND CONNECTOR (THROTTLE POSITION SENSOR - ECM)
    1. Disconnect the E3 ECM connector.
    2. Measure the resistance between the terminals of the E3 ECM connector.

      Standard:

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Throttle valve Positions Specified Conditions
      VCC (E3-18) - E2 (E3-28) - Between 2.5 kΩ and 5.9 kΩ
      VTA (E3-21) - E2 (E3-28) Fully closed Between 0.2 kΩ and 5.7 kΩ
      VTA (E3-21) - E2 (E3-28) Fully open Between 2.0 kΩ and 10.2 kΩ
    3. Check the resistance.

      Standard (Check for short):

      TESTER CONNECTIONS SPECIFICATIONS

      Tester Connections Specified Conditions
      VCC (E3-18) - Body ground 10 kΩ or higher
      VTA (E3-28) - Body ground 10 kΩ or higher
    4. Reconnect the ECM connector.

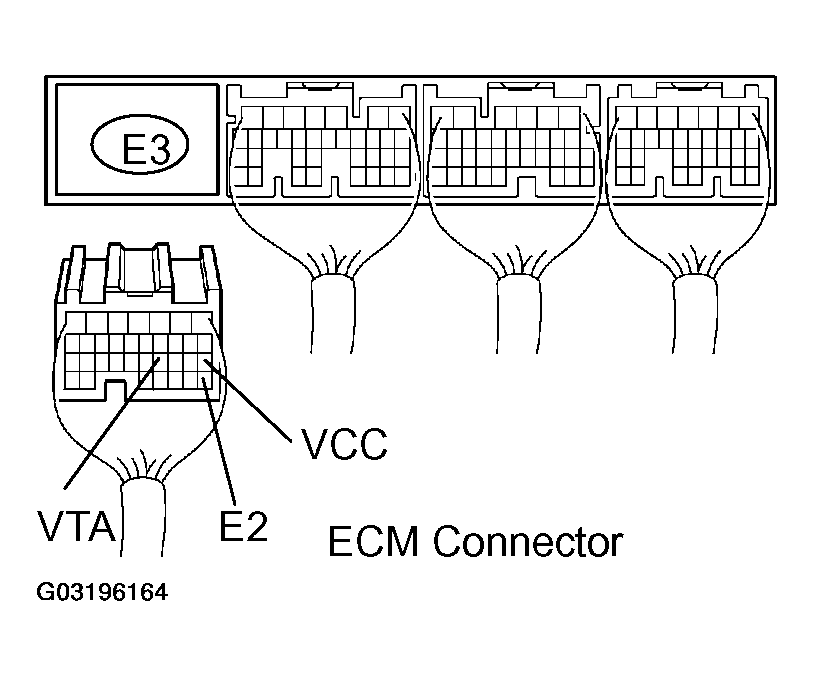

      Fig 2: Disconnecting E3 ECM Connector
      G03196164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK : REPLACE ECM (See  REPLACEMENT  )
