VSC Steering Angle Sensor Initialization During PDS Or After Repair (ST005-04)
Publication date: 2004-09-09Reference number: ST005-04
VSC STEERING ANGLE SENSOR INITIALIZATION DURING PDS OR AFTER REPAIR
TECHNICAL SERVICE BULLETIN
Reference Number(s): ST005-04, Date of Issue:
September, 9 2004
| SCION: | 2005 xA; 2004 xB |
| TOYOTA: | 2004 RAV4, Tacoma & Tundra |
| SECTION: | STEERING |
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
Introduction
During the vehicle Pre-Delivery Service (PDS) or after a repair where the fuse or short pin has been removed, the VSC steering angle sensor must be initialized/re-initialized.
Applicable Vehicles
- 2004 model year RAV4, Scion xB, Tacoma and Tundra vehicles.
- 2005 model year Scion xA vehicles.
Parts Information
PARTS INFORMATION
| MODEL | FUSE | TSB REFERENCE NUMBER |
|---|---|---|
| RAV4 | Cut Fuse (30A) | PG013-00 |
| Scion xA | Dome Fuse (15A) | PD021-04 |
| Scion xB | Dome Fuse (15A) | PD002-03 |
| Tacoma | Short Pin | PD015-03 (Tundra only) |
| Tundra | Short Pin | PD015-03 (Tundra only) |
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Initialization Procedure
Please perform the following procedure to ensure that the VSC steering angle sensor is correctly initialized.
- With the ignition in the off position, disconnect the negative terminal of the battery.

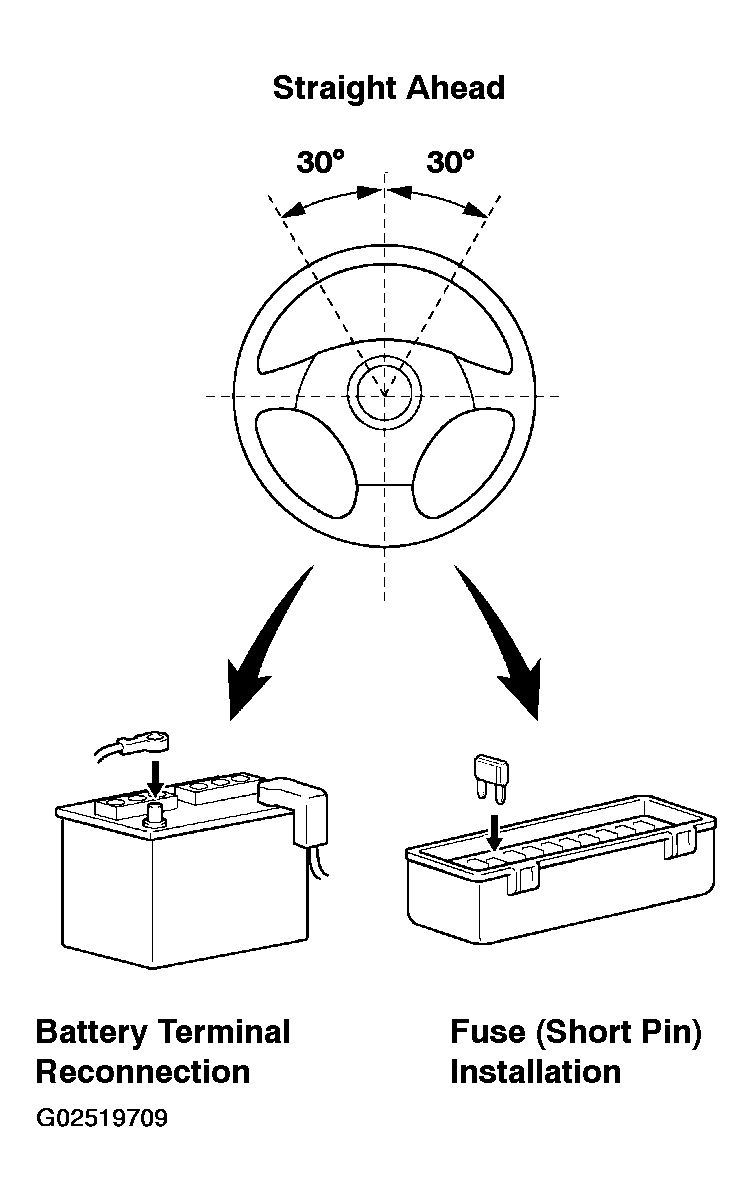

- Check that the steering wheel is in the straight-ahead position (+/- 30 degrees from straight ahead). If the steering wheel position is more than +/- 30 degrees from straight-ahead position, turn the steering wheel to the straight-ahead position.
- Install the fuse/short pin and reconnect the negative terminal of the battery.
