Manual Transaxle Assembly: Components

Fig 1: Identifying Manual Transaxle Assembly Replacement Components (1 Of 5)
G04154566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

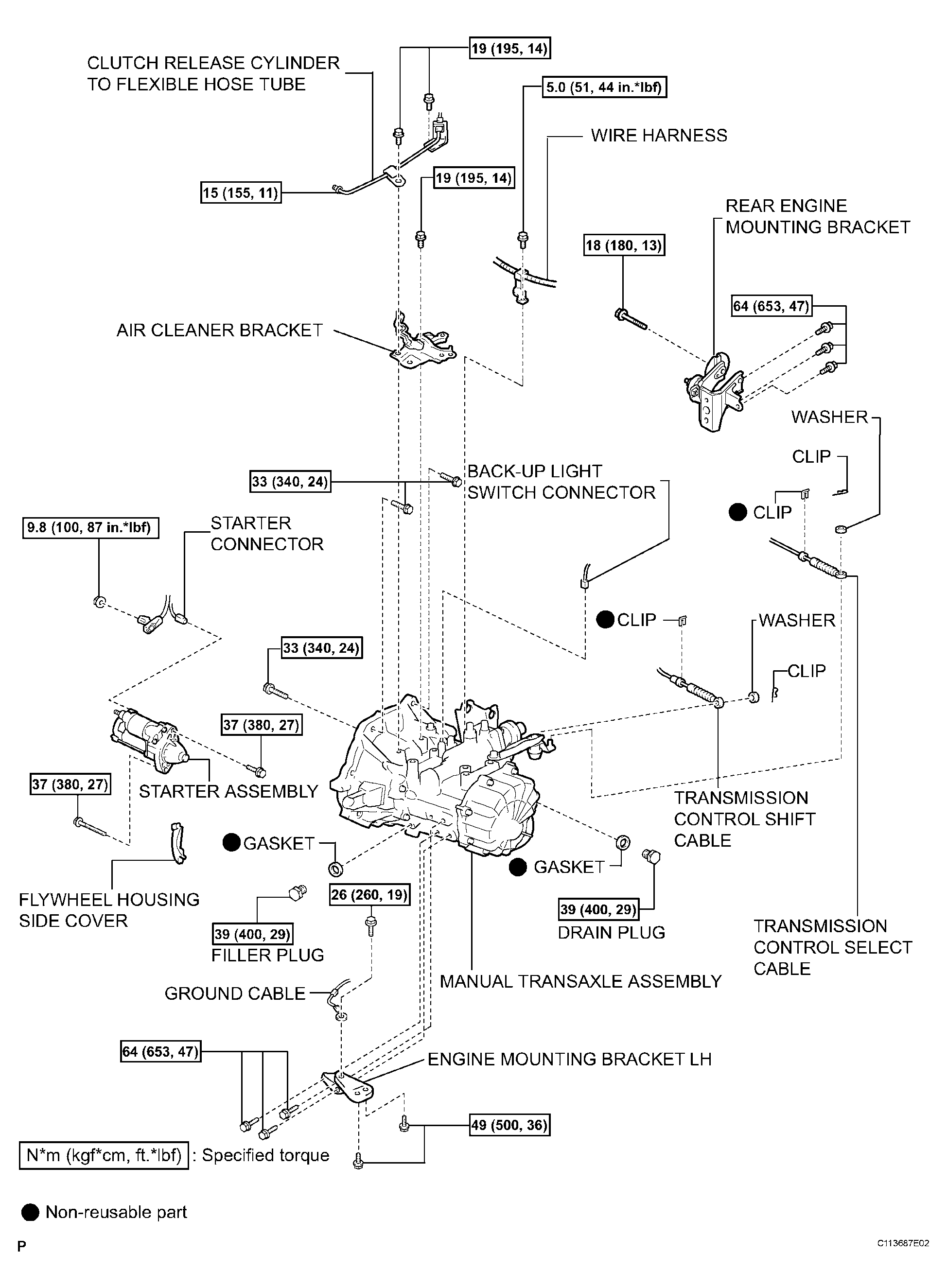

Fig 2: Identifying Manual Transaxle Assembly Replacement Components (2 Of 5)
G04154567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

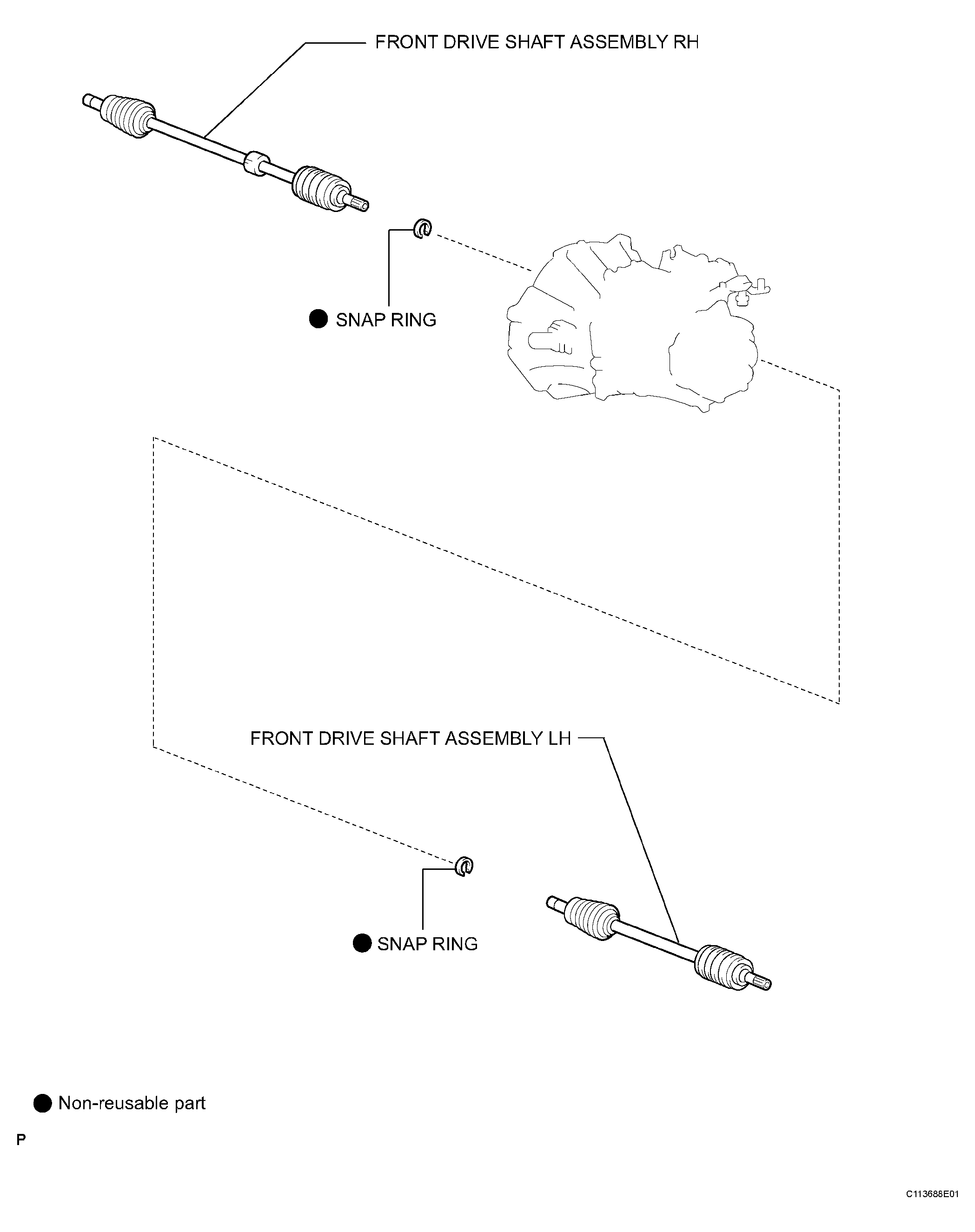

Fig 3: Identifying Manual Transaxle Assembly Replacement Components (3 Of 5)
G04154568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Manual Transaxle Assembly Replacement Components (4 Of 5)
G04154569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Manual Transaxle Assembly Replacement Components (5 Of 5)
G04154570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
